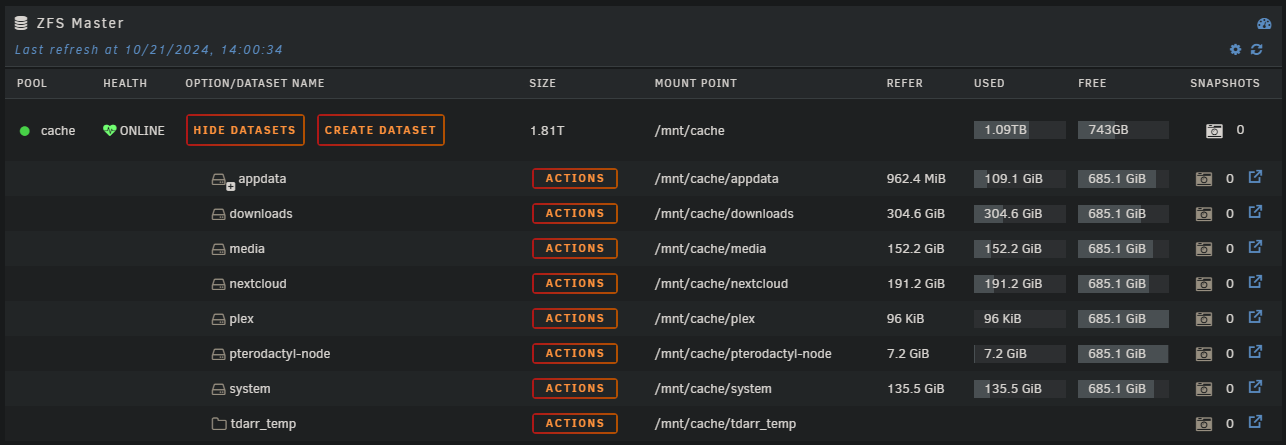

October 21, 20241 yr I have a 2tb ssd in a zfs pool alone, I want to replace it with a 4tb one, I read various differents methods online, but I don't know the best one, here my config: NAME USED AVAIL REFER MOUNTPOINT cache 1.09T 685G 213G /mnt/cache cache/appdata 109G 685G 962M /mnt/cache/appdata cache/appdata/ASF 336K 685G 336K /mnt/cache/appdata/ASF cache/appdata/DiskSpeed 1000K 685G 1000K /mnt/cache/appdata/DiskSpeed cache/appdata/Duplicacy 4.14G 685G 4.14G /mnt/cache/appdata/Duplicacy cache/appdata/JDownloader2 132M 685G 132M /mnt/cache/appdata/JDownloader2 cache/appdata/MKVToolNix-1 6.73M 685G 6.73M /mnt/cache/appdata/MKVToolNix-1 cache/appdata/MKVToolNix-2 11.6M 685G 11.6M /mnt/cache/appdata/MKVToolNix-2 cache/appdata/NginxProxyManager 172M 685G 172M /mnt/cache/appdata/NginxProxyManager cache/appdata/Plex-Media-Server 82.3G 685G 82.3G /mnt/cache/appdata/Plex-Media-Server cache/appdata/QDirStat 684K 685G 684K /mnt/cache/appdata/QDirStat cache/appdata/Unraid-API 116K 685G 116K /mnt/cache/appdata/Unraid-API cache/appdata/binhex-code-server 17.1M 685G 17.1M /mnt/cache/appdata/binhex-code-server cache/appdata/binhex-krusader 11.6G 685G 11.6G /mnt/cache/appdata/binhex-krusader cache/appdata/binhex-makemkv 67.6M 685G 67.6M /mnt/cache/appdata/binhex-makemkv cache/appdata/binhex-qbittorrentvpn 28.0M 685G 28.0M /mnt/cache/appdata/binhex-qbittorrentvpn cache/appdata/bitwarden 7.96M 685G 7.96M /mnt/cache/appdata/bitwarden cache/appdata/cloudflared 116K 685G 116K /mnt/cache/appdata/cloudflared cache/appdata/compreface 11.1M 685G 11.1M /mnt/cache/appdata/compreface cache/appdata/double-take 88.2M 685G 88.2M /mnt/cache/appdata/double-take cache/appdata/fgc 325M 685G 325M /mnt/cache/appdata/fgc cache/appdata/frigate 206M 685G 206M /mnt/cache/appdata/frigate cache/appdata/homeassistant 704M 685G 704M /mnt/cache/appdata/homeassistant cache/appdata/immich 1.68G 685G 1.68G /mnt/cache/appdata/immich cache/appdata/mariadb 279M 685G 279M /mnt/cache/appdata/mariadb cache/appdata/mosquitto 140K 685G 140K /mnt/cache/appdata/mosquitto cache/appdata/nextcloud 238M 685G 238M /mnt/cache/appdata/nextcloud cache/appdata/overseerr 3.44M 685G 3.44M /mnt/cache/appdata/overseerr cache/appdata/plex-meta-manager 104K 685G 104K /mnt/cache/appdata/plex-meta-manager cache/appdata/postgresql14 992M 685G 992M /mnt/cache/appdata/postgresql14 cache/appdata/pterodactyl 348K 685G 348K /mnt/cache/appdata/pterodactyl cache/appdata/speedtest-tracker 1.59M 685G 1.59M /mnt/cache/appdata/speedtest-tracker cache/appdata/tautulli 4.42G 685G 4.42G /mnt/cache/appdata/tautulli cache/appdata/tdarr 790M 685G 790M /mnt/cache/appdata/tdarr cache/appdata/wizarr 628K 685G 628K /mnt/cache/appdata/wizarr cache/appdata/wrapperr 2.57M 685G 2.57M /mnt/cache/appdata/wrapperr cache/downloads 305G 685G 305G /mnt/cache/downloads cache/media 152G 685G 152G /mnt/cache/media cache/nextcloud 191G 685G 191G /mnt/cache/nextcloud cache/plex 96K 685G 96K /mnt/cache/plex cache/pterodactyl-node 7.17G 685G 7.17G /mnt/cache/pterodactyl-node cache/system 135G 685G 135G /mnt/cache/system (I can add the two ssds to the server simultaneously so it can be quicker)
October 21, 20241 yr Community Expert You could add the new device to the pool but then would need to manually remove the other one, or update to v7-beta. Alternatively, you can create a new pool with the new SSD and then replicate the datasets there.
October 21, 20241 yr Author 5 minutes ago, JorgeB said: You could add the new device to the pool but then would need to manually remove the other one, or update to v7-beta. If I update to v7, then how it will work? I read from you faq article that I cannot use that solution for a single drive pool, what commands are the best to do it on v7?
October 21, 20241 yr Community Expert With v7.0.0-beta.3 or newer you can add the drive to create a mirror, then remove the smaller one leaving it a single device pool again.
October 21, 20241 yr Author 1 hour ago, JorgeB said: With v7.0.0-beta.3 or newer you can add the drive to create a mirror, then remove the smaller one leaving it a single device pool again. Seems the way to go, I'll update to beta and try to do that, if I have any problems I'll tell you
October 21, 20241 yr Community Expert Make sure you let the resilver finish before trying to remove the smaller device, click on the pool and check the zpool status.

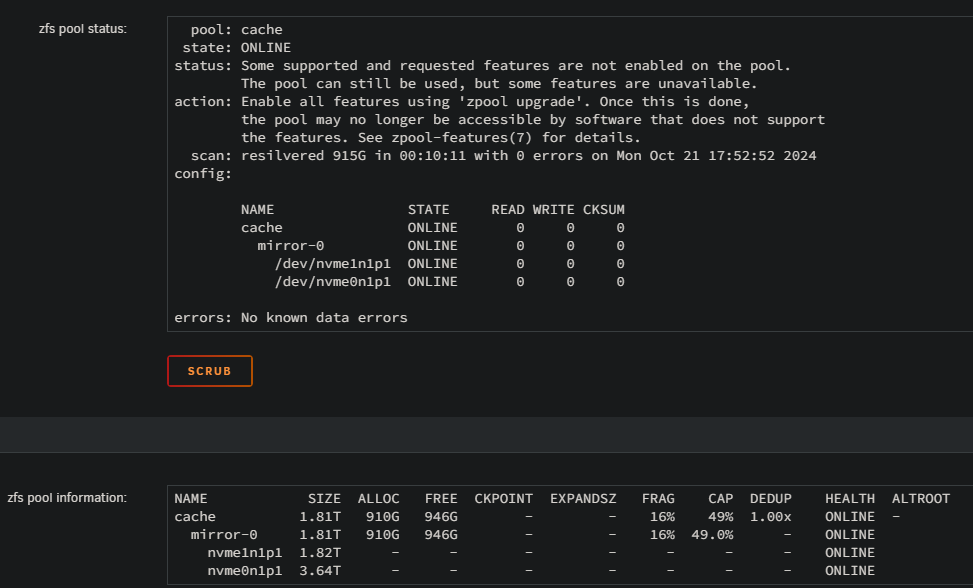

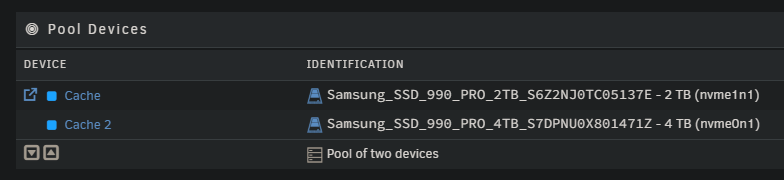

October 21, 20241 yr Author Did the resilver, now Im here: Now I'll do this: And start the array, correct?

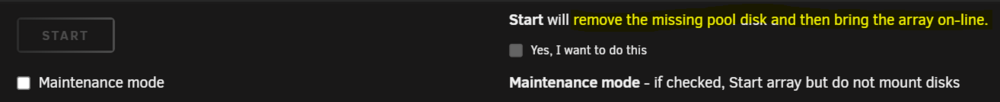

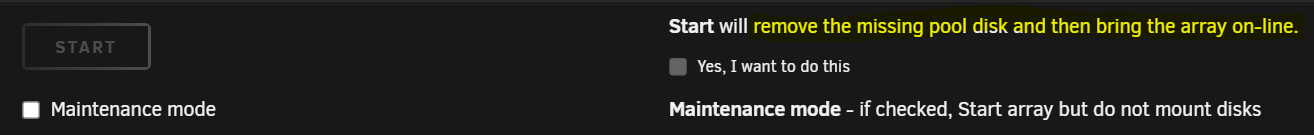

October 21, 20241 yr Author It tell me this: But if I set 1 slot it tells me that it will be wiped Edited October 21, 20241 yr by PilaScat
October 21, 20241 yr Author If I do New config and set only the new ssd it tells me Unmountable: wrong or no file system

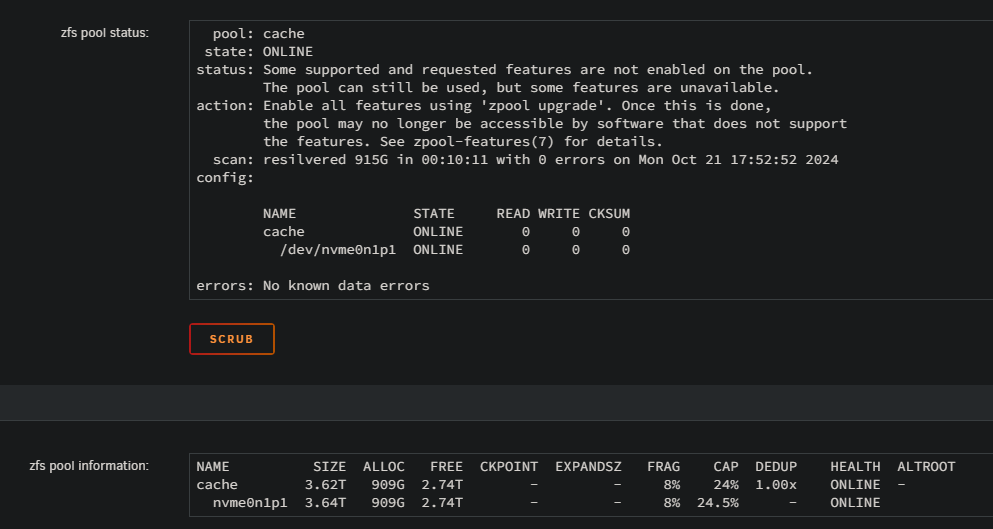

October 21, 20241 yr Author @JorgeB I did zpool detach cache nvme1n1p1 Is it correct? Edited October 21, 20241 yr by PilaScat

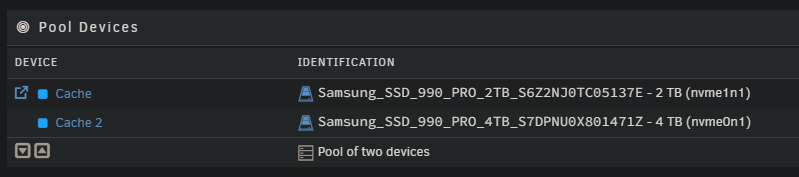

October 21, 20241 yr Community Expert Pool should not be showing blue icons, something is not correct.
October 21, 20241 yr Community Expert That works, you just need to re-import the pool, but I think the GUI option didn't work because the pool was not imported with "auto", icons must be green after array start/stop for the pool to be correctly assigned.
October 21, 20241 yr Author What I need to type? ahahha Now array and docker is started and working as expected I need to stop docker and array then type zpool import? Edited October 21, 20241 yr by PilaScat
October 21, 20241 yr Community Expert 13 minutes ago, PilaScat said: What I need to type? Just need to re-import the pool using the GUI, I assume the GUI is still showing both devices?
October 21, 20241 yr Author 19 minutes ago, JorgeB said: Just need to re-import the pool using the GUI, I assume the GUI is still showing both devices? Yes but I don't see any command/button about zfs pool
October 21, 20241 yr Community Expert Solution Stop the array, click on the pool and then click "Remove Pool", add anew pool with the same name with 1 slot, assign the remaining device, leave the fs set to "auto", start the array.
October 22, 20241 yr Author 24 minutes ago, PilaScat said: can I upgrade the pool? I saw the other post, I don't wanna return to 6.12, I have upgraded, thanks

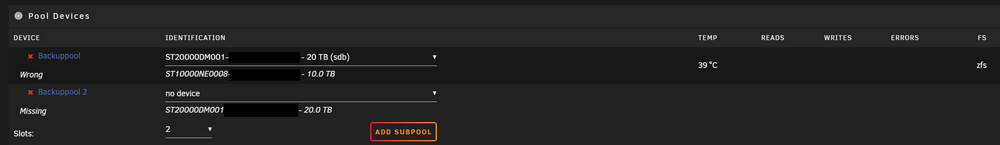

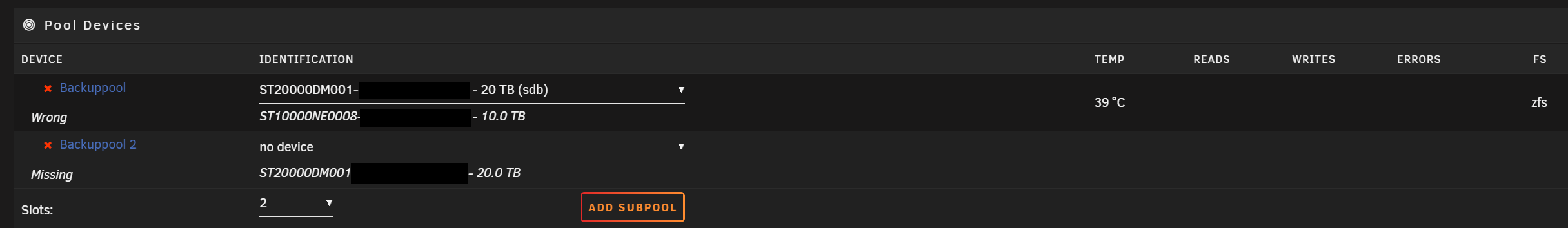

April 7, 20251 yr Sorry for taking over this thread, but I am exactly in the same position for the exchange: I have resilvered, and I would now like to remove the smaller mirrored device. However, I don't know how I should accomplish the following via the GUI: On 10/21/2024 at 3:33 PM, JorgeB said: then remove the smaller one leaving it a single device pool again. I am on 7.0.1. (so long after the beta), but the GUI does not let me change the slot numbers, so how should I remove the smaller one? I probably could solve it via the CLI path, but I specifically want to understand what the GUI way would have been. Or was the possibility for GUI removal removed after the beta? EDIT: Maybe this is actually the correct way to do this? So, is it correct that the pool shows two red crosses? Edited April 7, 20251 yr by HumanTechDesign
April 7, 20251 yr As I needed my server to run today, I actually continued using the CLI way: 1. Add the larger device as a mirror for the existing pool via a new slot in the GUI 2. Start array 3. Finish resilver 4. Stop the array 5. Import the pool via CLI zpool import <poolname> 6. Remove the smaller mirror device via zpool detach <poolname> <drivename> 7. Remove the pool via the pool details (clicking on the blue poolname on the left) 8. Add a new pool with the same name, 1 slot and FS set to auto (showing a blue icon) 9. Start the array This worked without problems. However, I would still be interested in the GUI way. I could also not find any documentation on how this should be accomplished correctly via GUI.
April 7, 20251 yr Community Expert 17 minutes ago, HumanTechDesign said: However, I would still be interested in the GUI way. If it's a mirror, you can just unassign the device you want to remove and start the array.
