I had this error happen a couple weeks and a reboot seemed to smooth everything until now. I've browsed the forums and have concluded that it's most likely a cache drive dying or the docker image is toast.



Can anyone help my figure out if one of my cache drives is on its way out or if my docker image is corrupt?



Symptoms:

Docker webpage will not load and results in an error

Cannot create a new folder through Windows SMB - Get message - Error 0x8000FFFF: Catastrophic failure



Error Messages in Unraid

Below is error messages from one cache drive in the pool

             Nov  3 05:10:06 Tower root: /mnt/cache: 176.8 GiB (189819338752 bytes) trimmed on /dev/sdm1
Nov  8 13:24:42 Tower kernel: BTRFS error (device sdm1): incorrect extent count for 1668683923456; counted 1333, expected 1337
Nov  8 13:24:42 Tower kernel: BTRFS: error (device sdm1: state A) in convert_free_space_to_extents:466: errno=-5 IO failure
Nov  8 13:24:42 Tower kernel: BTRFS info (device sdm1: state EA): forced readonly
Nov  8 13:24:42 Tower kernel: BTRFS: error (device sdm1: state EA) in remove_from_free_space_tree:859: errno=-5 IO failure
Nov  8 13:24:42 Tower kernel: BTRFS error (device sdm1: state EA): failed to run delayed ref for logical 1668962603008 num_bytes 4096 type 178 action 1 ref_mod 1: -5
Nov  8 13:24:42 Tower kernel: BTRFS: error (device sdm1: state EA) in btrfs_run_delayed_refs:2150: errno=-5 IO failure





Second message within the logs shows that it's switch to read only

Nov  8 13:24:42 Tower kernel: BTRFS: error (device sdm1: state A) in convert_free_space_to_extents:466: errno=-5 IO failure

Nov  8 13:24:42 Tower kernel: BTRFS info (device sdm1: state EA): forced readonly

Nov  8 13:24:42 Tower kernel: BTRFS: error (device sdm1: state EA) in remove_from_free_space_tree:859: errno=-5 IO failure

Nov  8 13:24:42 Tower kernel: BTRFS error (device sdm1: state EA): failed to run delayed ref for logical 1668962603008 num_bytes 4096 type 178 action 1 ref_mod 1: -5

Nov  8 13:24:42 Tower kernel: BTRFS: error (device sdm1: state EA) in btrfs_run_delayed_refs:2150: errno=-5 IO failure

Nov  8 13:24:42 Tower kernel: loop: Write error at byte offset 4111290368, length 4096.

Nov  8 13:24:42 Tower kernel: I/O error, dev loop2, sector 8029864 op 0x1:(WRITE) flags 0x0 phys_seg 32 prio class 2

Nov  8 13:24:42 Tower kernel: BTRFS error (device loop2): bdev /dev/loop2 errs: wr 1, rd 0, flush 0,

syslog.txt

Edited November 9, 20241 yr by Buckwheat99
Adding syslog file

That filesystem has issues, recommend backing up and then reformatting.

Back up everything on the cache drives or move it to the array, format the btrfs system and create new?



Would new drives fix this if a drive drops to read only?

Edited November 9, 20241 yr by Buckwheat99
Adding additional question

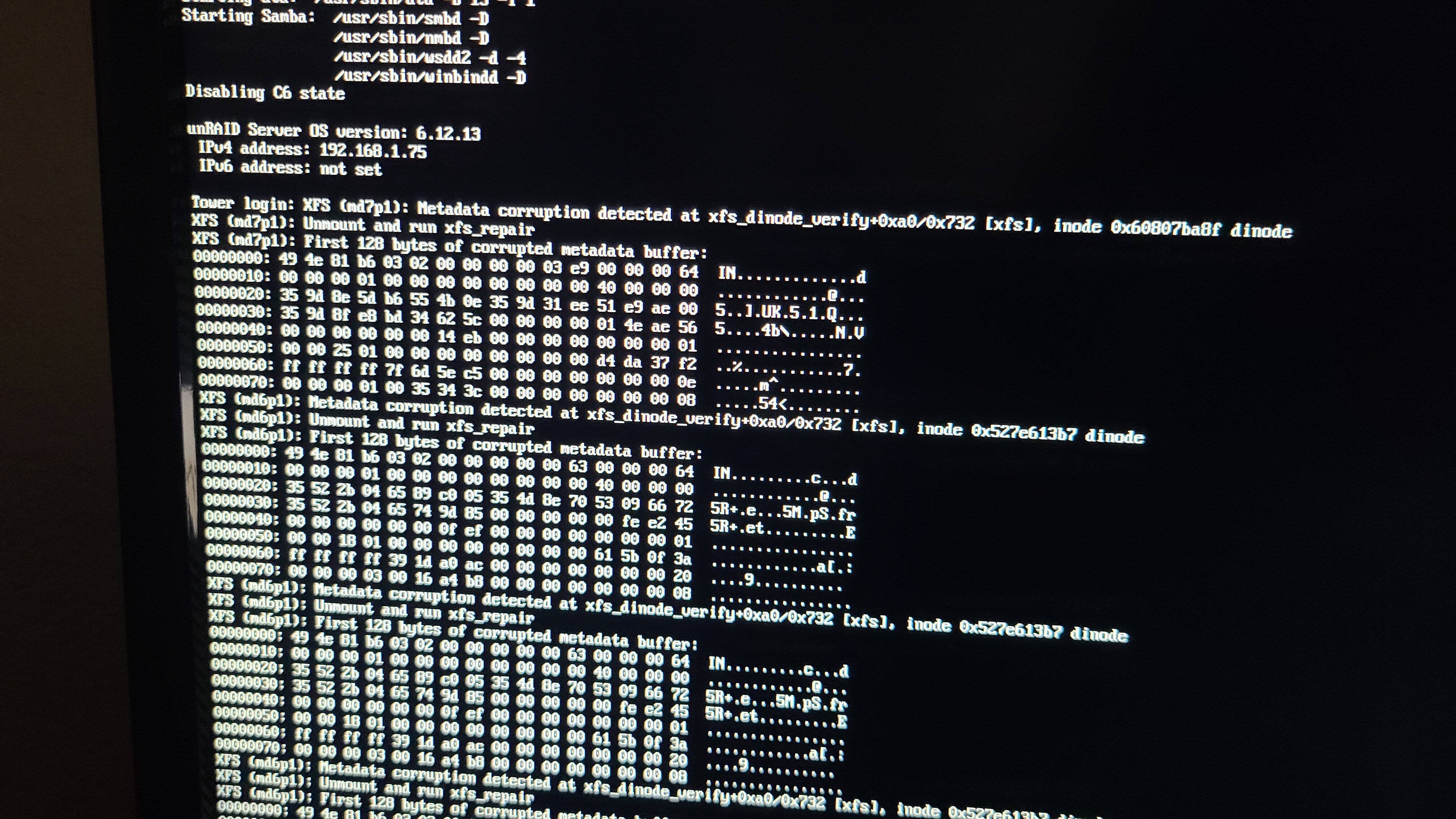

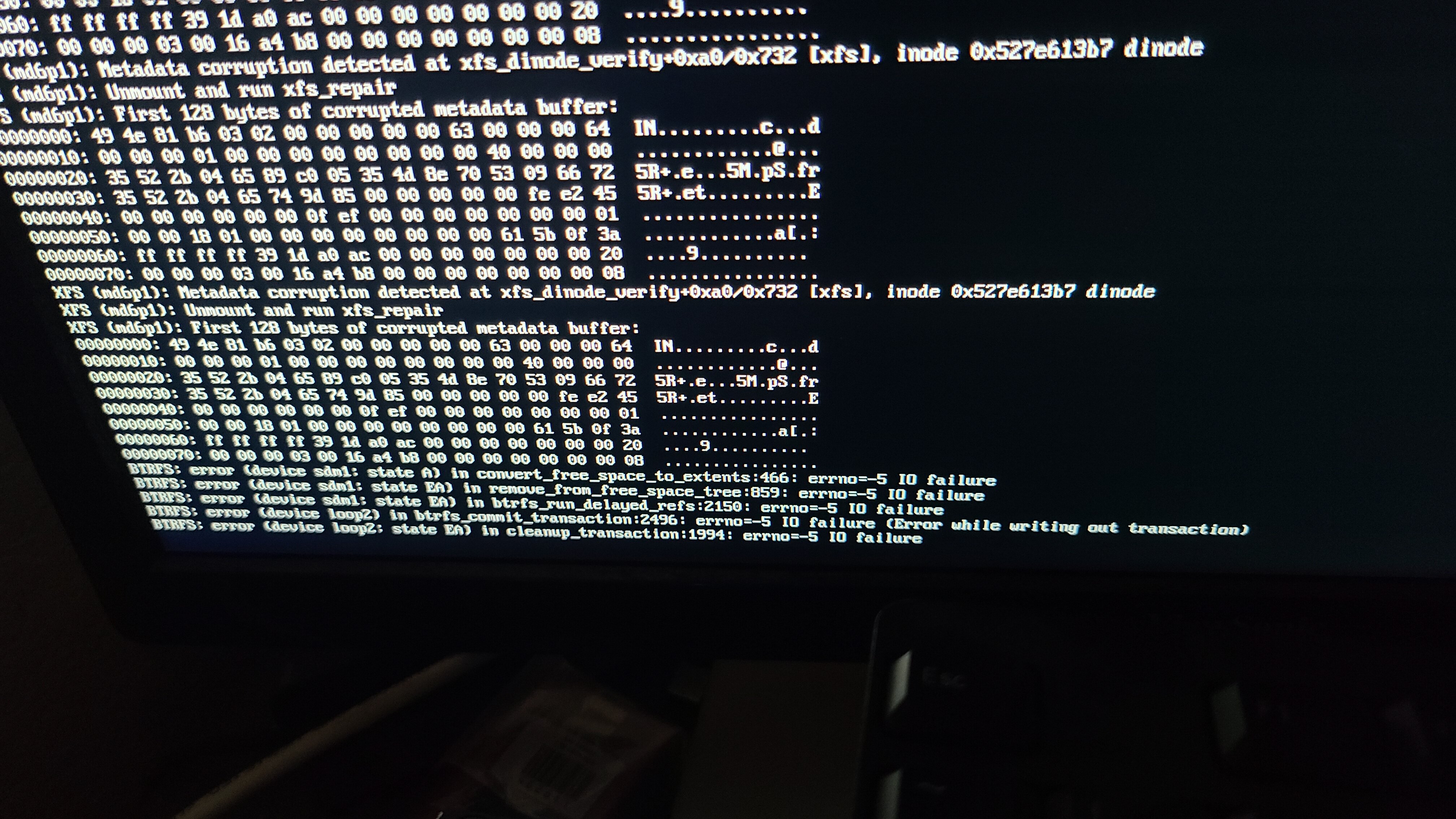

I looked the monitor that's plugged into my server and saw this error that I might have missed in the syslog.syllogism.



How do I do a xfs repair without losing data? Is this on individual drives or the entire system?

The procedure for checking/repairing a file system is documented here in the online documentation accessible via the Manual link at the bottom of the Unraid GUI.



In addition every forum page has a DOCS link at the top and a Documentation link at the bottom.   The Unraid OS->Manual section covers most aspects of the current Unraid release.

15 hours ago, Buckwheat99 said:

Back up everything on the cache drives or move it to the array, format the btrfs system and create new?

Yes.



8 hours ago, Buckwheat99 said:

I looked the monitor that's plugged into my server and saw this error

Disk6 also has filesystem issues, check filesystem, also a good idea to run memtest.

I tried formatting the btrfs system but I'm now at the "Unmountable: Unsupported or no file system" section of this issue for the cache. I have a relatively recent backup of my appdata folder. How can I reformat the cache drives to get those set up again?

Post new diags after a format attempt.

Full diagnostic attached. Appreciate the help.

tower-diagnostics-20241111-0847.zip

The devices are busy, reboot and try again.

That did the trick for formatting. I went to enable Docker and was hoping to move it a cache drive that's nvme formatted as xfs. When enabling docker, does the vdisk matter where it will live? When I enabled, as it was set up previously, an appdata folder was created under the apps shares instead of its own share. No matter change I make, the appdata folder is under lives on the btrfs cache drive.

1 hour ago, Buckwheat99 said:

does the vdisk matter where it will live?

As long as it's in an SSD based pool, it's usually fine.

Does it matter that the appdata folder is in a subfolder in the apps share when it had its own share before?

Not really, but you can move it.

I'm at a loss now and might just have to start over. My appdata was backed up with the CA appdata plugin but I didn't realize it was now deprecated as I upgraded Unraid versions.



Any time I try to move docker from the ssd btrfs cache to nvme cache drive, nothing moves, my appdata folder is location is set to the appdata share but it created a new appdata folder under the apps shade. Nothing I do moves the docker contents and if I manually move it, it gets stuck in the apps -> appdata.



Any idea how to fix that or get the old backup files to be seen by docker so I don't have to rebuild manually?

Edited November 16, 20241 yr by Buckwheat99
spelling

If you have the old appdata, you can just recreate the image:



https://docs.unraid.net/unraid-os/manual/docker-management/#re-create-the-docker-image-file
Then:
https://docs.unraid.net/unraid-os/manual/docker-management/#re-installing-docker-applications
Also see below if you have any custom docker networks:
https://docs.unraid.net/unraid-os/manual/docker-management/#docker-custom-networks
