Did not stop array before pulling an unmounted drive from array. Pulled another array mounted disk drive by mistake, said disk drive became unmountable after popping the disk drive back in.



Rebooted unraid for a clean shutdown hoping it would fix the connection. Data rebuild automatically starts when array starts. I let the rebuild finish.



Drive still unmountable, contents emulated. Sign next to drive is orange triangle with exclamation; hovering over it states "Device Contents Emulated Click to Spin Down Device".



Tried to google issue. Seems that there should not have been a reboot and the unmountable drive should have been subjected to xfs_repair before rebuild.



Need to figure out whether time should be trying another rebuild, trying a software recovery of the files, or just clearing the disk and taking the loss.



Thank you for your assistance. Diagnostics and SMART data of unmountable drive are attached.

tower-diagnostics-20241230-1815.zip tower-smart-20241230-1817.zip

Do not format.  Data recovery is a possibility.  Wait until one of the Gurus has a chance to see your thread.  (May be tomorrow...)

10 minutes ago, Frank1940 said:

Do not format.  Data recovery is a possibility.  Wait until one of the Gurus has a chance to see your thread.  (May be tomorrow...)

Thank you! Will do.

Check filesystem on disk1, run it without -n

8 hours ago, JorgeB said:

Check filesystem on disk1, run it without -n

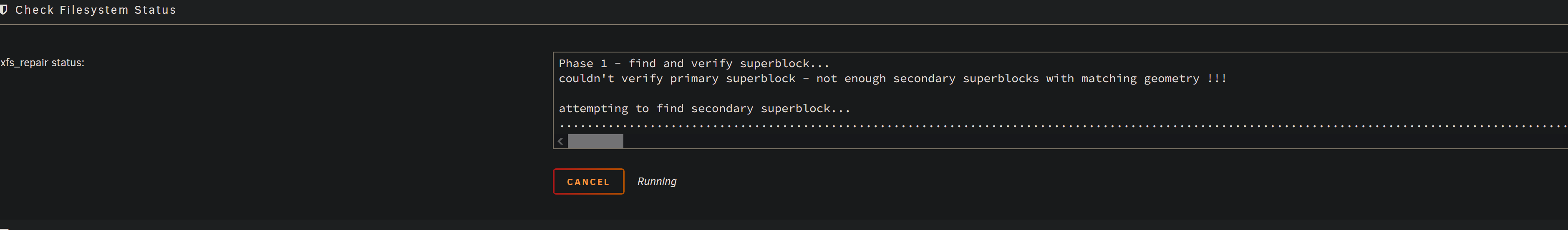

This is what appears running without -n:



If it cannot find a valid superblock it means the filesystem is severely corrupt and cannot be repaired by xfs_repair, this should not happen with a normal rebuild if parity was valid, unless there were errors during the rebuild.



Also note that Unraid never starts a rebuild automatically, it must be started by the user by unassigning and reassigning the disk, if I understood correctly, you've rebuilt on top of the old disk?

Just now, JorgeB said:

If it cannot find a valid superblock it means the filesystem is severely corrupt and cannot be repaired by xfs_repair, this should not happen with a normal rebuild if parity was valid, unless there were errors during the rebuild.



Also note that Unraid never starts a rebuild automatically, it must be started by the user by unassigning and reassigning the disk, if I understood correctly, you've rebuilt on top of the old disk?

Yes, I must have unassigned the disk and reassigned it to try and fix the unmountable status as well.



Yes, the rebuild was on top of the old disk, the working data drive that became unmountable.



If filesystem is severely corrupted, then is data recovery possible or should a clean wipe and format be done and take the loss of data?



Thank you.

You can try a data recovery app like UFS explorer on that disk first, then reformat and restore the recovered data, if any.

7 hours ago, JorgeB said:

You can try a data recovery app like UFS explorer on that disk first, then reformat and restore the recovered data, if any.

Great thank you for the advice!
