I I updated twice already.

My Unraid runs on a Proxmox Server as VM.

I don't use parity. I already made a Filesystemcheck which was without errors.

Going back to Unraid 7.0.1 the Disk is back online. Is there a way to fix this?

I did

Here is the log output:

May 12 08:28:53 Tower kernel: mdcmd (30): import 29
May 12 08:28:53 Tower kernel: md: import_slot: 29 empty
May 12 08:28:53 Tower emhttpd: /bin/lsblk -lnbo TYPE,PARTN,NAME,START,SIZE,PTTYPE,PARTTYPE /dev/sdd 2>&1
May 12 08:28:53 Tower emhttpd: disk    sdd        1000204886016 dos
May 12 08:28:53 Tower emhttpd: part  1 sdd1  2048 1000203837440 dos 0x83
May 12 08:28:53 Tower emhttpd: device sdd partition: sdd1 type: dos start: 2048 size: 976761560, code: 0x83 (4)
May 12 08:28:54 Tower emhttpd: import 30 pool device: (sdd) CT1000P3_PSSD8_1208231228097-0:0
May 12 08:28:54 Tower emhttpd: /bin/lsblk -lnbo TYPE,PARTN,NAME,START,SIZE,PTTYPE,PARTTYPE /dev/sdc 2>&1
May 12 08:28:54 Tower emhttpd: disk    sdc        15289286656 dos
May 12 08:28:54 Tower emhttpd: part  1 sdc1  2048 15288238080 dos 0xc
May 12 08:28:54 Tower emhttpd: device sdc partition: sdc1 type: dos start: 2048 size: 14929920, code: 0xc (4)
May 12 08:28:54 Tower emhttpd: /sbin/blkid /dev/sdc1 2>&1
May 12 08:28:54 Tower emhttpd: /dev/sdc1: LABEL_FATBOOT="UNRAID" LABEL="UNRAID" UUID="2732-64F5" BLOCK_SIZE="512" TYPE="vfat"
May 12 08:28:54 Tower emhttpd: import 31 flash device: (sdc)
May 12 08:28:54 Tower emhttpd: update_pool_cfg: 30 cache 0
May 12 08:28:56 Tower SysDriversBuild: Submitting SysDrivers Build
May 12 08:28:56 Tower sysDrivers: SysDrivers Build Starting
May 12 08:28:56 Tower usb_manager: Info: rc.usb_manager Building Connected Status
May 12 08:28:56 Tower emhttpd: read SMART /dev/sdd
May 12 08:28:56 Tower emhttpd: read SMART /dev/sdb
May 12 08:28:56 Tower emhttpd: read SMART /dev/sdc
May 12 08:28:56 Tower emhttpd: read SMART /dev/sda
May 12 08:28:57 Tower emhttpd: Starting services...
May 12 08:28:57 Tower emhttpd: shcmd (17): /etc/rc.d/rc.samba reload
May 12 08:28:57 Tower emhttpd: shcmd (20): /etc/rc.d/rc.nfsd start
May 12 08:28:57 Tower rc.nfsd: Starting NFS server daemon...
May 12 08:28:57 Tower kernel: RPC: Registered named UNIX socket transport module.
May 12 08:28:57 Tower kernel: RPC: Registered udp transport module.
May 12 08:28:57 Tower kernel: RPC: Registered tcp transport module.
May 12 08:28:57 Tower kernel: RPC: Registered tcp-with-tls transport module.
May 12 08:28:57 Tower kernel: RPC: Registered tcp NFSv4.1 backchannel transport module.
May 12 08:28:58 Tower rc.rpc: Starting RPC server daemon...
May 12 08:28:58 Tower rc.rpc: Starting RPC portmapper
May 12 08:28:58 Tower rc.rpc: /sbin/rpcbind -w -h 192.168.100.29
May 12 08:28:58 Tower rc.rpc: Starting RPC NSM (Network Status Monitor)
May 12 08:28:58 Tower rc.rpc: /sbin/rpc.statd
May 12 08:28:58 Tower rpc.statd[6106]: Version 2.8.3 starting
May 12 08:28:58 Tower sm-notify[6108]: Version 2.8.3 starting
May 12 08:28:58 Tower rpc.statd[6106]: Failed to read /var/lib/nfs/state: Success
May 12 08:28:58 Tower rpc.statd[6106]: Initializing NSM state
May 12 08:28:58 Tower rc.rpc: RPC server daemon...  Started.
May 12 08:28:58 Tower rc.nfsd: /usr/sbin/exportfs -r
May 12 08:28:58 Tower rc.nfsd: /usr/sbin/rpc.nfsd -u -H 192.168.100.29 -H 127.0.0.1 -s 8
May 12 08:28:59 Tower kernel: NFSD: Using UMH upcall client tracking operations.
May 12 08:28:59 Tower kernel: NFSD: Using UMH upcall client tracking operations.
May 12 08:28:59 Tower kernel: NFSD: starting 90-second grace period (net f0000000)
May 12 08:28:59 Tower rc.nfsd: /usr/sbin/rpc.mountd
May 12 08:28:59 Tower rpc.mountd[6291]: Version 2.8.3 starting
May 12 08:29:00 Tower rc.nfsd: NFS server daemon...  Started.
May 12 08:29:00 Tower emhttpd: shcmd (22): /etc/rc.d/rc.avahidaemon reload
May 12 08:29:00 Tower unassigned.devices: Updating share settings...
May 12 08:29:00 Tower unassigned.devices: Share settings updated.
May 12 08:29:00 Tower emhttpd: Autostart disabled (device configuration change)
May 12 08:29:00 Tower emhttpd: shcmd (27): /etc/rc.d/rc.php-fpm start
May 12 08:29:00 Tower rc.php-fpm: Starting PHP-fpm daemon...
May 12 08:29:00 Tower rc.php-fpm: /usr/sbin/php-fpm --daemonize --fpm-config /etc/php-fpm.conf --pid /var/run/php-fpm.pid --allow-to-run-as-root
May 12 08:29:01 Tower rc.php-fpm: PHP-fpm daemon...  Started.
May 12 08:29:01 Tower emhttpd: shcmd (28): /etc/rc.d/rc.unraid-api install
May 12 08:29:01 Tower emhttpd: shcmd (29): /etc/rc.d/rc.nginx start
May 12 08:29:01 Tower rc.nginx: Starting Nginx server daemon...
May 12 08:29:06 Tower root: Starting the Unraid API
May 12 08:29:07 Tower webgui: Successful login user root from 192.168.100.142
May 12 08:29:11 Tower sysDrivers: SysDrivers Build Complete
May 12 08:29:19 Tower root: [PM2][WARN] Applications unraid-api not running, starting...
May 12 08:29:19 Tower root: [PM2][WARN] App unraid-api has option 'wait_ready' set, waiting for app to be ready...
May 12 08:29:19 Tower root: [PM2] App [unraid-api] launched (1 instances)
May 12 08:29:19 Tower root: ┌────┬───────────────┬─────────────┬─────────┬─────────┬──────────┬────────┬──────┬───────────┬──────────┬──────────┬──────────┬──────────┐
May 12 08:29:19 Tower root: │ id │ name          │ namespace   │ version │ mode    │ pid      │ uptime │ ↺    │ status    │ cpu      │ mem      │ user     │ watching │
May 12 08:29:19 Tower root: ├────┼───────────────┼─────────────┼─────────┼─────────┼──────────┼────────┼──────┼───────────┼──────────┼──────────┼──────────┼──────────┤
May 12 08:29:19 Tower root: │ 0  │ unraid-api    │ default     │ 4.8.0+… │ fork    │ 7744     │ 7s     │ 0    │ online    │ 0%       │ 193.2mb  │ root     │ disabled │
May 12 08:29:19 Tower root: └────┴───────────────┴─────────────┴─────────┴─────────┴──────────┴────────┴──────┴───────────┴──────────┴──────────┴──────────┴──────────┘
May 12 08:29:19 Tower root: Starting nchan processes...
May 12 08:29:19 Tower rc.nginx: Nginx server daemon...  Started.
May 12 08:29:19 Tower emhttpd: shcmd (30): /etc/rc.d/rc.flash_backup start
May 12 08:29:19 Tower flash_backup: stop watching for file changes
May 12 08:29:20 Tower flash_backup: flush: /usr/local/emhttp/plugins/dynamix.my.servers/scripts/UpdateFlashBackup update
May 12 08:29:23 Tower flash_backup: checking for changes every 1800 seconds
May 12 08:29:23 Tower flash_backup: adding task: /usr/local/emhttp/plugins/dynamix.my.servers/scripts/UpdateFlashBackup update
May 12 08:31:22 Tower root: Fix Common Problems Version 2025.03.12
May 12 08:31:23 Tower root: Fix Common Problems: Other Warning: Array is not started



That suggests disk1 is being detected with a different capacity, please post the diagnostics.

here we are

tower-diagnostics-20250512_1152.zip

Disk is being detected with a very different capacity, it was 1.3TB, now is around 500GB, but since it's a virtual disk unclear to me why, post the output from:



fdisk -l /dev/sda



I'm back on 7.0.1 here is everything fine. Want this output here too, before I do an upgrade again?



this is the output from 7.0.1



Disk /dev/sda: 1.22 TiB, 1342177280000 bytes, 2621440000 sectors
Disk model: QEMU HARDDISK
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x00000000

Device     Boot Start        End    Sectors  Size Id Type
/dev/sda1        2048 1048575999 1048573952  500G 83 Linux

So the disk is 1.3T but the partition is only 500G, Unraid 7.1 detects devices based on the partition size, not disk like before, but it should work after doing a new config.

My partition is also 1,3 TB 🙈 can I fix this before the update or just update an create a new config? Do I need to keep disk settings with new config?

7 minutes ago, Stephan4711 said:

My partition is also 1,3 TB

It's not according to fdisk:



45 minutes ago, Stephan4711 said:

 500G



I'm confused, I thought, this is all available inside this partition.



Nevertheless, how can I fix the partition size, best without restoring backups



Edited May 12, 20251 yr by Stephan4711

1 hour ago, JorgeB said:

it should work after doing a new config.

Tools - New config



If it doesn't mount, downgrade back and do another new config.

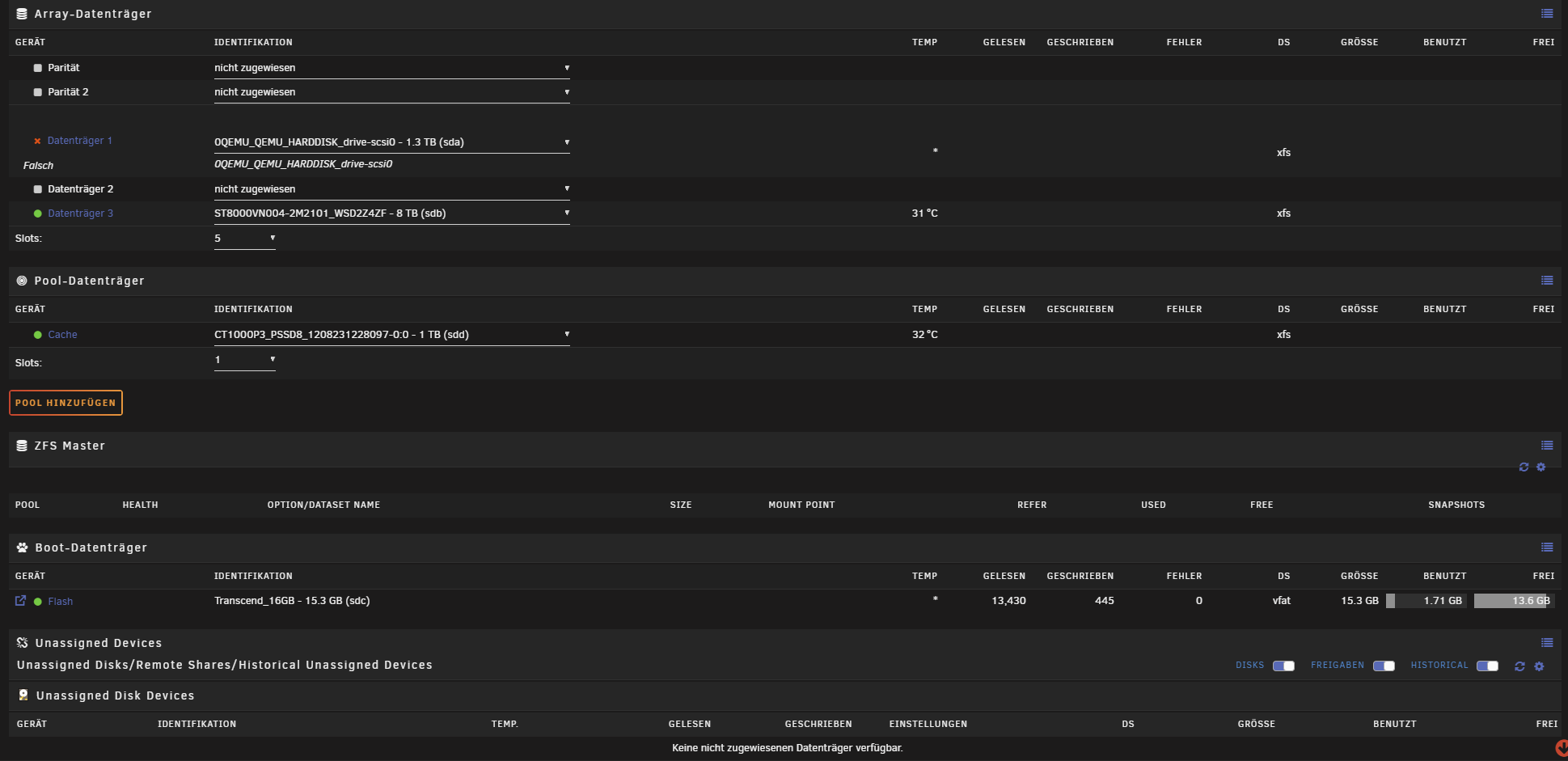

Doesn't really look good at all.

after downgrade and new config it's still a complete broken mess

back on 7.0.1 I made all config manually new to the disk assignment, but there is still the fdisk size error.

Wouldn't it be good to fix this?

49 minutes ago, Stephan4711 said:

Doesn't really look good at all.

You didn't assign the device, and that would not even be needed if you kept the assignments.



Stop the array, set the array slots to 3 and assign old disk1, you will also need to add the pools back.





2 minutes ago, JorgeB said:

You didn't assign the device, and that would not even be needed if kept the assignments.



Stop the array, set the array slot to 3 and assign old disk1





That's why I asked If I should keep the disk setting with new config.



I'm not doing new configs on a daily base, so I'm not familar with it.



Right now I'm moving all stuff vom disk1 to disk3. When done, I'll kill disk1 and recreate it. Mabe also with BTFRS instead of XFS

2 minutes ago, Stephan4711 said:

That's why I asked If I should keep the disk setting with new config.

Sorry, missed that question, but you just need to assign the array and pool devices back, no need to move/copy any data.

the problem still exists, that there is the fdisk error and while the array was broken, the disks appeared as unassigned drives, there I could do a file system check, which was with errors for disk1 and the fix option, didn't work. So I would like to repair this mess, so that next updates will work without trouble.

I moved all data to the other disk.

I created a new VM-Disk and changed them.

I formated the new Disk with btrfs, when it was attached to the Array.

Then the update to 7.1.2 was no problem.

Then I moved my data back.
