June 4, 20251 yr After a view crashes of my system, caused by a faulty mainboard, I have an issue with my zfs pool.Somehow, four of my raidz2 HDDs are also listed in the l2arc subpool.Here is the output of zpool import:pool: strongholdid: 17308197520914921262state: ONLINEstatus: One or more devices were being resilvered.action: The pool can be imported using its name or numeric identifier.config:stronghold ONLINEraidz2-0 ONLINEsdf1 ONLINEsdg1 ONLINEsdh1 ONLINEsdj1 ONLINEsdi1 ONLINEsdk1 ONLINEcachesdf1sdg1sdh1sdi1sdb1sdc1sdd1sde1As you can see sdf1, sdg1, sdh1 and sdi1 are listed in the raidz2 and in the cache.I can start the array and the filesystem is mounting the drives. All data is still appears to be there, but if i do a zpool status I get this:pool: strongholdstate: ONLINEstatus: One or more devices could not be used because the label is missing orinvalid. Sufficient replicas exist for the pool to continuefunctioning in a degraded state.action: Replace the device using 'zpool replace'.see: https://openzfs.github.io/openzfs-docs/msg/ZFS-8000-4Jscan: scrub in progress since Sun Jun 1 05:00:01 20256.92T / 16.7T scanned at 10.2G/s, 90.3G / 16.7T issued at 133M/s0B repaired, 0.53% done, 1 days 12:24:39 to goconfig:NAME STATE READ WRITE CKSUMstronghold ONLINE 0 0 0raidz2-0 ONLINE 0 0 0sdf1 ONLINE 0 0 0sdg1 ONLINE 0 0 0sdh1 ONLINE 0 0 0sdi1 ONLINE 0 0 0sdj1 ONLINE 0 0 0sdk1 ONLINE 0 0 0cachesdf1 FAULTED 0 0 0 corrupted datasdg1 FAULTED 0 0 0 corrupted datasdh1 FAULTED 0 0 0 corrupted datasdi1 FAULTED 0 0 0 corrupted datasdb1 ONLINE 0 0 0sdc1 ONLINE 0 0 0sdd1 ONLINE 0 0 0sde1 ONLINE 0 0 0errors: No known data errorsThe scrub starts immediately, and I’m concerned that the resilvering might corrupt the data. I’m not sure if that risk is real.I tried "zpool remove stronghold sdf1" but I got this error: cannot remove sdf1: operation not supported on this type of pool.Then I tried deleting the pool and creating it again without the subpool, but after that the pool won't mount anymore: Unmountable: wrong or no file systemSo I restored from a USB backup I created after my server crashed and the mainboard swap, but the duplicate drives were already there at that time.Any guidance appreciated. tower-diagnostics-20250605-1103.zip Edited June 5, 20251 yr by NoGames749 Diagnostics attached
June 10, 20251 yr Community Expert You should always add the diags to a new post, or we won't see that the thread as new info, just saw it by chance, please post the output from:zpool import -d /dev/disk/by-id
June 11, 20251 yr Author I actually thought that might be the case, but didn't want to seem pushy by posting again, just to say that I attached it to my original post.Anyway, thank you for your response, here’s the console output:root@S1:~# zpool import -d /dev/disk/by-id pool: light id: 12952846355415526821 state: ONLINEstatus: Some supported features are not enabled on the pool. (Note that they may be intentionally disabled if the 'compatibility' property is set.)action: The pool can be imported using its name or numeric identifier, though some features will not be available without an explicit 'zpool upgrade'.config: light ONLINE mirror-0 ONLINE nvme-eui.0025384a21401ef6-part1 ONLINE nvme-eui.0025384a2141525c-part1 ONLINE mirror-1 ONLINE nvme-eui.0025384a21401ecf-part1 ONLINE nvme-eui.0025384a21401f2b-part1 ONLINE pool: stronghold id: 17308197520914921262 state: ONLINEstatus: One or more devices were being resilvered.action: The pool can be imported using its name or numeric identifier.config: stronghold ONLINE raidz2-0 ONLINE wwn-0x5000c500dc103c47-part1 ONLINE wwn-0x5000c500dc109abd-part1 ONLINE wwn-0x5000c500dc24a2c2-part1 ONLINE wwn-0x5000c500db68a192-part1 ONLINE wwn-0x5000c500db3fda93-part1 ONLINE wwn-0x5000c500dc279672-part1 ONLINE cache sdf1 sdg1 sdh1 sdi1 wwn-0x5002538f42611244-part1 wwn-0x5002538f4261126a-part1 wwn-0x5002538f4261121c-part1 wwn-0x5002538f42611220-part1
June 12, 20251 yr Community Expert Solution With the array stopped, import the pool manually with that option:zpool import -d /dev/disk/by-id strongholdthen type zpool remove stronghold sdf1 sdg1 sdh1 sdi1If that works, export the pool with zpool export stronghold then reimport with the GUI using the remaining devices:on main click on the first device for that pool and then "remove pool"back on main, create a new pool with the same name and 10 slotsassign the remaining pool devices all together, don't create subspools, leave the filesystem set to autostart the array to import the pool, you should now be able to add the missing L2ARC devices again using the GUI.
June 12, 20251 yr Author I tried the first steps and they worked. The pool is currently being exported again. Just to clarify: Why 10 slots? Am I including the cache devices? Because the RaidZ2 only had 6 devices.
June 12, 20251 yr Community Expert 11 minutes ago, NoGames749 said:Am I including the cache devices? Because the RaidZ2 only had 6 devices.You can include the remaining cache devices, unless you prefer to remove them all now, and then add them back later all together, that will also work.

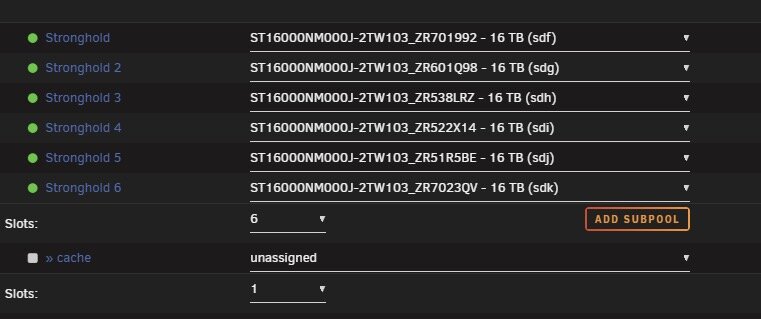

June 12, 20251 yr Author Everything is working normally again now.A few more comments:I created the pool with only the 6 HDDs from the vdev, meaning no cache. Then I started the array, but it didn't finish mounting.I had to restart the server because I couldn't stop the array. After the restart, the cache was there with one slot: zpool import even showed me all 4 cache drives. I then set the slot to 0, and then I was able to start the array and the mounting was successful.Maybe this will help the next person with the same issue.Thank you so much for your help.
June 12, 20251 yr Community Expert 41 minutes ago, NoGames749 said:zpool import even showed me all 4 cache drives.So the pool imported without the L2ARC vdev, it shouldn't, can you post a new zpool status output?
June 12, 20251 yr Author 3 minutes ago, JorgeB said:So the pool imported without the L2ARC vdev, it shouldn't, can you post a new zpool status output?Everything I say here happened after this step:7 hours ago, JorgeB said:on main click on the first device for that pool and then "remove pool"I recreated the pool without the L2ARC subpool, I started the array but the mounting wouldn't finish.The zpool status output was:root@S1:~# zpool status pool: stronghold state: ONLINE status: Some supported and requested features are not enabled on the pool. The pool can still be used, but some features are unavailable. action: Enable all features using 'zpool upgrade'. Once this is done, the pool may no longer be accessible by software that does not support the features. See zpool-features(7) for details. scan: resilvered 637M in 7 days 14:58:59 with 0 errors on Thu Jun 12 01:50:56 2025 config: NAME STATE READ WRITE CKSUM stronghold ONLINE 0 0 0 raidz2-0 ONLINE 0 0 0 sdf1 ONLINE 0 0 0 sdg1 ONLINE 0 0 0 sdh1 ONLINE 0 0 0 sdi1 ONLINE 0 0 0 sdj1 ONLINE 0 0 0 sdk1 ONLINE 0 0 0 cache wwn-0x5002538f42611244-part1 ONLINE 0 0 0 wwn-0x5002538f4261126a-part1 ONLINE 0 0 0 wwn-0x5002538f4261121c-part1 ONLINE 0 0 0 wwn-0x5002538f42611220-part1 ONLINE 0 0 0 errors: No known data errorsAs you can see, the L2ARC cache is still there even though I didn't add it again.I waited about an hour, so I had to reboot the server because I don't know of any way to stop the array while its "starting".After rebooting, I was shown the cache with one slot and no drive assigned in the GUI, which is what the screenshot in my last post shows.1 hour ago, NoGames749 said:First, I tried setting the slot count to 4, assigning my cache drives, and starting the array, but I got this error:Wrong Pool State: cache - invalid config.So I unassigned the cache drives and set the slot count to 0.I started the array and it was mounted successfully.zpool status was then:root@S1:~# zpool status pool: stronghold state: ONLINE status: Some supported and requested features are not enabled on the pool. The pool can still be used, but some features are unavailable. action: Enable all features using 'zpool upgrade'. Once this is done, the pool may no longer be accessible by software that does not support the features. See zpool-features(7) for details. scan: resilvered 637M in 7 days 14:58:59 with 0 errors on Thu Jun 12 01:50:56 2025 config: NAME STATE READ WRITE CKSUM stronghold ONLINE 0 0 0 raidz2-0 ONLINE 0 0 0 sdf1 ONLINE 0 0 0 sdg1 ONLINE 0 0 0 sdh1 ONLINE 0 0 0 sdi1 ONLINE 0 0 0 sdj1 ONLINE 0 0 0 sdk1 ONLINE 0 0 0 errors: No known data errors Then I stopped the array again, added a 4-slot L2ARC subpool with my drives, started the array, and the zpool status output now shows:root@S1:~# zpool status pool: stronghold state: ONLINE status: Some supported and requested features are not enabled on the pool. The pool can still be used, but some features are unavailable. action: Enable all features using 'zpool upgrade'. Once this is done, the pool may no longer be accessible by software that does not support the features. See zpool-features(7) for details. scan: resilvered 637M in 7 days 14:58:59 with 0 errors on Thu Jun 12 01:50:56 2025 config: NAME STATE READ WRITE CKSUM stronghold ONLINE 0 0 0 raidz2-0 ONLINE 0 0 0 sdf1 ONLINE 0 0 0 sdg1 ONLINE 0 0 0 sdh1 ONLINE 0 0 0 sdi1 ONLINE 0 0 0 sdj1 ONLINE 0 0 0 sdk1 ONLINE 0 0 0 cache sdb1 ONLINE 0 0 0 sdc1 ONLINE 0 0 0 sdd1 ONLINE 0 0 0 sde1 ONLINE 0 0 0 errors: No known data errorsEverything now works as I am used to. Edited June 12, 20251 yr by NoGames749
