Tools & Methodology:

Flash Drive Information Extractor & ChipGenius -- Used to identify flash controller and NAND chip info.

H2testw (2 passes) -- Used to test drive capacity, functionality, and read/write performance.

Unraid USB Flash Creator -- Used to check local GUID compatibility (does not check against Unraid's live licensing server).

OSS Team U18 -- Used to measure idle current draw (mA) on a Windows PC (powered externally via USB-HID to eliminate meter self-consumption).

Additional Data Provided: Estimated year of manufacture and NAND flash lithography (node size).

Note: The Unraid USB Creator can be picky -- it may incorrectly flag some drives as having "No valid GUID" due to the non-standard length of their serial numbers.

The non-standard length should not be a problem when registering with the licensing server.

In the case of a completely missing serial number, running a vendor-specific tools like AlcorMP, JetFlash Online Recovery etc might resolve the issue.

Transcend JetFlash V10 - 8 GB, USB 2.0

Year: ~2008

GUID: NO --> YES (Fixed via JetFlash Online Recovery -- a free tool developed by Transcend).

Controller: Alcor AU6986

Possible Memory Chip(s):

Samsung K9HCG08U1M, 51nm

Memory Type: MLC

Flash ID: ECD755B6 78EC

Flash Channels: Dual

Chip Code: 0xBC07

Chip F/W: 2103

VID: 058F

PID: 6387

Manufacturer: JetFlash

Physical Disk Capacity: 16 GB

USB Version: 2.00

Declared Power: 100 mA

Idle Current Draw: 68 mA

Write: 11 MB/s, Read: 22 MB/s

eBay Item #: 335738602703

---

Transcend JetFlash 600 - 16 GB, USB 2.0

Year: ~2011

GUID: NO --> YES (Fixed via JetFlash Online Recovery -- a free tool developed by Transcend).

Controller: Alcor AU6998

Possible Memory Chip(s):

Samsung K9LCG08U0A, 27nm

Memory Type: MLC

Flash ID: ECDED57A 5843

Flash Channels: Dual

Chip Code: 0xCD03

Chip F/W: 3506

VID: 8564

PID: 1000

Manufacturer: JetFlash

Physical Disk Capacity: 16 GB

USB Version: 2.00

Declared Power: 100 mA

Idle Current Draw: 51 mA

Write: 19 MB/s, Read: 23.5 MB/s

---

Mushkin Prospector - 16 GB, USB 2.0

Year: 2012

GUID: YES

Controller: Phison PS2251-61 (PS2261)

Possible Memory Chip(s):

Toshiba TC58NVG6D2GTA00, 24nm

Memory Type: MLC

Flash ID: 98DE9482 7656

Chip F/W: 03.08.10

Firmware Date: 2012-03-07

VID: 13FE

PID: 3E00

Manufacturer: MUSHKIN

Product: MKNUFDPR16GB

Physical Disk Capacity: 16 GB

USB Version: 2.00

Declared Power: 200 mA

Idle Current Draw: 35 mA

Write: 13 MB/s, Read: 18 MB/s

---

A Trade show giveaway - 2 GB, USB 2.0

Year: ~2011

GUID: YES

Controller: Alcor SC708AN / AU6987AN

Possible Memory Chip(s):

Toshiba TC58NVG4D2HTA00, 24nm

Memory Type: MLC

Flash ID: 98D58432 7256

Chip F/W: E403

VID: 058F

PID: 6387

Manufacturer: Generic

Physical Disk Capacity: 2 GB

USB Version: 2.00

Declared Power: 0 mA The drive is fully functional - looks like a firmware programming oversight.

Idle Current Draw: 57 mA

Write: 5 MB/s, Read: 16.5 MB/s

---

Generic (metal casing) - 8 GB, USB 2.0

Year: ~ 2020

GUID: NO --> YES (Fixed via ChipsBank UMPTool by scanning the drive on default settings)

Controller: ChipsBank CBM2199E

Possible Memory Chip(s):

Samsung K9GCGD8D0A, 21nm (likely surplus leftover NAND from 2011-12 production runs)

Memory Type: MLC

Flash ID: ECDEA47A 68C4

Flash CE: 1

Firmware Date: 2019-11-11

VID: ABCD

PID: 1234

Manufacturer: General

Product: UDisk

Physical Disk Capacity: 8 GB

USB Version: 2.00

Declared Power: 100 mA

Idle Current Draw: 10 mA

Write: 5 MB/s, Read: 28.5 MB/s

Edited Wednesday at 09:01 AM5 days by Lolight

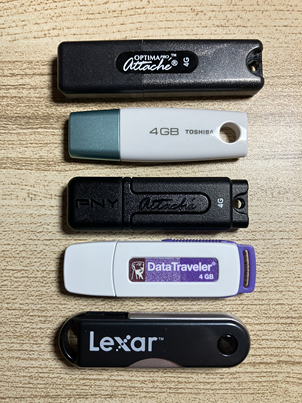

The following drives were recently acquired from eBay as new old stock (NOS), still sealed in their original retail packaging.

Part numbers (P/N) and copyright years are listed exactly as they appear on the packaging.

Note: The copyright year is not necessarily the exact year of production but is close enough to serve as a reliable reference in the absence of other evidence about the manufacturing date when shopping online.

PNY Attache Optima Pro -- 4 GB, USB 2.0

P/N: P-FD4GBHSP-FS, Made in USA

Year: 2007

GUID: YES

Controller: Phison PS2231 (PS2251-31)

Possible Memory Chip(s):

Toshiba TH58NVG5D4CTG20, 70nm

Memory Type: MLC

Flash ID: 98D585A5 6A12

Chip F/W: 01.08.10

Firmware Date: 2007-07-11

VID: 154B

PID: 0015

Physical Disk Capacity: 4 GB

USB Version: 2.00

Declared Power: 200 mA

Idle Current Draw: 38 mA

eBay item number: 366476105606

---

PNY Attache Optima Pro -- 4 GB, USB 2.0

P/N: P-FD4GBHSP-FS, Made in China

Year: 2007

GUID: YES

Controller: Phison PS2231 (PS2251-31)

Possible Memory Chip(s):

Toshiba TC58NVG5D1DTG20, 56nm

Memory Type: MLC

Flash ID: 98D594BA F413

Chip F/W: 01.08.10

Firmware Date: 2007-07-11

VID: 0930

PID: 6545

Physical Disk Capacity: 4 GB

USB Version: 2.00

Declared Power: 200 mA

Idle Current Draw: 38 mA

Write: 12 MB/s, Read: 18 MB/s

---

Toshiba Transmemory -- 4 GB, USB 2.0

P/N: USB-4GTR - in the U.S., U2K-004GT(A) - globally. Made in China

Year: 2007

GUID: YES (The initial scan produced the false positive "No valid GUID" - yet the licensing server accepted the drive without issues.)

Controller: Phison PS2231 (PS2251-31)

Possible Memory Chip(s):

Toshiba TH58NVG5D1DTG20, 56nm

Memory Type: MLC

Flash ID: 98D594BA 7413

Chip F/W: 01.0A.10

Firmware Date: 2007-09-29

VID: 0930

PID: 6545

Manufacturer: TOSHIBA

Product: TransMemory

Physical Disk Capacity: 4 GB

USB Version: 2.00

Declared Power: 200 mA

Idle Current Draw: 38 mA

Write: 12 MB/s, Read: 18 MB/s

eBay item number: 397757648737

---

PNY Attache -- 4 GB, USB 2.0

P/N: P-FD4GBATT2-FS, Made in China

Year: 2008

GUID: YES

Controller: Phison PS2233 (PS2251-33)

Possible Memory Chip(s):

Toshiba TH58NVG5D2ETA20, 43nm

Memory Type: MLC

Flash ID: 98D59432 7654

Chip F/W: 01.02.10

Firmware Date: 2008-07-01

VID: 0930

PID: 6545

Physical Disk Capacity: 4 GB

USB Version: 2.00

Declared Power: 200 mA

Idle Current Draw: 52 mA

Write: 6 MB/s, Read: 20 MB/s

---

Kingston Datatraveler -- 4 GB, USB 2.0

P/N: DTI/4GB, Made in China

Year: 2008

GUID: YES

Controller: SkyMedi SK6211 BA

Possible Memory Chip(s):

Intel-Micron JS29F32G08AAMD1, 34nm

Memory Type: MLC

Flash ID: 89D7943E 84

Flash CE: 1

VID: 0951

PID: 1603

Manufacturer: Kingston

Product: DataTraveler 2.0

Physical Disk Capacity: 4 GB

USB Version: 2.00

Declared Power: 200 mA

Idle Current Draw: 38 mA

Write: 5 MB/s, Read: 18 MB/s

Current Ebay availability: 2009 vs the referenced 2008, same P/N (possibly a different NAND/controller combo) -

eBay item number: 406690595569

---

2009 Lexar Jumpdrive Twistturn -- 4 GB, USB 2.0

P/N: JDTT4GABTP Rev. A, Made in China

Year: 2009

GUID: YES

Controller: Silicon Motion SM3252 C

Possible Memory Chip(s):

Micron MT29F32G08CBAAA, 34nm

Memory Type: MLC

Flash ID: 2CD7943E

Chip F/W: ISP 090709-nIbr

VID: 05DC

PID: A764

Physical Disk Capacity: 4 GB

USB Version: 2.00

Declared Power: 100 mA

Idle Current Draw: 40 mA

Write: 7 MB/s, Read: 18 MB/s

Edited Wednesday at 09:10 AM5 days by Lolight

The following output was kindly shared by @landS and reproduced here with their permission.

Innodisk USB Drive 3ME -- 64 GB, USB 3.0 -- Industrial USB Flash Drive:

P/N: DEUA1-64GI61BW1SC-B345B, Made in Taiwan

Year: 2026 -- eBay purchase, $3.99

GUID: YES

Controller: Silicon Motion SM3261 AB

Possible Memory Chip(s):

Toshiba 983C95937A51, 15nm

Memory Type: MLC

VID: 196D

PID: 0201

Physical Disk Capacity: 64 GB

USB Version: 3.00

Declared Power: 504 mA

eBay item number: 326046070546

https://www.innodisk.com/en/products/flash-storage/others-usb-usb-edc/usb-drive-3me

Edited June 5Jun 5 by Lolight
