Hi everyone, I am running into a persistent issue that i'm not able to solve alone.

First of all, I really hope this is not a broken SSD, since everyone know how the prices are going, I bought it before christmas at a decent price.

Current System Specs:

• CPU: Intel i7-12700

• Mobo: ROG STRIX B760-I Gaming WIFI (Brand new, just swapped)

• RAM: 64GB

• Cache Pool: NVMe SSD (Formatted as ZFS)

• Unraid Version: 7.2.3

My server has been stable for 90+ days with old hardware, but when I added a WD_BLACK SN850X as cache drive instead of old one the system started to crash with segfault at specific time of day.

I used a SATA SSD formatted as XFS with docker img, with the new one I went with ZFS, and docker with folder structure, since this changed everything broke. Crashes appends every night at midnight, with a day at 8AM and 4PM.

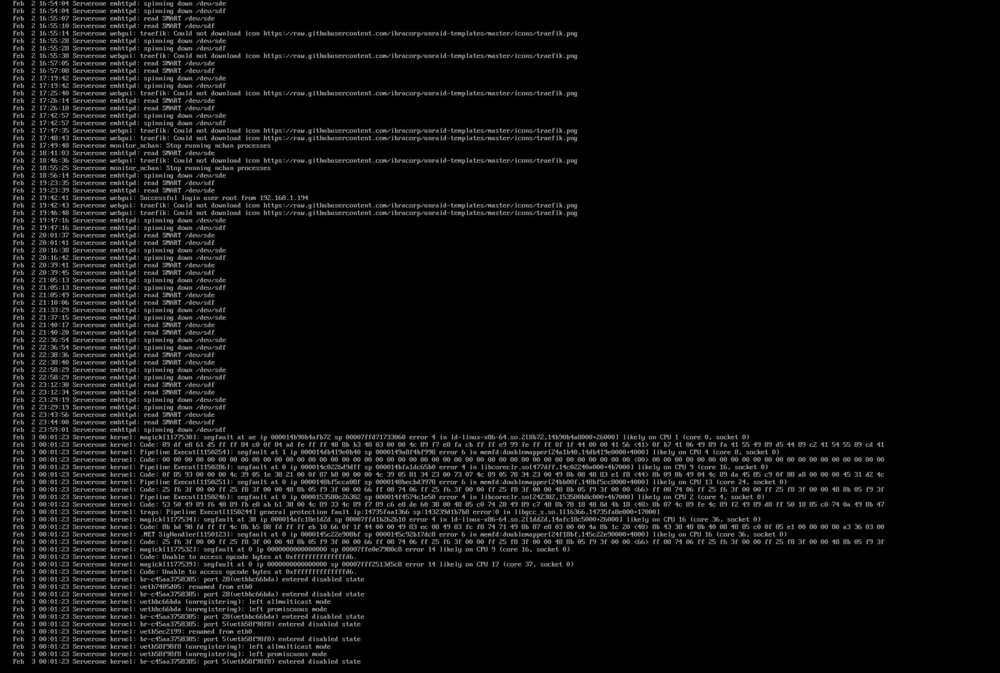

The log is always the same in syslog, i'll attach a screenshot beacuse even with mirror syslog enabled the system is not able to write logs in file

This is the smart log

Smart Log for NVME device:nvme0 namespace-id:ffffffff

critical_warning : 0

temperature : 114 °F (319 K)

available_spare : 100%

available_spare_threshold : 10%

percentage_used : 0%

endurance group critical warning summary: 0

Data Units Read : 6366107 (3.26 TB)

Data Units Written : 10656984 (5.46 TB)

host_read_commands : 46940165

host_write_commands : 110899764

controller_busy_time : 144

power_cycles : 38

power_on_hours : 580

unsafe_shutdowns : 24

media_errors : 0

num_err_log_entries : 0

Warning Temperature Time : 0

Critical Composite Temperature Time : 0

Thermal Management T1 Trans Count : 0

Thermal Management T2 Trans Count : 0

Thermal Management T1 Total Time : 0

Thermal Management T2 Total Time : 0

This is my syslinux configuration:

kernel /bzimage

append initrd=/bzroot nvme_core.default_ps_max_latency_us=0 acpi_enforce_resources=lax pcie_aspm=off

What I have tried so far:

1. Docker Rebuild: I deleted the entire docker folder in the system share and recreated it from scratch, and overlay2 driver.

2. Hardware Swap: I suspected a hardware issue, so I swapped the motherboard from an Intel H610-I to a new ROG STRIX B760-I. The crash happened again at midnight with the new motherboard.

3. RAM: Memtest passed with 0 errors.

I have restored the old ssd as cache drive, and the wdblack is unassigned. Just to see if it's something regardless the hardware used as cache drive.

Thanks in advance to everyone who helps me figure this out

serverone-diagnostics-20260205-0955.zip

Edited February 5Feb 5 by stark1995

Is it always at the same time, and if so, do you have any scheduled tasks running at that time?

Seeing different, unrelated programs (ImageMagick and .NET apps) all segfaulting at the same time is a major red flag. It usually points to one of three things: bad RAM, bad/overlcoked CPU or corrupt Docker Image/Filesystem

Hi! thank you for your support

It is indeed happening at fixed intervals: exactly every 8 hours (midnight, 8 AM, and 4 PM). The logs always show ImageMagick and .NET segfaulting simultaneously.

I did try to run a memtest for a few hours and all tests were passed. I haven't overclocked the CPU and the docker filesystem is basically new because I made it yesterday when I changed from native to overlay2.

I have many containers running in background:

• any-sync-bundle-aio

• apache-tika-server

• switchbot-mqtt

• atvloadly

• audiobookshelf

• binhex-code-server

• binhex-qbittorrentvpn

• CloudBeaver

• CoolerControl

• crowdsec

• crowdsec-firewall-bouncer

• DiskSpeed

• dockersocket

• Dozzle

• flaresolverr

• frigate

• glances

• Grafana

• Home-Assistant-Container

• homepage

• immich_machine_learning

• immich_server

• LiteLLM

• Maintainerr

• Maintainerr-Overlay-Helperr

• matter-server

• MongoDB

• mosquitto

• n8n

• open-webui

• palmr

• Plex

• Plex-Auto-Languages

• Pocket-ID

• postgresql16

• prowlarr

• qui

• radarr

• Redis

• scrutiny

• Seerr

• SFTPGo

• sonarr

• syncthing

• tautulli

• telethon-downloader

• TeslaMate

• traefik

• UptimeKuma

• vaultwarden

• zigbee2mqtt

I have now copied appdata and system folder back to old SATA SSD formatted as XFS, so if the problem is on RAM or something else it should come again. But I hadn't any kind of problem before swapping to NVME SSD.

None of my unraid crons (mover, appdata backup) starts in these periods.

I even tried trigger tasks of sonarr radarr maintainerr immich etc manually to try to replicate the crash but everything went smoothly.

Happening at those specific times makes it less likely to be hardware, unless there's something running at those times that increases the load on the server, and a marginal hardware issue manifests itself. I would try booting in safe mode, then leave Docker disabled, or run just half of the containers. If it still crashes, try the other half.

5 hours ago, stark1995 said:

mirror syslog enabled the system is not able to write logs in file

Post a screenshot of your Syslog Server settings.

1 hour ago, stark1995 said:

happening at fixed intervals: exactly every 8 hours (midnight, 8 AM, and 4 PM)

What do you get from command line with this?

cat /etc/cron.d/root

Hi,

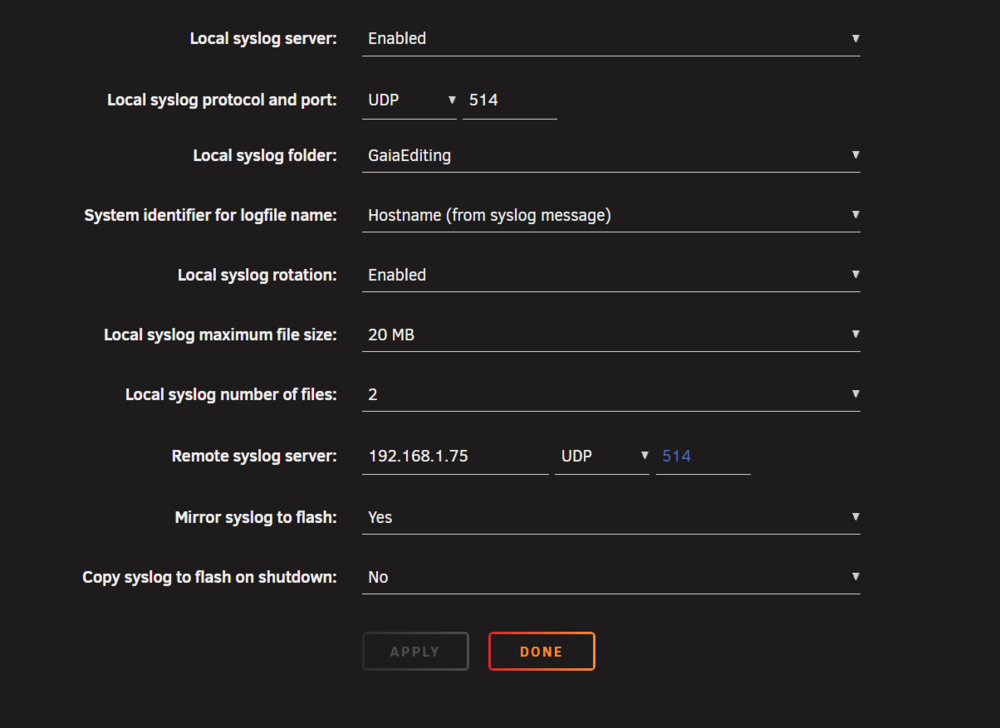

this is the screenshot

The logs are like this:

Feb 1 22:38:09 Serverone emhttpd: read SMART /dev/sde

Feb 1 22:38:12 Serverone emhttpd: read SMART /dev/sdf

Feb 1 22:53:16 Serverone emhttpd: spinning down /dev/sdf

Feb 1 23:04:45 Serverone emhttpd: spinning down /dev/sde

Feb 1 23:31:05 Serverone emhttpd: read SMART /dev/sde

Feb 1 23:38:20 Serverone emhttpd: read SMART /dev/sdf

Feb 2 00:12:16 Serverone rc.rsyslogd: Syslog server daemon... Started.

Feb 2 00:12:16 Serverone enhanced.log: Enabling Syslog filter...

Feb 2 00:12:17 Serverone rsyslogd: [origin software="rsyslogd" swVersion="8.2102.0" x-pid="14226" x-info="https://www.rsyslog.com"] start

Feb 2 00:12:17 Serverone rc.rsyslogd: Restarting Syslog server daemon...

Feb 2 00:12:17 Serverone rc.rsyslogd: Stopping Syslog server daemon...

Feb 2 00:12:17 Serverone rc.rsyslogd: killall --ns 14278 rsyslogd

Feb 2 00:12:20 Serverone rc.rsyslogd: Syslog server daemon... Started.

Feb 2 00:12:20 Serverone root: Delaying execution of fix common problems scan for 10 minutes

Feb 2 00:12:20 Serverone unassigned.devices: Mounting 'Auto Mount' Devices...

While the screenshot I posted initially is took from a kvm attached to server that prints syslog

Here the output from cat /etc/cron.d/root

# Generated btrfs balance cache schedule:

0 4 * * 0 /usr/local/emhttp/plugins/dynamix/scripts/btrfs_balance start /mnt/cache -dusage=50 &> /dev/null

# Generated system monitoring schedule:

*/1 * * * * /usr/local/emhttp/plugins/dynamix/scripts/monitor &> /dev/null

# Generated parity check schedule:

0 7 * * * /usr/local/emhttp/webGui/scripts/parity_control pause &> /dev/null

0 2 * * * /usr/local/emhttp/webGui/scripts/parity_control resume &> /dev/null

0 2 1 * * /usr/local/sbin/mdcmd check &> /dev/null

# Generated TRIM schedule:

0 3 * * 0 /usr/local/emhttp/plugins/dynamix/scripts/ssd_trim cron|logger &> /dev/null

# Appdata.Backup cron settings

0 5 * * 0 php /usr/local/emhttp/plugins/appdata.backup/scripts/backup.php > /dev/null 2>&1

# Generated schedule for Mover Tuning move:

30 2 * * * /usr/local/emhttp/plugins/ca.mover.tuning/mover start |& logger -t move

# Generated cron settings for docker autoupdates

0 3 * * * /usr/local/emhttp/plugins/ca.update.applications/scripts/updateDocker.php >/dev/null 2>&1

# Generated cron settings for plugin autoupdates

0 3 * * * /usr/local/emhttp/plugins/ca.update.applications/scripts/updateApplications.php >/dev/null 2>&1

# CRON for CA background scanning of applications

10 * * * * php /usr/local/emhttp/plugins/community.applications/scripts/notices.php > /dev/null 2>&1

# Generated system data collection schedule:

*/1 * * * * /usr/local/emhttp/plugins/dynamix.system.stats/scripts/sa1 1 1 &> /dev/null

# Generated cron schedule for user.scripts

*/5 * * * * /usr/local/emhttp/plugins/user.scripts/startCustom.php /boot/config/plugins/user.scripts/scripts/healtcheck/script > /dev/null 2>&1

Thank you for your help.

Could be something related to zfs and overlay2 in docker?

47 minutes ago, JorgeB said:

Happening at those specific times makes it less likely to be hardware, unless there's something running at those times that increases the load on the server, and a marginal hardware issue manifests itself. I would try booting in safe mode, then leave Docker disabled, or run just half of the containers. If it still crashes, try the other half.

I can say that with docker disabled server is not crashing. Two days ago I disable docker before midnight, it didn't crash. Then i reenabled docker and didn't crash until next midnight, but every container was on at 8AM and 4PM.

I don't know, maybe I should try to format the NVME to something different from ZFS, and check if somehow the filesystem creates problem to this unknown cronjob

But I would really like to keep ZFS...

Just an update to this case,

I reformatted the problematic disk to XFS. It hasn't crashed once since Thursday. I simply moved appdata and system folders back to the new SSD, without recreating docker folder.

It has been completely stable
