July 30Jul 30 Yello, I have an old refurbished HPE server as my nas, and a couple of weeks ago we had a blackout (and our backup power failed too x-x). It wouldn't start afterwards, and took a few forced PSU removals to properly start up. I think since then, I've had my array in "Device is disabled, contents emulated" and can't really find a place to start online with fixing it, as I can't see what drive even failed in the logs or how.Would love some guidance, thanks!tower-diagnostics-20260730-1507.zip
July 30Jul 30 SMART looks good, but there are some ATA errors logged, suggesting a power/connection issue. Check/replace both cables for disk1, and if the emulated disk is still mounting and the contents look correct, you can rebuild on top:https://docs.unraid.net/unraid-os/using-unraid-to/manage-storage/array/replacing-disks-in-array/#re-enabling-a-disabled-disk-rebuilding-onto-itself
July 30Jul 30 Author 11 minutes ago, JorgeB said:Check/replace both cables for disk1They're in disk bays, and I don't know which one is which. Do you think it's safe to turn it off, switch the bay of both disks, and restart? Duno if that'll mess it up even more, changing locations.

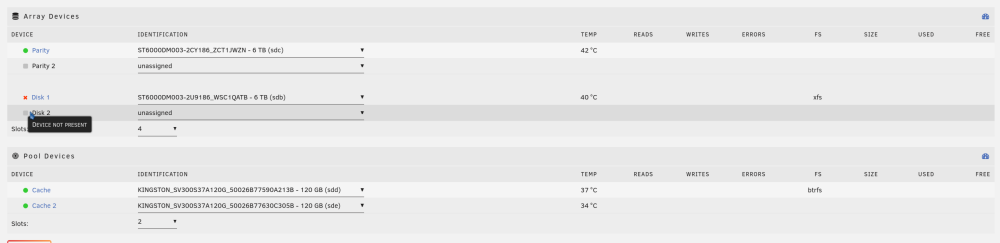

July 30Jul 30 Author just turned off the array, and it shows disk2 is not even present? guess I'll have to move them around either way
July 30Jul 30 Solution Disk is disabled but present; you can try rebuilding again, I would recommend at least swapping bays first, in case the issue returns, to see it follows the disk or the bay.
October 11Oct 11 Author @JorgeB Hello, sorry it took so long to continue, busy year.I tried rebuilding it on top 2 times, it lasted about 3 days before erroring out the first time, and second time it completely failed and got read errors and no commands were working.Today I took it out and tried using it on my PC, but it only shows up in kde partition manager, is unmountable, and trying to do anything (tried just cleaning and putting EXT4 on it to do something) with it makes the drive disappear. Also, it sounds like it's going through hell (attached some ASMR HQ recordings for people who want to fall asleep to the sound of 300€ dying drive).I'm gonna buy new drive, I think the ports are working fine.Thanks for your guidance, shame it died when HDDs are the most expensive they ever were in the last decade :(. dying_HDD_asmr_ver2.flac dying_HDD_asmr_ver1.flac
October 12Oct 12 From your description and the noise, that disk has failed. The earlier timeouts with clean SMART were probably the first sign of it. Don't use it again. Before you replace it, check that the emulated disk1 still mounts and that your files look correct. Your array has only one data disk, so parity is now the only copy of that data. If anything there is important and you have space somewhere else, back it up first.To replace the disk: 1. Stop the array. 2. Shut down and install the new disk. 3. Assign it to the disk1 slot. 4. Start the array. Unraid will rebuild disk1 from parity onto the new disk.The new disk must not be larger than your 6 TB parity disk. If you want a larger disk, you'd need to upgrade parity first. If you can, choose a CMR disk instead of another SMR model like the ST6000DM003. Rebuilds and parity checks will usually be faster and more consistent.
