Reiser2FS found at address 0098864 (sector 65?)


Recommended Posts

unRAID 5.0rc11

no plugins currently

mobo - Asus NAOS

cpu - amd am2 3.7ghz

mem - 2gb ddr2 800mhz

syslog attached (zipped due to size)



So I've followed probably every single thread having anything to do with superblock finding/repairing/rebuilding or mbr errors and now I'm stuck... Shortly (about a week) after upgrading from 5rc10 to 5rc11 and installing a few SimpleFeatures plugins (which I've now removed in trying to sort this out), while copying a file to one of my user shares, the server stopped responding in explorer. Switching to my browser found the webui non-responsive as well, but showing errors on disk2, 3, and 5. I tried to telnet to the tower but go no response, so I hard-powered down. After a cigarette/bathroom break, I booted the server to find those same 3 disks unformatted (entire array reports SMART = pass). So I came here. 2 hours of reading later, I used suggestions in several threads to: stop/start server - that got 1 drive back; used Joe L's nifty partitioning script, got a 2nd drive recovered. Now this 3rd drive is confusing the hell out of me and it seems to be a unique problem.



The filesystem seems to be on sector 65...

Linux 3.4.26-unRAID.
root@Tower:~# dd if=/dev/sdf count=195 | od -c -A d |  sed  30q
0000000  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0
*
0000448  \0  \0 203  \0  \0  \0   @  \0  \0  \0   p 210 340 350  \0  \0
0000464  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0
*
0000496  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0   U 252
0000512  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0
*
0098816 016 021 034 035   4 016 235  \0  \f  \0 267 005 022  \0  \0  \0
0098832  \0  \0  \0  \0  \0      \0  \0  \0 004  \0  \0 342 250   8   q
0098848 204 003  \0  \0 036  \0  \0  \0  \0  \0  \0  \0  \0 020 314 003
0098864 312 003 002  \0   R   e   I   s   E   r   2   F   s  \0  \0  \0
0098880 003  \0  \0  \0 005  \0   9   : 002  \0  \0  \0 336 216  \0  \0
0098896 001  \0  \0  \0 031   Z 360 314 260 250   G   w 214 257 314 001
0098912 345 002 225   S  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0
0098928  \0  \0  \0  \0 253  \0 036  \0 024   m   G   O  \0   N 355  \0
0098944  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0
*
0099008  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0  \0 001  \0  \0  \0
0099024 370   8  \0  \0 371   8  \0  \0 373   8  \0  \0 374   8  \0  \0
0099040 005   9  \0  \0 006   9  \0  \0   H   9  \0  \0   I   9  \0  \0
0099056   i   9  \0  \0   j   9  \0  \0   n   9  \0  \0   o   9  \0  \0
0099072   r   9  \0  \0   s   9  \0  \0   x   9  \0  \0   y   9  \0  \0
0099088   B   >  \0  \0   C   >  \0  \0   4   @  \0  \0   5   @  \0  \0
0099104 272   A  \0  \0 273   A  \0  \0  \v   C  \0  \0  \f   C  \0  \0
0099120 021   C  \0  \0 022   C  \0  \0 030   C  \0  \0 031   C  \0  \0
0099136   L   D  \0  \0   M   D  \0  \0   k   D  \0  \0   l   D  \0  \0
0099152 267   K  \0  \0 270   K  \0  \0 275   K  \0  \0 276   K  \0  \0
0099168   D   O  \0  \0   E   O  \0  \0 336   Q  \0  \0 337   Q  \0  \0
0099184 342   Q  \0  \0 343   Q  \0  \0 346   Q  \0  \0 347   Q  \0  \0
195+0 records in
195+0 records out
99840 bytes (100 kB) copied, 0.0196374 s, 5.1 MB/s
root@Tower:~#



In this thread: http://lime-technology.com/forum/index.php?topic=26153.msg229132#msg229132, I tried checking if unraid would emulate the missing drive, but I got the same result as nmotion96 had, but my reiserfsck output afterwards wasn't the same as his. Elsewhere, I saw a suggestion that unassigning->starting->stopping->reassigning->starting tricks unraid into thinking the drive is new and rebuilding data. Since I don't have access to a blank drive for cloning and assuming my parity hadn't been modified since the drive went down, I tried that. No dice. Of course thinking back now, if the emulated drive was corrupt, and I rebuilt disk2 with that data, I may have made things worse... :(



reiserfsck /dev/sdf1 still returned no superblock found and suggests rebuild-sb so I hunted down answers for the prompts and ran it, then it suggested rebuild-tree. After seeing others having success at this stage, I ran it also. Started server, still unformatted, even though i saw all my files being discovered during the rebuild.



BUT running Joe L's script to check the drive is weird,

########################################################################
Model Family:     Hitachi Deskstar 7K2000
Device Model:     Hitachi HDS722020ALA330
Serial Number:    JK1130YAHAMDWT
Firmware Version: JKAOA28A
User Capacity:    2,000,398,934,016 bytes

Disk /dev/sdf: 2000.4 GB, 2000398934016 bytes
1 heads, 63 sectors/track, 62016336 cylinders, total 3907029168 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00000000

   Device Boot      Start         End      Blocks   Id  System
/dev/sdf1              64  3907029167  1953514552   83  Linux
Partition 1 does not end on cylinder boundary.
########################################################################
============================================================================
==
== DISK /dev/sdf IS partitioned for unRAID properly
== expected start = 64, actual start = 64
== expected size = 3907029104, actual size = 3907029104
==
============================================================================
root@Tower:/boot#



It says the partition is fine, and that the filesystem starts on sector 64. Is my math right that reiserfsck's discovery at block 0098864 is sector 65?



Following instructions in this thread: http://lime-technology.com/forum/index.php?topic=5072.0, i get this:

root@Tower:/boot# sfdisk -g /dev/sdf
/dev/sdf: 243201 cylinders, 255 heads, 63 sectors/track

root@Tower:/boot# blockdev --getsz /dev/sda
1953525168

root@Tower:/boot# fdisk -l -u /dev/sdf

Disk /dev/sdf: 2000.4 GB, 2000398934016 bytes
1 heads, 63 sectors/track, 62016336 cylinders, total 3907029168 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x00000000

   Device Boot      Start         End      Blocks   Id  System
/dev/sdf1              64  3907029167  1953514552   83  Linux
Partition 1 does not end on cylinder boundary.

root@Tower:/boot# od -x -A d /dev/sdf | head
0000000 0000 0000 0000 0000 0000 0000 0000 0000
*
0000448 0000 0083 0000 0040 0000 8870 e8e0 0000
0000464 0000 0000 0000 0000 0000 0000 0000 0000
*
0000496 0000 0000 0000 0000 0000 0000 0000 aa55
0000512 0000 0000 0000 0000 0000 0000 0000 0000
*
0098816 110e 1d1c 0e34 009d 000c 05b7 0012 0000
0098832 0000 0000 2000 0000 0400 0000 a8e2 7138
root@Tower:/boot#



If it matters, 4/6 of these drives were in a windows machine until my friend hipped me to unRAID about a year ago. I bought a couple new drives, set up the server, then moved each drive over to the tower as I emptied them from the windows machine and it's been pretty sweet until now.



So that's where I'm at right now. Any ideas? Thanks in advance.

syslog-2013-03-08.zip

Link to comment

It looks to me like your analysis is correct.  The partition is starting on sector 64, but the file system seems to be at sector 65.

reiserfsck /dev/sdf1 still returned no superblock found and suggests rebuild-sb so I hunted down answers for the prompts and ran it,

What EXACT set of answers did you supply to the prompts when you ran --rebuild-sb ?



This is the only thing I can think of that would have moved the superblock of the reiser file system.



Joe L.









Link to comment

I got the answers from this thread, http://lime-technology.com/forum/index.php?topic=1483, but I answered 1 at the first prompt for version. I figured since I had setup the server originally with a 5.0beta (14 I think), that it would be the most recent version of the file system. I'm pretty sure I answered the rest just as bjp999 suggested.  Maybe I shouldn't have been so hasty in trying to fix it myself? I'm bad at asking for help, lol.

Link to comment

I got the answers from this thread, http://lime-technology.com/forum/index.php?topic=1483, but I answered 1 at the first prompt for version. I figured since I had setup the server originally with a 5.0beta (14 I think), that it would be the most recent version of the file system. I'm pretty sure I answered the rest just as bjp999 suggested.  Maybe I shouldn't have been so hasty in trying to fix it myself? I'm bad at asking for help, lol.

What "device" did you run the repair on?  /dev/? ? ? ?



Joe L.

Link to comment

I MAY have run rebuild-sb at disk level, as in sdf not sdf1. Would that have made a difference? It's been days now and I honestly can't remember. I had to run rebuild-sb on a disk a few months back, but I can't remember if it was the same drive. I didn't have any issues that time though.

Link to comment

I MAY have run rebuild-sb at disk level, as in sdf not sdf1. Would that have made a difference? It's been days now and I honestly can't remember. I had to run rebuild-sb on a disk a few months back, but I can't remember if it was the same drive. I didn't have any issues that time though.

It should have been on the /dev/mdX device.  (that way parity is kept in sync, otherwise, you've clobbered valid parity.)



All I can think of at this time is to run the --rebuild-sb once more, but this time on /dev/mdX

(disk1 = /dev/md1, disk 2 = /dev/md2, etc...)



Link to comment

I don't mind resyncing parity as long as I can get the data drive fixed. Before I start, can you ascertain from the info I gave already whether or not the mbr is correct? Should I use your partition script to set sector 63? or leave it as 64? And in using 'md2' as the device, I don't need to specify the partition with the trailing '1', right? Also, what specific answers do you suggest for my scenario in case I picked the wrong ones before?

Link to comment

I don't mind resyncing parity as long as I can get the data drive fixed. Before I start, can you ascertain from the info I gave already whether or not the mbr is correct? Should I use your partition script to set sector 63? or leave it as 64?

Leave it where it is.
And in using 'md2' as the device, I don't need to specify the partition with the trailing '1', right?
No, the "md" device is already connected to the correct partition.  For disk9 you would use /dev/md9, for disk17 you would use /dev/md17

Also, what specific answers do you suggest for my scenario in case I picked the wrong ones before?

1. I would choose the 3.6.X for the file system version.

2.  Block size is 4096 (default)

3.    “No journal device was specified.  (If journal is not available, re-run with --no-journal-available option specified)”  Is journal default?”  (Answer Y)

4.  “Do you use resizer?” (Answer N)

5.  It tells you that a new uuid has been generated.

6.    “rebuild-sb: You either have a corrupted journal or have just changed the start of the partition with some partition table editor. If you are sure that the start of the partition is ok, rebuild the journal header. Do you want to rebuild the journal header?”  Answer Y

Link to comment

I ran --rebuild-sb, then --check as it suggested and got the bad root block 0 error... run --rebuild-tree?



Tower login: root
Linux 3.4.26-unRAID.
root@Tower:~# reiserfsck --rebuild-sb /dev/md2
reiserfsck 3.6.21 (2009 www.namesys.com)

*************************************************************
** If you are using the latest reiserfsprogs and  it fails **
** please  email bug reports to [email protected], **
** providing  as  much  information  as  possible --  your **
** hardware,  kernel,  patches,  settings,  all reiserfsck **
** messages  (including version),  the reiserfsck logfile, **
** check  the  syslog file  for  any  related information. **
** If you would like advice on using this program, support **
** is available  for $25 at  www.namesys.com/support.html. **
*************************************************************

Will check superblock and rebuild it if needed
Will put log info to 'stdout'

Do you want to run this program?[N/Yes] (note need to type Yes if you do):Yes
Failed to open the device '/dev/md2': No such file or directory


root@Tower:~# reiserfsck --rebuild-sb /dev/md2
reiserfsck 3.6.21 (2009 www.namesys.com)

*************************************************************
** If you are using the latest reiserfsprogs and  it fails **
** please  email bug reports to [email protected], **
** providing  as  much  information  as  possible --  your **
** hardware,  kernel,  patches,  settings,  all reiserfsck **
** messages  (including version),  the reiserfsck logfile, **
** check  the  syslog file  for  any  related information. **
** If you would like advice on using this program, support **
** is available  for $25 at  www.namesys.com/support.html. **
*************************************************************

Will check superblock and rebuild it if needed
Will put log info to 'stdout'

Do you want to run this program?[N/Yes] (note need to type Yes if you do):Yes

reiserfs_open: the reiserfs superblock cannot be found on /dev/md2.

what the version of ReiserFS do you use[1-4]
        (1)   3.6.x
        (2) >=3.5.9 (introduced in the middle of 1999) (if you use linux 2.2, ch
oose this one)
        (3) < 3.5.9 converted to new format (don't choose if unsure)
        (4) < 3.5.9 (this is very old format, don't choose if unsure)
        (X)   exit
1

Enter block size [4096]:


No journal device was specified. (If journal is not available, re-run with --no-
journal-available option specified).
Is journal default? (y/n)[y]: y

Did you use resizer(y/n)[n]: n
rebuild-sb: no uuid found, a new uuid was generated (c82f131e-5f7b-4555-99f7-ca9
a086801bc)

rebuild-sb: You either have a corrupted journal or have just changed
the start of the partition with some partition table editor. If you are
sure that the start of the partition is ok, rebuild the journal header.
Do you want to rebuild the journal header? (y/n)[n]: y
Reiserfs super block in block 16 on 0x902 of format 3.6 with standard journal
Count of blocks on the device: 488378624
Number of bitmaps: 14905
Blocksize: 4096
Free blocks (count of blocks - used [journal, bitmaps, data, reserved] blocks):
0
Root block: 0
Filesystem is NOT clean
Tree height: 0
Hash function used to sort names: not set
Objectid map size 0, max 972
Journal parameters:
        Device [0x0]
        Magic [0x0]
        Size 8193 blocks (including 1 for journal header) (first block 18)
        Max transaction length 1024 blocks
        Max batch size 900 blocks
        Max commit age 30
Blocks reserved by journal: 0
Fs state field: 0x1:
         some corruptions exist.
sb_version: 2
inode generation number: 0
UUID: c82f131e-5f7b-4555-99f7-ca9a086801bc
LABEL:
Set flags in SB:
Mount count: 1
Maximum mount count: 30
Last fsck run: Fri Mar  8 11:26:55 2013
Check interval in days: 180
Is this ok ? (y/n)[n]: y
The fs may still be unconsistent. Run reiserfsck --check.

root@Tower:~# reiserfsck --check /dev/md2
reiserfsck 3.6.21 (2009 www.namesys.com)

*************************************************************
** If you are using the latest reiserfsprogs and  it fails **
** please  email bug reports to [email protected], **
** providing  as  much  information  as  possible --  your **
** hardware,  kernel,  patches,  settings,  all reiserfsck **
** messages  (including version),  the reiserfsck logfile, **
** check  the  syslog file  for  any  related information. **
** If you would like advice on using this program, support **
** is available  for $25 at  www.namesys.com/support.html. **
*************************************************************

Will read-only check consistency of the filesystem on /dev/md2
Will put log info to 'stdout'

Do you want to run this program?[N/Yes] (note need to type Yes if you do):Yes
###########
reiserfsck --check started at Fri Mar  8 11:28:54 2013
###########
Replaying journal: No transactions found
Checking internal tree..

Bad root block 0. (--rebuild-tree did not complete)

Aborted

Link to comment

Well I just got up to get ready for work and it finished. Stopped/started server and it mounts proper now. However, when I browse to \\TOWER\disk2 the only directory is lost+found, and I get a permissions error trying to open it. I has a size of 0 (probably due to the permission error), even though the webui shows disk2 as 90% full . Should I reboot? Fix permissions? I did notice a lot of what looked like permission corrections/adjustments during the --rebuild-tree process.

Link to comment

It's like I don't have permission to the disk at all, none of the user shares appear on disk2 ONLY the lost+found, which I can't access. The rest of the server is fully functional at disk level, but each top level share folder is still missing the files that are specifically on disk2. So do I run newperms /mnt/disk2 via telnet on disk2, or do I run the script on the whole array through the webui button?

Link to comment

It's like I don't have permission to the disk at all, none of the user shares appear on disk2 ONLY the lost+found, which I can't access. The rest of the server is fully functional at disk level, but each top level share folder is still missing the files that are specifically on disk2. So do I run newperms /mnt/disk2 via telnet on disk2, or do I run the script on the whole array through the webui button?

It is much quicker to run it via a telnet session on /mnt/disk2, and that would be the approach I would recommend.



Running it via the GUI will achieve the same effect in the end but take much longer as it will be run against all disks.

Link to comment

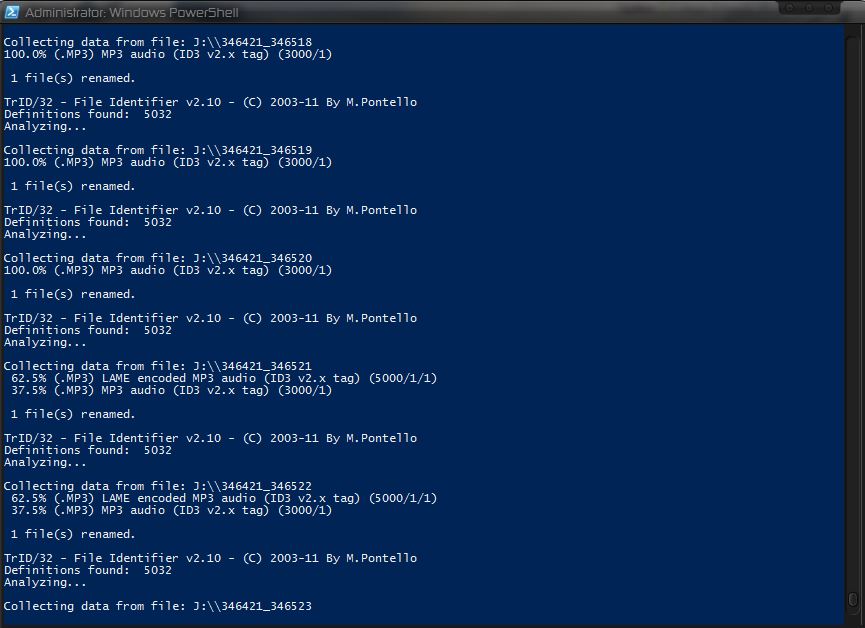

Well the drive is accessible now, although EVERYTHING on it was relegated to the lost+found folder. Some of it is recoverable, but most of this drive was a big chunk of my music collection, and it's been almost completely thrashed. Also, I'm seeing 3 undeletable files that are impossible... 1 file showing a size of 300 petabytes, and 2 showing 900 petabytes, which alone is 1 million times the size of the drive, lol. Should I run a parity check with it like that? Or should I salvage the stuff I can and reset/preclear/reassign this drive as new? Maybe Tom has unlocked the ultimate file compression? I'll just proceed with sorting through the other 18,000 unidentified files/folders. At least a few 2nd level directories were preserved, but not many. I've looked around here a bit, are there any good tools for at least identifying some of this stuff? Anyway, I guess this can be tagged as solved. Thanks a lot for the help. I definitely learned my lesson about trying to fix it myself, next time I'll be quicker at asking for help.

Link to comment

Just wanted to update, I went on a quest. I dug up a cool program called Trid http://mark0.net/soft-trid-e.html for identifying and renaming (adding a coherent extension) all the loose files. Copy-pasta'd some automated script commands and am happy to report that it is chugging along nicely at least identifying mp3s. And it seems that the id3 tags are preserved so, thanks to a super customized version of Mediamonkey and an archive index to check against, I'll be able to reorganize them properly with a few scripts. Thanks a lot again, this was almost worth the learning experience.




Link to comment

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
