Can't get passthrough to work

[EvilSpice]

So, i'm either stupid or my motherboard is incompatible , i sure hope it's not the motherboard...

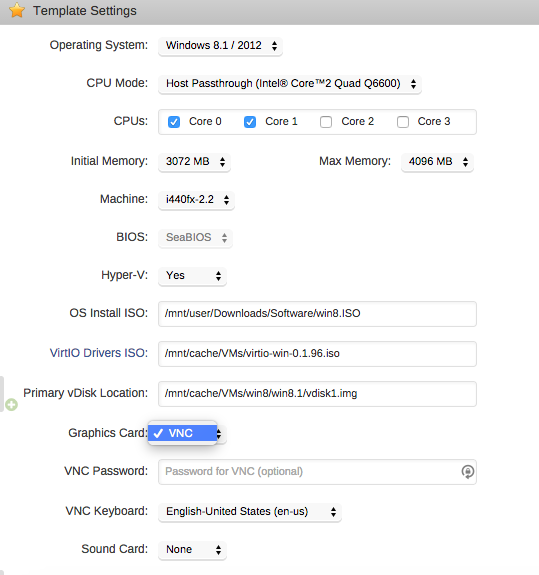

after being completely unsuccessful with xen passthrough, and reading the release notes abot kvn in the b15 release, i updated to it and later to rc3, hoping for better luck, but my devices do not appear in the drop-down menu - only vnc.



my motherboard is Asus P5K-E http://www.asus.com/Motherboards/P5KEWIFIAP/overview/

it supposedly supports vt technology, and is enabled in the BIOS (appars as Vanderpool technology, under CPU features in BIOS).



syslinux.cfg

default /syslinux/menu.c32
menu title Lime Technology
prompt 0
timeout 50

label unRAID OS
  menu default
  kernel /bzimage
  append initrd=/bzroot
label Xen/unRAID OS
  kernel /syslinux/mboot.c32
  append /xen dom0_mem=2097152  --- /bzimage xen-pciback.hide=(04:00.0)(04:00.1) --- /bzroot
label unRAID OS Safe Mode (no plugins)
  kernel /bzimage
  append initrd=/bzroot unraidsafemode
label Memtest86+
  kernel /memtest
label Xen/unRAID OS Safe Mode (no plugins)
  kernel /syslinux/mboot.c32
  append /xen --- /bzimage --- /bzroot unraidsafemode



lspci output

00:00.0 Host bridge: Intel Corporation 82G33/G31/P35/P31 Express DRAM Controller (rev 02)
00:01.0 PCI bridge: Intel Corporation 82G33/G31/P35/P31 Express PCI Express Root Port (rev 02)
00:1a.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #4 (rev 02)
00:1a.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #5 (rev 02)
00:1a.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #6 (rev 02)
00:1a.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #2 (rev 02)
00:1b.0 Audio device: Intel Corporation 82801I (ICH9 Family) HD Audio Controller (rev 02)
00:1c.0 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 1 (rev 02)
00:1c.4 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 5 (rev 02)
00:1c.5 PCI bridge: Intel Corporation 82801I (ICH9 Family) PCI Express Port 6 (rev 02)
00:1d.0 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #1 (rev 02)
00:1d.1 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #2 (rev 02)
00:1d.2 USB controller: Intel Corporation 82801I (ICH9 Family) USB UHCI Controller #3 (rev 02)
00:1d.7 USB controller: Intel Corporation 82801I (ICH9 Family) USB2 EHCI Controller #1 (rev 02)
00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev 92)
00:1f.0 ISA bridge: Intel Corporation 82801IR (ICH9R) LPC Interface Controller (rev 02)
00:1f.2 SATA controller: Intel Corporation 82801IR/IO/IH (ICH9R/DO/DH) 6 port SATA Controller [AHCI mode] (rev 02)
00:1f.3 SMBus: Intel Corporation 82801I (ICH9 Family) SMBus Controller (rev 02)
01:00.0 VGA compatible controller: NVIDIA Corporation G98 [GeForce 8400 GS Rev. 2] (rev a1)
02:00.0 Ethernet controller: Marvell Technology Group Ltd. 88E8056 PCI-E Gigabit Ethernet Controller (rev 12)
03:00.0 SATA controller: JMicron Technology Corp. JMB363 SATA/IDE Controller (rev 03)
03:00.1 IDE interface: JMicron Technology Corp. JMB363 SATA/IDE Controller (rev 03)
04:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Tonga PRO [Radeon R9 285]
04:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device aad8
05:03.0 FireWire (IEEE 1394): LSI Corporation FW322/323 [TrueFire] 1394a Controller (rev 70)



i have 2 graphics boards installed, in the first x16 pci-e slot nVidia geforce 8400 gs, and in the second x16 slot a Sapphire radeon r9-285.



please help!

[CHBMB]

I think that you have Intel Vt-x not Intel Vt-d.



You need Vt-d to get passthrough to work.



It's a common cause of confusion with this sort of thing and as far as I'm aware you wouldn't be able to passthrough in Xen either.





[EvilSpice]

Well, that clears that up... thanks. i guess my dream of making an all in one fileserver/desktop machine will have to wait
