Windows 7 VM virtio problem


SSMI

Recommended Posts

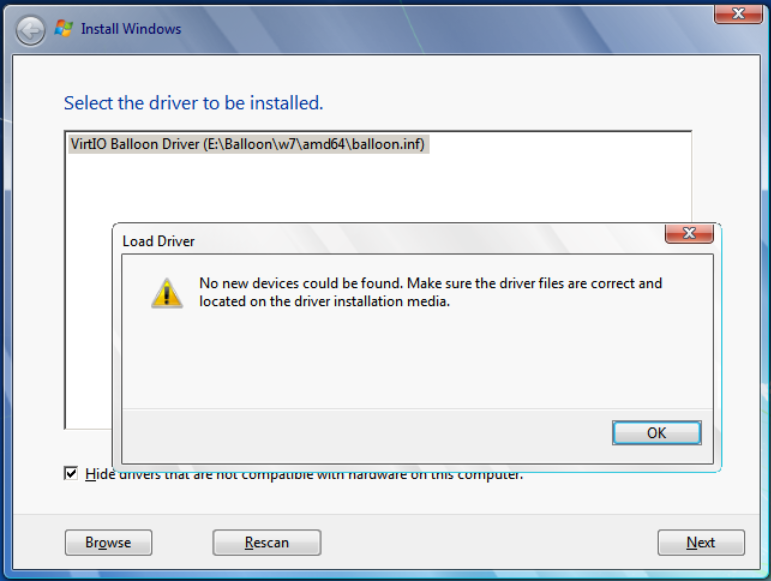

I can't seem to get the virtio drives to install.  I am getting the error shown in the image.  Is this normal?  What am I doing wrong?



I am trying to install windows 7 professional.  Here is the xml from the VM setup.



<domain type='kvm' id='2' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'>
  <name>HTPC</name>
  <uuid>bb1a18cc-7ef9-bc16-d1c5-b9daf7e343a5</uuid>
  <description>WIndows 7 on the TV</description>
  <metadata>
    <vmtemplate name="Custom" icon="windows7.png" os="windows7"/>
  </metadata>
  <memory unit='KiB'>2097152</memory>
  <currentMemory unit='KiB'>2097152</currentMemory>
  <memoryBacking>
    <nosharepages/>
    <locked/>
  </memoryBacking>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-i440fx-2.3'>hvm</type>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' cores='2' threads='1'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='rtc' tickpolicy='catchup'/>
    <timer name='pit' tickpolicy='delay'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/bin/qemu-system-x86_64</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/VMs/HTPC/vdisk1.img'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/appdata/VM ISOs/Windows7Prof.ISO'/>
      <backingStore/>
      <target dev='hda' bus='ide'/>
      <readonly/>
      <boot order='2'/>
      <alias name='ide0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/appdata/VM ISOs/virtio-win-0.1.102.iso'/>
      <backingStore/>
      <target dev='hdb' bus='ide'/>
      <readonly/>
      <alias name='ide0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'>
      <alias name='pci.0'/>
    </controller>
    <controller type='ide' index='0'>
      <alias name='ide'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:b4:1d:7b'/>
      <source bridge='br0'/>
      <target dev='vnet0'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target port='0'/>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/HTPC.org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='vmvga' vram='16384' heads='1'/>
      <alias name='video0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <alias name='balloon0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </memballoon>
  </devices>
  <qemu:commandline>
    <qemu:arg value='-device'/>
    <qemu:arg value='ioh3420,bus=pci.0,addr=1c.0,multifunction=on,port=2,chassis=1,id=root.1'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='vfio-pci,host=01:00.0,bus=root.1,addr=00.0,multifunction=on'/>
    <qemu:arg value='-device'/>
    <qemu:arg value='vfio-pci,host=01:00.1,bus=root.1,addr=00.1'/>
  </qemu:commandline>
</domain>


Link to comment

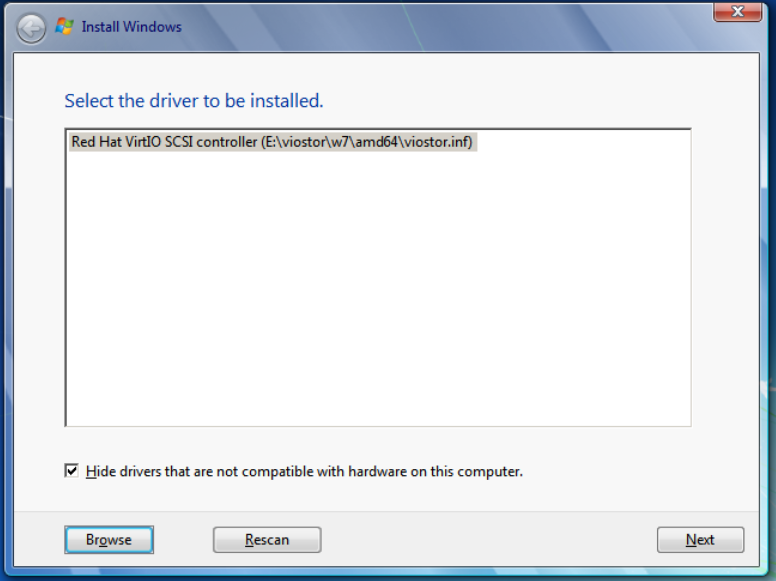

I install all 4 in the order on the wiki as shown below. But nothing happens after installing the fourth.  I am left with the attached screen.  They all say no new devices found.



Loading the VirtIO Drivers During Installation
During the Windows installation process, you will reach a point where "no disks are found", this is expected behavior.
Click Browse on this screen, then navigate to the virtio-win CD-ROM.
You will need to load the following drivers in the following order:
Balloon
NetKVM
vioserial
viostor (be sure to load this one last)
For each driver that needs to be loaded, you will navigate to the driver folder, then the OS version, then the amd64 subfolder (never click to load the x86 folder)
After each driver is loaded, you will need to click the Browse button again to load the next driver.
After loading the viostor driver, your virtual disk will then appear to select for installation and you can continue installing Windows as normal.
After Windows is completely installed, you can install the guest agent, which improves host to guest management
Open Windows File Explorer
Browse to the virtual CD-ROM for virtio-win again, and then open the guest-agent folder
Double-click to launch the qemu-ga-x64.msi installer (this process will be rather quick)
And that's all there is to it! If you have questions on this procedure, please post in the Lime Technology forums.


Link to comment

I used a TechNet image of Win7x64 on my test VM unRAID host and had no problems.  It's a TechNet image with the following name "en_windows_7_professional_with_sp1_x64_dvd_u_676939.iso".  Which leads me to ask:  Does your image include SP1?  If not could you try that or try slip streaming SP1 into yours if you don't have access to a SP1 image.  Pure guess so I could easily be wrong and of no help.
