January 9, 201610 yr I am mounting a location in unRAID as follows: In VM xml: <filesystem type='mount' accessmode='passthrough'> <source dir='/mnt/user/Files/Temp/'/> <target dir='/temp'/> <alias name='fs0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> within this location (/mnt/user/Files/Temp) I have a files called test.txt and test2.txt for testing purposes: test.txt was made by unRaid root user via commandline (root:root) test2.txt was made over SMB share (nobidy:users) If I boot VM (lubuntu 15.04 in this case) I run the following commands: user@Lubuntu-VM:~$ sudo mount -t 9p -o trans=virtio /temp ./temp -oversion=9p2000.L,posixacl,cache=loose user@Lubuntu-VM:~$ ls -la total 116 drwxr-xr-x 22 user user 4096 Jan 9 16:24 . drwxr-xr-x 3 root root 4096 Oct 19 15:47 .. -rw------- 1 user user 2415 Jan 9 15:41 .bash_history -rw-r--r-- 1 user user 220 Oct 19 15:47 .bash_logout -rw-r--r-- 1 user user 3760 Oct 19 15:47 .bashrc drwxrwxr-x 9 user user 4096 Jan 9 16:30 .cache drwx------ 16 user user 4096 Oct 19 16:19 .config drwx------ 3 user user 4096 Oct 19 15:55 .dbus drwxr-xr-x 2 user user 4096 Oct 19 15:55 Desktop drwxr-xr-x 2 user user 4096 Oct 19 15:55 Documents drwxr-xr-x 2 user user 4096 Oct 19 15:55 Downloads drwx------ 5 user user 4096 Jan 9 15:03 .dropbox drwxr-xr-x 3 user user 4096 Oct 19 16:19 .dropbox-dist drwxrwxr-x 3 user user 4096 Oct 19 16:15 dropbox-restore drwx------ 3 user user 4096 Jan 9 16:20 .gconf drwxrwxr-x 3 user user 4096 Oct 19 15:55 .local drwx------ 4 user user 4096 Oct 19 16:14 .mozilla drwxrwxr-x 2 user user 4096 Jan 9 15:25 music drwxr-xr-x 2 user user 4096 Oct 19 15:55 Music drwxr-xr-x 2 user user 4096 Oct 19 15:55 Pictures -rw-r--r-- 1 user user 675 Oct 19 15:47 .profile drwxr-xr-x 2 user user 4096 Oct 19 15:55 Public -rw-r--r-- 1 user user 0 Oct 19 16:07 .sudo_as_admin_successful drwxrwxrwx 1 99 users 6 Jan 9 16:25 temp drwxr-xr-x 2 user user 4096 Oct 19 15:55 Templates drwx------ 4 user user 4096 Jan 9 16:23 .thumbnails drwxr-xr-x 2 user user 4096 Oct 19 15:55 Videos -rw------- 1 user user 55 Jan 9 16:20 .Xauthority -rw-r--r-- 1 user user 14 Oct 22 2012 .xscreensaver -rw------- 1 user user 242 Jan 9 16:20 .xsession-errors -rw------- 1 user user 242 Jan 9 15:38 .xsession-errors.old user@Lubuntu-VM:~$ cd temp/ user@Lubuntu-VM:~/temp$ ls user@Lubuntu-VM:~/temp$ mkdir test user@Lubuntu-VM:~/temp$ ls user@Lubuntu-VM:~/temp$ As you can see the mount command does not give any errors, the location appears mounted but after moving into the directory it's empty and when I create a directory within the mount it instantly disappears. If I then log into my unRAID host machine I CAN see the created directory from above: root@Tower:~# cd /mnt/user/Files/Temp root@Tower:/mnt/user/Files/Temp# ls -la total 4 drwxrwxrwx 1 nobody users 6 Jan 9 16:38 ./ drwxrwxrwx 1 nobody users 4096 Jan 9 16:21 ../ drwxrwxr-x 1 user 1000 6 Jan 9 16:31 test/ -rw-rw-rw- 1 root root 0 Jan 9 16:25 test.txt -rw-rw-rw- 1 nobody users 0 Jan 9 16:27 test2.txt I feel like this is some sort of permissions issue, are there some extra options I should be adding to my initial mount command so that I can view files and folders within the VM on the mount. Any help much appreciated!
January 9, 201610 yr From your mount command it looks like you forgot a space between -o and version.

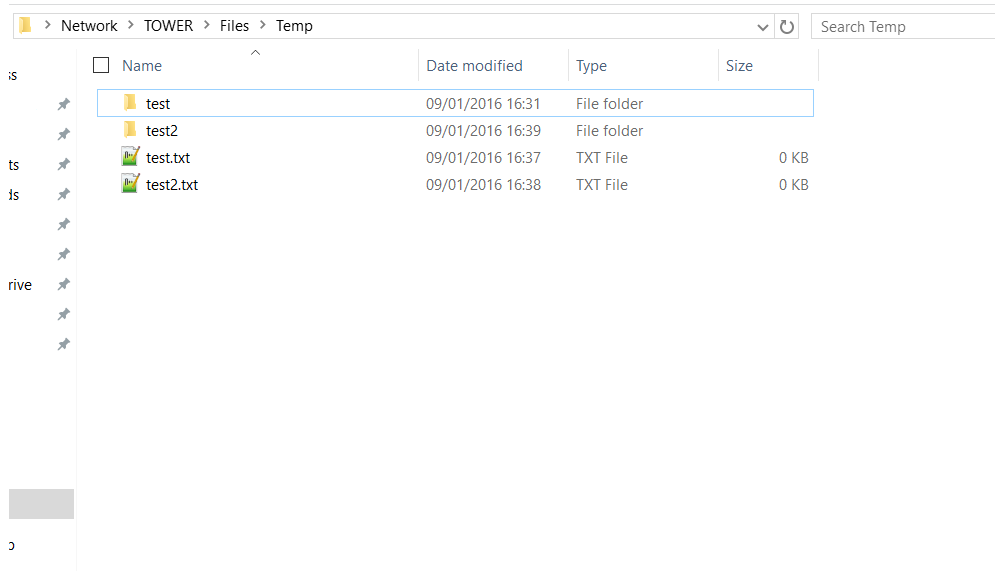

January 9, 201610 yr Author No difference with fix!: user@Lubuntu-VM:~$ sudo umount temp/ [sudo] password for user: user@Lubuntu-VM:~$ sudo mount -t 9p -o trans=virtio /temp ./temp -o version=9p2000.L,posixacl,cache=loose user@Lubuntu-VM:~$ cd temp/ user@Lubuntu-VM:~/temp$ ls user@Lubuntu-VM:~/temp$ ls user@Lubuntu-VM:~/temp$ location still contains files: see attachment. Any other suggestions, I am willing to try anything!! (please no suggestions of just use SMB to mount instead of 9p, there is a reason I need 9p to work!)
January 9, 201610 yr Now I see Remove the / in front of temp in the target dir. You don't really specify directory, just a name. Your mount probably failed since you tried to mount /temp in /temp.
January 9, 201610 yr Author if you mean: sudo mount -t 9p -o trans=virtio /temp temp -o version=9p2000.L,posixacl,cache=loose I have tried and same results; mounts without error but appears empty!!
January 9, 201610 yr Author I have also tried the following in my VM setup: changing from /temp to temp as Virtio tag <filesystem type='mount' accessmode='passthrough'> <source dir='/mnt/user/Files/Temp/'/> <target dir='temp'/> <alias name='fs0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </filesystem> and then sudo mount -t 9p -o trans=virtio temp temp -o version=9p2000.L,posixacl,cache=loose same results as before!!
January 9, 201610 yr I have also tried the following in my VM setup: changing from /temp to temp as Virtio tag <filesystem type='mount' accessmode='passthrough'> <source dir='/mnt/user/Files/Temp/'/> <target dir='temp'/> <alias name='fs0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </filesystem> and then sudo mount -t 9p -o trans=virtio temp temp -o version=9p2000.L,posixacl,cache=loose same results as before!! You have to specify the options before the source and target directories. The sugestion below is based on target dir='temp'. sudo mount -t 9p -o trans=virtio,version=9p2000.L,posixacl,cache=loose temp /temp I would avoid using the same name for target dir in the XML and the directory inside the VM you mount it to.
January 9, 201610 yr Author I changed some of the settings to stop any ambiguity!! I now have the Virtio Tag as unraidtemp: <filesystem type='mount' accessmode='passthrough'> <source dir='/mnt/user/Files/Temp/'/> <target dir='unraidtemp'/> <alias name='fs0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </filesystem> the target folder is the folder "temp" in the users home directory. I run: sudo mount -t 9p -o trans=virtio,version=9p2000.L,posixacl,cache=loose unraidtemp /home/user/temp As always, same results; /home/user/temp appears empty and if I create a file it instantly disappears but I can view it from unRAID!!
January 9, 201610 yr I changed some of the settings to stop any ambiguity!! I now have the Virtio Tag as unraidtemp: <filesystem type='mount' accessmode='passthrough'> <source dir='/mnt/user/Files/Temp/'/> <target dir='unraidtemp'/> <alias name='fs0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </filesystem> the target folder is the folder "temp" in the users home directory. I run: sudo mount -t 9p -o trans=virtio,version=9p2000.L,posixacl,cache=loose unraidtemp /home/user/temp As always, same results; /home/user/temp appears empty and if I create a file it instantly disappears but I can view it from unRAID!! I just tried it here and it works as it should in a Ubuntu 14.04 VM. Might be something Lubuntu specific.
January 9, 201610 yr Author lubuntu was the 2nd OS I tried!! I originally tried in my Vortexbox VM (Fedora based) and exactly the same thing was happening. I'll set up a straight ubuntu VM and test! Do you mind posting your VM .xml and commands used to mount it? Thanks for this help
January 9, 201610 yr First I made the directory. sudo mkdir /test I then used the last command you used: sudo mount -t 9p -o trans=virtio,version=9p2000.L,posixacl,cache=loose isos /test And the files shows up using ls -la /test This is in the XML file. Just added it by editing the template. <filesystem type='mount' accessmode='passthrough'> <source dir='/mnt/cache/ISOs/'/> <target dir='isos'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </filesystem> I used Ubuntu 15.04, not 14.04.
January 10, 201610 yr Author Is it possible that this is related to the architecture of the Host/Guest: I originally tried all the above in a Vortexbox 2.3 VM (32bit), and when I was having no luck I quickly set up a lubuntu 15.04 VM for testing prior to setting up this topic (lubuntu was also 32bit as I happened to have the iso on my desktop for another reason). I even updated lubuntu last night to 15.10 with the newest 4.0 kernel and still no joy. Today when looking for further answers I learned that Vortexbox 2.4 was released and it is 64bit for the first time, I installed it in a VM and instantly the above worked, it had no problem mounting and viewing through the 9p filesystem!! Since figuring this out I have been looking for ANY mention of a need for the Host and Guest to share the same architecture for 9p to work and I can find nothing!! @saarg: what your ubuntu VM 32 or 64 bit?!
January 11, 201610 yr I have what appears to be the same issue. http://lime-technology.com/forum/index.php?topic=45401.0 New Debian 8.2 install 32 bit install. uname-a root@hdhomerun:~# uname -a Linux hdhomerun 3.16.0-4-686-pae #1 SMP Debian 3.16.7-ckt20-1+deb8u2 (2016-01-02) i686 GNU/Linux Like you when I place files in the mount point, they disappear from the VM. All interactive commands however seem to work, I can VI files, chmod them, just can't list them.
January 16, 201610 yr I replicated the same issue and resolution as the original poster. Confirming that if you install a 32 bit OS VM and enable 9p sharing will result in the error state described. Rebuilding the VM host on 64 bit Debian (amd64 ISO) resolved the issue.
March 5, 201610 yr I learned that Vortexbox 2.4 was released and it is 64bit for the first time, I installed it in a VM and instantly the above worked, it had no problem mounting and viewing through the 9p filesystem!! I tried to install Vortexbox 2.4 but got stuck at boot with : "a start job is running on dev-disk", could you explain how you managed to install it ? thank you for your help
March 5, 201610 yr Author I learned that Vortexbox 2.4 was released and it is 64bit for the first time, I installed it in a VM and instantly the above worked, it had no problem mounting and viewing through the 9p filesystem!! I tried to install Vortexbox 2.4 but got stuck at boot with : "a start job is running on dev-disk", could you explain how you managed to install it ? thank you for your help Vortexbox installers expect the HDD to be mounted at /dev/sda rather than /dev/hda. In order to achieve this you need to edit the XML to use SATA emulation rather than virtio during the install (you can change it back for better performance after the install) See my posts from here on in this thread: http://lime-technology.com/forum/index.php?topic=39189.msg365063#msg365063 **Note** you may need to change <address type='drive' controller='0' bus='0' target='0' unit='0'/> to <address type='drive' controller='1' bus='0' target='0' unit='0'/> dependant on what controller/bus your installation ISO has been mounted in the XML. Hope this helps, The Capt.
March 5, 201610 yr thank you,, I had switched it to scsi (previously working w vortexbox2.3), switched one more time to sata, now it's booting !
March 6, 201610 yr One more question : On Vbox 2.3 9p filesystem wouldn't mount on boot, so I used the post_startup script to mount Unraid shares. I cannot get it to work with Vortexbox 2.4. I also tried to modify fstab, but no success either. How do you mount your shares? tq
March 7, 201610 yr Author One more question : On Vbox 2.3 9p filesystem wouldn't mount on boot, so I used the post_startup script to mount Unraid shares. I cannot get it to work with Vortexbox 2.4. I also tried to modify fstab, but no success either. How do you mount your shares? tq Sorry for the delay getting back to you, I didn't see your reply; I have a 9p mount working in vortexbox 2.4, here is my setup: Relevant part of my virtual machine .xml file: <filesystem type='mount' accessmode='passthrough'> <source dir='/mnt/user/Music/'/> <target dir='unraidmusic'/> <alias name='fs0'/> <address type='pci' domain='0x0000' bus='0x02' slot='0x01' function='0x0'/> </filesystem> Screenshot of GUI setup attached. My fstab inside the vortexbox VM: UUID=a0008081-aa57-4fad-bf0b-2f64f1070a8a / ext4 defaults 1 1 UUID=33251abe-7e37-4570-b7e5-0a53a3886361 /boot ext4 defaults 1 2 UUID=3b66a5aa-1768-41da-bed4-cdcd304746ca swap swap defaults 0 0 unraidmusic /storage/unraidmusic 9p trans=virtio,version=9p2000.L,_netdev,rw 0 0 Hope this helps.
March 9, 201610 yr Thank you, I messed with the mount options, "_netdev" did the trick, now the Vm is mounting shares at boot. Cheers,
