March 27, 201610 yr Hi Guys! Trying to add a network card to my pfsense vm. 3Com Corporation 3c940 37:09.0 0200: 10b7:1700 Realtek RTL8111/8168/8411 03:00.0 0200: 10ec:8168 Added pci-stub.ids=10ec:8168,10b7:1700 to my syslinux.cfg rebooted Added the following line to my .xml-file (Im only testing ONE card at the moment for a proof of concept) <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x37' slot='0x09' function='0x0'/> </source> </hostdev> That was changed to: (2 last lines automatically added) <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x37' slot='0x09' function='0x0'/> </source> <address type='pci' domain='0x0000' bus='0x02' slot='0x06' function='0x0'/> </hostdev> However i receive the following error when trying to start the vm: virsh start pfSense160325 error: Failed to start domain pfSense160325 error: internal error: early end of file from monitor: possible problem: 2016-03-25T20:01:38.358902Z qemu-system-x86_64: -device vfio-pci,host=37:09.0,id=hostdev0,bus=pci.2,addr=0x6: vfio: failed to set iommu for container: Operation not permitted 2016-03-25T20:01:38.358943Z qemu-system-x86_64: -device vfio-pci,host=37:09.0,id=hostdev0,bus=pci.2,addr=0x6: vfio: failed to setup container for group 13 2016-03-25T20:01:38.358957Z qemu-system-x86_64: -device vfio-pci,host=37:09.0,id=hostdev0,bus=pci.2,addr=0x6: vfio: failed to get group 13 2016-03-25T20:01:38.358969Z qemu-system-x86_64: -device vfio-pci,host=37:09.0,id=hostdev0,bus=pci.2,addr=0x6: Device initialization failed 2016-03-25T20:01:38.358982Z qemu-system-x86_64: -device vfio-pci,host=37:09.0,id=hostdev0,bus=pci.2,addr=0x6: Device 'vfio-pci' could not be initialized Any clues?!
March 27, 201610 yr I also have/seen this... and what I did (and it might not be right) I updated qemu.conf and changed the cgroup_device_acl part like this cgroup_device_acl = [ "/dev/null", "/dev/full", "/dev/zero", "/dev/random", "/dev/urandom", "/dev/ptmx", "/dev/kvm", "/dev/kqemu", "/dev/rtc","/dev/hpet", "/dev/vfio/vfio", "/dev/vfio/1","/dev/vfio/2","/dev/vfio/3", "/dev/vfio/4","/dev/vfio/5","/dev/vfio/6", "/dev/vfio/7","/dev/vfio/8","/dev/vfio/9", "/dev/vfio/10","/dev/vfio/11","/dev/vfio/12", "/dev/vfio/13","/dev/vfio/14","/dev/vfio/15", "/dev/vfio/16","/dev/vfio/17","/dev/vfio/18", "/dev/vfio/19","/dev/vfio/20","/dev/vfio/21", "/dev/vfio/22","/dev/vfio/23","/dev/vfio/24", "/dev/vfio/25","/dev/vfio/26","/dev/vfio/27", "/dev/vfio/28","/dev/vfio/29","/dev/vfio/30", "/dev/vfio/31","/dev/vfio/32" ] @LT is this cause any harm ? //Peter
March 27, 201610 yr Author Hi! Thanks for your input! Im however unable to see any difference from my current setup (mine is longer) cgroup_device_acl = [ "/dev/null", "/dev/full", "/dev/zero", "/dev/random", "/dev/urandom", "/dev/ptmx", "/dev/kvm", "/dev/kqemu", "/dev/rtc","/dev/hpet", "/dev/vfio/vfio", "/dev/vfio/1","/dev/vfio/2","/dev/vfio/3", "/dev/vfio/4","/dev/vfio/5","/dev/vfio/6", "/dev/vfio/7","/dev/vfio/8","/dev/vfio/9", "/dev/vfio/10","/dev/vfio/11","/dev/vfio/12", "/dev/vfio/13","/dev/vfio/14","/dev/vfio/15", "/dev/vfio/16","/dev/vfio/17","/dev/vfio/18", "/dev/vfio/19","/dev/vfio/20","/dev/vfio/21", "/dev/vfio/22","/dev/vfio/23","/dev/vfio/24", "/dev/vfio/25","/dev/vfio/26","/dev/vfio/27", "/dev/vfio/28","/dev/vfio/29","/dev/vfio/30", "/dev/vfio/31","/dev/vfio/32","/dev/vfio/33", "/dev/vfio/34","/dev/vfio/35","/dev/vfio/36", "/dev/vfio/37","/dev/vfio/38","/dev/vfio/39", "/dev/vfio/40","/dev/vfio/41","/dev/vfio/42", "/dev/vfio/43","/dev/vfio/44","/dev/vfio/45", "/dev/vfio/46","/dev/vfio/47","/dev/vfio/48", "/dev/vfio/49","/dev/vfio/50","/dev/vfio/51", "/dev/vfio/52","/dev/vfio/53","/dev/vfio/54", "/dev/vfio/55","/dev/vfio/56","/dev/vfio/57", "/dev/vfio/58","/dev/vfio/59","/dev/vfio/60", "/dev/vfio/61","/dev/vfio/62","/dev/vfio/63", "/dev/vfio/64","/dev/vfio/65","/dev/vfio/66", "/dev/vfio/67","/dev/vfio/68","/dev/vfio/69", "/dev/vfio/70","/dev/vfio/71","/dev/vfio/72", "/dev/vfio/73","/dev/vfio/74","/dev/vfio/75", "/dev/vfio/76","/dev/vfio/77","/dev/vfio/78", "/dev/vfio/79","/dev/vfio/80","/dev/vfio/81", "/dev/vfio/82","/dev/vfio/83","/dev/vfio/84", "/dev/vfio/85","/dev/vfio/86","/dev/vfio/87", "/dev/vfio/88","/dev/vfio/89","/dev/vfio/90", "/dev/vfio/91","/dev/vfio/92","/dev/vfio/93", "/dev/vfio/94","/dev/vfio/95","/dev/vfio/96", "/dev/vfio/97","/dev/vfio/98","/dev/vfio/99" I also have/seen this... and what I did (and it might not be right) I updated qemu.conf and changed the cgroup_device_acl part like this cgroup_device_acl = [ "/dev/null", "/dev/full", "/dev/zero", "/dev/random", "/dev/urandom", "/dev/ptmx", "/dev/kvm", "/dev/kqemu", "/dev/rtc","/dev/hpet", "/dev/vfio/vfio", "/dev/vfio/1","/dev/vfio/2","/dev/vfio/3", "/dev/vfio/4","/dev/vfio/5","/dev/vfio/6", "/dev/vfio/7","/dev/vfio/8","/dev/vfio/9", "/dev/vfio/10","/dev/vfio/11","/dev/vfio/12", "/dev/vfio/13","/dev/vfio/14","/dev/vfio/15", "/dev/vfio/16","/dev/vfio/17","/dev/vfio/18", "/dev/vfio/19","/dev/vfio/20","/dev/vfio/21", "/dev/vfio/22","/dev/vfio/23","/dev/vfio/24", "/dev/vfio/25","/dev/vfio/26","/dev/vfio/27", "/dev/vfio/28","/dev/vfio/29","/dev/vfio/30", "/dev/vfio/31","/dev/vfio/32" ] @LT is this cause any harm ? //Peter
March 27, 201610 yr Did you followed the new step for VM on 6.2 beta ? I created a new libvirt image.
March 27, 201610 yr Author Eumm.... Feeling stupid now, but im running 6.1.7. Could you please point me in the right direction? Thanks a bunch! Did you followed the new step for VM on 6.2 beta ? I created a new libvirt image.

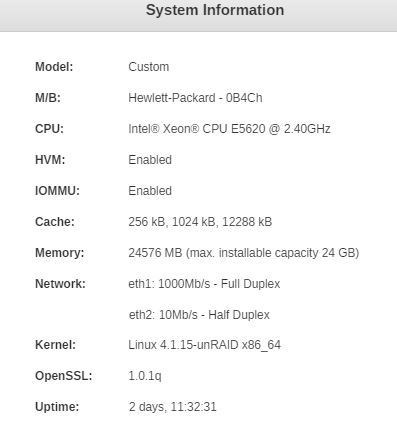

March 28, 201610 yr Author Do you have iommu enabled if you click info in the webgui? Hi! Yes, (Attached screenshot) I have also attached PCI devices and IOMMU Groups. IOMMU_Groups.txt pci_devices.txt
March 28, 201610 yr Think you need to pass through all devices in the same IOMMU group so you will need to pass through all of these to the same VM: /sys/kernel/iommu_groups/13/devices/0000:37:05.0 /sys/kernel/iommu_groups/13/devices/0000:37:09.0 So put this XML in and try: <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x37' slot='0x09' function='0x0'/> </source> </hostdev> <hostdev mode='subsystem' type='pci' managed='yes'> <driver name='vfio'/> <source> <address domain='0x0000' bus='0x37' slot='0x05' function='0x0'/> </source> </hostdev> You shouldn't need to pass through the bridge so you can skip: /sys/kernel/iommu_groups/13/devices/0000:00:1e.0 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev 90)
