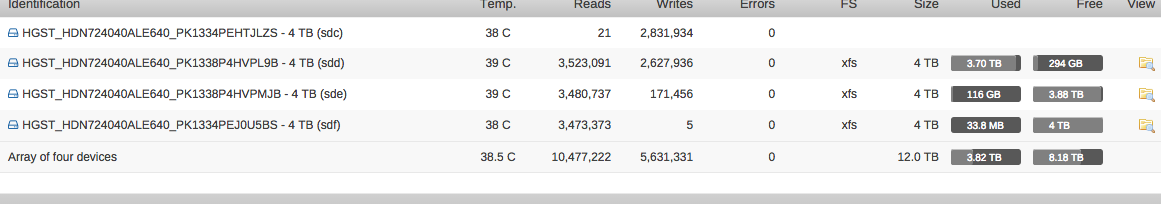

October 5, 20169 yr So long story short. The other day I logged on to unRAID to find one of my drives was unmountable. Me being stupid, messed around with new configuration settings and screwed up the array. I ended up reformatting my data drives and kept my cache drive intact. My cache drive stores docker app configurations. I initiated the transfer of my data to unRAID and this morning I come to find that highwater allocation is not distributing data across the drives. It added a bit of data to disk 2, but not much. What exactly happened? Was I supposed to reset some kind of setting before adding data back to the drive? I am contemplating on just deleting all my data/cache drives and starting over fresh. Is there an official method of doing so?
October 5, 20169 yr Community Expert We need more information, in particular about the full path for files that are not going where expected. You should be aware that Split Level takes precedence over Allocation method when choodsing a drive for new files.
October 5, 20169 yr Share split levels take precedence over highwater. So depending upon your folder structure it's doing it right Sent from my LG-D852 using Tapatalk

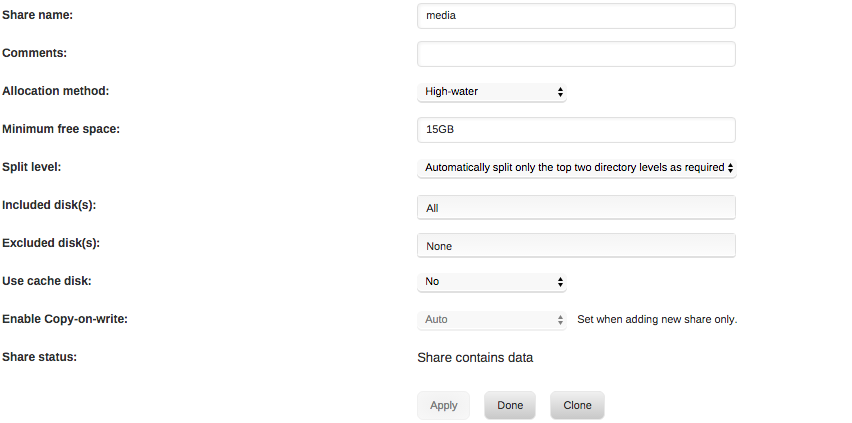

October 5, 20169 yr Author We need more information, in particular about the full path for files that are not going where expected. You should be aware that Split Level takes precedence over Allocation method when choodsing a drive for new files. I did learn that split level take precedence in my search of trying to figure out the issues. When I initially set it up the server with split level 2 my data had no issue being allocated among the drives. Anyways, when adding back my data via ftp, the path I used was /mnt/user/media(share)/shows/. Was this an incorrect path?
October 5, 20169 yr We need more information, in particular about the full path for files that are not going where expected. You should be aware that Split Level takes precedence over Allocation method when choodsing a drive for new files. I did learn that split level take precedence in my search of trying to figure out the issues. When I initially set it up the server with split level 2 my data had no issue being allocated among the drives. Anyways, when adding back my data via ftp, the path I used was /mnt/user/media(share)/shows/. Was this an incorrect path? To be quite honest, split level confuses the hell out of me. When I originally set up the media shares, I spent quite a while working out what level to use, made diagrams, etc and got it right. After that, I haven't touched the folder organization as I just don't want to think about it again (And every other share I have set to split any and all folders because I don't care where the files are actually stored.) But I would guess to drop your level down by one and try it again.
October 5, 20169 yr Author We need more information, in particular about the full path for files that are not going where expected. You should be aware that Split Level takes precedence over Allocation method when choodsing a drive for new files. I did learn that split level take precedence in my search of trying to figure out the issues. When I initially set it up the server with split level 2 my data had no issue being allocated among the drives. Anyways, when adding back my data via ftp, the path I used was /mnt/user/media(share)/shows/. Was this an incorrect path? To be quite honest, split level confuses the hell out of me. When I originally set up the media shares, I spent quite a while working out what level to use, made diagrams, etc and got it right. After that, I haven't touched the folder organization as I just don't want to think about it again (And every other share I have set to split any and all folders because I don't care where the files are actually stored.) But I would guess to drop your level down by one and try it again. It still confuses the hell out of me too. The only reason I went with split level 2 was because of a discussion I had with an individual on reddit. Now I am wondering if I have been using the correct path to add my data to the array.... So if I were to switch to split level 3, will it retroactively redistribute the data? Or is it only for new data? Also, is it common to for split levels to fill a drive before utilizing other drives?
October 5, 20169 yr Community Expert [so if I were to switch to split level 3, will it retroactively redistribute the data? Or is it only for new data?split level only applies to new files. Existing files have to be moved manually if you want them on another drive. Also, is it common to for split levels to fill a drive before utilizing other drives? happens easily if you make it too restrictive.
October 5, 20169 yr Author [so if I were to switch to split level 3, will it retroactively redistribute the data? Or is it only for new data?split level only applies to new files. Existing files have to be moved manually if you want them on another drive. Also, is it common to for split levels to fill a drive before utilizing other drives? happens easily if you make it too restrictive. Okay, so what exactly was done which made it too restrictive? Was it because I choose split level 2?
October 5, 20169 yr Community Expert [so if I were to switch to split level 3, will it retroactively redistribute the data? Or is it only for new data?split level only applies to new files. Existing files have to be moved manually if you want them on another drive. Also, is it common to for split levels to fill a drive before utilizing other drives? happens easily if you make it too restrictive. yes - a level of 2 means only the folder corresponding to the share name and the first subfolder level under that can span drives. Any further levels of sub-folder are constrained to the drive where they are first created. Okay, so what exactly was done which made it too restrictive? Was it because I choose split level 2?
