February 21, 20179 yr Hello I am new at this so need some assistance in trying to remedy this situation. Sometimes this last weekend I installed 6.3.1 and then 6.3.2 where after reboot I noticed a couple of my drives are showing as Unmountable. https://www.dropbox.com/s/452nla8h291031b/UnmountableHDs.JPG?dl=0 I checked FAQ and put array in Maintenance mode and ran checks https://www.dropbox.com/s/5mhsk0xcnwl7gnr/Disk9-check.txt?dl=0 https://www.dropbox.com/s/ijnmfx51xu9j10a/Disk10-check.txt?dl=0 Then I used Putty and tried to repair disks but this is what I get for both. https://www.dropbox.com/s/gr5a827syfvfr7k/repair.txt?dl=0 My parity is showing as Valid: Parity is valid. Check will start Parity-Check. Write corrections to parity Last check completed on Mon 24 Oct 2016 11:17:06 PM EDT (120 days ago), finding 0 errors. Duration: 12 hours, 23 minutes, 2 seconds. Average speed: 89.7 MB/sec I do have a couple spare HDs I can use to swap these out one at a time and then rebuilding? Not really sure what's the correct way to go about this without loosing data. Thanks
February 21, 20179 yr Community Expert You need to use -L, usually there's no data loss. Rebuilding won't fix file system corruption. Edited February 21, 20179 yr by johnnie.black
February 21, 20179 yr Author 25 minutes ago, johnnie.black said: You need to use -L, usually there's no data loss. Rebuilding won't fix file system corruption. Thanks Just ran on both drives: https://www.dropbox.com/s/fknypa5hz497d7d/Disk9-10-Fixwith-L.txt?dl=0 Looks like the drives were added back. Just scanned a few things...,thankfully had enough PAR files for 1 image recovery, Everything else seems ok so far. I do have a Cache drive that is still Unmounted. Don't think I used it for anything since I just plugged it in originally and assigned it. Guess I better do some kind of a Cloud Backup on this server.
February 21, 20179 yr Community Expert 1 minute ago, dimitriz said: I do have a Cache drive that is still Unmounted. Don't think I used it for anything since I just plugged it in originally and assigned it. Did you format it? It need to be formatted after initial assignment. If yes and it contains important data that you want to try to recover post your diagnostics.
February 21, 20179 yr Author 8 minutes ago, johnnie.black said: Did you format it? It need to be formatted after initial assignment. If yes and it contains important data that you want to try to recover post your diagnostics. It was added and Formatted previously, however I have never saw that it had anything on it at all. Usage never changed as was always at 0. I only use this server for Plex and even then hardly ever, it's more for storage and backup of the media and whatever else. Whats the command to recover Cache drive? It has to be in Maint mode, correct? xfs_repair -vL /dev/? Thanks!
February 21, 20179 yr Community Expert xfs_repair -v /dev/sdX1 For XFS cache only, start in maintenance mode, note the 1 in the end. Only use -L if needed.
February 21, 20179 yr Author 5 minutes ago, johnnie.black said: xfs_repair -v /dev/sdX1 For XFS cache only, start in maintenance mode, note the 1 in the end. Only use -L if needed. root@Tower:/dev# ls aer_inject md3 ptyp2 sg10 tty28 tty62 block/ md4 ptyp3 sg11 tty29 tty63 bsg/ md5 ptyp4 sg12 tty3 tty7 btrfs-control md6 ptyp5 sg13 tty30 tty8 bus/ md7 ptyp6 sg2 tty31 tty9 char/ md8 ptyp7 sg3 tty32 ttyS0 console md9 random sg4 tty33 ttyp0 core@ mem rtc@ sg5 tty34 ttyp1 cpu/ memory_bandwidth rtc0 sg6 tty35 ttyp2 cpu_dma_latency mouse@ sda sg7 tty36 ttyp3 disk/ mpt2ctl sda1 sg8 tty37 ttyp4 fd@ mpt3ctl sdb sg9 tty38 ttyp5 fd0 nbd0 sdb1 shm/ tty39 ttyp6 full nbd1 sdc stderr@ tty4 ttyp7 fuse nbd10 sdc1 stdin@ tty40 urandom hpet nbd11 sdd stdout@ tty41 vcs hwrng nbd12 sdd1 tty tty42 vcs1 initctl| nbd13 sde tty0 tty43 vcs2 input/ nbd14 sde1 tty1 tty44 vcs3 kmem nbd15 sdf tty10 tty45 vcs4 kmsg nbd2 sdg tty11 tty46 vcs5 log= nbd3 sdg1 tty12 tty47 vcs6 loop-control nbd4 sdh tty13 tty48 vcsa loop0 nbd5 sdh1 tty14 tty49 vcsa1 loop1 nbd6 sdi tty15 tty5 vcsa2 loop2 nbd7 sdi1 tty16 tty50 vcsa3 loop3 nbd8 sdj tty17 tty51 vcsa4 loop4 nbd9 sdj1 tty18 tty52 vcsa5 loop5 net/ sdk tty19 tty53 vcsa6 loop6 network_latency sdk1 tty2 tty54 vfio/ loop7 network_throughput sdl tty20 tty55 vga_arbiter lp0 null sdl1 tty21 tty56 vhost-net mapper/ port sdm tty22 tty57 xconsole| mcelog ppp sdm1 tty23 tty58 zero md1 ptmx sdn tty24 tty59 md10 pts/ sdn1 tty25 tty6 md11 ptyp0 sg0 tty26 tty60 md2 ptyp1 sg1 tty27 tty61 root@Tower:/dev# xfs_repair -v /dev/sdX1 /dev/sdX1: No such file or directory /dev/sdX1: No such file or directory fatal error -- couldn't initialize XFS library
February 21, 20179 yr Community Expert sorry, forgot to mention, replace X with the correct identifier, the one report on the main page for your cache device, eg: xfs_repair -v /dev/sdf1
February 21, 20179 yr Author 22 minutes ago, johnnie.black said: sorry, forgot to mention, replace X with the correct identifier, the one report on the main page for your cache device, eg: xfs_repair -v /dev/sdf1 Ahh ok, duh.,my bad! lol There is no sdf1 on that list only sdf. Wait a min, sdf = Flash Drive and sdd is Cache (from Unraid Main Menu) so I should do: xfs_repair -v /dev/sdd1
February 21, 20179 yr Community Expert 1 minute ago, dimitriz said: so I should do: xfs_repair -v /dev/sdd1 Yes, sdf was an example.
February 21, 20179 yr Author root@Tower:/dev# xfs_repair -v /dev/sdd1 Phase 1 - find and verify superblock... bad primary superblock - bad magic number !!! attempting to find secondary superblock... ............................................................................................................................... .....Sorry, could not find valid secondary superblock Exiting now.
February 21, 20179 yr Author Ohh that I dunno..., it's whatever default is I guess btrfs. So I take it should be: btrfs scrub start -B /dev/sdd1
February 21, 20179 yr Author There you go. Appreciate all your assistance. tower-diagnostics-20170221-1001.zip

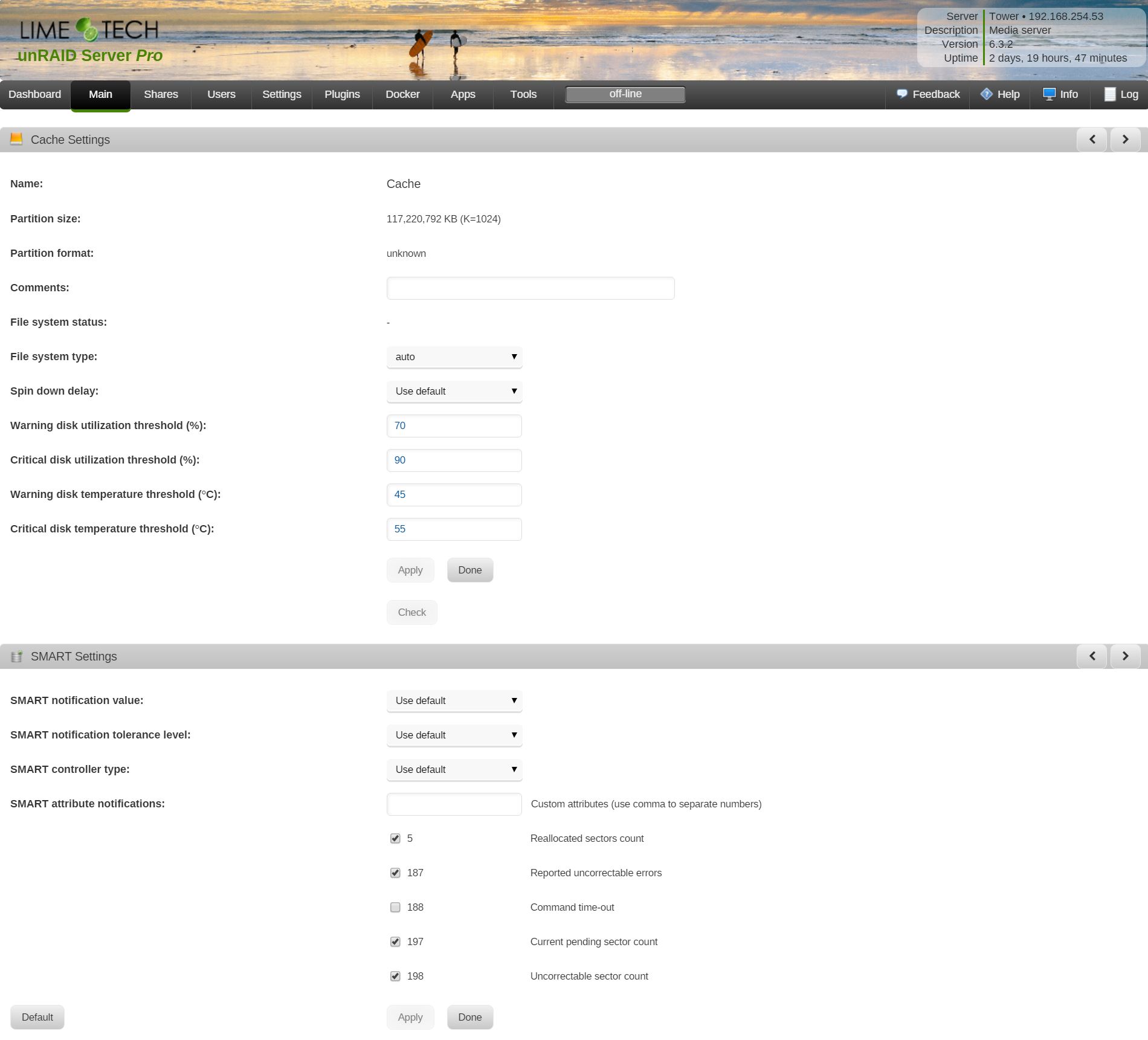

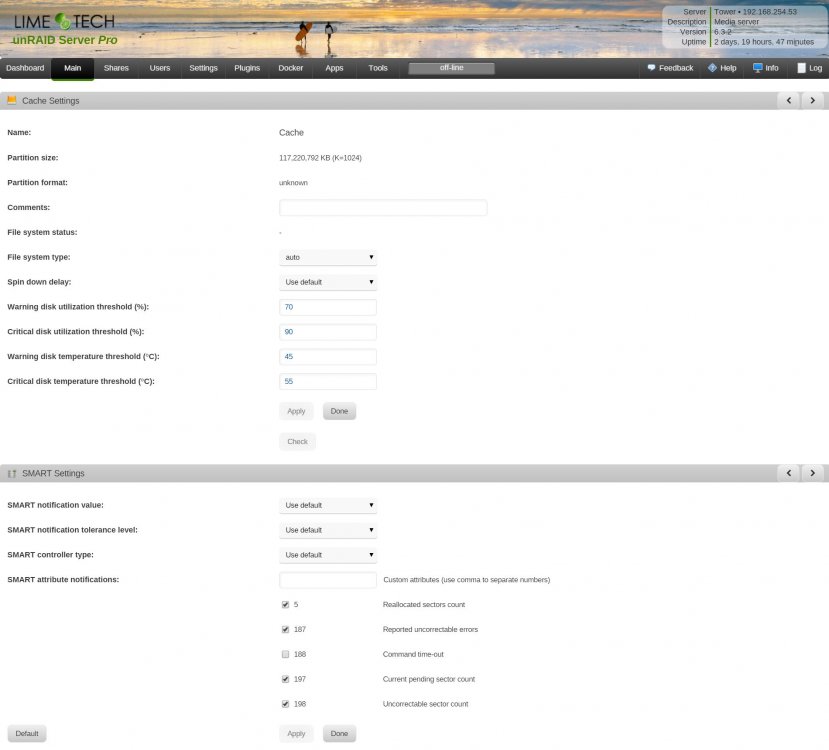

February 21, 20179 yr Community Expert hmmm, never seen this before: cacheFsType="fuseblk" With the array stopped, go to the main page, click on the cache disk take a screenshot of current setting for "file system type", then change it to "auto", start array, if it still doesn't mount post new diagnostics. Edited May 6, 20179 yr by johnnie.black
February 21, 20179 yr Author 10 minutes ago, johnnie.black said: hum, never seen this before: cacheFsType="fuseblk" With the array stopped, go to the main page, click on the cache disk take a screenshot of current setting for "file system type", then change it to "auto", start array, if it still doesn't mount post new diagnostics. The File System was already set to Auto. When I initially set it up I pluged this old 120GB SSD thinking it would speed up my Plex transcoding or whatever. I haven't messed with it besides assigning it as a Cache drive.
February 21, 20179 yr Community Expert Change it to any of the other settings, click apply, then back to auto, and apply again. Edited February 21, 20179 yr by johnnie.black
February 21, 20179 yr Author Still comes up as Unmountable. Should I try starting array with it in something other then auto then stop and revert it back again? tower-diagnostics-20170221-1035.zip
February 21, 20179 yr Community Expert That fixed the setting: cacheFsType="auto" Now it's trying to mount correctly but it looks like there's no file system on the cache device, if it was empty probably best to just format it, whatever happened to change that setting may have damage the cache filesystem. Feb 21 10:33:48 Tower emhttp: shcmd (39765): set -o pipefail ; mount -t btrfs,xfs,reiserfs -o noatime,nodiratime /dev/sdd1 /mnt/cache |& logger Feb 21 10:33:48 Tower root: mount: wrong fs type, bad option, bad superblock on /dev/sdd1, Feb 21 10:33:48 Tower root: missing codepage or helper program, or other error Feb 21 10:33:48 Tower root: Feb 21 10:33:48 Tower root: In some cases useful info is found in syslog - try Feb 21 10:33:48 Tower root: dmesg | tail or so. Feb 21 10:33:48 Tower emhttp: err: shcmd: shcmd (39765): exit status: 32 Feb 21 10:33:48 Tower emhttp: mount error: No file system (32)
February 21, 20179 yr Author Ok, cool. I formatted it and it's added back to array. Everything seems cool. Should I run Parity Check after all this? Thanks
February 21, 20179 yr Community Expert Parity should remain synced through all this, but it's always good to make sure.
