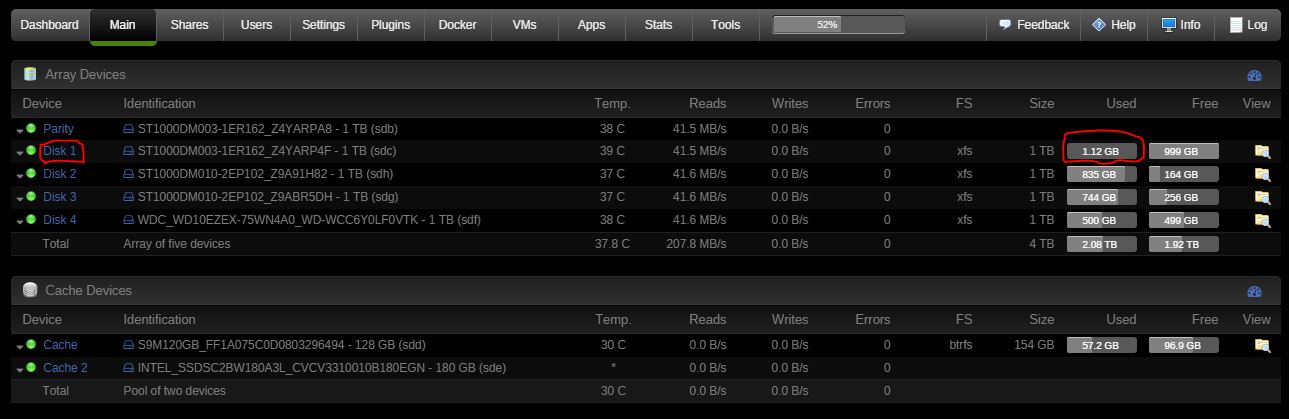

May 30, 20179 yr Author After changing the RAID card, the USB drive and keeping fingers crossed, I was able to get the server to boot! It immediately showed DISK1 as unmountable upon boot, so I set it to format and mount. After mounting, I clicked on parity check to rebuild it. But all the data on DISK1 seems to be lost!!!! I can barely hold back the man tears. There used to be 500-600 GB on this disk which is lost. I have attached a picture of the same. IS THERE ANY WAY TO GET IT BACK I have set the parity check again and selected write corrections to parity. WHAT CAN I DO TO FIX THIS???
May 30, 20179 yr Community Expert 20 minutes ago, apurvasukant said: so I set it to format and mount. This is where you went wrong, format in unRAID does the same as in any other OS, it writes an empty file system and parity is updated, rebuilding won't help. 21 minutes ago, apurvasukant said: IS THERE ANY WAY TO GET IT BACK Only chance is using a xfs compatible file recovery software, like this one: http://www.ufsexplorer.com/ I believe there's a trial.

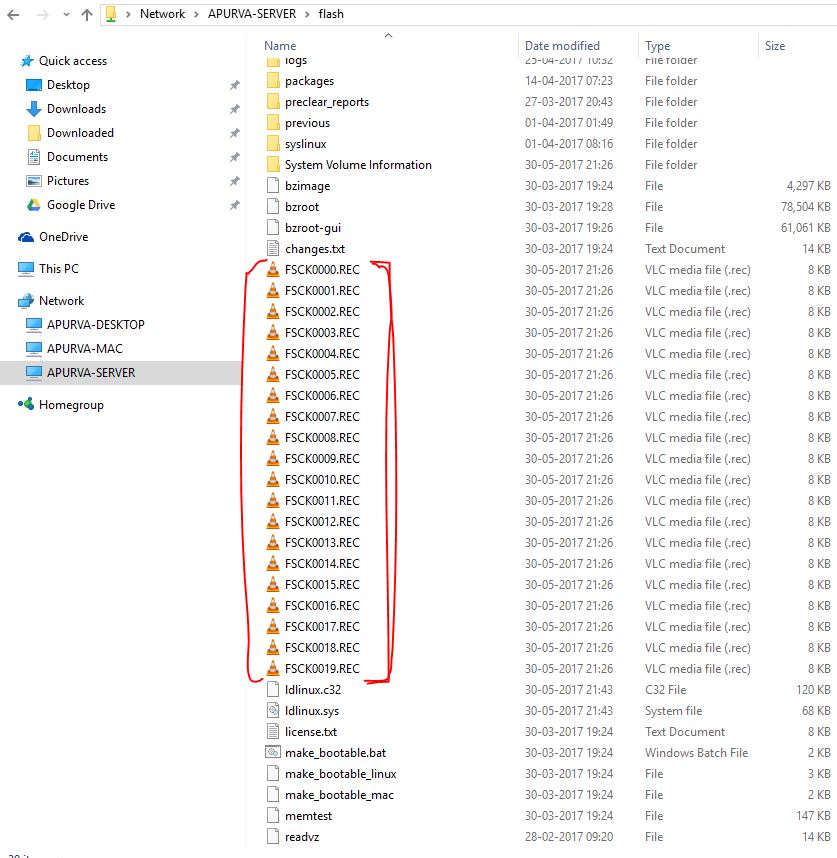

May 31, 20179 yr Author 10 hours ago, johnnie.black said: This is where you went wrong, format in unRAID does the same as in any other OS, it writes an empty file system and parity is updated, rebuilding won't help. Only chance is using a xfs compatible file recovery software, like this one: http://www.ufsexplorer.com/ I believe there's a trial. Thanks for the information and link. I am downloading the trial right now to see what can be recovered. There is a list of .rec files in the UNRAID flash root (attached pic), can they be helpful in recovery? I also found ReclaMe which does XFS+RAID recovery (http://www.reclaime.com/library/xfs-recovery.aspx) will it be suitable for my need?
May 31, 20179 yr Community Expert 52 minutes ago, apurvasukant said: There is a list of .rec files in the UNRAID flash root (attached pic), can they be helpful in recovery? No, these are lost fragments from the checkdisking the flash drive. 53 minutes ago, apurvasukant said: I also found ReclaMe which does XFS+RAID recovery (http://www.reclaime.com/library/xfs-recovery.aspx) will it be suitable for my need? Possibly, don't know it, also never used the other one, only known it from other users on the forum, you can try both.
May 31, 20179 yr Author 1 hour ago, johnnie.black said: No, these are lost fragments from the checkdisking the flash drive. Possibly, don't know it, also never used the other one, only known it from other users on the forum, you can try both. Okay I will look around the forums for a while. Will post an update if any progress is made. I am assuming that the recovery process will be: 1. Detach the HD from UNRAID and plug into windows system. 2. Run software to recover data from drive and copy to windows. 3. Copy the data back to the drive. 4. Detach HD from windows and plug into UNRAID 5. Parity sync with write changes to disk Would this do the job? Edited May 31, 20179 yr by apurvasukant
May 31, 20179 yr Community Expert 20 minutes ago, apurvasukant said: 3. Copy the data back to the drive. You won't be able to copy it back with Windows, save it to another disk. Note also that the main thing with data recovery is that you can't do any writes to the disk you're trying to recover from, so for example if the recovery program doesn't work well you can try a different one.

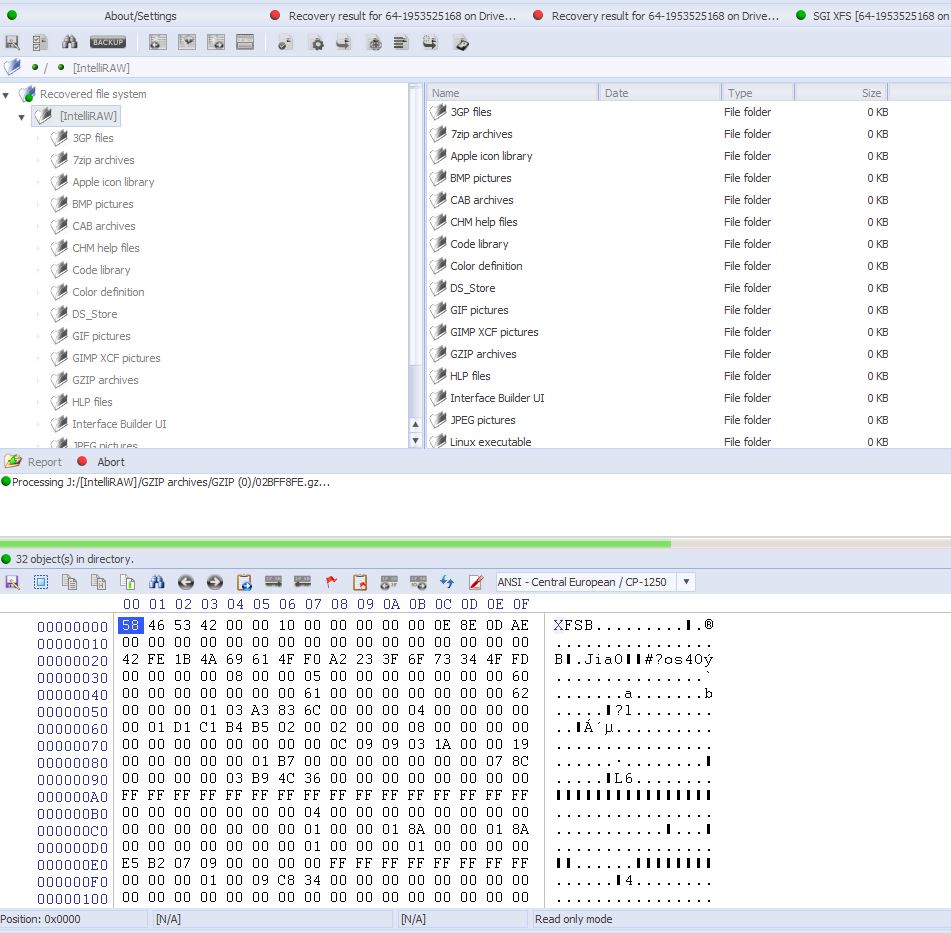

June 13, 20179 yr Author Using UFS Explorer, the scan on the disk returned results in a tree view, arranged by filetypes. I am exporting the entire 'InteliRAW' tree to an external NTFS HDD. I will then use an Ubuntu virtual machine to copy files from the NTFS HDD to the original Segate internal HDD formatted in XFS. Does this make sense? One minor problem with this recovery is that I have lost the directory structure, and will have to recreate the structure and manually place these files there?
