Read errors on several drives

[knarf0007]

Hi,



in the last time I had several read errors on some drives. The drives are relatively new and I'm more or less sure that there is no real drive issue. The smart reports are good as well. Anyway, here is the log of the last failure:



May 9 20:39:48 UnRaid-Server kernel: ata2.00: exception Emask 0x0 SAct 0x0 SErr 0x0 action 0x0
May 9 20:39:48 UnRaid-Server kernel: ata2.00: irq_stat 0x40000001
May 9 20:39:48 UnRaid-Server kernel: ata2.00: failed command: READ DMA EXT
May 9 20:39:48 UnRaid-Server kernel: ata2.00: cmd 25/00:08:08:b0:4f/00:00:7f:01:00/e0 tag 22 dma 4096 in
May 9 20:39:48 UnRaid-Server kernel: res 51/40:08:08:b0:4f/00:00:7f:01:00/e0 Emask 0x9 (media error)
May 9 20:39:48 UnRaid-Server kernel: ata2.00: status: { DRDY ERR }
May 9 20:39:48 UnRaid-Server kernel: ata2.00: error: { UNC }
May 9 20:39:48 UnRaid-Server kernel: ata2.00: configured for UDMA/133
May 9 20:39:48 UnRaid-Server kernel: sd 3:0:0:0: [sdc] tag#22 UNKNOWN(0x2003) Result: hostbyte=0x00 driverbyte=0x08
May 9 20:39:48 UnRaid-Server kernel: sd 3:0:0:0: [sdc] tag#22 Sense Key : 0x3 [current]
May 9 20:39:48 UnRaid-Server kernel: sd 3:0:0:0: [sdc] tag#22 ASC=0x11 ASCQ=0x4
May 9 20:39:48 UnRaid-Server kernel: sd 3:0:0:0: [sdc] tag#22 CDB: opcode=0x88 88 00 00 00 00 01 7f 4f b0 08 00 00 00 08 00 00
May 9 20:39:48 UnRaid-Server kernel: blk_update_request: I/O error, dev sdc, sector 6430896136
May 9 20:39:48 UnRaid-Server kernel: md: disk11 read error, sector=6430896072
May 9 20:39:48 UnRaid-Server kernel: ata2: EH complete



I checked all cable connections twice, with no effect. Is there any idea, what's the cause of all this. Thanks in advance.



Greetings

Frank

[JorgeB]

Tools -> Diagnostics

[knarf0007]

o.k., sorry! Diagnostics file attached.

unraid-server-diagnostics-20170509-2134.zip

[JorgeB]

Rather strange, read errors on three different disks, all look like disk errors but SMART looks fine for all disks.



All 3 are on the onboard controller, you could try and swap with 3 disks on the SASLP and see if errors repeat, running an extended SMART test on those disks is also a good idea.

[knarf0007]

O.k. thanks, I'll try this.

[knarf0007]

Hi,



after I tried several actions (change from internal to SASLP controller and changing a lot of sata cable) the final solution was rather simple. I have 14 drives (2xcache, 1xparity, 11xdata) and therefor used a lot of "cheap" Y-power cables to power up all the drives. After a phase of random read errors of different drives, I recently had a total failure of one of these drives (it was missing totaly). After this, I checked the complete power cabling and replaced all this cheap Y-power cables with better cables (original power cables suitable for my power supply). Now everthing works smooth and fine! So, if anyone had these "dammed" ;-) cheap Y-power cables in his setup, I can only strongly suggest to remove them totaly. These "things" seems to react extremely sensitive to vibrations (fans, etc.) because of there bad mechanical capabilities. Cost me a lot of nerves and it was may be naive of me to think, I can build up such a complex setup with cheap consumer parts.



greetings

Frank

[Zonediver]

4 hours ago, knarf0007 said:

Hi,



after I tried several actions (change from internal to SASLP controller and changing a lot of sata cable) the final solution was rather simple. I have 14 drives (2xcache, 1xparity, 11xdata) and therefor used a lot of "cheap" Y-power cables to power up all the drives. After a phase of random read errors of different drives, I recently had a total failure of one of these drives (it was missing totaly). After this, I checked the complete power cabling and replaced all this cheap Y-power cables with better cables (original power cables suitable for my power supply). Now everthing works smooth and fine! So, if anyone had these "dammed" ;-) cheap Y-power cables in his setup, I can only strongly suggest to remove them totaly. These "things" seems to react extremely sensitive to vibrations (fans, etc.) because of there bad mechanical capabilities. Cost me a lot of nerves and it was may be naive of me to think, I can build up such a complex setup with cheap consumer parts.



greetings

Frank



Can you post a Picture of this Cables and/or the SATA-Connector on the Cable?

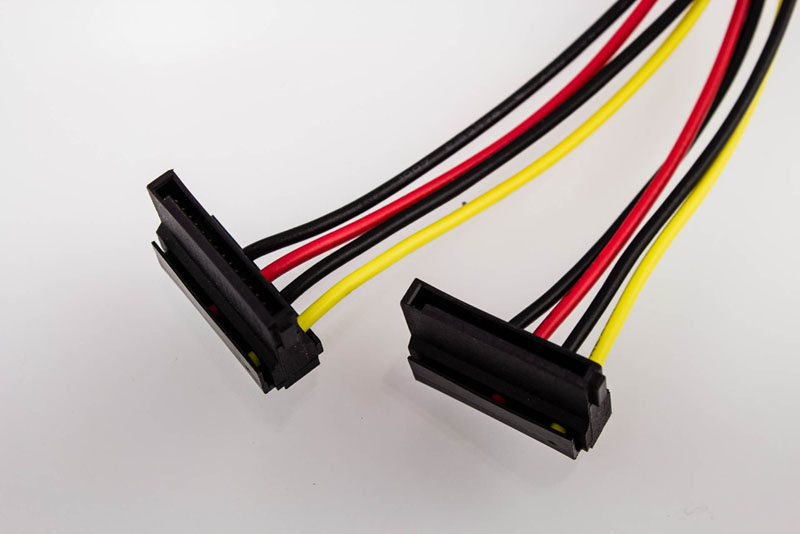

I had a similar problem in the past and changed all my cables to this connector type and all is fine now.

FYI: This connectors have blade-contacts
