Disk unmountable after New Config - All data missing

steved411
in General Support

Featured Replies

So long story short,  I had a cable issue with my drives and Disk1 became unavailable.  I fixed the cable and nothing I could do would bring it back online with Disk 1, so I made it unassigned and brought it up as disk2.  Everything was fine, Parity and Disk2 working great, disk 1 showing not available which lead me to the next thing.   The array health was always degraded due to disk 1 being missing, so I found the wiki online saying how to build a new config and reassign the disks again.



I did new config, no options checked and then assigned my Parity back and my disk 1 back and selected don't verify parity -> start array, came online and "Total" - Array of two devices was showing 0GB used.  Then I noticed disk 1 was unmountable.



I've tried doing a xfs_repair (xfs_repair -n /dev/md1) and it said:



Phase 1 - find and verify superblock...
bad primary superblock - bad magic number !!!

attempting to find secondary superblock...



It's been running for 4 hours now... I've seen other posts saying minutes to maybe half an hour.



I'm still new to unRAID, so I'm not sure of next step to take here.   I did run a smart check on the drives, which returns OK.



I'm running unRAID 6.3.5.  Please let me know any info I can share.



Thanks for you time and help!



  • Quote
    • Community Expert

    Not really following everything you did, but start by posting your diagnostics (tools -> diagnostics).

  • Quote
    • Author

    xfs_repair finally finished with "Sorry, could not find valid secondary superblock Exiting now"

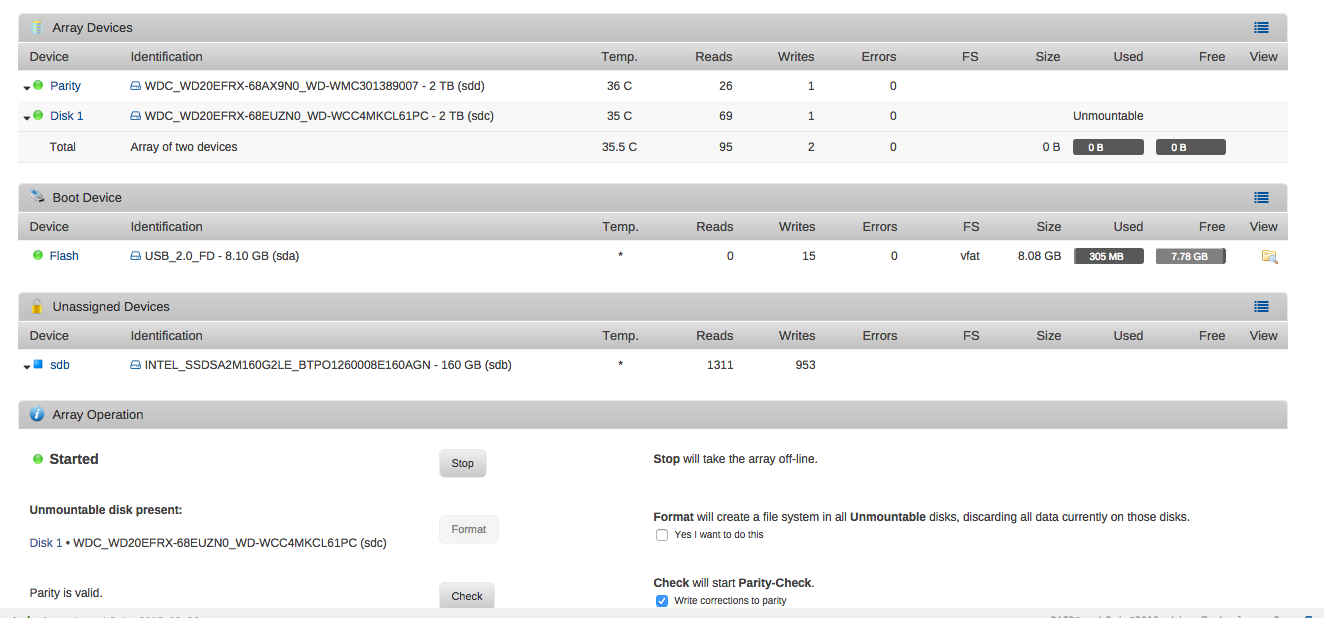

    Attached is main screenshot and diag



    Thank you!!!





    EDIT: Also, I did reboot - I didn't realize the logs would be removed when I did that.  I tried rebooting just to see if that would fix it.




    Screen Shot 2017-09-03 at 8.59.03 AM.png

    tower-diagnostics-20170903-0859.zip

    Edited by steved411

  • Quote
    • Community Expert

    Whatever you did to end up like this I don't see how you can recover the data, there's no a valid superblock, without it the disk won't mount, also xfs_repair can't even find a backup superblock, maybe a file recovery program, but if there are no superblocks I doubt there's any data.
