Noob here just installed Unraid.  I am trying to pass through the onboard video (Intel IGD - UHD 630 iGPU) to a Windows 10 VM and just get a black screen when starting the VM.



I am able to VNC when using any VM setting. I have installed Team Viewer and have been able to connect but only when using BIOS OVMF.  I have also tried every combination of VM setup possible.  Double checked all BIOS settings, including Graphics Primary Display etc..

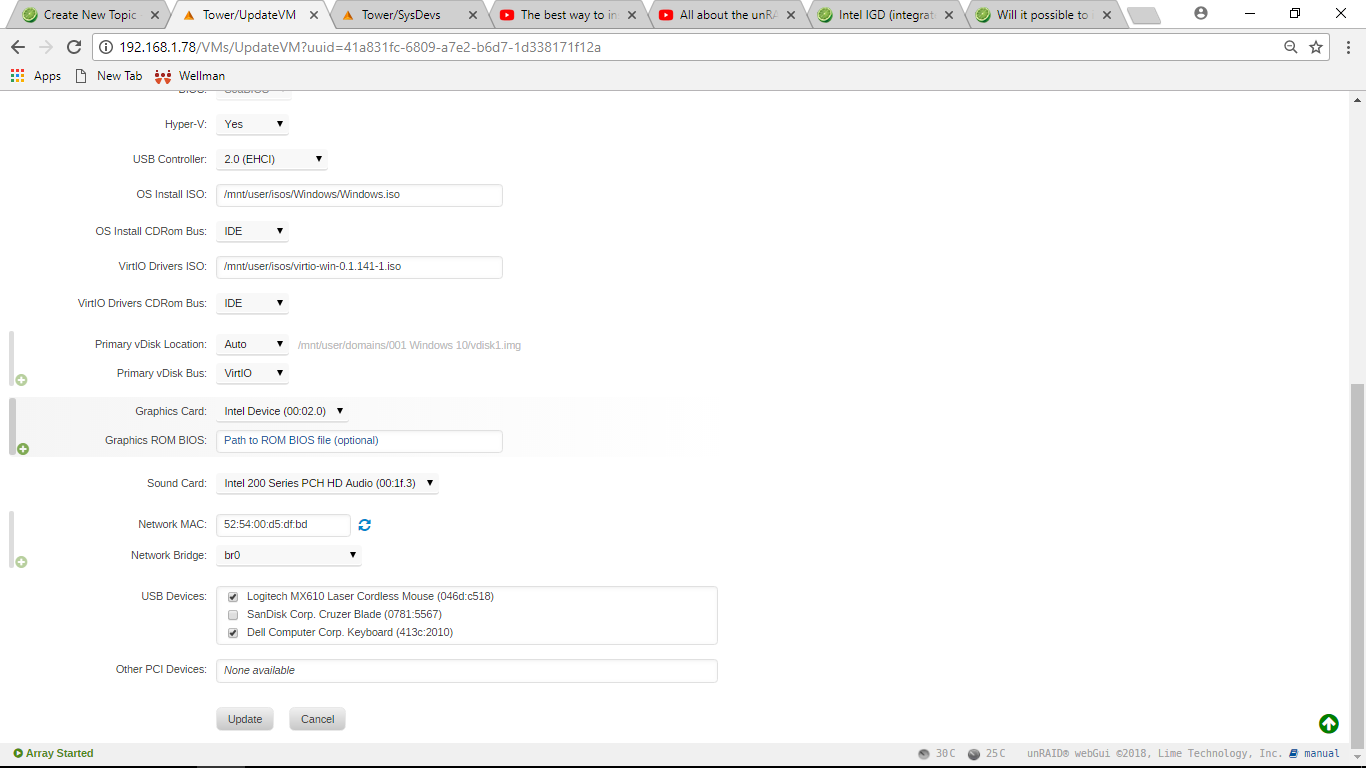

Intel Device 00:2:0 is listed under GRAPHICS CARD in VM Setup.



I did a lot of reading and it appears that perhaps the new Coffee Lake's iGPU may not be supported yet.  Any help is much appreciated.









IOMMU group 0:	[8086:3ec2] 00:00.0 Host bridge: Intel Corporation Device 3ec2 (rev 07)
IOMMU group 1:	[8086:3e92] 00:02.0 VGA compatible controller: Intel Corporation Device 3e92
IOMMU group 2:	[8086:a2af] 00:14.0 USB controller: Intel Corporation 200 Series PCH USB 3.0 xHCI Controller
[8086:a2b1] 00:14.2 Signal processing controller: Intel Corporation 200 Series PCH Thermal Subsystem
IOMMU group 3:	[8086:a2ba] 00:16.0 Communication controller: Intel Corporation 200 Series PCH CSME HECI #1
IOMMU group 4:	[8086:a282] 00:17.0 SATA controller: Intel Corporation 200 Series PCH SATA controller [AHCI mode]
IOMMU group 5:	[8086:a2e7] 00:1b.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #17 (rev f0)
IOMMU group 6:	[8086:a290] 00:1c.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #1 (rev f0)
IOMMU group 7:	[8086:a291] 00:1c.1 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #2 (rev f0)
IOMMU group 8:	[8086:a294] 00:1c.4 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #5 (rev f0)
IOMMU group 9:	[8086:a298] 00:1d.0 PCI bridge: Intel Corporation 200 Series PCH PCI Express Root Port #9 (rev f0)
IOMMU group 10:	[8086:a2c9] 00:1f.0 ISA bridge: Intel Corporation Device a2c9
[8086:a2a1] 00:1f.2 Memory controller: Intel Corporation 200 Series PCH PMC
[8086:a2f0] 00:1f.3 Audio device: Intel Corporation 200 Series PCH HD Audio
[8086:a2a3] 00:1f.4 SMBus: Intel Corporation 200 Series PCH SMBus Controller
IOMMU group 11:	[8086:15b8] 00:1f.6 Ethernet controller: Intel Corporation Ethernet Connection (2) I219-V
IOMMU group 12:	[1b21:0612] 03:00.0 SATA controller: ASMedia Technology Inc. ASM1062 Serial ATA Controller (rev 02)
IOMMU group 13:	[1b21:2142] 04:00.0 USB controller: ASMedia Technology Inc. Device 2142



Edited April 9, 20188 yr by XtyX
Added more info

Did you receive any direct feedback on this?  I am having the same issue.

My problem with the pass-through is in a little earlier status.



I'd like to use my igpu hd4000 for vms but it's not listed.



How can I pass through it? It's the only graphics card in the PC. Is that a problem?



Thanks!
