Transferred Unraid to different hardware, now High Sierra VM won't start.

[rotorhead8]

I recently changed my MoBo and added another video card. Since this change, my High Sierra VM isn't starting, however my Windows 10 starts up just fine. Attached is a screenshot of my logs. I've already reconfigured all of my docker containers, just can't figure this one out. Thanks in advance!

Unraid Version 6.5.1

Mobo: Gigabyte GA-Z270XP-SLI

Processor: Intel i7-7700K

RAM: 2xPatriot Viper 8GB DDR4

Graphics: nVidia Geforce GT1030 / EVGA Nvidia GTX 970 SC 4GB (Neither passed through yet)

Logs:



HighSierraXML.txt

[david279]

I get those same spots in red on my Mac VM so that's not a problem.

Sent from my SM-G955U using Tapatalk

[david279]

You may need to go thru your xml and make sure hardware devices line up with their iommu groups. I recently updated my bios and it moved around my hardware groups and my Mac VM wouldn't start. My GPU group was swapped with some other random device.

Sent from my SM-G955U using Tapatalk

[rotorhead8]

Forgot to mention I also tried reinstalling completely according to SpaceInvaderOne's tutorial. Shouldn't that reset everything, or do I need to go in manually still?



My XML is attached to this post in a txt document.

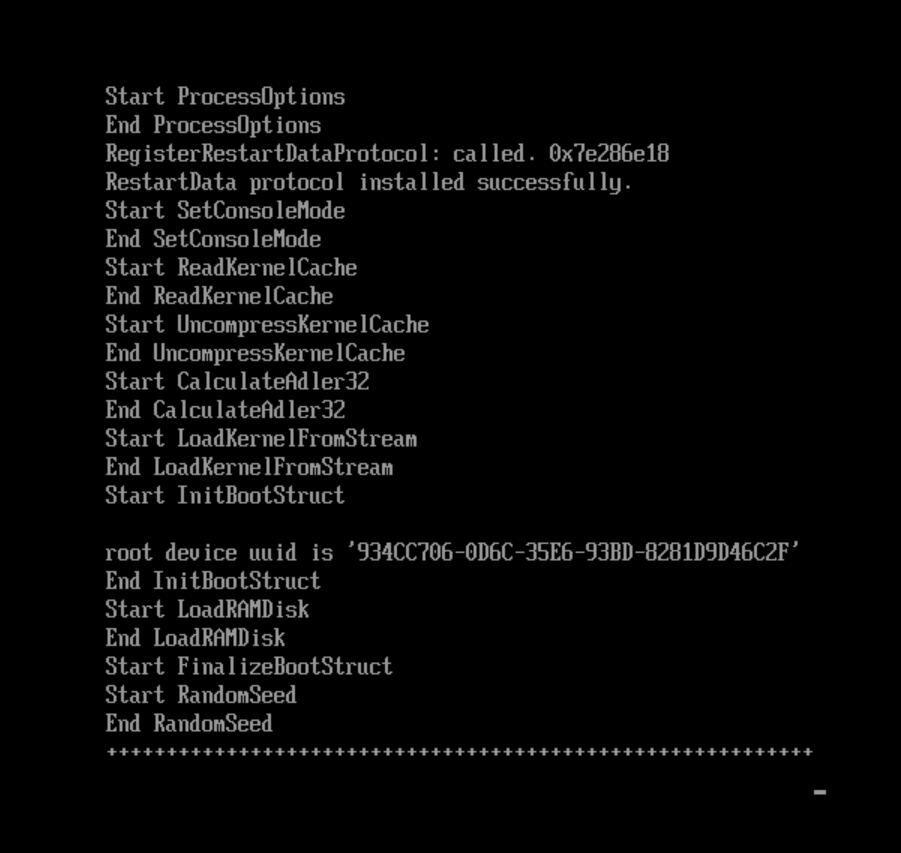

I restarted the vm in verbose mode and this is what I get before the boot loop.

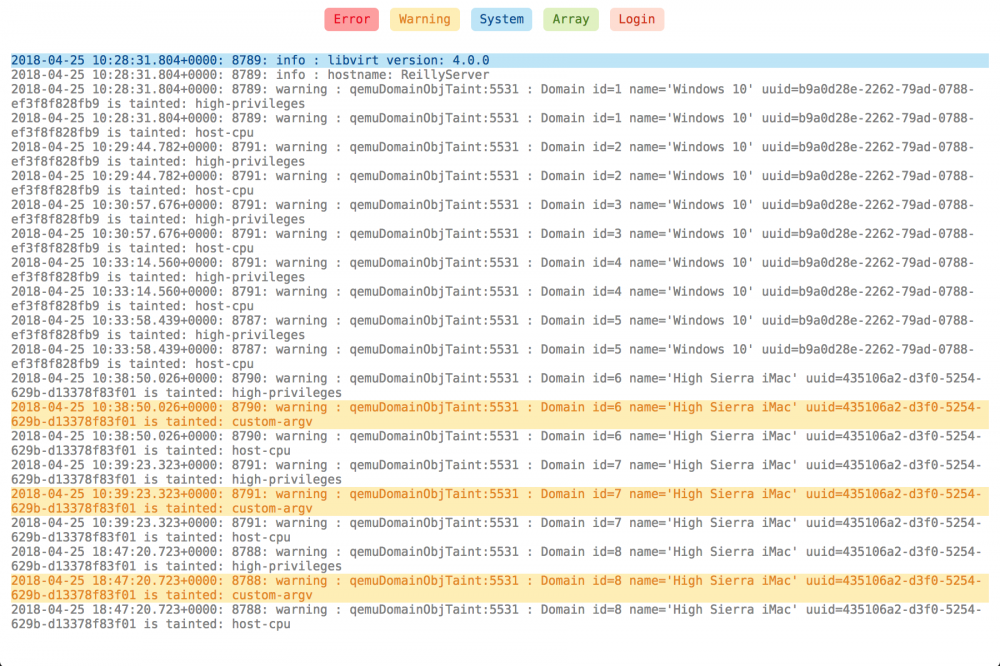

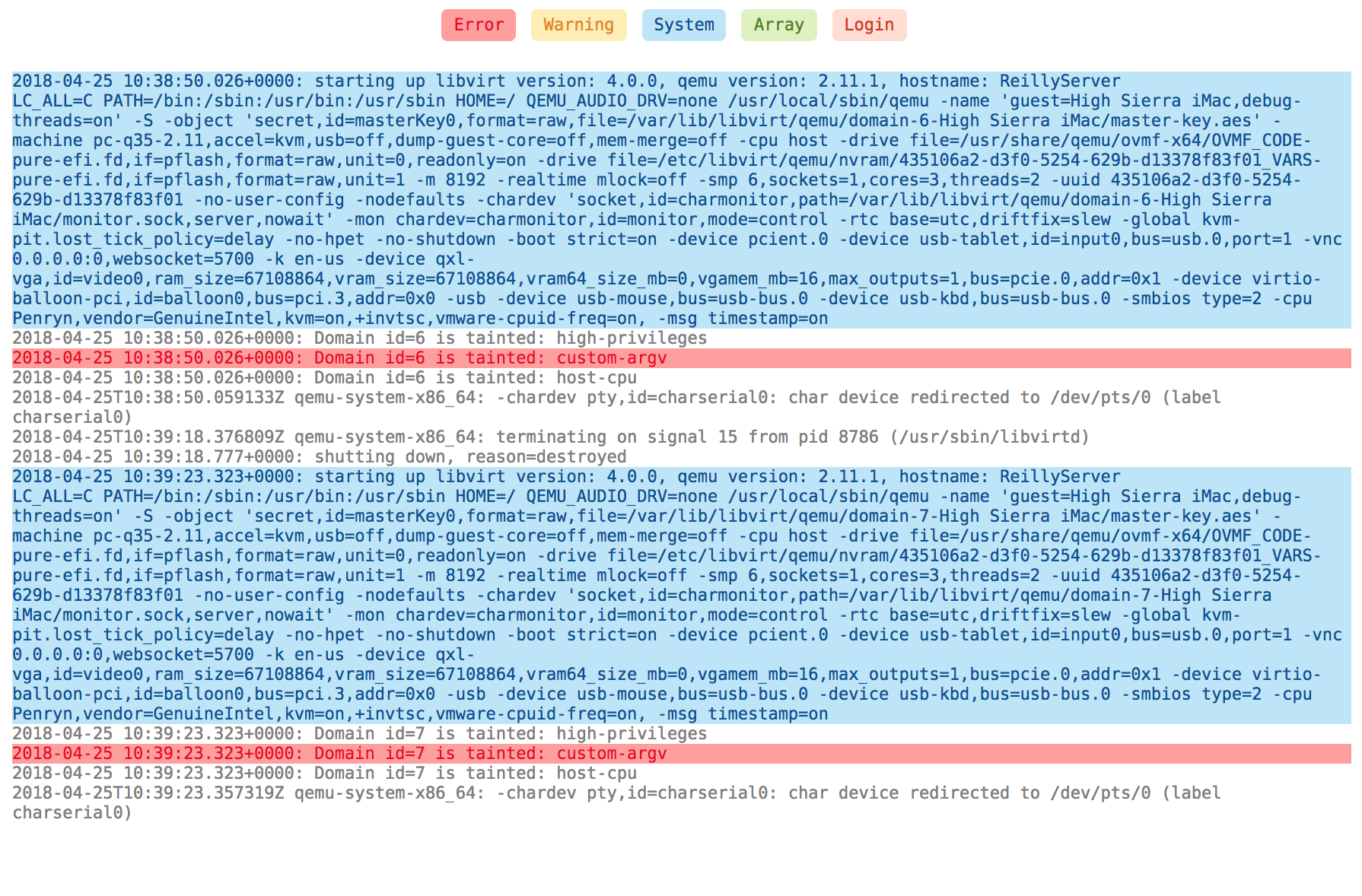

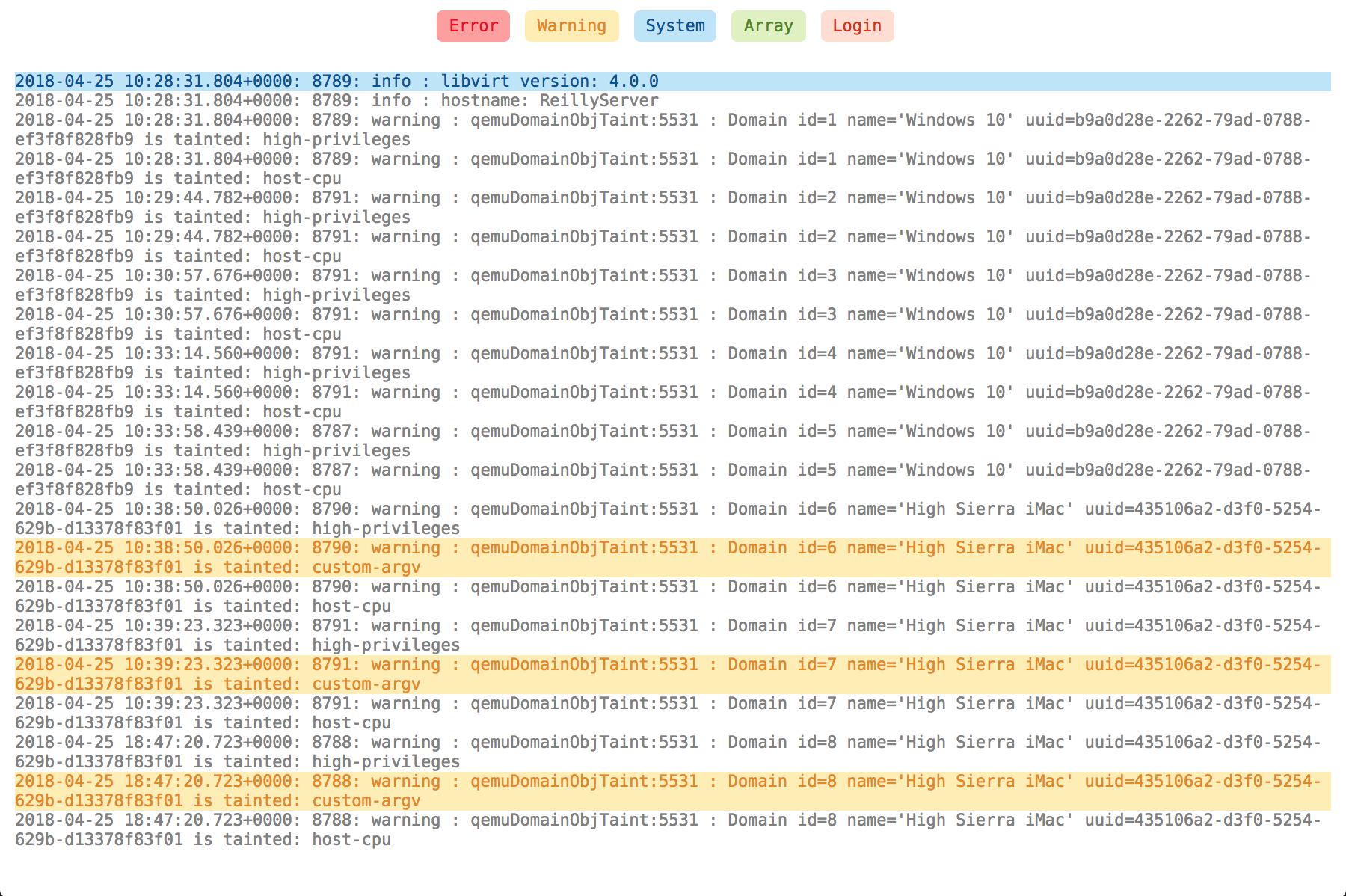

Also went into the VM Manager to check the Libvirt log, and I'm getting these warnings:

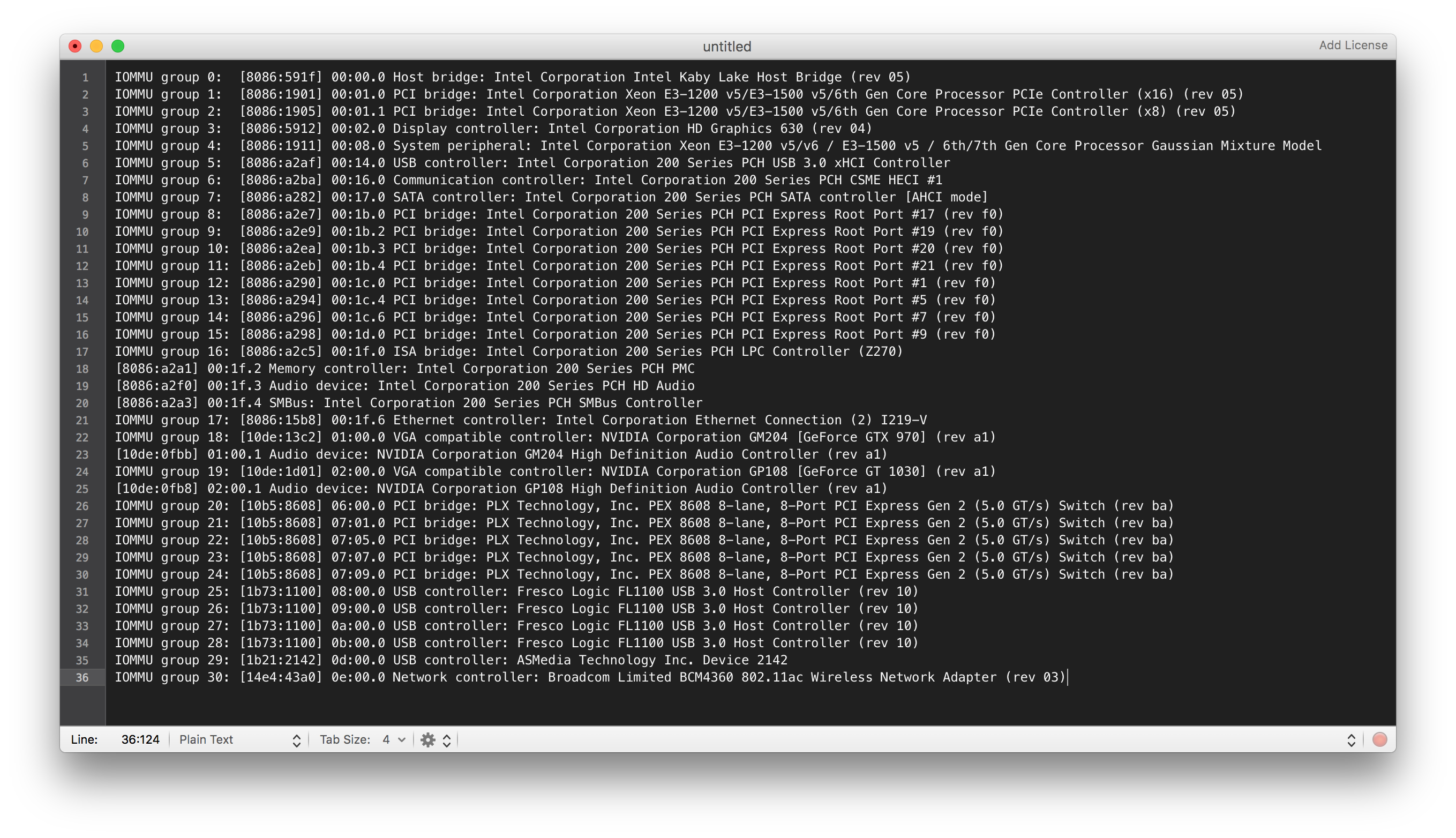

My IOMMU groups to compare with the XML (ACS override is on)







HighSierraiMacXML.txt
