Could someone please advise me as to where i'm going wrong, I would like to pass through a USB PCIe card to my w10 Vm to allow hot swap usb devices



I purchased this card as it seamed to be one that worked for other people https://www.amazon.co.uk/gp/product/B00JEVLEFQ/ref=ppx_yo_dt_b_asin_title_o01_s00?ie=UTF8&psc=1 Inateck 2-Port PCI-E USB 3.0

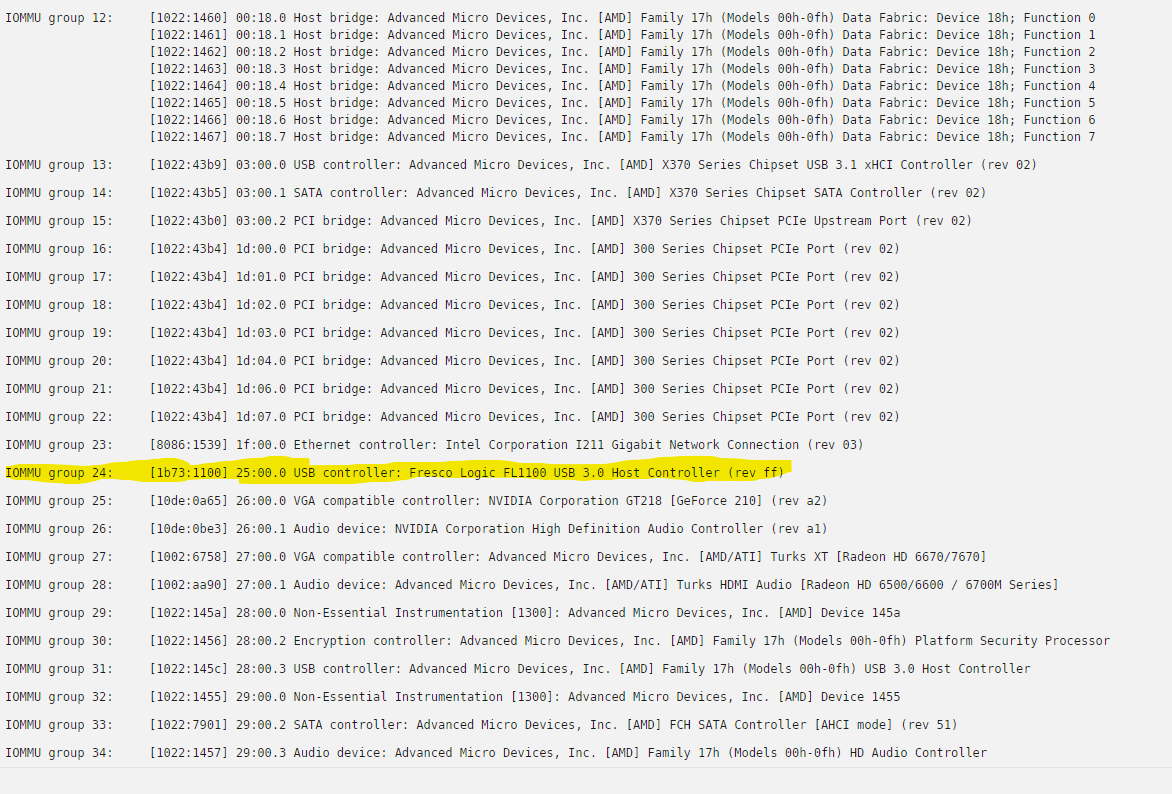

If I set the PCIe ACS overACS override to both it isolates the card

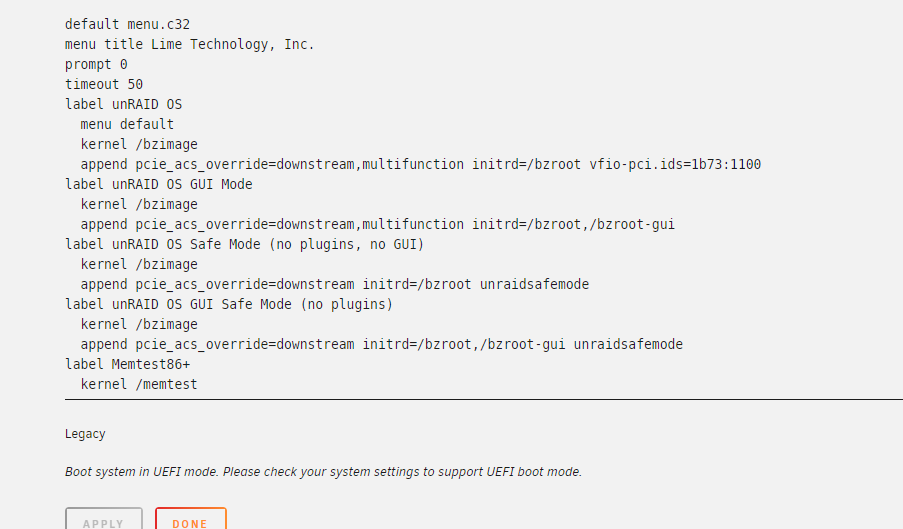

And after stubing "1b73:1100" in the Syslinux configuration

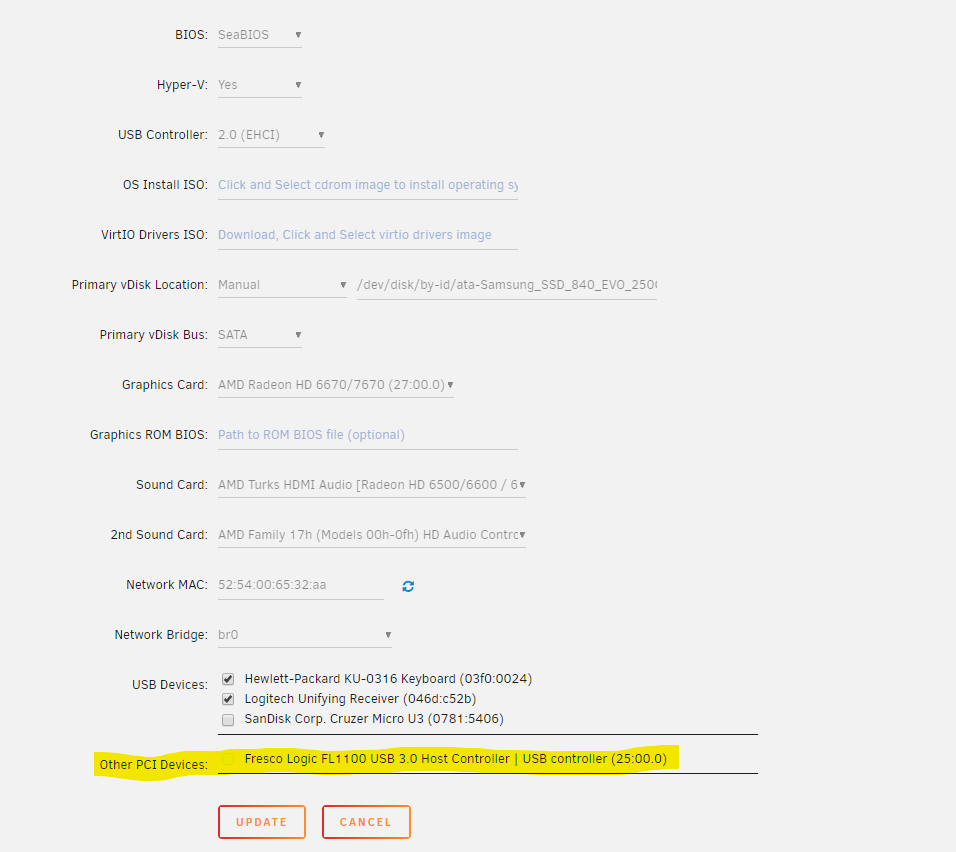

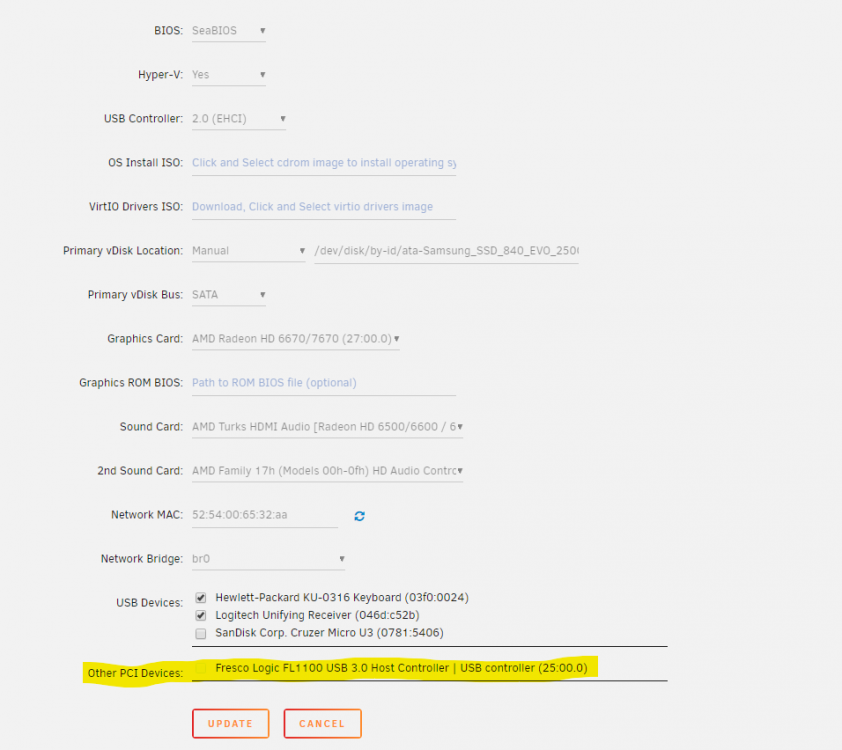

The USB card shows in the available pci devices





But after selecting the USB card and booting the W10 VM it sometimes hangs on boot and need to be forsed to stop and when it does start I can see the card in device manager and have loaded the drivers but when I plug in a mem stick it shows in unraid and not on the VM?



My system spec



Unraid 6.6.7

Ryzen 1700 cpu

ASRock X370 Gaming K4 AMD X370

16GB RAM











Did you get it to work bro?

8 minutes ago, warren_briones said:

Did you get it to work bro?

No I gave up but managed to get some of the onboard USB passed through.

I was planning to buy the same card. I have also managed to get the onboard USB 3.0 controller to pass through but cant be reset (needs power cycle). If i do decide to buy it and get it to work, i will feed you back.
