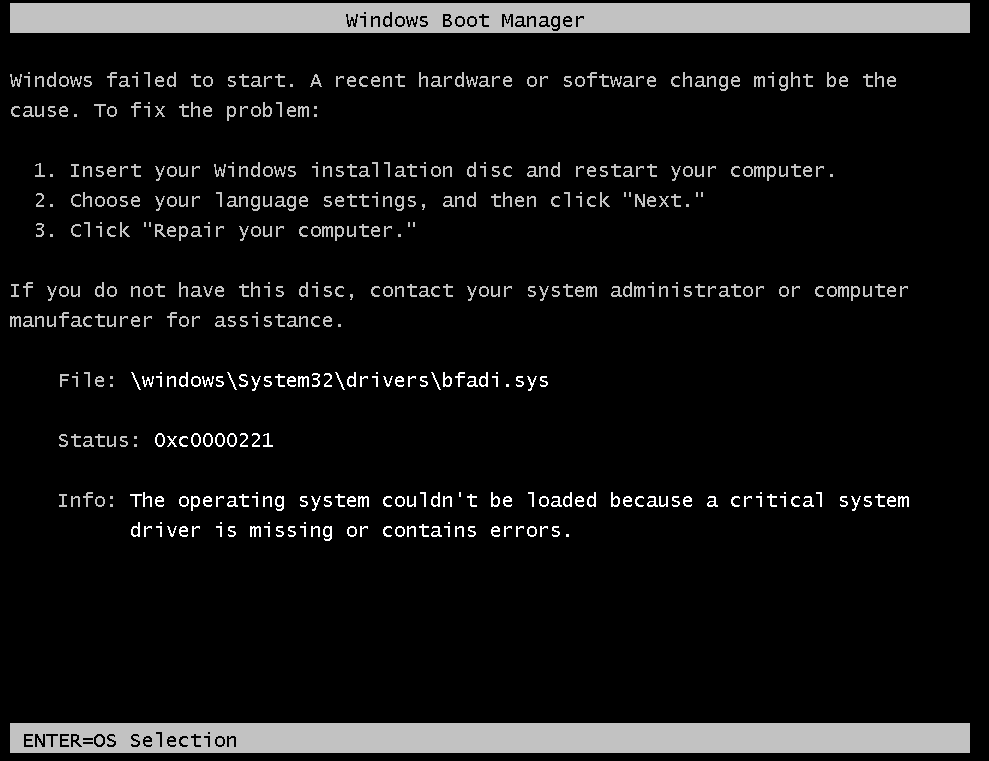

June 3, 20197 yr I moved to a new server, an R720 vs an R710 like before. I moved all data over, and used the same USB, just created a new array. Now, I am unable to create a Server 2016 VM. Windows is no issue. It does install properly, and I go through everything to the desktop. Then, when I reboot, it fails and gives me the screen I added with the files. Then, if I make a change to the VM under edit, either moving to another NIC, or adding a virtual drive, whatever, it fires right up. Then, when I reboot, I get the same screen you see, again. Does anyone have any ideas as to what I am doing wrong?? Thanks! <?xml version='1.0' encoding='UTF-8'?> <domain type='kvm' id='36'> <name>LabDC01</name> <uuid>6a058db3-194f-a87c-89f4-901f80c72dc2</uuid> <metadata> <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/> </metadata> <memory unit='KiB'>4194304</memory> <currentMemory unit='KiB'>4194304</currentMemory> <memoryBacking> <nosharepages/> </memoryBacking> <vcpu placement='static'>8</vcpu> <cputune> <vcpupin vcpu='0' cpuset='8'/> <vcpupin vcpu='1' cpuset='20'/> <vcpupin vcpu='2' cpuset='9'/> <vcpupin vcpu='3' cpuset='21'/> <vcpupin vcpu='4' cpuset='10'/> <vcpupin vcpu='5' cpuset='22'/> <vcpupin vcpu='6' cpuset='11'/> <vcpupin vcpu='7' cpuset='23'/> </cputune> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='pc-i440fx-3.1'>hvm</type> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough' check='none'> <topology sockets='1' cores='4' threads='2'/> </cpu> <clock offset='localtime'> <timer name='rtc' tickpolicy='catchup'/> <timer name='pit' tickpolicy='delay'/> <timer name='hpet' present='no'/> </clock> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/local/sbin/qemu</emulator> <disk type='file' device='disk'> <driver name='qemu' type='raw' cache='writeback'/> <source file='/mnt/user/VMs/LabDC01/vdisk1.img'/> <backingStore/> <target dev='hdc' bus='sata'/> <boot order='1'/> <alias name='sata0-0-2'/> <address type='drive' controller='0' bus='0' target='0' unit='2'/> </disk> <controller type='pci' index='0' model='pci-root'> <alias name='pci.0'/> </controller> <controller type='ide' index='0'> <alias name='ide'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <controller type='sata' index='0'> <alias name='sata0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </controller> <controller type='virtio-serial' index='0'> <alias name='virtio-serial0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </controller> <controller type='usb' index='0' model='ich9-ehci1'> <alias name='usb'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/> </controller> <controller type='usb' index='0' model='ich9-uhci1'> <alias name='usb'/> <master startport='0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/> </controller> <controller type='usb' index='0' model='ich9-uhci2'> <alias name='usb'/> <master startport='2'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/> </controller> <controller type='usb' index='0' model='ich9-uhci3'> <alias name='usb'/> <master startport='4'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/> </controller> <interface type='bridge'> <mac address='52:54:00:3c:c4:5d'/> <source bridge='br0'/> <target dev='vnet2'/> <model type='virtio'/> <alias name='net0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </interface> <serial type='pty'> <source path='/dev/pts/2'/> <target type='isa-serial' port='0'> <model name='isa-serial'/> </target> <alias name='serial0'/> </serial> <console type='pty' tty='/dev/pts/2'> <source path='/dev/pts/2'/> <target type='serial' port='0'/> <alias name='serial0'/> </console> <channel type='unix'> <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-36-LabDC01/org.qemu.guest_agent.0'/> <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/> <alias name='channel0'/> <address type='virtio-serial' controller='0' bus='0' port='1'/> </channel> <input type='tablet' bus='usb'> <alias name='input0'/> <address type='usb' bus='0' port='1'/> </input> <input type='mouse' bus='ps2'> <alias name='input1'/> </input> <input type='keyboard' bus='ps2'> <alias name='input2'/> </input> <graphics type='vnc' port='5902' autoport='yes' websocket='5702' listen='0.0.0.0' keymap='en-us'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/> <alias name='video0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <memballoon model='virtio'> <alias name='balloon0'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/> </memballoon> </devices> <seclabel type='dynamic' model='dac' relabel='yes'> <label>+0:+100</label> <imagelabel>+0:+100</imagelabel> </seclabel> </domain>
June 5, 20197 yr This looks to be a rather idiosyncratic problem with Windows and not Unraid. That file looks to be some HBA controller driver according to Google so I would suggest you rebuild your install media and reinstall Windows from scratch.

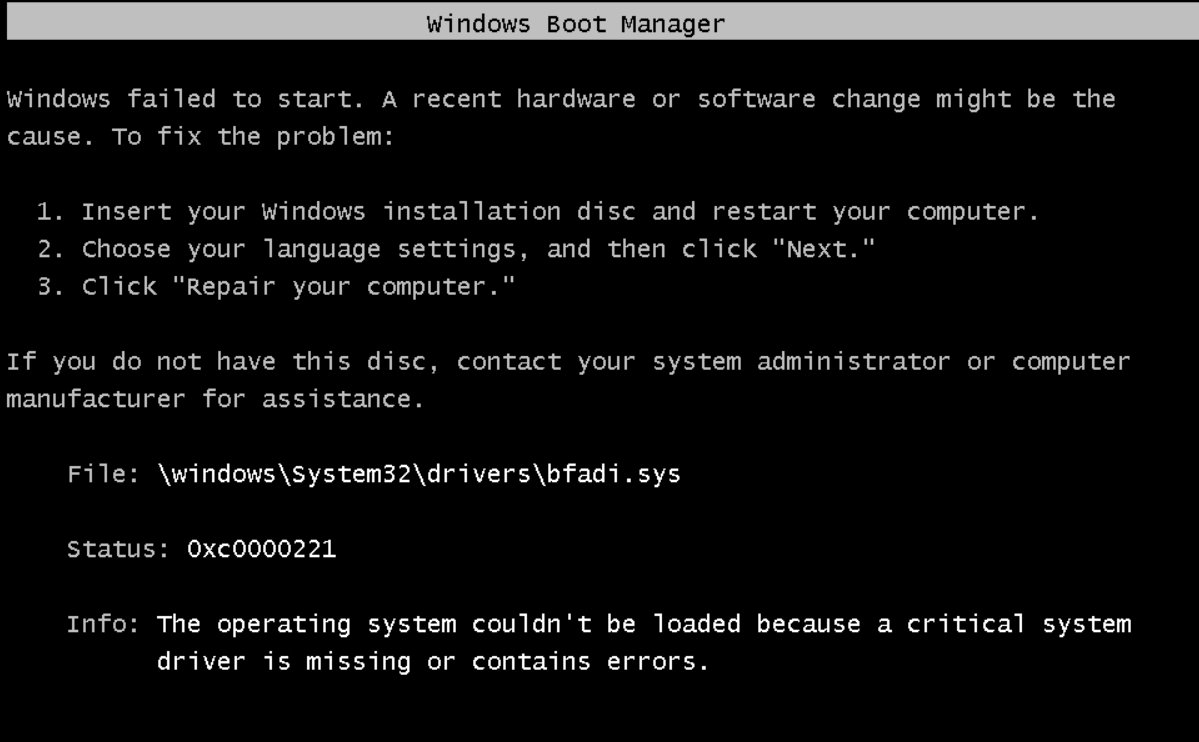

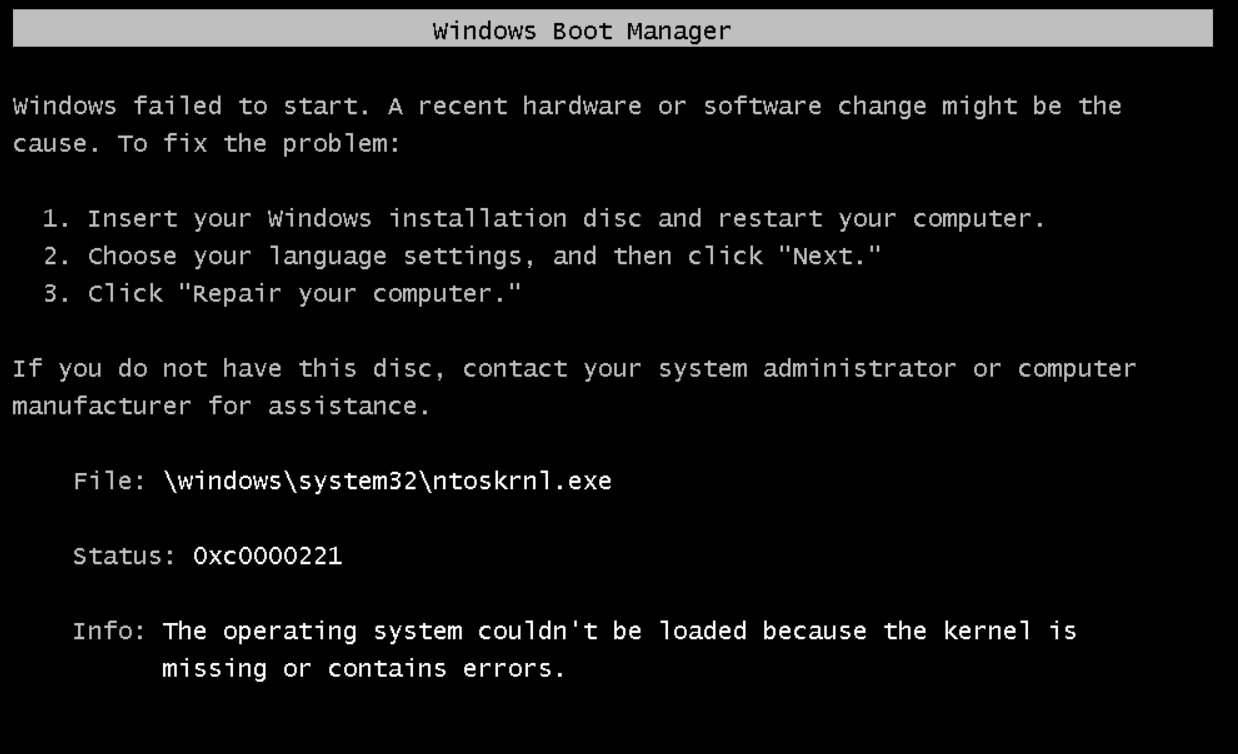

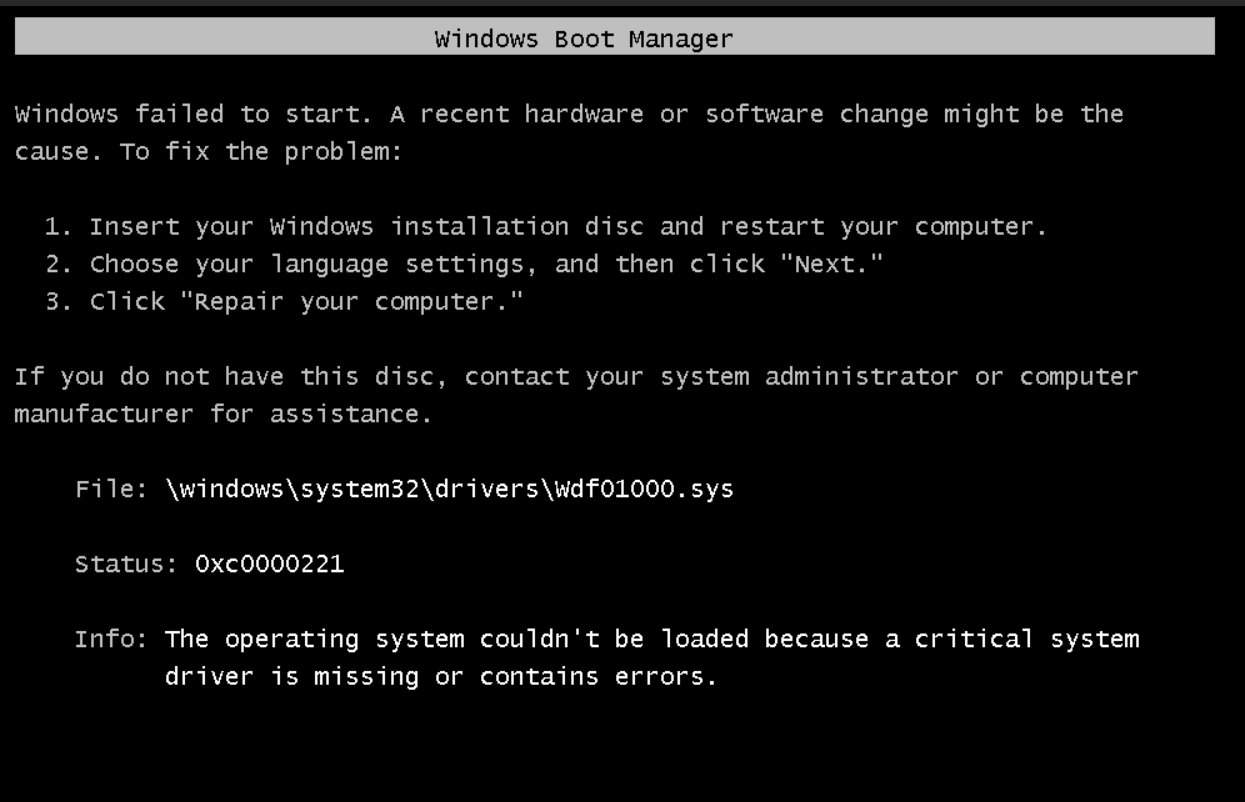

June 5, 20197 yr Author 4 minutes ago, testdasi said: This looks to be a rather idiosyncratic problem with Windows and not Unraid. That file looks to be some HBA controller driver according to Google so I would suggest you rebuild your install media and reinstall Windows from scratch. So just an update on what I have tried. I have redownloaded Server 2016 and also Server 2012. They both are doing the exact same thing as you have seen above. I completed deleted my libvirt file and started over from scratch. I have pulled all my NIC cards, no change. I swapped my H310 HBA for an H200, no change. I have included more screenshots, as the file changes on every reboot. I tried creating the VM with just one core. Nothing is working, and I am getting a little nervous as this is a production machine. I appreciate any advice anyone is able to give-
June 5, 20197 yr On 6/3/2019 at 4:10 PM, poopsie said: moved to a new server 14 minutes ago, poopsie said: the file changes on every reboot. Those two facts lead me to bad RAM. Has this new machine had at least 24 hours running memtest with a clean result? If it's using ECC RAM, I think you will need to create a boot USB with the new proprietary memtest program to get accurate results. Perhaps as a test temporarily remove half the RAM and see if the symptoms change, swap with the removed set of RAM and repeat.
June 5, 20197 yr Author 15 minutes ago, jonathanm said: Those two facts lead me to bad RAM. Has this new machine had at least 24 hours running memtest with a clean result? If it's using ECC RAM, I think you will need to create a boot USB with the new proprietary memtest program to get accurate results. Perhaps as a test temporarily remove half the RAM and see if the symptoms change, swap with the removed set of RAM and repeat. I will give this a shot in a few hours and report back. Thank you!!!!
June 5, 20197 yr Author 4 hours ago, jonathanm said: Those two facts lead me to bad RAM. Has this new machine had at least 24 hours running memtest with a clean result? If it's using ECC RAM, I think you will need to create a boot USB with the new proprietary memtest program to get accurate results. Perhaps as a test temporarily remove half the RAM and see if the symptoms change, swap with the removed set of RAM and repeat. So I ran home and swapped out RAM from another machine. It did the same thing, no change. I had my old R710 laying around still that it was working on prior to the server move, so I pulled the RAM from that also. No change, same error. This one really has me stumped.... Edited June 5, 20197 yr by poopsie
June 6, 20197 yr If you've been trying an OVMF installation, maybe try switching to SeaBIOS to see if that works? We've had no problems with Windows Server 2016, so not sure exactly what's causing this issue just yet.
June 10, 20197 yr Author I actually moved it over to another server and it is working fine. It must have been some sort of hardware issue- Thanks for the help
