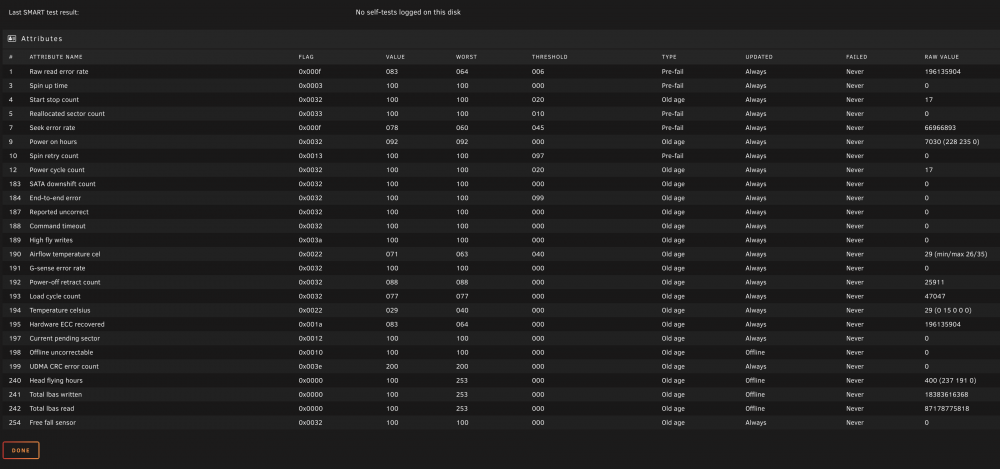

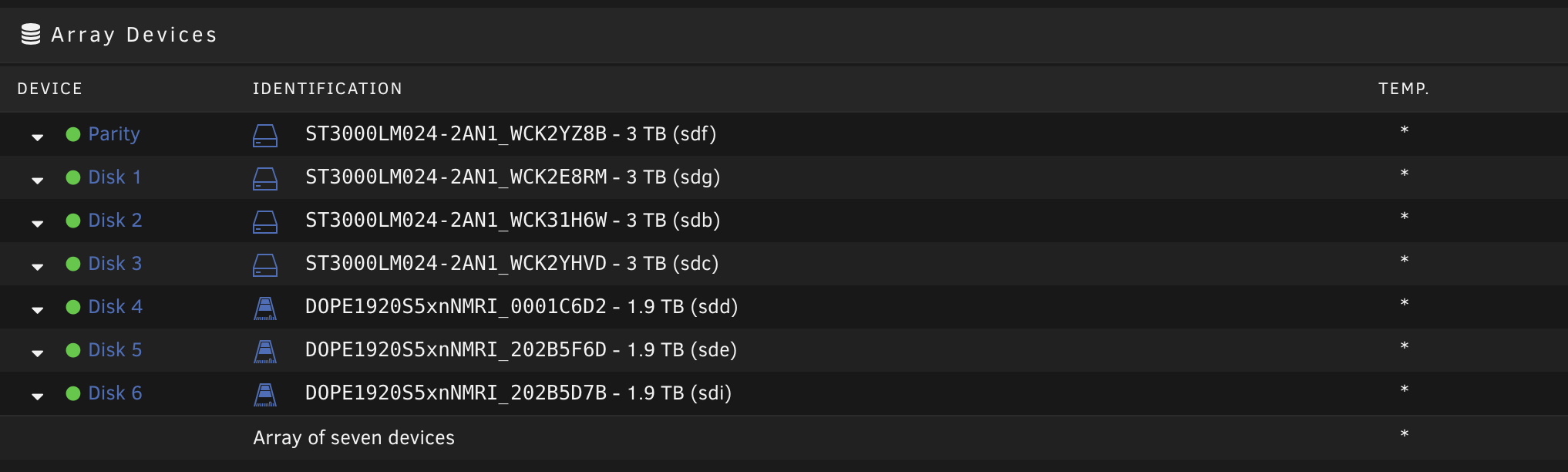

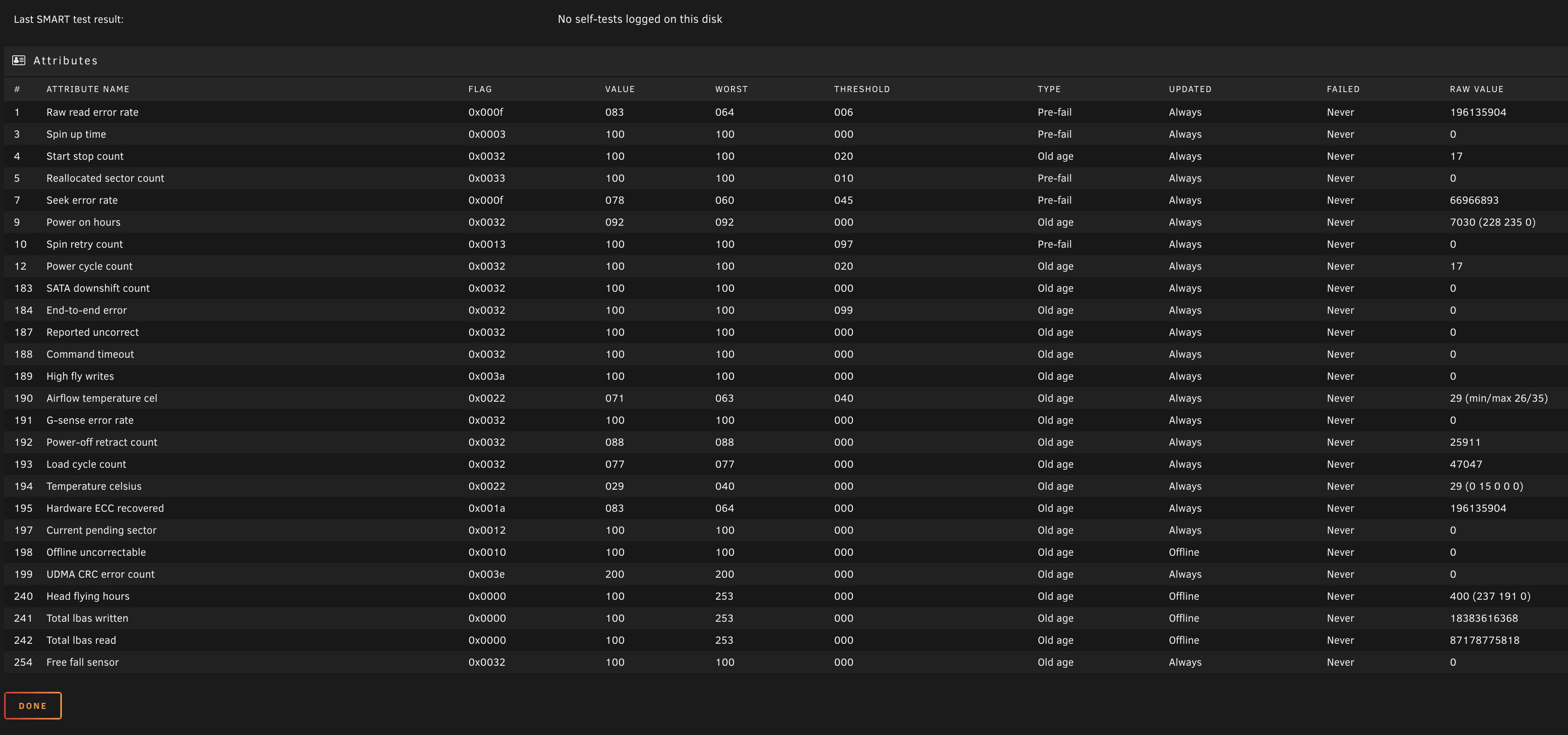

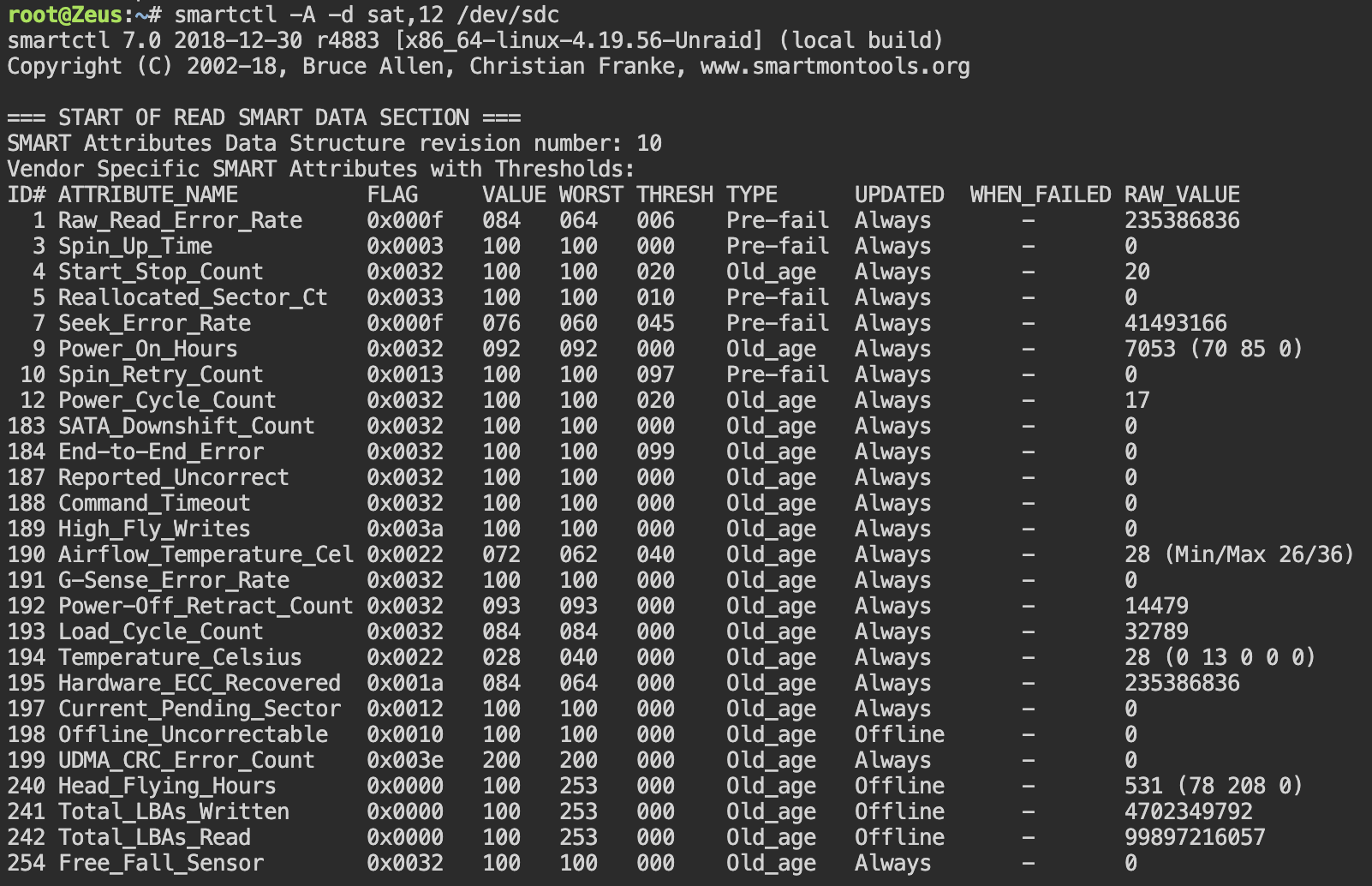

October 3, 20196 yr I have the problem that with none of the hard disks the temperature is indicated. All hard drives are active. The temperature can be read out with SMART Tools. Only the temperature of a unassigned device is displayed.
October 5, 20196 yr Author Where can I start? My Unraid Version is 6.7.2. The HDD Controller is an P420i in HBA Mode. zeus-diagnostics-20191005-0857.zip Edited October 5, 20196 yr by Sascha_B
October 5, 20196 yr Easiest way would be to use a recommended LSI controller, but it might be possible to get temps with that one using custom SMART settings, maybe someone else with same controller can help since I never had any of those.
October 6, 20196 yr Author Are the values not read out via SMART? There are values displayed everywhere, but not in the dashboard. Is it possible to connect the LSI controller to the backplane of the HP?
October 6, 20196 yr SMART attributes are only read every 30 minutes by default in the UI (Main / Dashboard) for performance reasons. This can be changed in Settings - Display Settings under Poll Attributes
October 7, 20196 yr Author Do you mean Settings - Disk Settings - Tunable (poll_attributes): 1800 It´s set.
October 7, 20196 yr 7 minutes ago, Sascha_B said: 1800 That's 30 minutes Not saying its the issue, but if the drive is spun down at the time it goes to read the temp, it will be skipped over, and only read when the drive is spun up and the 30 minute timer is reached.
October 9, 20196 yr Author I disabled the spin down, unfortunately, no values are displayed after hours.
March 13, 20224 yr Did you ever get this figured out. I have the same problem. It’s interesting because all my disks that are unassigned show a temp but once I add them to the array it disappears.
