I have replaced Cashe drives and followed SIOs video. After the replace one kvm is working fine and two is not working.



Is it was way to fix this?



The Win10 Pro kvm gamer seems to start, I am able to connect thru RealVNC, but black screen.



Windows 10 Pro (gamer) kvm log:

2019-11-01 11:46:11.203+0000: Domain id=6 is tainted: high-privileges
2019-11-01 11:46:11.203+0000: Domain id=6 is tainted: host-cpu
char device redirected to /dev/pts/1 (label charserial0)
2019-11-01T11:46:35.706954Z qemu-system-x86_64: vfio: Cannot reset device 0000:af:00.1, depends on group 160 which is not owned.
2019-11-01T11:47:55.259359Z qemu-system-x86_64: terminating on signal 15 from pid 12105 (/usr/sbin/libvirtd)
2019-11-01 11:48:00.895+0000: shutting down, reason=shutdown





xml file:

<domain type='kvm'>
  <name>102 Win10Pro</name>
  <uuid>86f0d200-8c18-7dad-597b-20147d2a0b53</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>8388608</memory>
  <currentMemory unit='KiB'>8388608</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>16</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='16'/>
    <vcpupin vcpu='1' cpuset='40'/>
    <vcpupin vcpu='2' cpuset='17'/>
    <vcpupin vcpu='3' cpuset='41'/>
    <vcpupin vcpu='4' cpuset='18'/>
    <vcpupin vcpu='5' cpuset='42'/>
    <vcpupin vcpu='6' cpuset='19'/>
    <vcpupin vcpu='7' cpuset='43'/>
    <vcpupin vcpu='8' cpuset='20'/>
    <vcpupin vcpu='9' cpuset='44'/>
    <vcpupin vcpu='10' cpuset='21'/>
    <vcpupin vcpu='11' cpuset='45'/>
    <vcpupin vcpu='12' cpuset='22'/>
    <vcpupin vcpu='13' cpuset='46'/>
    <vcpupin vcpu='14' cpuset='23'/>
    <vcpupin vcpu='15' cpuset='47'/>
    <emulatorpin cpuset='2,36'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-3.1'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/86f0d200-8c18-7dad-597b-20147d2a0b53_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='8' threads='2'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='none'/>
      <source file='/mnt/user/domains/102 Win10Pro/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </disk>
    <disk type='block' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source dev='/dev/nvme1n1'/>
      <target dev='hdd' bus='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Win10_1809Oct_v2_EnglishInternational_x64.iso'/>
      <target dev='hda' bus='ide'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.160-1.iso'/>
      <target dev='hdb' bus='ide'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='ide' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:3e:71:c8'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0xaf' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0xaf' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x88' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x89' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x8a' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0b' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x8b' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0c' function='0x0'/>
    </hostdev>
    <memballoon model='none'/>
  </devices>
</domain>





syslog-3.txt

Edited November 2, 20196 yr by frodr

Det info for error is in the kvm log:



2019-11-01T11:46:35.706954Z qemu-system-x86_64: vfio: Cannot reset device 0000:af:00.1, depends on group 160 which is not owned.



Disabled the RTX2070 GPU, and the kvm started. So now I know what's wrong. but how to fix it?

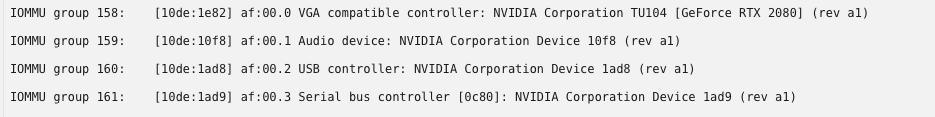

The message refers to the device 0000:af:00.1, which is the audio device. Depends on group 160 which is the USB part. What does this mean, and how to fix it?

And now it is solved. I just connected the hdmi cable and usb`s from steering wheel.
