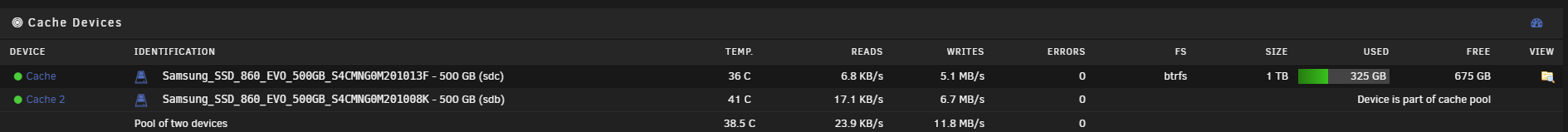

I recently restated my unraid server after working on the cable layout after adding some new drives. Everything looks the same, but i noticed my cache pool is twice the size of the individual drive and so i assume it is not mirrored. This is not how it was before i shutdown, so how do i resolve this?





Please post the diagnostics: Tools -> Diagnostics

Attached

bigrig-diagnostics-20191227-1203.zip

Both data and metadata are using the single profile, it uses the space of both devices without any performance increase and obviously without redundancy, if you want to convert to raid 1 see here:

https://forums.unraid.net/topic/46802-faq-for-unraid-v6/?do=findComment&comment=480421



Thank you, could you explain where i can find the "enter these commands on the cache page balance window e click balance"

On the main GUI page click on cache and scroll down until the balance status section.
