I'm trying to pass through my network card to a PFsense VM but have no luck.

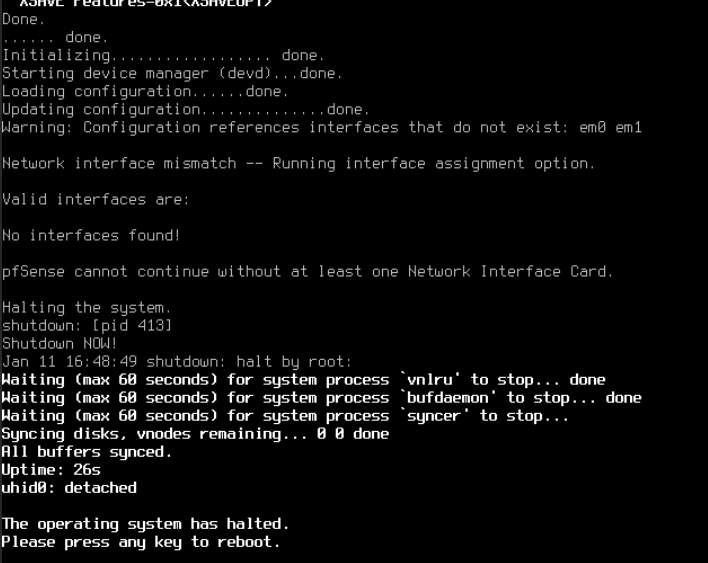

I can select it in the VM creation menu (all 4 ports) but when I have completed the PFsense setup it tells me it cannot find any network interfaces.



I have followed @SpaceInvaderOne's PFsense guide step by step but even that doesn't help me much around video 3 he gets the option to create interfaces in PFsense, but I don't (even our iommou groups are exactly the same).

I have tried ACS override but also without both don't seem to work, also I have tried both Seabios and OVM but still no luck.



if anyone has an idea on anything I could try please let me know because it is becoming frustrating..



I am running unraid 6.8.1



I attached some screenshot and my VM XML file for more information.



Let me know if there is more information I can give! Thanks in advance!

VM XML.txt

Edited January 11, 20206 yr by thierrybla

I made some progress... I am able to add two interfaces by doing this:

    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x1'/>
    </hostdev>

But when I add the two remaining ports (which are in a different Iommou group) by doing this:

    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x05' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x05' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x1'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x06' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x0' multifunction='on'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x06' slot='0x00' function='0x1'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x08' slot='0x00' function='0x1'/>
    </hostdev>

Still only two are showing up..



I am able to make only two ports work at a time either the top two hostdevs or the bottom two.. but I have never been able to make them all work at the same time..



Anyone has an idea?

hi @thierrybla  please post your iommu groupings.





I had a similar issue, then i noticed that in Machine: I had Q35-4.2 selected by default.  SpaceInvader had his set to Q35-2.11.  Once I changed my machine type to Q35-2.11 pfSense was able to detect my NIC.  Now I can follow the rest of the video    I see from your VM_XML file you also have the same machine type I did.  Try the other one to see if it fixes it.

13 hours ago, drjUnraid said:

I had a similar issue, then i noticed that in Machine: I had Q35-4.2 selected by default.  SpaceInvader had his set to Q35-2.11.  Once I changed my machine type to Q35-2.11 pfSense was able to detect my NIC.  Now I can follow the rest of the video    I see from your VM_XML file you also have the same machine type I did.  Try the other one to see if it fixes it.

Yeah you were right, it had to do with the Q35 version! Thanks a bunch.

Just wanted to say thank you. I also had to change the machine type from Q35-4.2 to Q35-2.11. Glad someone else posted this.
