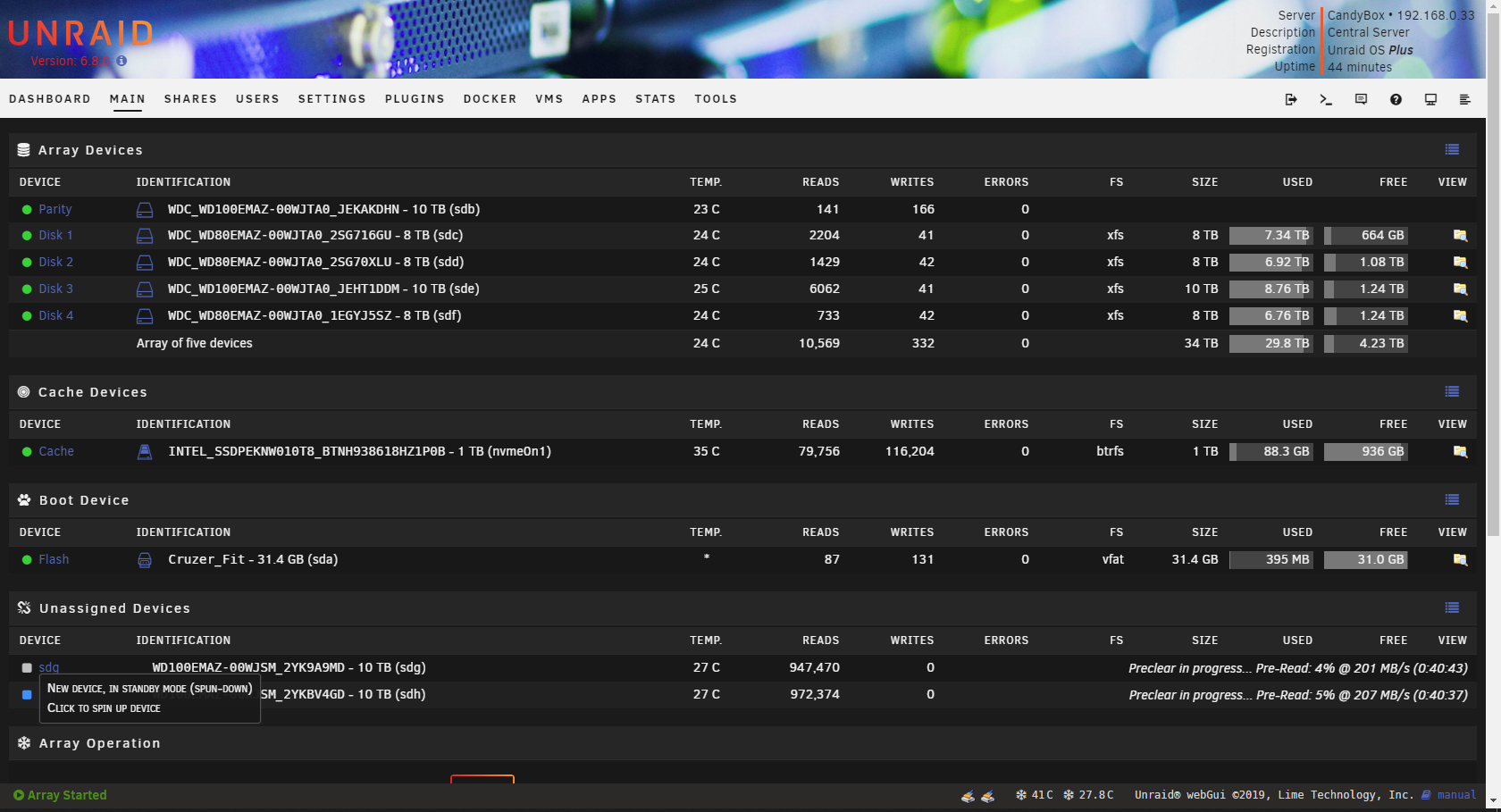

kc8hnz Posted January 25, 2020 Share Posted January 25, 2020 Good evening! I've had my server up and running for three months now, but decided to expand to a disk array. I installed a Netapp X2065A-R6 hba card and connected it to a DS4243 via an official Netapp qsfp cable. Install seamed to go smoothly and I see the two new 10TB WD shucked drives. However, one of the disks lists its status as spun down, and clicking spin up does nothing. Further, when starting preclear, it currently seams to be pre-reading just fine. Any ideas whats going on here? Quote Link to comment
JorgeB Posted January 26, 2020 Share Posted January 26, 2020 You should post on the preclear plugin support thread. Quote Link to comment
kc8hnz Posted January 26, 2020 Author Share Posted January 26, 2020 So preclear failed last night. The disk is not displaying any SMART data, so I'm wondering if there is an issue with the diskshelf oe cableing. any clues? Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: Writing signature: 0 0 2 0 0 255 255 255 1 0 0 0 255 255 255 255 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: Failed test 1: MBR signature is not valid, byte 3 [00000] != [00170] Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: array 'sectors' Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 0 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 1 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 2 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 3 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 4 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 5 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 6 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 7 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 8 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 9 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 10 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 11 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 12 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 13 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 14 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 15 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 16 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 17 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 18 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 19 -> 00000 Jan 26 14:28:30 preclear_disk_2YK9A9MD_20685: 20 -> 00000 Jan 26 14:28:31 preclear_disk_2YK9A9MD_20685: cat: /tmp/.preclear/sdg/smart_error: No such file or directory Jan 26 14:28:31 preclear_disk_2YK9A9MD_20685: error encountered, exiting... Quote Link to comment
kc8hnz Posted January 26, 2020 Author Share Posted January 26, 2020 Solved it! So turns out I had a bad interposer from the e-bay seller. Went to Best Buy and bought a extra 10TB easystore to swap the interposer to and the error followed. Swapped it out with a different one and all is well, plus got a total of 30TB getting added to the array rather than the planned 20TB 🙂 Quote Link to comment
