Hello,

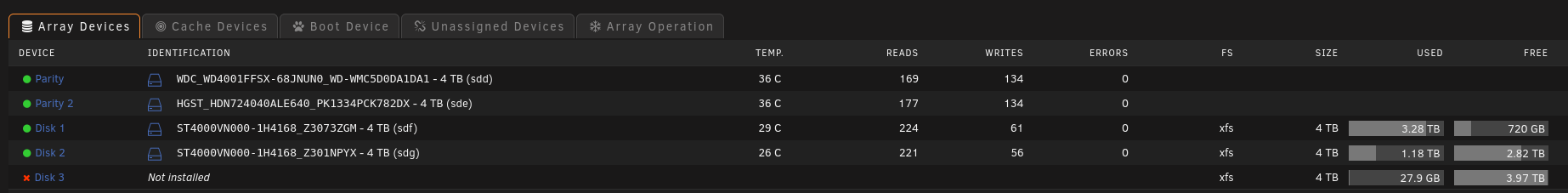

One of my drives was failing health check recently and after a reboot, showed up as 'Not Installed' in the Array Devices list. So I physically disconnected the drive and restarted the array. In the Array Devices list though, it still says 'Not Installed' where the disk originally was (instead of simply not showing that drive slot).



When I stop the array, it still says the drive is missing in that slot, even though its not physically connected anymore.



I've done multiple reboots and a parity check, but this problem still persists.

Diagnostics attached.



Any help is much appreciated!



Thanks!



n3supernas-diagnostics-20200311-2149.zip

You have to rebuild that disk to another disk in the same slot. Or if you don't want anything in that slot and you don't care about any of the data that might have been on that disk, you can New Config and rebuild parity without anything in that slot.

4 minutes ago, trurl said:

You have to rebuild that disk to another disk in the same slot. Or if you don't want anything in that slot and you don't care about any of the data that might have been on that disk, you can New Config and rebuild parity without anything in that slot.

Ah, thanks kindly. I kept all slot assignments the same and chose Parity is Valid option. Seems to be fine so far...

Just now, itlists said:

Ah, thanks kindly. I kept all slot assignments the same and chose Parity is Valid option. Seems to be fine so far...

Are you saying you have nothing assigned to that slot? You MUST rebuild parity. It is NOT VALID without ALL the disks it was originally built with.

As I said

8 minutes ago, trurl said:

you can New Config and rebuild parity without anything in that slot.



@itlists Assuming you followed the shrink array procedure keep in mind (from the wiki):

• Make sure that the drive or drives you are removing have been removed from any inclusions or exclusions for all shares, including in the global share settings. Shares should be changed from the default of "All" to "Include". This include list should contain only the drives that will be retained.

Just now, Dissones4U said:

Assuming you followed the shrink array procedure keep in mind (from the wiki)

I don't see any reason to assume he followed any procedure.

And the simplest procedure for him to follow is New Config without the disk and rebuild parity.

Which, of course, is the first method in that wiki. Might be worth reading though. The main point that might be worth noting there is that any data that was on that removed disk will no longer be in the array, as I mentioned



14 minutes ago, trurl said:

you don't care about any of the data that might have been on that disk



20 minutes ago, trurl said:

Are you saying you have nothing assigned to that slot? You MUST rebuild parity. It is NOT VALID without ALL the disks it was originally built with.

I see... thanks again. I’ve started the parity rebuild now. Thank you for replying so quickly. You saved me from making a foolish mistake on the NAS.
I will bookmark the wiki for future questions first.
