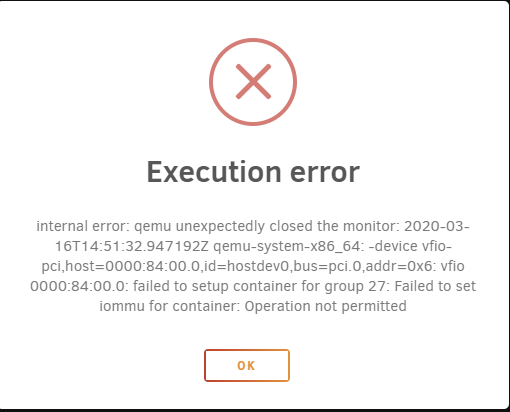

March 17, 20206 yr Hey everyone! I followed SpaceInvaderOne's youtube guide for passing through a PCI-E USB3.0 controller I put into my unRAID server. When I go to start the VM, I get the following error: Followed the guide, see it in my pass through: Check the box, save the settings. Try to start the VM and get the following: Diag bundle attached. edit: I've also tried all 3 different settings for ACS override and the error persists. mediaserver2-diagnostics-20200316-1014.zip
March 17, 20206 yr Install the "VFIO-PCI CFG" plugin and check that card and any other cards, including video cards, you want to pass through to your VM's.
March 17, 20206 yr Author Thanks. Did that. It added 84:00.0 to the config. I rebooted, checked the box to pass through to the VM, same error as above. Do I need to remove the vfio-pci.ids=1912:0014 from my boot config? kernel /bzimage append vfio-pci.ids=1912:0014 initrd=/bzroot (theres more after this)
March 17, 20206 yr Yes, the vfio-pci.cfg is the preferred method of specifying which devices with which you want to do pass-through.

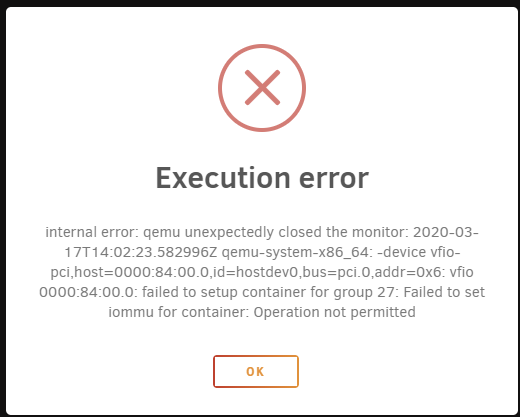

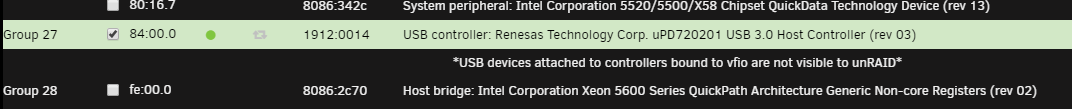

March 17, 20206 yr Author 12 hours ago, Taddeusz said: Yes, the vfio-pci.cfg is the preferred method of specifying which devices with which you want to do pass-through. OK - came back this morning, rebooted after removing the append part. VM settings sees the USB card, but when i check the box and click update to update the VM settings, they save. When I go to start the VM, get this: Nothing else is in group 27 (checking via command line and via the plugin): In the VM Settings, this is what I have set: Any other ideas? Edited March 17, 20206 yr by JasonK
March 17, 20206 yr Author 1 hour ago, Taddeusz said: It appears to be enabled... Is your BIOS up to date? Yup - all virtualization stuff is enabled in the BIOS. BIOS is the latest version available for the system board.
March 17, 20206 yr The only thing that I can guess is there’s a compatibility problem with the now 10 year old Westmere VT-d implementation or with your particular CPU/motherboard combination. I’m just guessing now since it appears you have things set up correctly.
March 17, 20206 yr Author 18 minutes ago, Taddeusz said: The only thing that I can guess is there’s a compatibility problem with the now 10 year old Westmere VT-d implementation or with your particular CPU/motherboard combination. I’m just guessing now since it appears you have things set up correctly. Thanks - it's possible for sure. unRAID sees the USB 3.0 PCI-E card...if I plug in an external hard drive to it, I can assign that drive to a VM in pass-through without issues. Just that the speeds are slow as heck (basically USB 2.0 speeds) - was hoping that by passing the whole card through to the VM, the USB 3.0 external drive would get USB 3 speeds.
March 17, 20206 yr The last thing that I can think is to move the card around and see if there’s a slot that will work. It appears that motherboard might have a PCIe bridge to give it more channels. Look at the manual to see which slots are hooked to what.
March 17, 20206 yr Looking at the manual I would put that card in a slot that is associated with the CPU cores you’re using for your VM. The same goes for any other cards you’re passing to that VM. I would also recommend that all the cores you use for your VM come from the same CPU so they aren’t crossing NUMA nodes. Each CPU appears to have its own NUMA node.
