Hi,



This morning, I received a notification that one of my drives is in an error state and has been disabled. I'm passing along my diagnostics. Please let me know what steps I need to take next. The drive that was reported to be in an error state is Hitachi_HUA723030ALA640_MK0331YHH6MHSA



Thanks,



-Matt

nas-diagnostics-20201017-1109.zip

Edited October 17, 20205 yr by Matthew Kent

If the drive is being emulated, does that mean all of the data is available via the parity drive? If it's all available, does that mean I is theory could move all of the data to other drives?



10 minutes ago, Matthew Kent said:

If the drive is being emulated, does that mean all of the data is available via the parity drive? If it's all available, does that mean I is theory could move all of the data to other drives?



It means the drive is being emulated using the combination of the parity drive PLUS all the data drives.   The data is therefore available just if the drive was really present, and you can do anything you could normally do.

Terrific, I have plenty of room to migrate the data and remove this drive if it's gone bad

Has anyone had a chance to look at the diagnostic data? The smart test I looked at didn't show anything alarming, and the drive's power on time is only 8 months. I'm running an extended smart test now.

Looks like you rebooted before getting those diagnostics, so can't see what caused the disk to be disabled.



SMART attributes for the disk look OK.



If it passes the extended SMART test, you can rebuild the disk to itself. Do you know how?

Ahh, that's good to know that I need to grab the diagnostics before rebooting. I'm assuming I can't rebuild the disk since I've already moved all of the data off from the emulated disk.



But in the future, would it involve removing the disk from the array, and then re-adding it as a new disk?

1 minute ago, Matthew Kent said:

I'm assuming I can't rebuild the disk

If you intend to keep the disk in the array, you have to rebuild to get it enabled again.



If instead you intend to remove it from the array, then you will have to New Config without it and rebuild parity.

What steps would I need to take to rebuild it?

Assuming you moved all the data off the emulated disk, the actual physical disk itself has not been changed since it was disabled, so no data has been moved from the physical disk.



To rebuild a disk to itself (whether parity or data)

1. Stop array
2. Unassign disabled disk
3. Start array with disabled disk unassigned
4. Stop array
5. Reassign disabled disk
6. Start array to begin rebuild

3 hours ago, Matthew Kent said:

What steps would I need to take to rebuild it?

All the steps required in different scenarios for disk replacement are covered here in the online documentation.

12 hours ago, trurl said:

Assuming you moved all the data off the emulated disk

Also, I generally don't recommend moving data from the emulated disk, it just makes everything work a lot harder, since all disks must be read to emulate the disabled disk. And in the end, you need to rebuild anyway and rebuild will get the data back, so no point in going to all that extra work on yourself and your hardware.

Hey guys, it happened again, but with a different drive. This time I didn't reboot. Included is my diagnostics.



-Matt

nas-diagnostics-20201026-1340.zip

Disk3 disabled, emulated drive is mounted so your data should be OK. Can't see SMART for the disk since it is disconnected.



Shut down, check all connections, all disks, both ends, power and SATA, including splitters.



Then reboot and post new diagnostics.

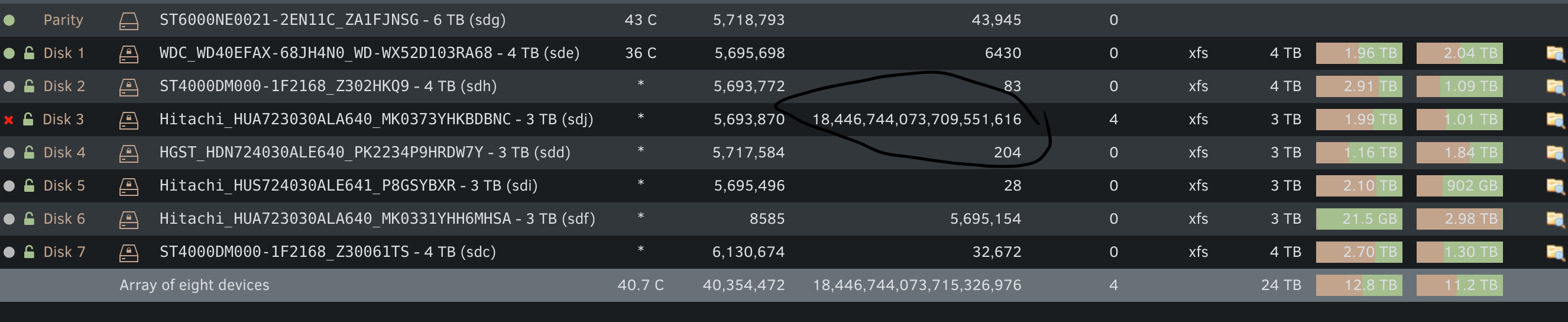

This is a fairly new drive... any idea what's going on w/ the write count? The numbers a crazy



19 minutes ago, Matthew Kent said:

any idea what's going on w/ the write count?

basically meaningless since

54 minutes ago, trurl said:

it is disconnected.



Gotcha,



K, rebooted, here are my new diagnostics. I ran a short smart test on the drive, no issues reported.

nas-diagnostics-20201026-1541.zip

Did you?

15 hours ago, trurl said:

check all connections, all disks, both ends, power and SATA, including splitters



On 10/18/2020 at 2:19 PM, trurl said:

Assuming you moved all the data off the emulated disk, the actual physical disk itself has not been changed since it was disabled, so no data has been moved from the physical disk.



To rebuild a disk to itself (whether parity or data)

1. Stop array
2. Unassign disabled disk
3. Start array with disabled disk unassigned
4. Stop array
5. Reassign disabled disk
6. Start array to begin rebuild

Hi,

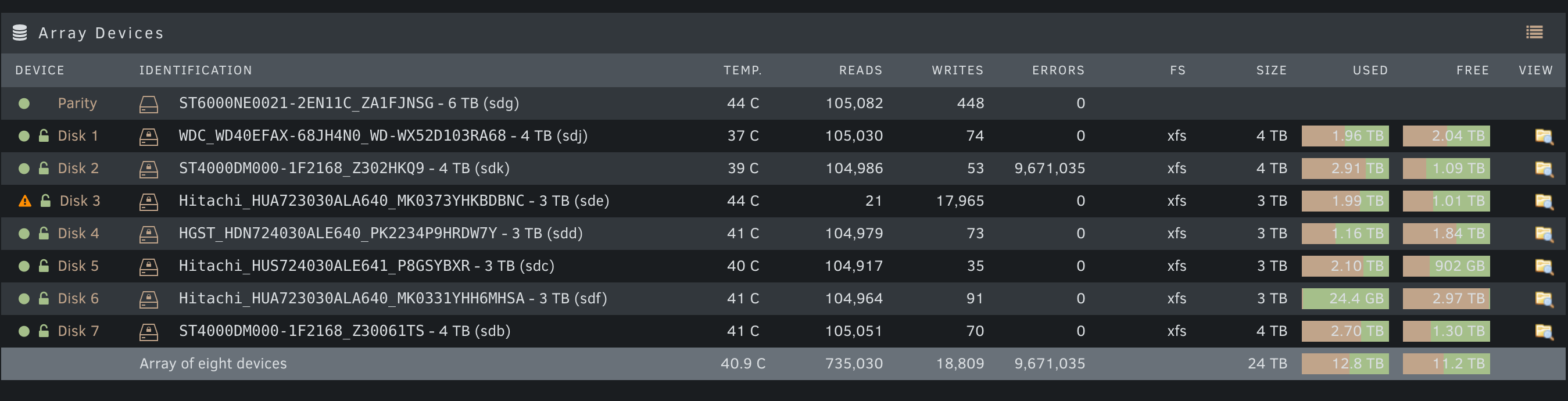

I've checked over all of the cabling. Everything looks good and there seemed to be proper communication.  I haven't seen any smart errors on my disk 3 and decided to follow the above. After the rebuild began, I'm now seeing a ton of errors on my disk 2. Any idea what's going on? This is a brand new disk with a lot of important data on it.

I've paused the rebuild and am including a new diagnostics. Do I need to replace the cabling on this drive?



nas-diagnostics-20201027-0839.zip

Edited October 27, 20205 yr by Matthew Kent

It looks as if disk2 has dropped offline (so there is no SMART information for that dtive in the diagnostics) and in that case no point in trying to continue rebuild of disk3.



Doing a power cycle on the server may be required to bring it back online.    As always you want to check the SATA/power cabling to the drive.    New diagnostics after the reboot should allow us to check that it looks OK.

K, I've rebooted and swapped out the sata cable to the disk w/ all the errors. Disk 2 seems to be back to normal. Let me know what you guys can see in the diagnostics. Thanks

nas-diagnostics-20201027-1521.zip

Looks OK. Disk3 rebuilding.

Hey all, for the second time in about in a week, my drive 3 has gone into "error state". I replaced the drive that was in this spot on my array about 2 months ago, and the smart checks come back good. Can you see anything in the diagnostics that would indicate what's happening. I was pretty sure when I swapped the drive I put in a new sata cable, but I'm going to put in another new one now and maybe change the port it's connected to.





nas-diagnostics-20201203-2323.zip nas-diagnostics-20201209-0035.zip

Disk not connected. Fix connections then post new diagnostics.
