I just upgraded my CPU, MB and RAM and I'm now seeing issues with my two SSDs that never showed any issues before.  I'm seeing things like this in the disk log for either of them:



Nov 13 16:54:40 Tower kernel: ata9.00: failed command: WRITE FPDMA QUEUED
Nov 13 16:54:40 Tower kernel: ata9.00: cmd 61/00:58:60:4d:85/0a:00:04:00:00/40 tag 11 ncq dma 1310720 ou
Nov 13 16:54:40 Tower kernel: ata9.00: status: { DRDY }
Nov 13 16:54:40 Tower kernel: ata9.00: failed command: SEND FPDMA QUEUED
Nov 13 16:54:40 Tower kernel: ata9.00: cmd 64/01:60:00:00:00/00:00:00:00:00/a0 tag 12 ncq dma 512 out
Nov 13 16:54:40 Tower kernel: ata9.00: status: { DRDY }
Nov 13 16:54:40 Tower kernel: ata9.00: failed command: WRITE FPDMA QUEUED
Nov 13 16:54:40 Tower kernel: ata9.00: cmd 61/00:68:60:3d:85/0a:00:04:00:00/40 tag 13 ncq dma 1310720 ou
Nov 13 16:54:40 Tower kernel: ata9.00: status: { DRDY }
Nov 13 16:54:40 Tower kernel: ata9.00: failed command: READ FPDMA QUEUED
Nov 13 16:54:40 Tower kernel: ata9.00: cmd 60/08:70:a8:16:47/00:00:07:00:00/40 tag 14 ncq dma 4096 in
Nov 13 16:54:40 Tower kernel: ata9.00: status: { DRDY }
Nov 13 16:54:40 Tower kernel: ata9: hard resetting link
Nov 13 16:54:40 Tower kernel: ata9: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Nov 13 16:54:40 Tower kernel: ata9.00: supports DRM functions and may not be fully accessible
Nov 13 16:54:40 Tower kernel: ata9.00: supports DRM functions and may not be fully accessible
Nov 13 16:54:40 Tower kernel: ata9.00: configured for UDMA/133
Nov 13 16:54:40 Tower kernel: ata9: EH complete
Nov 13 16:54:40 Tower kernel: ata9.00: Enabling discard_zeroes_data
Nov 13 16:55:10 Tower kernel: ata9.00: NCQ disabled due to excessive errors
Nov 13 16:55:10 Tower kernel: ata9.00: exception Emask 0x0 SAct 0x8000 SErr 0x0 action 0x6 frozen
Nov 13 16:55:10 Tower kernel: ata9.00: failed command: SEND FPDMA QUEUED
Nov 13 16:55:10 Tower kernel: ata9.00: cmd 64/01:78:00:00:00/00:00:00:00:00/a0 tag 15 ncq dma 512 out
Nov 13 16:55:10 Tower kernel: ata9.00: status: { DRDY }
Nov 13 16:55:10 Tower kernel: ata9: hard resetting link
Nov 13 16:55:11 Tower kernel: ata9: SATA link up 6.0 Gbps (SStatus 133 SControl 300)
Nov 13 16:55:11 Tower kernel: ata9.00: supports DRM functions and may not be fully accessible
Nov 13 16:55:11 Tower kernel: ata9.00: supports DRM functions and may not be fully accessible
Nov 13 16:55:11 Tower kernel: ata9.00: configured for UDMA/133
Nov 13 16:55:11 Tower kernel: ata9: EH complete
Nov 13 16:55:11 Tower kernel: ata9.00: Enabling discard_zeroes_data

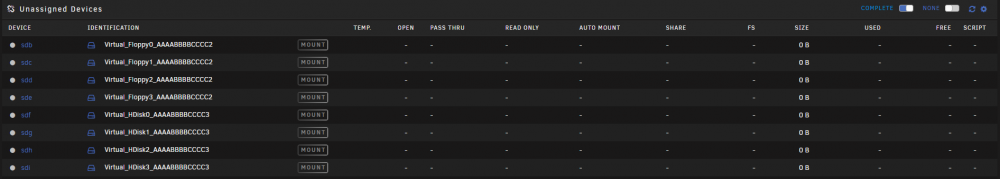

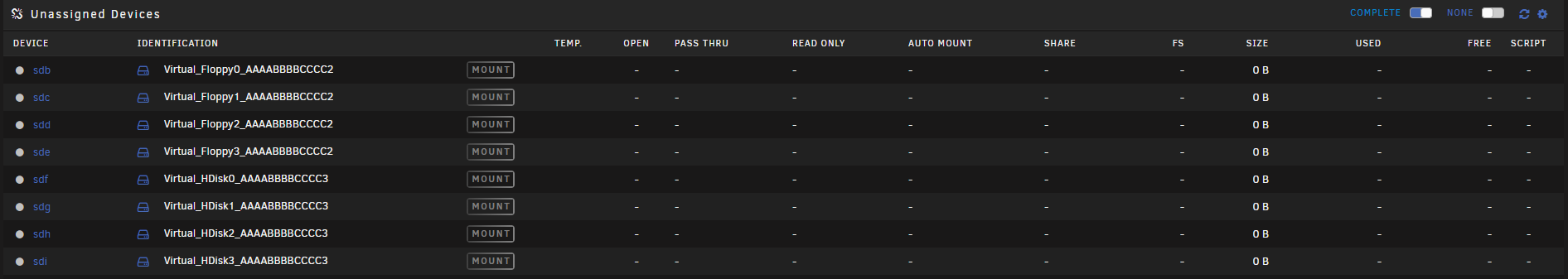

This drive becomes unavailable at times and then reappears on a reboot.  I am alsu seeing a bunch of virtual devices in Unassigned Drives that were never there before.  I attached a screenshot.



I've attached Diagnostics.







tower-diagnostics-20201113-1856.zip

Edited November 14, 20205 yr by RockDawg

Issues are affecting both SSDs, try using the AMD SATA controller instead of the Asmedia.



9 hours ago, RockDawg said:

I am alsu seeing a bunch of virtual devices in Unassigned Drives that were never there before.  I attached a screenshot.

For some reason the board isn't displaying the model, but if it has IPMI these look like virtual devices.

OK.  I will try the other controller.  Motherboard is Asrock Rack X399D8A-2T and it does have IPMI.  My previous 2 boards also had IPMI and I've never seen that before.  With that said, they are no longer showing



EDIT:  Actually according to the manual I'm not plugged into the Asmedia controller.  It says there are only 2 ports on the Asmedia controller (SATA3_6 / SATA3_7).  I am using a breakout cable and it's plugged in to SATA3_4 / SATA3_5 / SATA3_8 / SATA3_9.

Edited November 14, 20205 yr by RockDawg

On 11/14/2020 at 12:46 PM, RockDawg said:

Actually according to the manual I'm not plugged into the Asmedia controller.

They are using this controller:

06:00.0 SATA controller [0106]: ASMedia Technology Inc. ASM1062 Serial ATA Controller [1b21:0612] (rev 02)
    Subsystem: ASRock Incorporation Motherboard [1849:0612]
    Kernel driver in use: ahci
    Kernel modules: ahci

Try this one instead:

01:00.1 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset SATA Controller [1022:43b6] (rev 02)
    Subsystem: ASMedia Technology Inc. Device [1b21:1062]
    Kernel driver in use: ahci
    Kernel modules: ahci
