Cannot boot into Windows 10 with OVMF anymore.


anony

Recommended Posts

Version: 6.9.0-beta35

Tried latest stable too.

CPU: Ryzen 9 5900x

Motherboard: ASUS X570 Hero Wifi

BIOS version: 3003 (latest)

https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-viii-hero-wi-fi-model/helpdesk_bios/



I run two VMs on my machine. A Windows 10 system and an ubuntu system. They both use the OVMF BIOS with Q35. Recently I decided to update my motherboard bios to from 2702 to 3003 as it was recently released. After updating, I cannot get my Windows 10 VM to display. After booting the screen goes blank with nothing after. I cannot find any errors in the logs either. My ubuntu VM works completely fine and boots no problem.



I have tried the fx bios which also doesn't work. Only SeaBIOS works now - I dont like SeaBIOS; it requires me to reinstall windows since I cant seem to boot from my past OVMF version of Windows 10. I have tried disabling hyperv and messing with bios settings (default) but no luck! I cannot downgrade the motherboard BIOS either.



I have also tried re-creating the VM numerous times. Including booting off UEFI version of unraid.



What else should I provide?



Logs of Windows 10 VM on OVMF

-m 30208 \
-overcommit mem-lock=off \
-smp 12,sockets=1,dies=1,cores=6,threads=2 \
-uuid 269b9d68-44ba-e501-0878-d5d36b29911f \
-display none \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=32,server,nowait \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device pcie-root-port,port=0x8,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x1 \
-device pcie-root-port,port=0x9,chassis=2,id=pci.2,bus=pcie.0,addr=0x1.0x1 \
-device pcie-root-port,port=0xa,chassis=3,id=pci.3,bus=pcie.0,addr=0x1.0x2 \
-device pcie-root-port,port=0xb,chassis=4,id=pci.4,bus=pcie.0,addr=0x1.0x3 \
-device pcie-root-port,port=0xc,chassis=5,id=pci.5,bus=pcie.0,addr=0x1.0x4 \
-device pcie-root-port,port=0xd,chassis=6,id=pci.6,bus=pcie.0,addr=0x1.0x5 \
-device qemu-xhci,p2=15,p3=15,id=usb,bus=pcie.0,addr=0x7 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.2,addr=0x0 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/Win10_20H2_v2_English_x64.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \
-device ide-cd,bus=ide.0,drive=libvirt-2-format,id=sata0-0-0,bootindex=2 \
-blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.189-1.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \
-device ide-cd,bus=ide.1,drive=libvirt-1-format,id=sata0-0-1 \
-netdev tap,fd=35,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:1a:65:88,bus=pci.1,addr=0x0 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0 \
-chardev socket,id=charchannel0,fd=37,server,nowait \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device vfio-pci,host=0000:09:00.0,id=hostdev0,bus=pci.3,addr=0x0,romfile=/mnt/user/isos/gpubios.rom \
-device vfio-pci,host=0000:09:00.1,id=hostdev1,bus=pci.4,addr=0x0 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
2020-12-10 10:43:11.416+0000: Domain id=5 is tainted: high-privileges
2020-12-10 10:43:11.416+0000: Domain id=5 is tainted: host-cpu
char device redirected to /dev/pts/1 (label charserial0)



tower-diagnostics-20201210-0244.zip

Edited by anony
Link to comment
8 minutes ago, rachid596 said:

If you create a new vm it's not working too ? I have the Same motherboard and yesterday i want to install this bios now with your post i do not install it.



Yes if I create a new VM it doesn't work. Thanks I forgot about BIOS flash back I will try that tomorrow to revert back to 2702.

Edited by anony
  • Like 1
Link to comment

I have downgraded the bios to 2702 with no luck. I have no idea why ubuntu works on both gpu's but windows 10 does not work at all yet windows 10 used to work. Im on my 6th hour trying to fix this - this is my 4th year running unraid and the one thing it had kept this entire time is how much of a pain in the ass it has been. 😀

Edited by anony
Link to comment
I have downgraded the bios to 2702 with no luck. I have no idea why ubuntu works on both gpu's but windows 10 does not work at all yet windows 10 used to work. Im on my 6th hour trying to fix this - this is my 4th year running unraid and the one thing it had kept this entire time is how much of a pain in the ass it has been.
Very strange problem. I can't help you sorry. Maybe try q35 machine type. Do you test with 6.9 rc1 ?

Envoyé de mon HD1913 en utilisant Tapatalk

Link to comment

I have discovered this error in the log now:

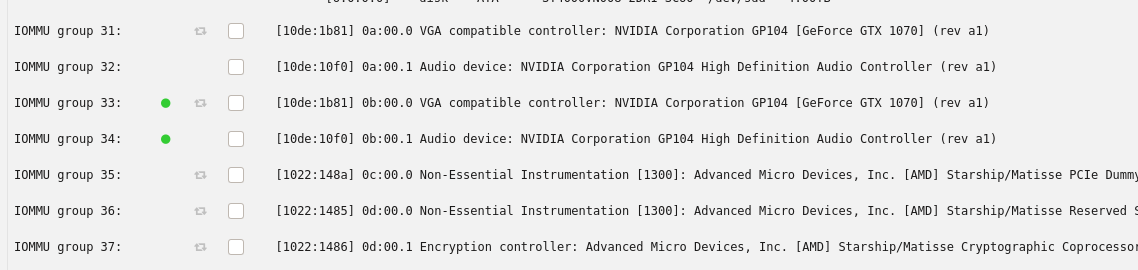

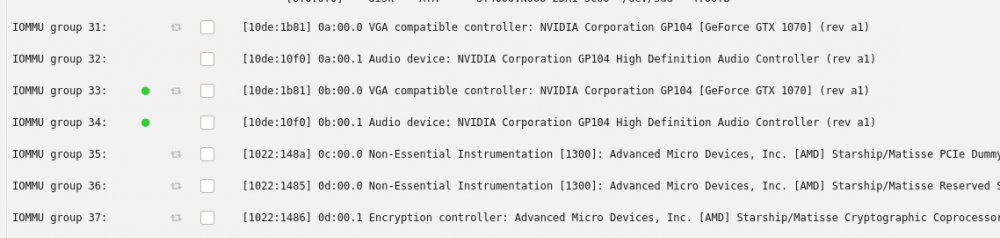

2020-12-13T01:19:05.191309Z qemu-system-x86_64: vfio: Cannot reset device 0000:0a:00.0, depends on group 32 which is not owned.
2020-12-13T01:19:05.191404Z qemu-system-x86_64: vfio: Cannot reset device 0000:0a:00.0, depends on group 32 which is not owned.

Link to comment
