[6.10.0] - NVME Drive is unmountable and repair of Btrfs in GUI does not help

There's no valid btrfs filesystem on that device, like if the device was wiped, are you sure you're not leaving anything out?



If it was really btrfs you can try this, with the array stopped:



btrfs-select-super -s 1 /dev/nvme0n1p1



If the command is successful start the array to see if it mounts.

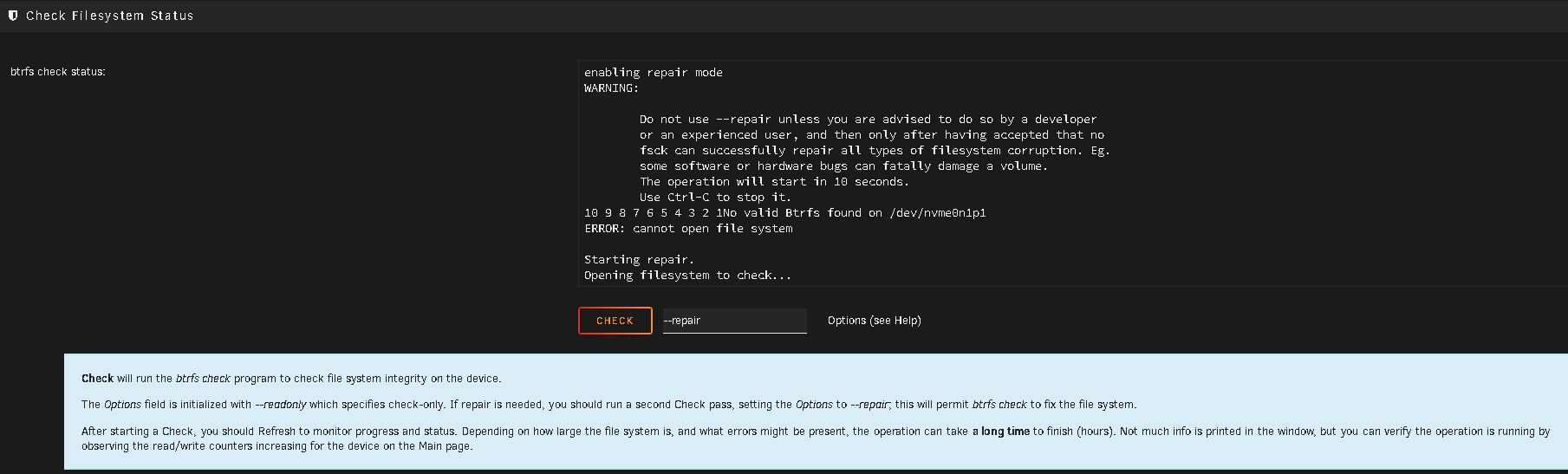

@JorgeB Many thanks for the help! It works now. The output is showed on the screenshot.

What happened with btrfs on the nvme drive during the OS upgrade?

Cache drive is also btrfs, but it survived somehow.

Changed Status to Solved

11 hours ago, koaly said:

What happened with btrfs on the nvme drive during the OS upgrade?

Didn't the device name change when you updated? I also have the same NVMe device and the name changed when updating to the initial v6.10.0-rc releases, it then changed back with -rc8 or later when it was corrected, if yours also changed and depending on how you handled that you might have wiped the device accidentally, symptom is consistent with wipefs being run on it, can't see how just upgrading would do that, but glad it's solved.

26 minutes ago, JorgeB said:

Didn't the device name change when you updated? I also have the same NVMe device and the name changed when updating to the initial v6.10.0-rc releases, it then changed back with -rc8 or later when it was corrected, if yours also changed and depending on how you handled that you might have wiped the device accidentally, symptom is consistent with wipefs being run on it, can't see how just upgrading would do that, but glad it's solved.

The device name did not change and it worked well after upgrade from 6.9 up to 6.10 rc7. I do not remember whether the ID changed, but it could. Nevertheless I did not do any drive wipe or anything. By the first reboot after the upgrade from RC to Stable Unraid failed to load and I did not have a chance to see what happened, because even HDMI showed nothing.

56 minutes ago, koaly said:

The device name did not change

That's interesting, do you mind posting the output of:



udevadm info -q property -n /dev/nvme0n1
