I have set up a share that uses an SSD as cache. However, something seems to be very wrong. My writing speed to /mnt/user/share are around 25-30 Megabyte/s, even though I'm having an SSD cache and the "Use Cache Pool" setting at "Yes".
I noticed that my qBittorrent was always at a maximum of 25 Megabyte/s. I have 750 Mbit/s internet and always get 500 Mbit/s+ in speed tests and reaches speeds at 70 Megabyte/s+ on my other computer.
I tried to search and found out more people who seem to have had the same problem, but I couldn't find any solution. I've tried setting Tunable (md_write_method) to reconstruct write, but that doesn't affect speed. (I guess it shouldn't either, as the data is written to cache and the parity is not involved.)
My server specs:
Motherboard: Supermicro X12STH-LN4F
CPU: Intel Xeon E-2356G
Memory: 2*32 GB ECC RAM
Hard drives: 3*Seagate Exos X16 16 TB 7200 RPM (1 parity, 2 data) - Data is xfs encrypted
SSD cache: 1 TB Samsung 970 EVO Plus NVMe M.2 - SSD is btrfs encrypted
Unraid version: 6.10.0-rc4
I ran some dd tests and these are the results:
# dd if=/dev/zero of=/mnt/user/media/test-user bs=1K count=5000000 conv=fdatasync
5000000+0 records in
5000000+0 records out
5120000000 bytes (5.1 GB, 4.8 GiB) copied, 209.546 s, 24.4 MB/s
# dd if=/dev/zero of=/mnt/cache/media/test-cache bs=1K count=5000000 conv=fdatasync
5000000+0 records in
5000000+0 records out
5120000000 bytes (5.1 GB, 4.8 GiB) copied, 8.50469 s, 602 MB/s
# dd if=/dev/zero of=/mnt/disk1/media/test-disk1 bs=1K count=5000000 conv=fdatasync
5000000+0 records in
5000000+0 records out
5120000000 bytes (5.1 GB, 4.8 GiB) copied, 23.7756 s, 215 MB/s
I've verified that the dd test to /mnt/user is written to the share, and not disk.
I've attached the diagnostics, collected after I ran the dd tests. No reboot. Below are some images of my settings.

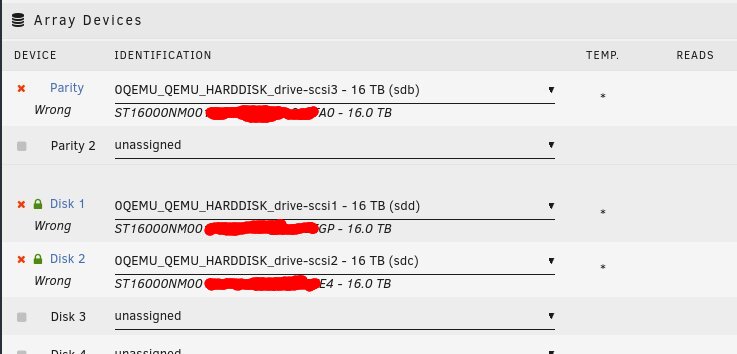

Disk Settings:
Disk 1:
Cache:
Share settings:
Global Share Settings:
tower-diagnostics-20220401-2004.zip
