使用一个邮箱买了2个UNRAID，一个是22年买的，PRo版，一个是Basic版，前几天买的，这个Basic买了之后换了一个SLC的U盘，今天发现死机了，重装了UNRAID，结果发现无法激活Basic版，登录时提示Your GUID is blacklisted。真搞不懂。

bios设置了，还是不行，各种模式都用了，都一样

补充一下配置： cpu i5-11400 主板 映泰b560m 系统6.10.3 今天重新安装了unraid6.10.3，重置了主板bios，还是老样子

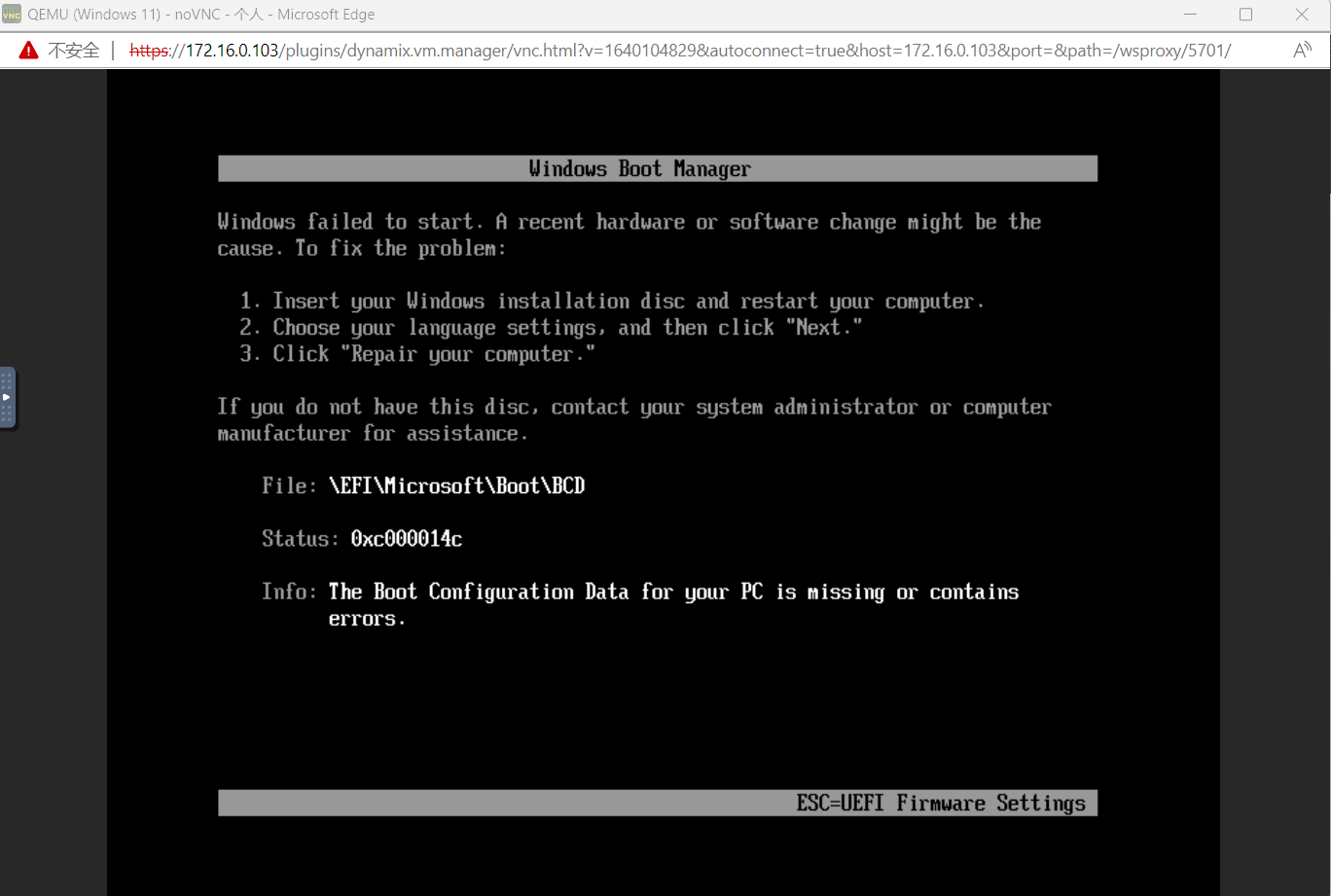

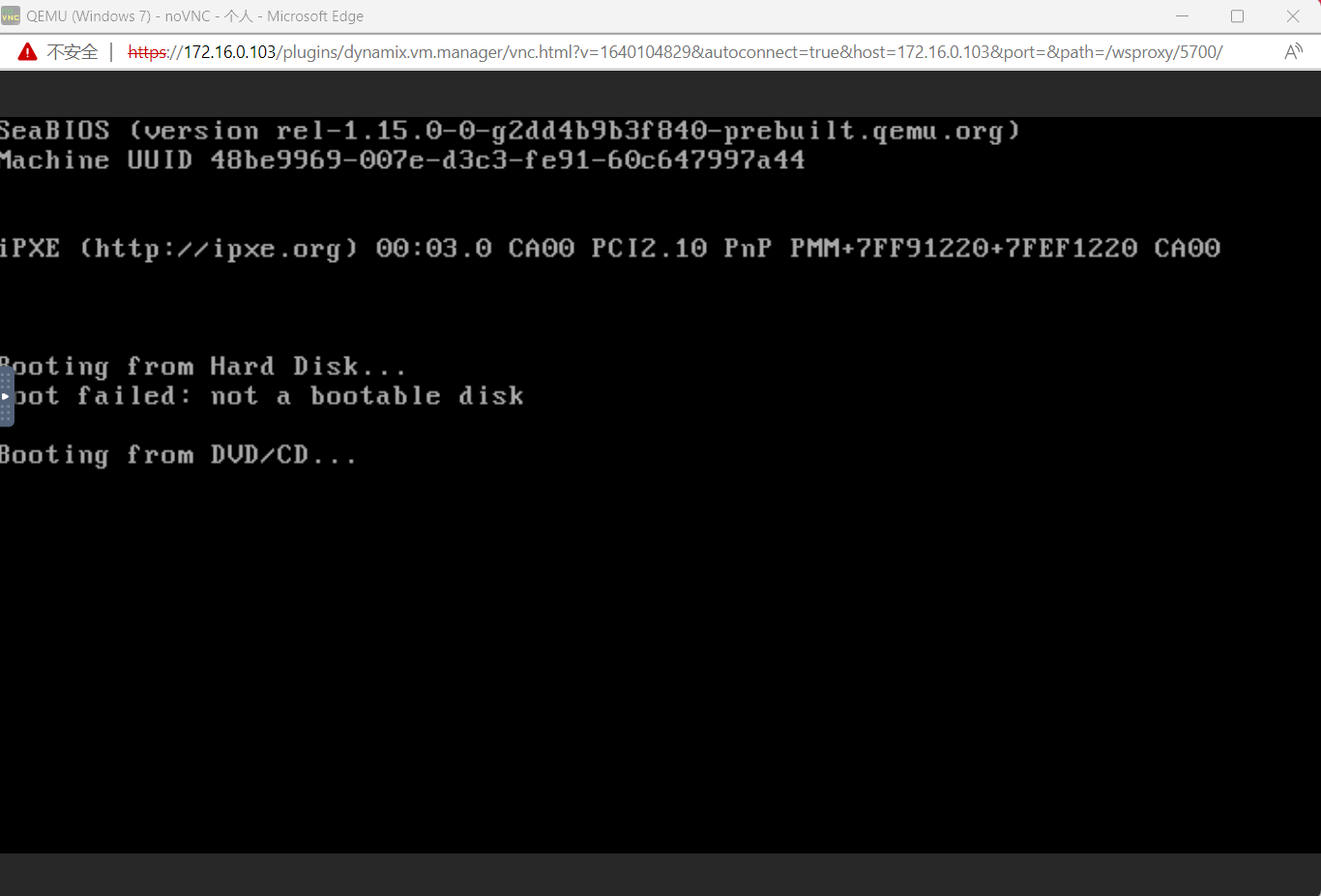

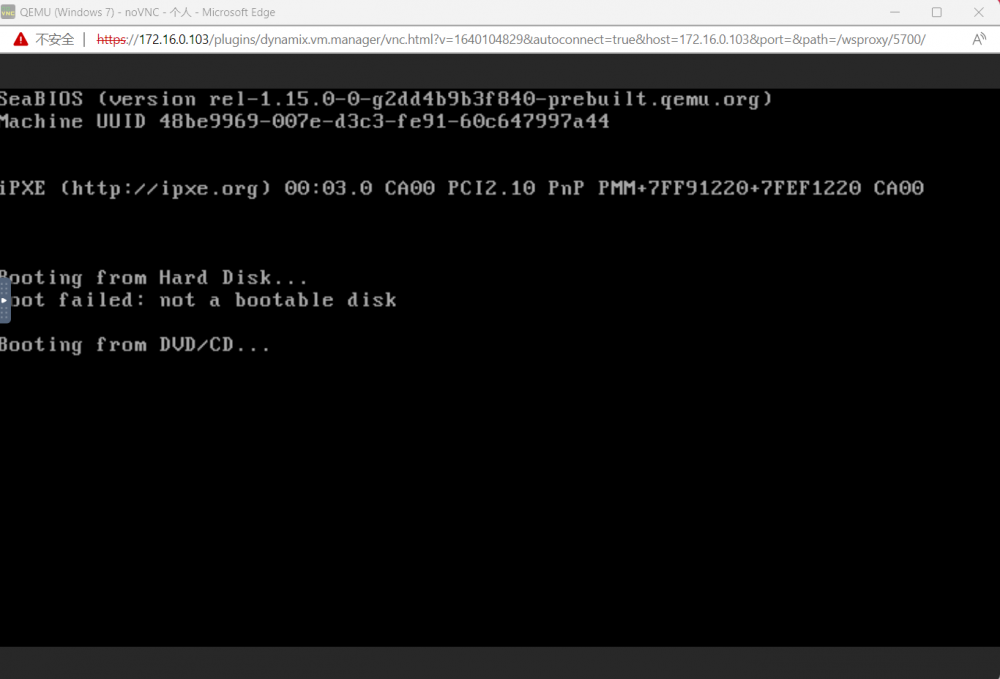

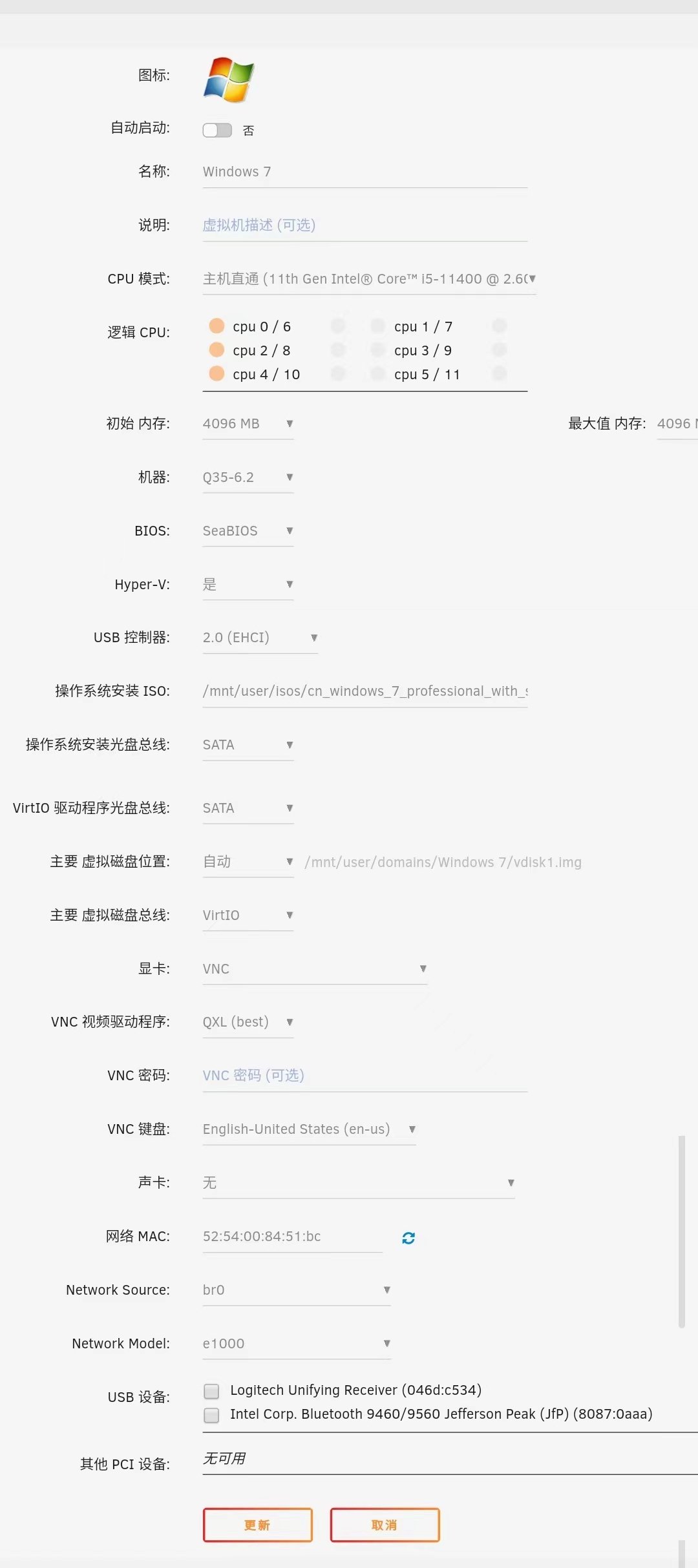

很久没有安装虚拟机了，最近安装虚拟机时，只要是windows系统，不管是win7，win10还是win11都没法正常安装，机器类型和bios都试了，还是卡在下面的界面。如果选择seabios，就会弹出第一张图，无法进行安装，如果选择OVMF，就是第二张图。后面附了一些日志，请大神帮忙看看。 上图是安装win7，选择seabiso，机器类型不论选什么，都是卡这个界面，安装的镜像用的MSDN上下的原版。 上图是安装win11，选择OVMF或者OVMF TPM时，机器类型不论选什么，都卡在这个界面。 ====================================================日志分割线============================================================== 【安装Win7的日志如下：】 text error warn system array login -boot strict=on \ -device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x4 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 7/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \ -device virtio-blk-pci,bus=pci.0,addr=0x5,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/cn_windows_7_professional_with_sp1_vl_build_x64_dvd_u_677816.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \ -device ide-cd,bus=ide.0,unit=0,drive=libvirt-2-format,id=ide0-0-0,bootindex=2 \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.217-2.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.0,unit=1,drive=libvirt-1-format,id=ide0-0-1 \ -netdev tap,fd=37,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:b2:0b:16,bus=pci.0,addr=0x3 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0,index=0 \ -chardev socket,id=charchannel0,fd=35,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \ -k en-us \ -device qxl-vga,id=video0,max_outputs=1,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,bus=pci.0,addr=0x2 \ -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x6 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/1 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring 2022-07-10T08:36:18.812804Z qemu-system-x86_64: terminating on signal 15 from pid 8426 (/usr/sbin/libvirtd) 2022-07-10 08:36:19.013+0000: shutting down, reason=destroyed 2022-07-10 08:36:56.935+0000: starting up libvirt version: 8.2.0, qemu version: 6.2.0, kernel: 5.15.46-Unraid, hostname: UNRAID LC_ALL=C \ PATH=/bin:/sbin:/usr/bin:/usr/sbin \ HOME='/var/lib/libvirt/qemu/domain-2-Windows 7' \ XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-2-Windows 7/.local/share' \ XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-2-Windows 7/.cache' \ XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-2-Windows 7/.config' \ /usr/local/sbin/qemu \ -name 'guest=Windows 7,debug-threads=on' \ -S \ -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-2-Windows 7/master-key.aes"}' \ -machine pc-i440fx-6.2,usb=off,dump-guest-core=off,mem-merge=off,memory-backend=pc.ram \ -accel kvm \ -cpu host,migratable=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \ -m 2048 \ -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":2147483648}' \ -overcommit mem-lock=off \ -smp 1,sockets=1,dies=1,cores=1,threads=1 \ -uuid 48be9969-007e-d3c3-fe91-60c647997a44 \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=36,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x4 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 7/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \ -device virtio-blk-pci,bus=pci.0,addr=0x5,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/cn_windows_7_professional_with_sp1_vl_build_x64_dvd_u_677816.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \ -device ide-cd,bus=ide.0,unit=0,drive=libvirt-2-format,id=ide0-0-0,bootindex=2 \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.217-2.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.0,unit=1,drive=libvirt-1-format,id=ide0-0-1 \ -netdev tap,fd=37,id=hostnet0 \ -device e1000,netdev=hostnet0,id=net0,mac=52:54:00:f9:53:fe,bus=pci.0,addr=0x3 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0,index=0 \ -chardev socket,id=charchannel0,fd=35,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \ -k en-us \ -device qxl-vga,id=video0,max_outputs=1,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,bus=pci.0,addr=0x2 \ -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x6 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/2 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring 【下面是安装Win11的日志】 text error warn system array login -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.217-2.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.0,unit=1,drive=libvirt-1-format,id=ide0-0-1 \ -netdev tap,fd=39,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:f5:54:3c,bus=pci.0,addr=0x3 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0,index=0 \ -chardev socket,id=charchannel0,fd=37,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -chardev 'socket,id=chrtpm,path=/run/libvirt/qemu/swtpm/3-Windows 11-swtpm.sock' \ -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device tpm-tis,tpmdev=tpm-tpm0,id=tpm0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:1,websocket=5701,audiodev=audio1 \ -k en-us \ -device qxl-vga,id=video0,max_outputs=1,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,bus=pci.0,addr=0x2 \ -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x6 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/4 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring 2022-07-10T08:42:42.958883Z qemu-system-x86_64: terminating on signal 15 from pid 8426 (/usr/sbin/libvirtd) 2022-07-10 08:42:43.159+0000: shutting down, reason=destroyed 2022-07-10 08:42:57.948+0000: Starting external device: TPM Emulator /usr/bin/swtpm socket --ctrl 'type=unixio,path=/run/libvirt/qemu/swtpm/4-Windows 11-swtpm.sock,mode=0600' --tpmstate dir=/var/lib/libvirt/swtpm/2feab00b-a621-4266-3fe3-ca6758a11afc/tpm2,mode=0600 --log 'file=/var/log/swtpm/libvirt/qemu/Windows 11-swtpm.log' --terminate --tpm2 2022-07-10 08:42:57.965+0000: starting up libvirt version: 8.2.0, qemu version: 6.2.0, kernel: 5.15.46-Unraid, hostname: UNRAID LC_ALL=C \ PATH=/bin:/sbin:/usr/bin:/usr/sbin \ HOME='/var/lib/libvirt/qemu/domain-4-Windows 11' \ XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-4-Windows 11/.local/share' \ XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-4-Windows 11/.cache' \ XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-4-Windows 11/.config' \ /usr/local/sbin/qemu \ -name 'guest=Windows 11,debug-threads=on' \ -S \ -object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-4-Windows 11/master-key.aes"}' \ -blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi-tpm.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \ -blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/2feab00b-a621-4266-3fe3-ca6758a11afc_VARS-pure-efi-tpm.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \ -machine pc-i440fx-6.2,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format,memory-backend=pc.ram \ -accel kvm \ -cpu host,migratable=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \ -m 4096 \ -object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":4294967296}' \ -overcommit mem-lock=off \ -smp 1,sockets=1,dies=1,cores=1,threads=1 \ -uuid 2feab00b-a621-4266-3fe3-ca6758a11afc \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=38,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=localtime \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x4 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/Windows 11/vdisk1.img","node-name":"libvirt-3-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-3-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-3-storage"}' \ -device virtio-blk-pci,bus=pci.0,addr=0x5,drive=libvirt-3-format,id=virtio-disk2,bootindex=1,write-cache=on \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/zh-cn_windows_11_business_editions_updated_may_2022_x64_dvd_a526f4d7.iso","node-name":"libvirt-2-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-2-format","read-only":true,"driver":"raw","file":"libvirt-2-storage"}' \ -device ide-cd,bus=ide.0,unit=0,drive=libvirt-2-format,id=ide0-0-0,bootindex=2 \ -blockdev '{"driver":"file","filename":"/mnt/user/isos/virtio-win-0.1.217-2.iso","node-name":"libvirt-1-storage","auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":true,"driver":"raw","file":"libvirt-1-storage"}' \ -device ide-cd,bus=ide.0,unit=1,drive=libvirt-1-format,id=ide0-0-1 \ -netdev tap,fd=39,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:f5:54:3c,bus=pci.0,addr=0x3 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0,index=0 \ -chardev socket,id=charchannel0,fd=37,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -chardev 'socket,id=chrtpm,path=/run/libvirt/qemu/swtpm/4-Windows 11-swtpm.sock' \ -tpmdev emulator,id=tpm-tpm0,chardev=chrtpm \ -device tpm-tis,tpmdev=tpm-tpm0,id=tpm0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev '{"id":"audio1","driver":"none"}' \ -vnc 0.0.0.0:1,websocket=5701,audiodev=audio1 \ -k en-us \ -device qxl-vga,id=video0,max_outputs=1,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,bus=pci.0,addr=0x2 \ -device virtio-balloon-pci,id=balloon0,bus=pci.0,addr=0x6 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/4 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring

618各大电商都在搞活动，unraid能不能也优惠一波，价格合适就上车了，虽然我已经买了一个pro了

两种方法，第一是在终端中使用docker system prune -a清理孤立等内容，第二是采用“目录”的存储方式保存docker

usb的问题尝试在主板Bios中关闭fastboot快速启动选项试试
