  1. xtiang7c0

    Roadmap

    +1 I was trying to find this as well and could not find it.

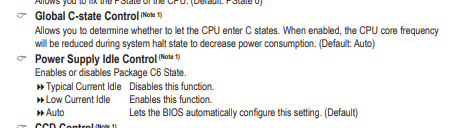

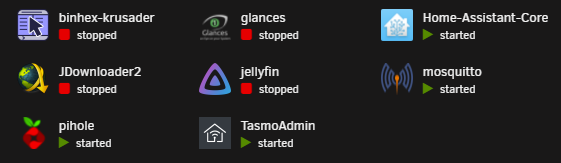

  2. Hi everyone, I did install a new UNRAID Server and can't go below 73 Watts IDLE with disks spun up. Ryzen 5900x Gigabyte Aorus B550i AX PRO Mainboard 2x32 GB Kingston ECC RAM 2x Samsung 980PRO 1TB NVME 2x Crucial MX500 1TB SSD 2x Seagate Exos x16 16TB MSI RTX 3060 2 120mm fans 1 Arctic Liquid Freezer II - 240 600 Watt Power Supply (I remember it was a Be Quiet E6-600, can't see it as it is well built into the tower https://www.comstern.de/gfx90419org/sp_e6_600_DE-1-.pdf) This is what I did: installed and ran powertop --> Tunable "Good" now, Idle Stats only show C2 I put Global s-state control to "enabled" and Power Supply IDLE control to "Low current IDLE" so C6 should work. BIOS is F13 from July 2021. PCIe ASPM Mode -> "L1 Entry" to save power with the graphics card. When I reboot the server these plugins are running. Issue 1 - IDLE consumption: After reboot with Array spun up: 73 Watts Turning on Windows 10 VM (as vdisk on one of the NVMEs) with RTX 3060 passthrough --> 80 Watts Turning of the VM --> 80 Watts (it will not go back to 73 Watts and I thought running the VM will save energy?) Issue 2 - sleep mode: When I hit the sleep button, there spins up again right away. I only have wake on LAN in the BIOS which I want to use and keep turned on. I deinstalled the Dynamix Cache Directories Plugin but it did not change the behavior. What can I do? Change the 600 Watt Power Supply. I understand that this can be an issue but I only have a 300 Watts power supply Cougar A300 as a substitute and would need an idea what to buy. This seems to be not the only potential here. Any help is appreciated. Cheers
  3. Hi peeps, I tried to install a Win 10 VM via: 1. Passthrough of the NVME drive. I can boot directly into windows and from a vm in UNRAID as well, with the full feature set. Using native TPM in the direct boot works, but passing through TPM ("Encryption controller: Advanced Micro Devices") in the VM not. The VM then won't start. I did not find any hint how to passthrough native TPM looking for hours. or via: 2. cache pool vdisk formatted "xfs encrypted": Here I wonder if this really is a good way to go. SpaceInvaderOne told me that 3-5% less performance is the result of this way. If I use the NVME how can I set the maximum size of the vdisk to leverage the full drive? The formatted cache says 7GB used of 1TB, so 993GB free. So do I set the vdisk to 993G? Any suggestions are highly appreciated. Thanks
  4. Hi guys, I have two things, that don't work after switching to another machine. I was moving everything from a Dell T20 with Xeon E3 1225 V3 to a HP Compaq Elite 8300 with i5 3570. Unfortunately the system devices overview is still showing the old hardware. What can I do to change this? Does it harm the whole system if it is like that? Everything seems to work as normal, including VMs. Additionally I wanted to see if I can get rid of the UDMA CRC Errors (2 WD Red 3TB, one with 422 errors (Parity drive on SATA 0 in both computers) one with 220 errors (Array drive on SATA 1 in both computers) with the transfer I changed cables multiple times I took off the cable binders as I thought it could be shielding problem I thought it could be the hard drive cage, but after testing it over night on SATA2 and SATA3 with the hard drives in the cage, no errors at all. -.- I doubt, that my new DELL T20 was having hardware issues on both SATA ports 0,1 same like the board I switched to now. Might there be a chance that the WD Red Controllers only produce theses failures on the SATA 3 ports (0,1) and not on the SATA 2 ports (2,3) and it is a WD problem? System devices IOMMU group 0: [8086:0150] 00:00.0 Host bridge: Intel Corporation Xeon E3-1200 v2/3rd Gen Core processor DRAM Controller (rev 09) IOMMU group 1: [8086:0152] 00:02.0 VGA compatible controller: Intel Corporation Xeon E3-1200 v2/3rd Gen Core processor Graphics Controller (rev 09) IOMMU group 2: [8086:1e31] 00:14.0 USB controller: Intel Corporation 7 Series/C210 Series Chipset Family USB xHCI Host Controller (rev 04) IOMMU group 3: [8086:1e3a] 00:16.0 Communication controller: Intel Corporation 7 Series/C216 Chipset Family MEI Controller #1 (rev 04) [8086:1e3d] 00:16.3 Serial controller: Intel Corporation 7 Series/C210 Series Chipset Family KT Controller (rev 04) IOMMU group 4: [8086:1502] 00:19.0 Ethernet controller: Intel Corporation 82579LM Gigabit Network Connection (Lewisville) (rev 04) IOMMU group 5: [8086:1e2d] 00:1a.0 USB controller: Intel Corporation 7 Series/C216 Chipset Family USB Enhanced Host Controller #2 (rev 04) IOMMU group 6: [8086:1e20] 00:1b.0 Audio device: Intel Corporation 7 Series/C216 Chipset Family High Definition Audio Controller (rev 04) IOMMU group 7: [8086:1e26] 00:1d.0 USB controller: Intel Corporation 7 Series/C216 Chipset Family USB Enhanced Host Controller #1 (rev 04) IOMMU group 8: [8086:244e] 00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev a4) IOMMU group 9: [8086:1e47] 00:1f.0 ISA bridge: Intel Corporation Q77 Express Chipset LPC Controller (rev 04) [8086:1e02] 00:1f.2 SATA controller: Intel Corporation 7 Series/C210 Series Chipset Family 6-port SATA Controller [AHCI mode] (rev 04) [8086:1e22] 00:1f.3 SMBus: Intel Corporation 7 Series/C216 Chipset Family SMBus Controller (rev 04) HDD information of parity drive no connected on SATA port 2 Aug 4 17:13:15 unRAID kernel: ata4: SATA max UDMA/133 abar m2048@0xf7c36000 port 0xf7c36280 irq 27 Aug 4 17:13:15 unRAID kernel: ata4: SATA link up 3.0 Gbps (SStatus 123 SControl 300) Aug 4 17:13:15 unRAID kernel: ata4.00: ACPI cmd ef/10:06:00:00:00:00 (SET FEATURES) succeeded Aug 4 17:13:15 unRAID kernel: ata4.00: ACPI cmd f5/00:00:00:00:00:00 (SECURITY FREEZE LOCK) filtered out Aug 4 17:13:15 unRAID kernel: ata4.00: ACPI cmd b1/c1:00:00:00:00:00 (DEVICE CONFIGURATION OVERLAY) filtered out Aug 4 17:13:15 unRAID kernel: ata4.00: ATA-9: WDC WD30EFRX-68EUZN0, WD-(WD SERIAL HERE), 82.00A82, max UDMA/133 Aug 4 17:13:15 unRAID kernel: ata4.00: 5860533168 sectors, multi 16: LBA48 NCQ (depth 31/32), AA Aug 4 17:13:15 unRAID kernel: ata4.00: ACPI cmd ef/10:06:00:00:00:00 (SET FEATURES) succeeded Aug 4 17:13:15 unRAID kernel: ata4.00: ACPI cmd f5/00:00:00:00:00:00 (SECURITY FREEZE LOCK) filtered out Aug 4 17:13:15 unRAID kernel: ata4.00: ACPI cmd b1/c1:00:00:00:00:00 (DEVICE CONFIGURATION OVERLAY) filtered out Aug 4 17:13:15 unRAID kernel: ata4.00: configured for UDMA/133 Aug 4 17:13:15 unRAID kernel: sd 4:0:0:0: [sdc] 5860533168 512-byte logical blocks: (3.00 TB/2.73 TiB) Aug 4 17:13:15 unRAID kernel: sd 4:0:0:0: [sdc] 4096-byte physical blocks Aug 4 17:13:15 unRAID kernel: sd 4:0:0:0: [sdc] Write Protect is off Aug 4 17:13:15 unRAID kernel: sd 4:0:0:0: [sdc] Mode Sense: 00 3a 00 00 Aug 4 17:13:15 unRAID kernel: sd 4:0:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA Aug 4 17:13:15 unRAID kernel: sdc: sdc1 Aug 4 17:13:15 unRAID kernel: sd 4:0:0:0: [sdc] Attached SCSI disk Aug 4 17:13:20 unRAID emhttpd: WDC_WD30EFRX-68EUZN0_WD-(WD SERIAL HERE) (sdc) 512 5860533168 Aug 4 17:13:20 unRAID kernel: mdcmd (1): import 0 sdc 64 2930266532 0 WDC_WD30EFRX-68EUZN0_WD-(WD SERIAL HERE) Aug 4 17:13:20 unRAID kernel: md: import disk0: (sdc) WDC_WD30EFRX-68EUZN0_WD-(WD SERIAL HERE) size: 2930266532 Aug 4 17:13:20 unRAID emhttpd: shcmd (25): /usr/local/sbin/set_ncq sdc 1 Aug 4 17:13:20 unRAID root: set_ncq: setting sdc queue_depth to 1 Aug 4 17:13:20 unRAID emhttpd: shcmd (26): echo 128 > /sys/block/sdc/queue/nr_requests Aug 4 17:14:50 unRAID emhttpd: shcmd (123): /usr/local/sbin/set_ncq sdc 1 Aug 4 17:14:50 unRAID emhttpd: shcmd (124): echo 128 > /sys/block/sdc/queue/nr_requests Aug 4 17:15:06 unRAID emhttpd: shcmd (144): /usr/local/sbin/set_ncq sdc 1 Aug 4 17:15:06 unRAID emhttpd: shcmd (145): echo 128 > /sys/block/sdc/queue/nr_requests Thanks all!
  5. Hi guys, when restarting unRAID, the Docker always resets itself to the wizard. I can import the backup but this is a lil strange. Any idea? Cheers
  6. Hey, could you measure if you can do the 11 Watts as well? I got one T20 for a colleague now and its not getting below 27 Watts with two WD Red 3TB. Seems a lil high to me. AHCI on, everything unnecessary in BIOS turned off and the Tips & Tweaks Plugin from Dlandon ist on "Power Saving" already. I´m doing the Parity check now and will tell again if there are any changes. Cheers Christian
