Thank you so much for helping me with this @JorgeB & @trurl : ) Everything is back up and going strong! Jonsbo is sending a new backplane for the case, they believe it is faulty.

Ahh, I bet that is it. I'll try to swap to the HDMI port instead of the DP port on the GPU. Thank you so much for everything

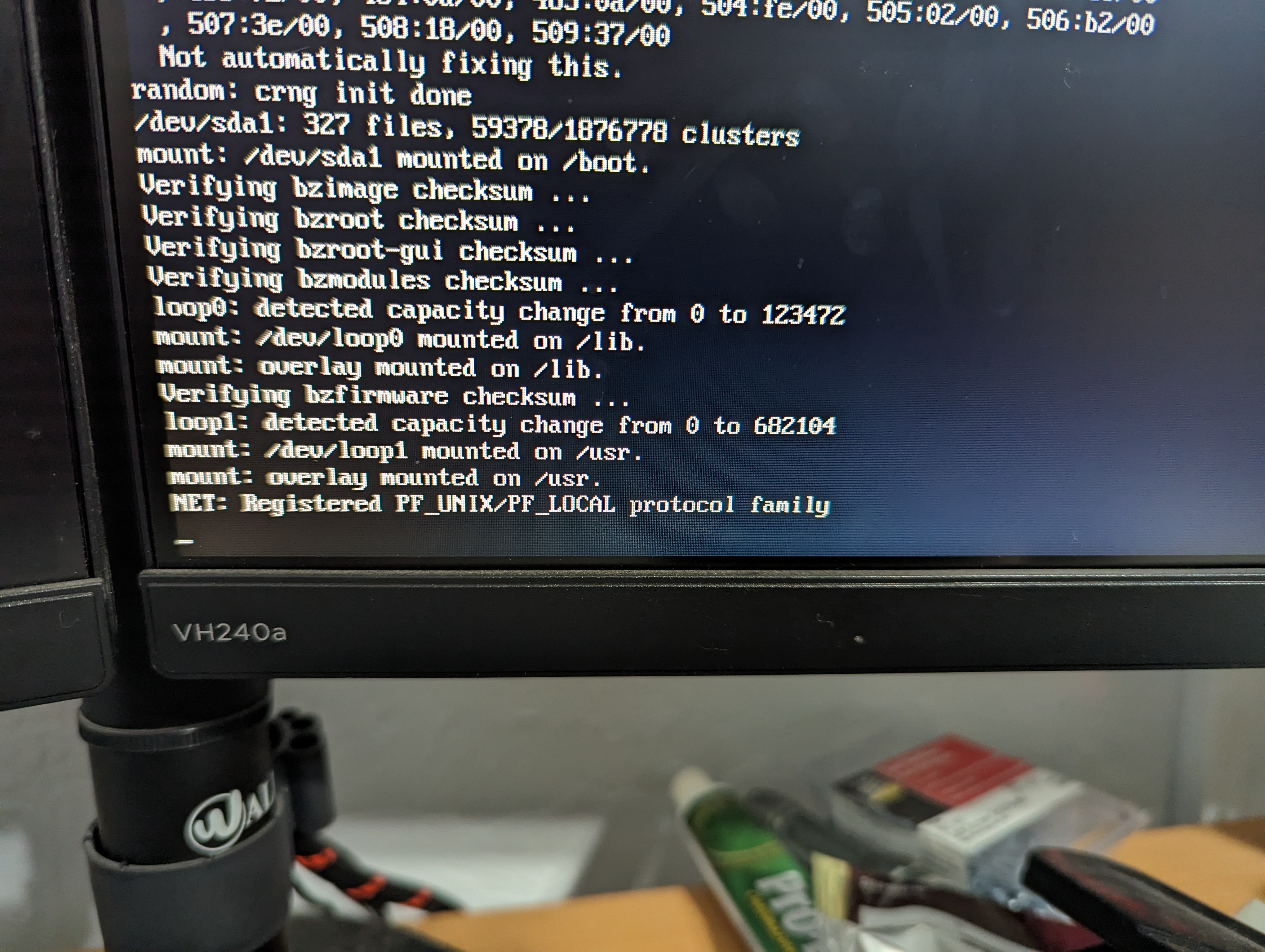

Oh nice : ), I just started the rebuild, fingers crossed. The other error I am getting is the screen is frozen on this screen, (attached photo) Everything seems to work fine on Unraid though.

Here is the latest diag What I did this time was bypass the backplane and plug each drive in separately all with new cables. The same drive is coming up disabled and it is plugged into the same port the parity was previously. Could there possibly be something wrong with my config somewhere causing this? Could the ACS override be causing this? All just doesn't make any sense since everything was working fine in the other case / motherboard (B550 creator) nas-diagnostics-20240122-1208.zip

I will give that a shot, thank you so much : )

The Jonsbo N3 has a backplane that has x2 Molex power plugs and x1 Sata power plug going to it. I have all three plugged in. Here is a picture of it: (photo is not mine) N3 Backplane Do I need to replace the power plugs from the powersupply to the backplane?

So I've tired multiple different cables and sata ports. I've even swapped disk1 to disk2 and the same drive is giving me the same errors. I can do this again and leave them swapped. Then generate a new diags after, later this evening if that might help.

Hello all, I recently swapped my Unraid server to a new case. All the same hardware as before except the motherboard: Phantom B550 itx 5950x 64gb ram 3060 12gb Array - x1 16tb HDD, x2 8tb HDD, x1 2tb HDD Cache - 500GB WD 2.5 sata ssd Baremetal - 2tb nvme ssd, 2tb HDD SFX corsair 750 psu Orico nvme to x6 sata card Everything was working fine before I did the switch. It took me awhile to figure out how to get the IMMOU groups to work on the new board with some bios settings and Unraid. After I figure that out, I was getting some weird boot problems and still am but everything seems to work fine except the one drive. Errors and solutions to the boot problems: -Array would boot but VMS, Docker would load blank screens. Fix was to redirect to location on cache drive for Docker, had to recreate VM image. -When the array would boot the file system would say invalid and have not files. Above fix seem to solve this as well. Need help with: -Now for one of my disk it says invalid disk and is emulated, the error is udma error. Did a little research and everything I saw said it was a physical connection problem. I tried several different cables and also changed from different SATA ports on the Orico hba and also switched to a sata on the motherboard and this still didn't solve the issue. -Also when Unraid is booting it will freeze on "NET: Registered PF_UNIX/PF_LOCAL ". Everything still boots up but is stuck there on the screen. I have attached a diagnostics file, thank you in advanced so much! nas-diagnostics-20240122-0624.zip

Hello all, I have been using Unraid for a few years now mainly for Plex and one baremetal VM, always the latest version of Unraid. I have an opnsense network that has several VLANs: 192.168.1.1 - Main 10.10.10.1 - HomeWireless 10.10.20.1 - Smart Home Devices 10.10.30.1 - VPN 10.10.40.1 - CCTV I've always had my Unraid server @ a static 192.168.1.190 I've never really understood or have been able to get Dockers to run correctly in Unraid on the VLANs For instance: I would like for my Plex docker to be on the 10.10.10.1 VLAN. I would like my Home Assistant on 10.10.20.1 VLAN. I would like my Shinnobi on 10.10.40.1 VLAN. But anytime I start assigning the Dockers to the specific VLANs, I cannot access there GUI's from unraid manage portal. Some of them I can access if I connect to that specific network but never from the main network. I am assuming I have some fatal flaw in my initial configuration of Unraid? I can post pictures of my setup sometime tomorrow, currently the system is down, transitioning into a N3 Jonsbo case. The specs of the current system are: Phantom B550 itx 5950x 64gb ram 3060 12gb Array - x1 16tb HDD, x2 8tb HDD, x1 2tb HDD Cache - 500GB WD 2.5 sata ssd Baremetal - 2tb nvme ssd, 2tb HDD SFX corsair 750 psu Orico nvme to x6 sata card Thank you so much for any help on this : ) Josh

Just wanted to say thank ya'll so much for helping me with this : )

This worked mostly but had to swap some ports/slots around

Just discovered on this MB the NVME isn't in it own IMMOU group : (, any work arounds?

So this VM runs on a baremetal NVME, could I just delete the VM and try to recreate the VM since all my data is on the NVME drive?

Progress, I was able to start the array. I renamed that VM to something else but as soon I start the VM service to edit the XML the unraid USB disconnects like before. I've attached another log. Thank you so much for helping with this : ) todaynas-diagnostics-20230912-0904.zip

How do I get access to the VM XMLs if I can't start the array and or dockers? Is this on the Unraid USB somewhere?
