¿How to disable the standby power of the connected USB device?


4 posts in this topic Last Reply

Recommended Posts



Can anyone help me to do something like this in UNRAID please?

or failing that, how is this done in linux?



https://www.asus.com/support/FAQ/1042220/



I want to remove power to a USB port that I have a cell phone connected to, every time the computer goes to sleep (s3 sleep mode)





I don't want the cell phone battery to explode, because I have the cell phone connected all the time

Edited by JhonScript
Link to post
  • JhonScript changed the title to ¿How to disable the standby power of the connected USB device?
On 1/23/2021 at 6:44 PM, JhonScript said:



Can anyone help me to do something like this in UNRAID please?

or failing that, how is this done in linux?



https://www.asus.com/support/FAQ/1042220/



I want to remove power to a USB port that I have a cell phone connected to, every time the computer goes to sleep (s3 sleep mode)





I don't want the cell phone battery to explode, because I have the cell phone connected all the time



If you have electronics knowledge and can solder, this is pretty easy. Take the + 5V (not the + 5VSB) line (from the PSU or a HDD/SSD) and solder a USB socket - done. Every time the computer is switched off or goes into sleep, the power supply to the socket is interrupted - it's that easy. 😉



Much easier:

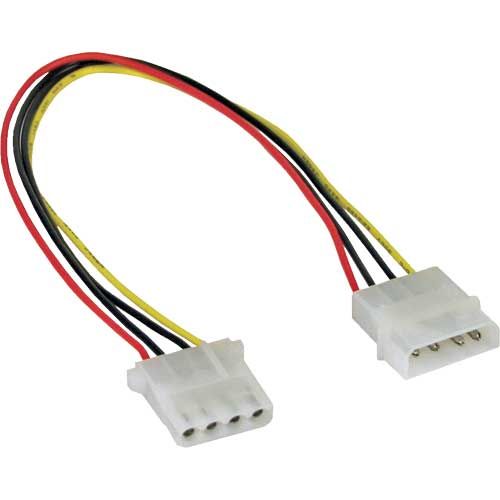

Take a Molex-Extender and cut the +12V-line (Yellow). Keep the +5V (Red) and on the other end of the cable, solder the USB socket (from an old cable).

If you can't do the work, just buy a Molex-to-USB Adapter 👍





Edited by Zonediver
Link to post
