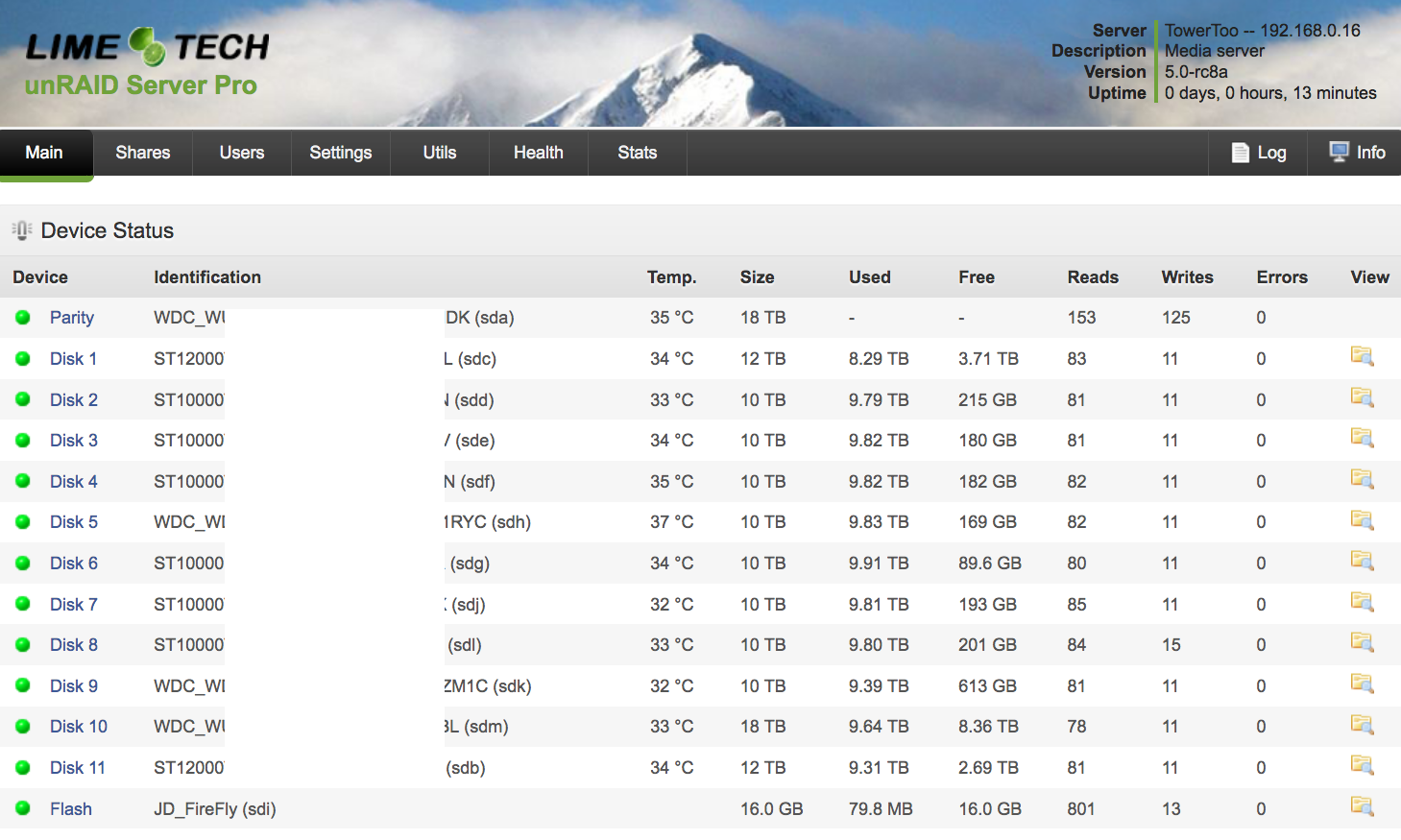

belorion Posted March 10, 2021 Share Posted March 10, 2021 I have an "old-faithful" version of UnRaid (5.0-rc8a) - been running great for 8 years :-| If it ain't broke ... :-) It's stock .. nothing but "Simple Features" installed - just used for file storage I had issues copying files to my newest drive (18TB WD Ultrastar DC HC550) and it reported as being in "read-only" mode. I presumed it was working as I upgraded an old 10TB drive and it all seemed AOK - content seemed ok. Checking recent logs showed this Mar 8 13:14:23 TowerToo kernel: REISERFS warning: reiserfs-5090 is_tree_node: node level 0 does not match to the expected one 1 Mar 8 13:14:23 TowerToo kernel: REISERFS error (device md10): vs-5150 search_by_key: invalid format found in block 1836494317. Fsck? Mar 8 13:14:23 TowerToo kernel: REISERFS (device md10): Remounting filesystem read-only Mar 8 13:14:23 TowerToo kernel: REISERFS error (device md10): vs-13070 reiserfs_read_locked_inode: i/o failure occurred trying to find stat data of [4 1126 0x0 SD] Mar 8 13:14:23 TowerToo kernel: REISERFS warning: reiserfs-5090 is_tree_node: node level 0 does not match to the expected one 1 Mar 8 13:14:23 TowerToo kernel: REISERFS error (device md10): vs-5150 search_by_key: invalid format found in block 1836494317. Fsck? Mar 8 13:14:23 TowerToo kernel: REISERFS error (device md10): vs-13070 reiserfs_read_locked_inode: i/o failure occurred trying to find stat data of [4 1123 0x0 SD] Mar 8 13:14:35 TowerToo kernel: REISERFS warning: reiserfs-5090 is_tree_node: node level 0 does not match to the expected one 1 Mar 8 13:14:35 TowerToo kernel: REISERFS error (device md10): vs-5150 search_by_key: invalid format found in block 1836494317. Fsck? Mar 8 13:14:35 TowerToo kernel: REISERFS error (device md10): vs-13070 reiserfs_read_locked_inode: i/o failure occurred trying to find stat data of [4 1126 0x0 SD] Mar 8 13:14:35 TowerToo kernel: REISERFS warning: reiserfs-5090 is_tree_node: node level 0 does not match to the expected one 1 Mar 8 13:14:35 TowerToo kernel: REISERFS error (device md10): vs-5150 search_by_key: invalid format found in block 1836494317. Fsck? Mar 8 13:14:35 TowerToo kernel: REISERFS error (device md10): vs-13070 reiserfs_read_locked_inode: i/o failure occurred trying to find stat data of [4 1123 0x0 SD] Mar 8 13:14:50 TowerToo kernel: REISERFS warning: reiserfs-5090 is_tree_node: node level 0 does not match to the expected one 1 Mar 8 13:14:50 TowerToo kernel: REISERFS error (device md10): vs-5150 search_by_key: invalid format found in block 1836494317. Fsck? Mar 8 13:14:50 TowerToo kernel: REISERFS error (device md10): vs-13070 reiserfs_read_locked_inode: i/o failure occurred trying to find stat data of [4 1126 0x0 SD] Mar 8 13:14:50 TowerToo kernel: REISERFS warning: reiserfs-5090 is_tree_node: node level 0 does not match to the expected one 1 Mar 8 13:14:50 TowerToo kernel: REISERFS error (device md10): vs-5150 search_by_key: invalid format found in block 1836494317. Fsck? Mar 8 13:14:50 TowerToo kernel: REISERFS error (device md10): vs-13070 reiserfs_read_locked_inode: i/o failure occurred trying to find stat data of [4 1123 0x0 SD] So I attempted to follow the instructions here https://wiki.unraid.net/Check_Disk_Filesystems#Is_this_the_right_page.3F Which said ID your OS - 5.0 rc8a which meant that I had the UnRAID 5 process to follow That said to stop array and start in Mainenance mode - which I did AOK. Telnet in AOK df -h [email protected]:~# df -h Filesystem Size Used Avail Use% Mounted on /dev/sdi1 15G 61M 15G 1% /boot /dev/md1 11T 7.6T 3.4T 70% /mnt/disk1 /dev/md2 9.1T 8.9T 201G 98% /mnt/disk2 /dev/md3 9.1T 9.0T 168G 99% /mnt/disk3 /dev/md4 9.1T 9.0T 170G 99% /mnt/disk4 /dev/md5 9.1T 9.0T 158G 99% /mnt/disk5 /dev/md6 9.1T 9.1T 84G 100% /mnt/disk6 /dev/md7 9.1T 9.0T 180G 99% /mnt/disk7 /dev/md8 9.1T 9.0T 188G 98% /mnt/disk8 /dev/md9 9.1T 8.6T 572G 94% /mnt/disk9 /dev/md10 15T 7.0T 7.7T 48% /mnt/disk10 /dev/md11 11T 8.5T 2.5T 78% /mnt/disk11 shfs 110T 95T 16T 87% /mnt/user Issues with this are that it identifies the drive sizes wrong - /dev/md10 is 18TB even with creative Math for TiB and TB ..I'd still expect 16 - 17TB as listed. fdisk -l shows it's correct Disk /dev/sdm: 18000.2 GB, 18000207937536 bytes 256 heads, 63 sectors/track, 2179852 cylinders Units = cylinders of 16128 * 512 = 8257536 bytes Sector size (logical/physical): 512 bytes / 4096 bytes I/O size (minimum/optimal): 4096 bytes / 4096 bytes Disk identifier: 0x00000000 Moving on though .. When I attempt to reiserfsck It seems to instantly have an issue ... [email protected]:~# reiserfsck --check /dev/md10 reiserfsck 3.6.21 (2009 www.namesys.com) ************************************************************* ** If you are using the latest reiserfsprogs and it fails ** ** please email bug reports to [email protected], ** ** providing as much information as possible -- your ** ** hardware, kernel, patches, settings, all reiserfsck ** ** messages (including version), the reiserfsck logfile, ** ** check the syslog file for any related information. ** ** If you would like advice on using this program, support ** ** is available for $25 at www.namesys.com/support.html. ** ************************************************************* Will read-only check consistency of the filesystem on /dev/md10 Will put log info to 'stdout' Do you want to run this program?[N/Yes] (note need to type Yes if you do):Yes bread: End of file, cannot read the block (3906469874). Aborted Does this mean: - it can't find the drive at all? - drive is corrupted? - perhaps reiserfsck is too old for this drive (too large?) 3.6.21 and 18 TB drive? If it's too old ... would upgrading to UnRAID 6.X series be beneficial? Or will it (reasonably) object to trying to upgrade a mangled Array? Any helpful suggestions welcomed at this point. Longer term I'm looking to building a completely new UnRAID server ... just not now as it's not a rapid process choosing components, finding $$$ and then building it (ie migrating across content). Quote Link to comment
belorion Posted March 10, 2021 Author Share Posted March 10, 2021 Is the maximum size of ReiserFS 16 TiB? https://reiser4.wiki.kernel.org/index.php/FAQ_ReiserFS#What_are_the_specs_for_ReiserFS:_maximum_number_of_files.2C_of_files_a_directory_can_have.2C_of_sub-dirs_in_a_dir.2C_of_links_to_a_file.2C_maximum_file_size.2C_maximum_filesystem_size.2C_etc..3F max filesystem size232 (4K) blocks => 16 Ti232 (4K) blocks => 16 Ti If that's the issue ... can I get a 16TB drive from somewhere ... (buy 😐 ) ... rebuild with that parity ... essentially swapping out a large drive for a smaller one ... but sorta not .. as Reiser only thought it was 15TiB? And then the issues will go away ... and *then* upgrade to UnRAID 6.X to get larger filesystem support ? Quote Link to comment
JorgeB Posted March 10, 2021 Share Posted March 10, 2021 According to wiki max Reiser FS volume size is 16TiB, so likely why you're running into trouble, best to upgrade to Unraid V6 and convert to XFS. 1 Quote Link to comment
belorion Posted March 13, 2021 Author Share Posted March 13, 2021 On 3/10/2021 at 11:57 PM, JorgeB said: According to wiki max Reiser FS volume size is 16TiB, so likely why you're running into trouble, best to upgrade to Unraid V6 and convert to XFS. I have been attempting to upgrade my unRAID 5.0-rc8a as per the instructions here https://wiki.unraid.net/UnRAID_6/Upgrade_Instructions Which pointed me to here which led to the first challenge ... wget --no-check-certificate https://raw.githubusercontent.com/limetech/unRAIDServer/master/unRAIDServer.plg doesn't actually work due to the age of the wget command (doesn't support newer encryption standards) and hangs ... but as curl is available ... I was able to grab the file I had a look to see if there were any other wget incompatible URLs and it seems that it's not possible to download the versions of unRAID linked in the plugin - perhaps because they are all too old? The post was from 2018 and it's 2021 All of these get 403s pluginURL "https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer.plg" zip "https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer-6.5.3-x86_64.zip" md5 "https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer-6.5.3-x86_64.md5" Clutching at straws I tried with CURL but I got the same 403 not authorised as expected 😐 curl --insecure http://slackware.cs.utah.edu/pub/slackware/slackware-13.1/slackware/a/infozip-6.0-i486-1.txz -o infozip-6.0-i486-1.txz curl --insecure https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer-6.5.3-x86_64.zip -o unRAIDServer.zip curl --insecure https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer-6.5.3-x86_64.md5 -o unRAIDServer.md5 All files have content like this cat unRAIDServer.zip <?xml version="1.0" encoding="UTF-8"?> <Error><Code>AccessDenied</Code><Message>Access Denied</Message><RequestId>KTBC2NBJWMNYWCYB</RequestId><HostId>8ouBTGUTSAaYiIi30HqQ/3JaRj9oFrQnynQGVZfmFJxtr68CJ/sHPvL/q//rAZLKYEQy2/rtwlw=</HostId></Error> Any thoughts on how I can proceed from here? Can I just drop in the latest version 6.9.1 instead? https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer.plg Quote Link to comment
JorgeB Posted March 13, 2021 Share Posted March 13, 2021 There's more info below, you can always do a clean install and copy just the needed files from the old one: https://wiki.unraid.net/Upgrading_to_UnRAID_v6 Quote Link to comment
belorion Posted March 15, 2021 Author Share Posted March 15, 2021 Some progress on getting myself a viable unRAID system. I tried the option 1 approach - as I indicated - just changing the version in the plg file. That stated that it worked properly without issues. But it failed to startup. I had the "Could not find kernel image: linux" Which I was able to fix by following the instructions here ie copy bzroot, bzimage, syslinux and made it bootable. That gave a running instance so I ran the "new permissions" tool ... which took a long time and "seemed" to pass AOK ... But none of my user shares are present (only the actual "disk" ones). I tried to manually create one of the shares ... and I did so .. but it failed to work. I did notice down the bottom of the unRAID page that it stated "Array Started - Starting services" Starting ... vs Started ... in progress. Then I saw the logs were full of errors for the too large ReisterFS drive Mar 15 11:56:57 TowerToo emhttpd: error: get_filesystem_status, 6099: Permission denied (13): scandir Permission denied Open to suggestions as to how I can proceed from here? The obvious option that I can think of is to replace the ReiserFS drive with an XFS one ... but that takes time to get a new drive ( I have ordered one). Is it likely that will work? ie .. swapping out the ReiserFS 18 TB drve (with 16TB of limited by ReiserFS content) ... letting it rebuild using Parity Data onto an XFS formatted drive? And given that the NewPermissions doesn't appear to work .. I suspect that means I need to run them again on the new 18TB drive should it successfully rebuild (the parity is from before the Permissions). thanks for listening Quote Link to comment
JorgeB Posted March 15, 2021 Share Posted March 15, 2021 You can't rebuild to a new filesystem, basically you need an extra disk formatted xfs to move all the data from another disk and then re-format the source and repeat, more info here: Quote Link to comment
belorion Posted March 15, 2021 Author Share Posted March 15, 2021 I have 12 SATA ports ... and 11 data disks and 1 parity disk ... so there is no create a new drive and copy across the contents. There is insufficient space upon the remaining 10 drives to move the content off the 18 TB drive. So the only options that I see are: add another drive via USB - which I suspect isn’t viable (I have not found USB anything to be anywhere near reliable enough for a RAID) copy off the content to another server then wipe the 18TB drive and reformat it as XFS and copy back the content I have never tried to “remove and reformat” a drive in UNRAID. How do I go about reducing the capacity of my total array? thanks again for helping @JorgeB Quote Link to comment
JorgeB Posted March 15, 2021 Share Posted March 15, 2021 After you clear the largest disk you just need to click on it, change filesystem to xfs, format and restore the data. Quote Link to comment
belorion Posted March 15, 2021 Author Share Posted March 15, 2021 1 hour ago, JorgeB said: After you clear the largest disk you just need to click on it, change filesystem to xfs, format and restore the data. After I have copied all the content from the largest drive to somewhere appropriate ... I can then click on the 18 TB data drive change filesystem to XFS format the drive will that invalidate the parity and force it to be recomputed? very keen to avoid that if possible as it takes a few hours short of 2 days to complete the parity process 😬 for the sake of clarity ... do I need to remove all the existing content from the 18 TB drive ... say going into the disk share and deleting everything. I could see that changing the parity to show no content for that disk then changing the format to xfs ... and then copying the data back Given it’s been pointed out already that the parity data effectively has knowledge of the format of the filesystem ... I’d just like to avoid triggering a parity recomp when I click format and change the file system ... even on an “empty” volume Quote Link to comment
JorgeB Posted March 15, 2021 Share Posted March 15, 2021 4 minutes ago, belorion said: will that invalidate the parity and force it to be recomputed? No, it remains valid. 5 minutes ago, belorion said: for the sake of clarity ... do I need to remove all the existing content from the 18 TB drive ... say going into the disk share and deleting everything. No, you just need to have it in another place since formatting will delete everything. Quote Link to comment
belorion Posted March 17, 2021 Author Share Posted March 17, 2021 On 3/16/2021 at 1:21 AM, JorgeB said: No, it remains valid. No, you just need to have it in another place since formatting will delete everything. Ok ... I tried that ... and I wasn't able to actually change the filesystem format - it was disabled. Then I saw another post that said it was just a matter of stopping the array ... changing the format Starting the array and now it says my disk is unmountable .. and no mounted in the the size and used column of main page https://forums.unraid.net/topic/39296-how-to-reformat-existing-drive/ Suggestions??? Quote Link to comment
belorion Posted March 17, 2021 Author Share Posted March 17, 2021 (edited) I see the PEBKAC now .. not used to the new UI .. there's an option displayed off the page (too many drives) which shows unmountable disk present .. and gives option for FORMAT 🙂 To close the loop ..formatting fixed the issue.... and all my user shares returned once the "poison-pill" drive was formatted 🙂 Now to restore the content. Thanks for your assistance and patience @JorgeB Edited March 17, 2021 by belorion 1 Quote Link to comment
