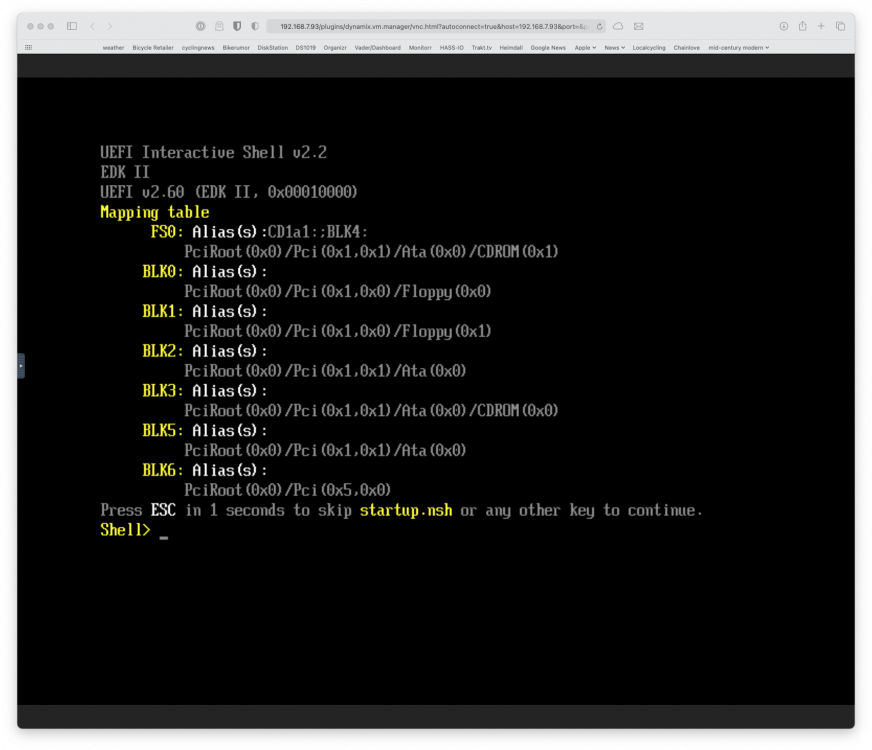

So I am trying to create a gaming VM. I have a Windows VM up and running after following Space Invader One. except I Can not use my graphics card. If I try to add it the VM crashes when I try to start it up. its a Gigabyte GTX 1650 Super. So I am trying to create a 2nd VM  ( and have not added a graphics card to it yet )of windows 10 but when I go to create it I just get this (in the pic below). I should also mention I am very self taught. I have leaned this all reading and watching videos. Thanks

Posting the XML view of your VMs might give better information to help find a solution to your problem. You can view that when you edit your VM, in the top right is a button to switch between the views. Other than that I'm not sure, sorry.

?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
  <name>Gaming rig</name>
  <uuid>9388ad92-c504-0780-3e59-e31bc10b1613</uuid>
  <description>Gaming rig</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>4194304</memory>
  <currentMemory unit='KiB'>4194304</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>2</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='6'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-i440fx-4.2'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/9388ad92-c504-0780-3e59-e31bc10b1613_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='1' threads='2'/>
    <cache mode='passthrough'/>
    <feature policy='require' name='topoext'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Gaming rig/vdisk1.img'/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/Win10_20H2_v2_English_x64.iso'/>
      <target dev='hda' bus='ide'/>
      <readonly/>
      <boot order='2'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/isos/virtio-win-0.1.173-2.iso'/>
      <target dev='hdb' bus='ide'/>
      <readonly/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='pci' index='0' model='pci-root'/>
    <controller type='ide' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:4b:65:01'/>
      <source bridge='br0'/>
      <model type='virtio'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
    </serial>
    <console type='pty'>
      <target type='serial' port='0'/>
    </console>
    <channel type='unix'>
      <target type='virtio' name='org.qemu.guest_agent.0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'/>
    <input type='keyboard' bus='ps2'/>
    <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <memballoon model='virtio'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </memballoon>
  </devices>
</domain>

W10 Gaming

Edited March 26, 20215 yr by Seven7527

On 3/25/2021 at 11:14 PM, Seven7527 said:

So I am trying to create a gaming VM. I have a Windows VM up and running after following Space Invader One. except I Can not use my graphics card. If I try to add it the VM crashes when I try to start it up. its a Gigabyte GTX 1650 Super. So I am trying to create a 2nd VM  ( and have not added a graphics card to it yet )of windows 10 but when I go to create it I just get this (in the pic below). I should also mention I am very self taught. I have leaned this all reading and watching videos. Thanks

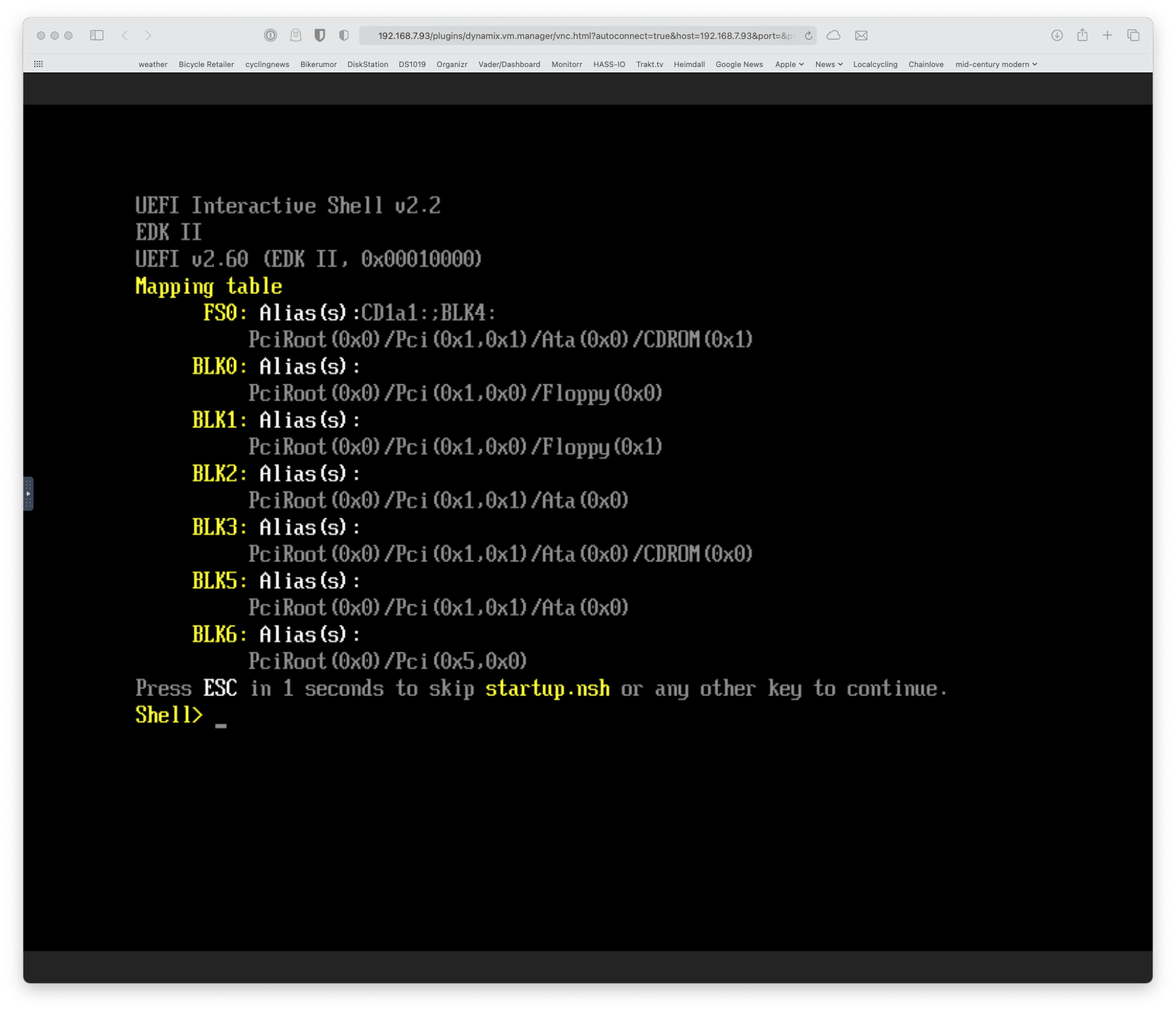

I think you need to be fast enough to connect with vnc to see the "press any key to boot from the cd rom", otherwise you get the uefi shell.

I think you can also start the installation from the uefi shell.

FS0 should refer to the cd rom with the install iso: so just type in the uefi shell:

fs0:

then:

cd \EFI\BOOT

finally:

BOOTX64.EFI



Edited June 4, 20215 yr by ghost82
