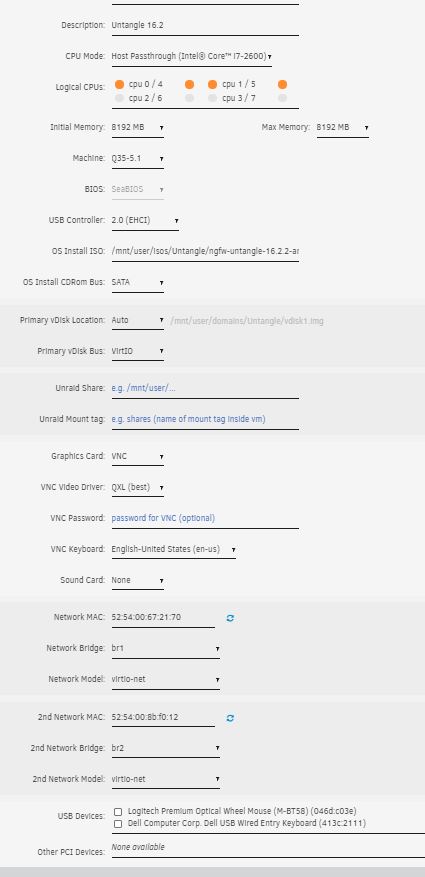

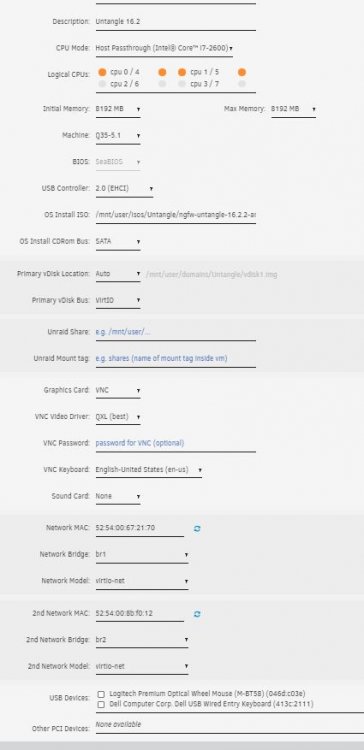

JWHIII Posted April 11, 2021 Posted April 11, 2021 unRAID 6.9.2 HP H8-1260t, i7-2600, 16GB ram, 1TB nvme ssd, 1x 6TB Ironwolf, 1x 4TB Ironwolf, 1 PNY 32GB USB Flash, 1x PCIe x16 dual NVME adapter, 2x PCIex1 Ethernet NIC, 1x PCIe x1 SATAIII adapter First bootup with unRAID worked, checked the box to allow UEFI boot, updated from 6.9 to 6.9.2, rebooted machine and it froze shortly after I saw "haveged starting up". Froze = blank screen with blinking cursor. If I disable UEFI boot in the BIOS or re-insert the ~ next to the EFI folder on the flash drive, the machine boots and I am able to setup my array. Not sure if I need to be running with a UEFI boot or not. I have set up a VM and am trying to get access to my 2x PCIe NICs from inside the VM with no luck. When setting up the VM, passing the NICs through is not an available option. I have bonding switched off on all 3 NICs and bridging on for each. br0 to eth0, br1 to eth1, and br2 to eth2. I have br1 and br2 set in my VM settings and can see two NICs inside my VM but they seem to be bonded together and to whatever br# is set as default in VM Manager. The VM client is Untangle 16.2 which is Debian based, if that matters. tower-diagnostics-20210410-1533.zip Quote
JWHIII Posted April 12, 2021 Author Posted April 12, 2021 After some investigating, I have found that if I boot UEFI and no Gui all works. If I boot UEFI and GUI, it will boot and be operating but the GUI never loads, just a blinking cursor. So, I have been able to boot in UEFI and have the settings for VT-x and VT-d enabled in the bios, but still no IOMMU to pass through my 2 NICs. tower-diagnostics-20210412-1355.zip Quote
John_M Posted April 12, 2021 Posted April 12, 2021 You don't have VT-d enabled. Make sure it's set to Enabled (not Auto) in the BIOS. If it still doesn't work, perhaps the BIOS is broken. Quote
JWHIII Posted April 13, 2021 Author Posted April 13, 2021 The bios says it is enabled. My guess is a broken bios... Quote
