March 1, 201115 yr I want to replace my parity WD EARS (with jumper) with a 7200 drive I'm getting and then use the old parity to replace a smaller drive. After I preclear my new 7200 parity drive what are the correct steps I need to do to replace it? I found this in the wiki, is this all I need to do, my parity drive will be the same size only faster. Replace a single disk with a bigger one This is the case where you are replacing a single small disk with a bigger one: Stop the array. Power down the unit. Replace smaller disk with new bigger disk. Power up the unit. Start the array. thanks
March 1, 201115 yr Author and to run the preclear 3 times is this correct? This drive is NOT an advace format drive, its a HITACHI Deskstar 7K2000 HDS722020ALA330 preclear_disk.sh -c 3 /dev/sdX
March 1, 201115 yr 3 pre-clears won't hurt. I've only done one but I plan to start doing more now that I have a second server with hot swap bays. You can format non-AF drives either way with no penalty. I recommend people format all new drives as 4k-aligned for simplicity. Eventually, a new version of unRAID will default to 4K-aligned.
March 1, 201115 yr 3 pre-clears won't hurt. I've only done one but I plan to start doing more now that I have a second server with hot swap bays. You can format non-AF drives either way with no penalty. I recommend people format all new drives as 4k-aligned for simplicity. Eventually, a new version of unRAID will default to 4K-aligned. 5.0b3 and above does default to 4K aligned.
March 1, 201115 yr Author I'm running 4.7 right now. Should I use the advance format? What would the code be preclear_disk.sh -A -c 3 /dev/sdX
March 1, 201115 yr I'm running 4.7 right now. Should I use the advance format? What would the code be preclear_disk.sh -A -c 3 /dev/sdX Yes, and change on the settings page of the unRAID webGUI to use 4K aligned for the disk format.
March 1, 201115 yr Author It's the same procedure then when I replace my smaller drive with my old parity correct? Do I have to preclear my old parity drive before I use it as a data drive?
March 2, 201115 yr Author This is not working, what am I doing wrong? I'm trying to preclear a 2TB Hitachi HDS722020ALA330 drive. preclear_disk.sh -A -c3 /dev/sdb
March 2, 201115 yr This is not working, what am I doing wrong? I'm trying to preclear a 2TB Hitachi HDS722020ALA330 drive. preclear_disk.sh -A -c3 /dev/sdb put a space between the c and 3
March 2, 201115 yr This is not working, what am I doing wrong? I'm trying to preclear a 2TB Hitachi HDS722020ALA330 drive. preclear_disk.sh -A -c3 /dev/sdb put a space between the c and 3 It would take it either way. What is not happening? What is not working as expected? What error are you seeing?
March 2, 201115 yr Author it looks like its just showing me all the options root@Tower:/boot# preclear_disk.sh -A -c3 /dev/sdb Usage: ./preclear_disk.sh [-t] [-n] [-N] [-m e-mail-addr] [-M 1|2|3|4] [-c count] /dev/??? where = hda, hdb, sda, sdb, etc... -n = Do NOT perform preread and postread of entire disk to allow SMART firmware to reallocate bad blocks in the clearing process -N = Do not perform read validation during postread. (skip this step) (basic test to check if values read are all zero as expected. Skipping this test will save a few miniutes, but possibly not detect a drive that returns non-zero values when zeros were expected as bad.) -c count = perform count preread/clear/postread cycles where count is a number from 1 through 20 If not specified, default is 1 cycle. For large disks, 1 cycle can take 10 or more hours -t = Test if disk has pre-clear signature. This option may NOT be combined with the -c or -n options. The test does not write to the disk. It makes no changes to a disk at all. It only reads the first 512 bytes of the disk to verify a pre-clear signature exists. Note: "-t" does not read the entire disk to verify it it pre-cleared as that could take hours for a large disk. since the pre-clear-signature is written *after* a disk is entirely filled with zeros, if it exists, we assume the disk is cleared. -w size = write block size in bytes -r size = read block size in bytes -b count = number of blocks to read at a time -v = print version of ./preclear_disk.sh -m [email protected] = optional recipient address. If blank and -M option is used, it will default to default e-mail address of "root" -M 1 = Will send an e-mail message at the end of the final results (default if -m is used, but no other -M option given) -M 2 = Will send an e-mail same as 1 plus at the end of a cycle (if multiple cycles are specified) -M 3 = Will send an e-mail same as 2 plus at the start and end of the pre-read, zeroing, post-read -M 4 = Will send an e-mail same as 3 plus also at intervals of 25% during the long tests The -m, -M options requires that a valid working mail command is installed. One version that has worked (bashmail) is affilaited with the unraid_notify script. There are others that also will work. Any of these need to be configured to work with your mail server. The unraid_notify script will have instructions on how to configure this. See http://lime-technology.com/forum/index.php?topic=2470.0 for unraid_notify and http://lime-technology.com/forum/index.php?topic=2961.0 for the mail script. NOTE: The lastest verion of mail has to be used. earlier versions of the mail script affiliated with unraid_notify do not support the standard mail syntax needed. Unless the -n option is specified the disk will first have its entire set of blocks read, then, the entire disk will be cleared by writing zeros to it. Once that is done the disk will be partitioned with a special signature that the unRAID software will recognize when the drive is added to the array. This special signature will allow the unraid software to recognize the disk has been pre-cleared and to skip an initial "clearing" step while the server remains off-line. The pre-read and post-read phases try their best to exercise the disk in a way to identify a drive prone to early failure. It performs reads of random blocks of data interspersed with reads of sequential blocks on the disk in turn. This program also uses non-buffered reads of the first and last cylinders on the disk, the goal is to perform those reads in between the others, and to keep the disk head moving much more than if it just read each linear block in turn. root@Tower:/boot#
March 2, 201115 yr it looks like its just showing me all the options root@Tower:/boot# preclear_disk.sh -A -c3 /dev/sdb Usage: ./preclear_disk.sh [-t] [-n] [-N] [-m e-mail-addr] [-M 1|2|3|4] [-c count] /dev/??? where = hda, hdb, sda, sdb, etc... -n = Do NOT perform preread and postread of entire disk to allow SMART firmware to reallocate bad blocks in the clearing process -N = Do not perform read validation during postread. (skip this step) (basic test to check if values read are all zero as expected. Skipping this test will save a few miniutes, but possibly not detect a drive that returns non-zero values when zeros were expected as bad.) -c count = perform count preread/clear/postread cycles where count is a number from 1 through 20 If not specified, default is 1 cycle. For large disks, 1 cycle can take 10 or more hours -t = Test if disk has pre-clear signature. This option may NOT be combined with the -c or -n options. The test does not write to the disk. It makes no changes to a disk at all. It only reads the first 512 bytes of the disk to verify a pre-clear signature exists. Note: "-t" does not read the entire disk to verify it it pre-cleared as that could take hours for a large disk. since the pre-clear-signature is written *after* a disk is entirely filled with zeros, if it exists, we assume the disk is cleared. -w size = write block size in bytes -r size = read block size in bytes -b count = number of blocks to read at a time -v = print version of ./preclear_disk.sh -m [email protected] = optional recipient address. If blank and -M option is used, it will default to default e-mail address of "root" -M 1 = Will send an e-mail message at the end of the final results (default if -m is used, but no other -M option given) -M 2 = Will send an e-mail same as 1 plus at the end of a cycle (if multiple cycles are specified) -M 3 = Will send an e-mail same as 2 plus at the start and end of the pre-read, zeroing, post-read -M 4 = Will send an e-mail same as 3 plus also at intervals of 25% during the long tests The -m, -M options requires that a valid working mail command is installed. One version that has worked (bashmail) is affilaited with the unraid_notify script. There are others that also will work. Any of these need to be configured to work with your mail server. The unraid_notify script will have instructions on how to configure this. See http://lime-technology.com/forum/index.php?topic=2470.0 for unraid_notify and http://lime-technology.com/forum/index.php?topic=2961.0 for the mail script. NOTE: The lastest verion of mail has to be used. earlier versions of the mail script affiliated with unraid_notify do not support the standard mail syntax needed. Unless the -n option is specified the disk will first have its entire set of blocks read, then, the entire disk will be cleared by writing zeros to it. Once that is done the disk will be partitioned with a special signature that the unRAID software will recognize when the drive is added to the array. This special signature will allow the unraid software to recognize the disk has been pre-cleared and to skip an initial "clearing" step while the server remains off-line. The pre-read and post-read phases try their best to exercise the disk in a way to identify a drive prone to early failure. It performs reads of random blocks of data interspersed with reads of sequential blocks on the disk in turn. This program also uses non-buffered reads of the first and last cylinders on the disk, the goal is to perform those reads in between the others, and to keep the disk head moving much more than if it just read each linear block in turn. root@Tower:/boot# Then try it with the space as suggested. (I thought that it would take it either way, but I could be wrong)
March 2, 201115 yr nope, tried that and same thing? What version of preclear_disk.sh are you using? Type preclear_disk.sh -v to find out
March 2, 201115 yr Author thanks Joe, that was it, had to upgrade. It is OK to use the -A option to preclear a drive that is not an Advance format drive right?
March 2, 201115 yr yes, that is fine. So long as the drive is not a WD EARS Green drive with the jumper installed you are fine to use the -A switch
March 2, 201115 yr thanks Joe, that was it, had to upgrade. It is OK to use the -A option to preclear a drive that is not an Advance format drive right? Yes, you'll just never be able to us unRAID 4.6 or prior with it and read its data. They won't recognize the partition.

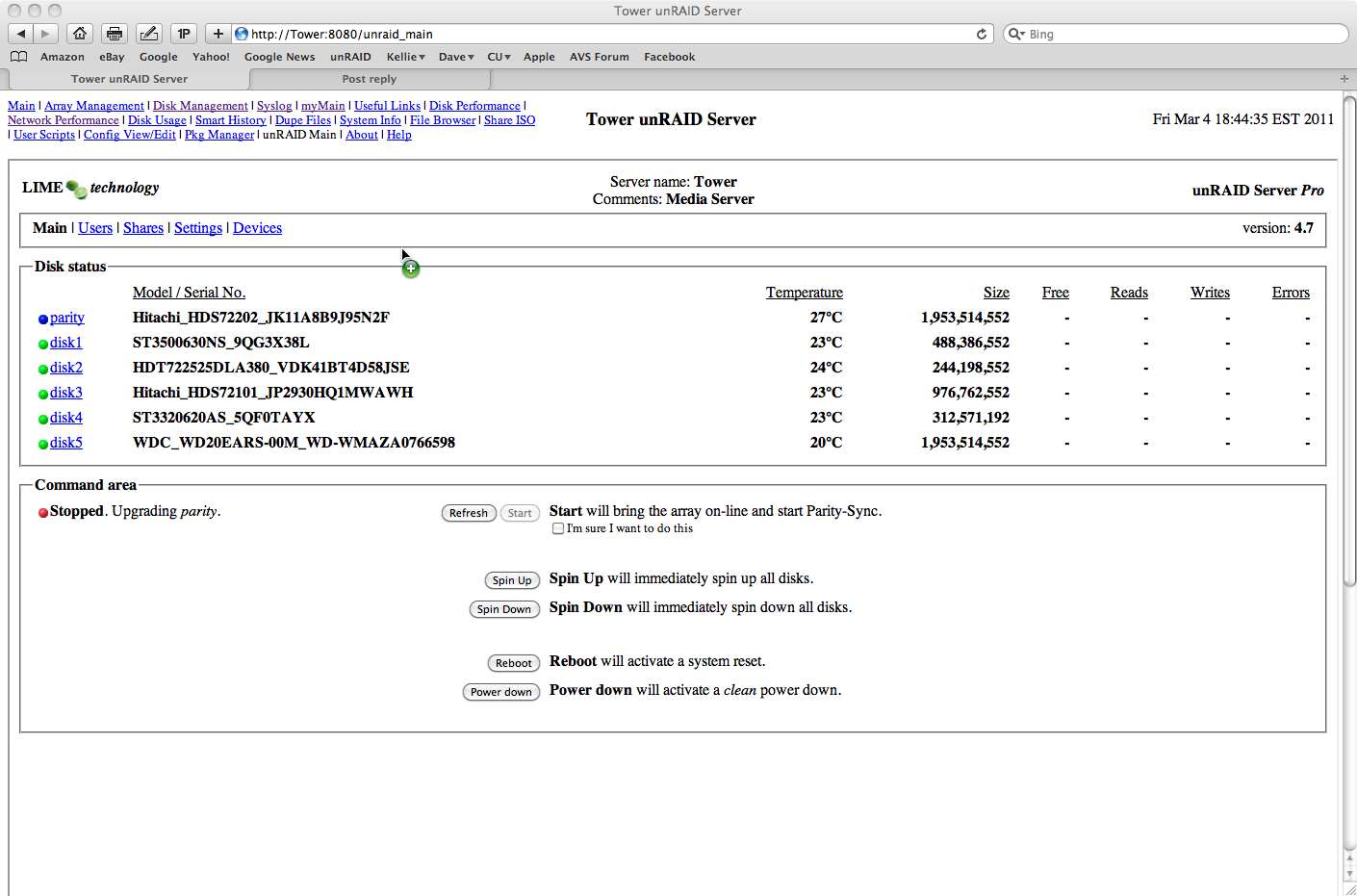

March 5, 201115 yr Author So I just upgraded my parity drive, do I need to hit the start button? It says its rebuilding parity but not sure if I need to start the array first? All I did was pre-cleared the drive and then pulled out the old parity drive and put in the new one. edit....if I would have read my first post I would know that I have to hit the start button, doh
March 6, 201115 yr Author Do I have to preclear my old parity drive to use as a data drive? If so is this correct for a WD EARS drive WITH jumper? preclear_disk.sh -a -c3 /dev/sdx
March 7, 201115 yr Author So I just added the drive and started the array and now it says this and is clearing the drive on its own and the array is stopped. Is this normal? PROTECTED_EXPANSION, unRAID ARRAY is STOPPED 7 disks in array. PARITY NOT VALID: DISK_NEW
March 7, 201115 yr So I just added the drive and started the array and now it says this and is clearing the drive on its own and the array is stopped. Is this normal? PROTECTED_EXPANSION, unRAID ARRAY is STOPPED 7 disks in array. PARITY NOT VALID: DISK_NEW looks normal.
