Just had a quick question after settings up a new UPS (first time doing so)

So I have just gotten an Eaton Ellipse PRO UPS 650 and installed NUT and have configured it (correctly hopefully)



I noticed in the dashboard that the nominal power reading is just showing a red 'w'. Wasn't sure if this is correct? Is it an 'on battery' reading?

I can't see any settings that might reference it



Many Thanks



Seems your UPS capacity was 650w, so input it in NUT setting, then it should calc the power usage base on "Load %" .

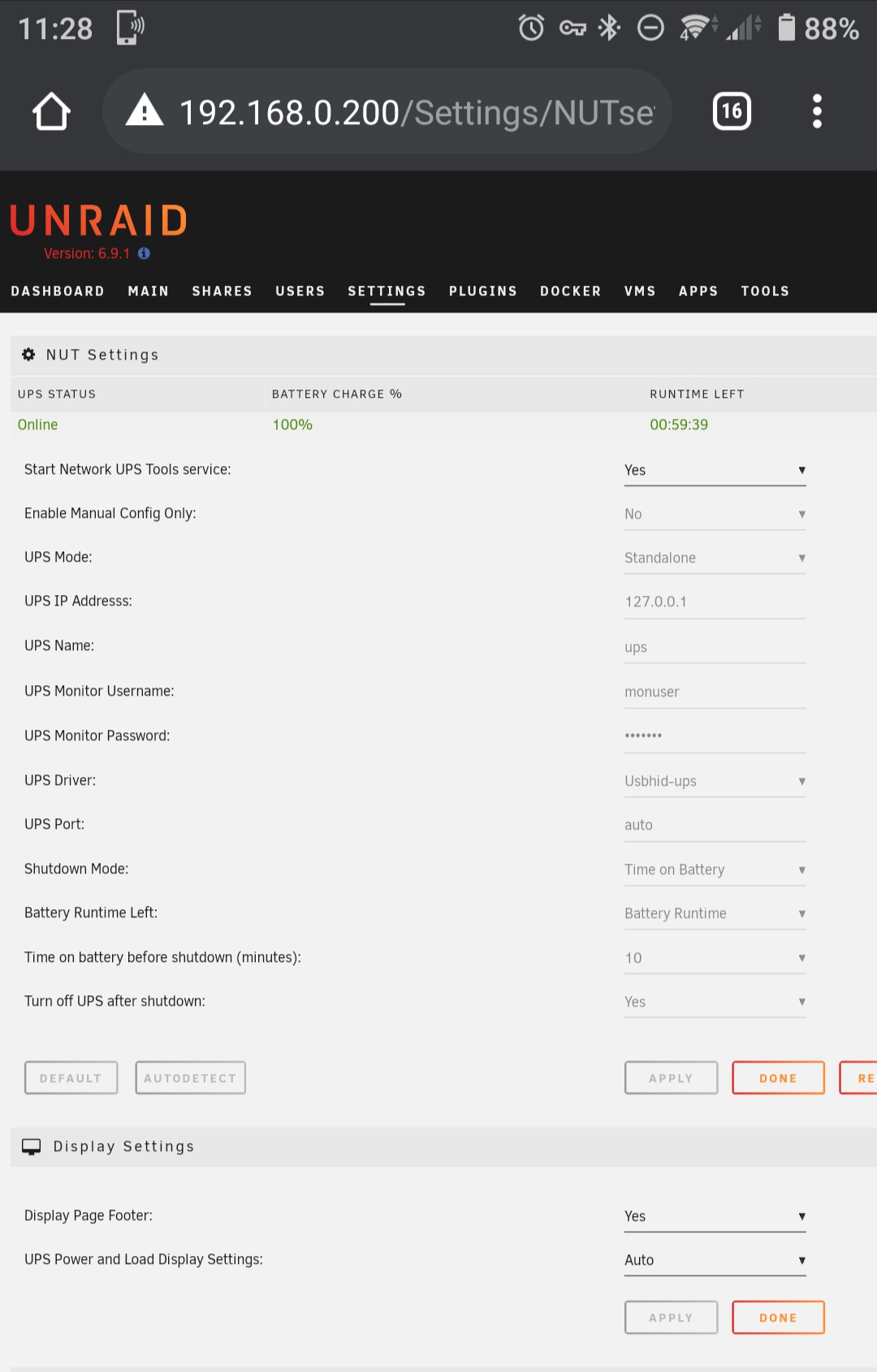

Ok thanks, it's 400 Watt - 650 VA. I will take a better look once I'm back home but it didn't appear that I could enter any settings.

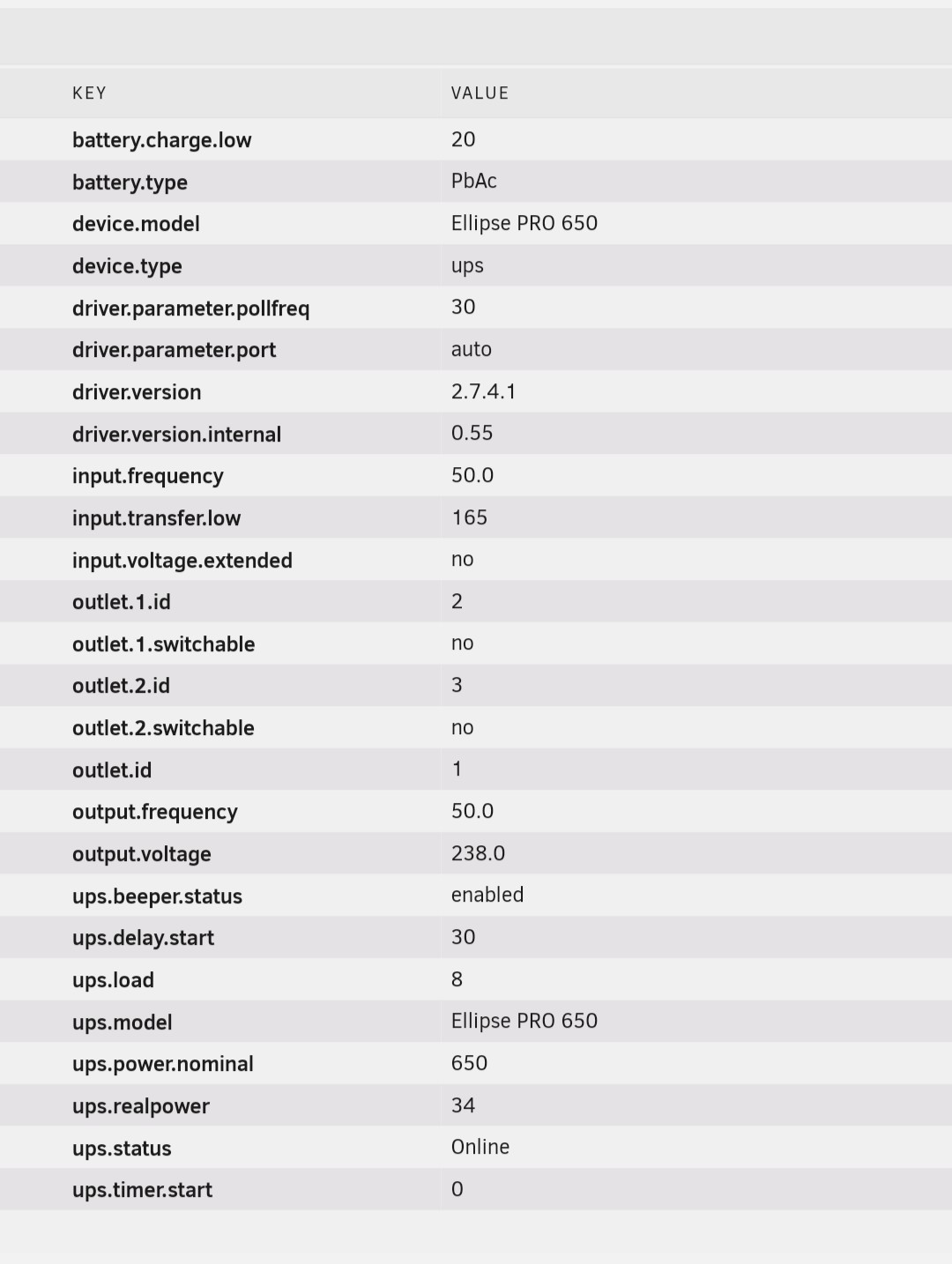

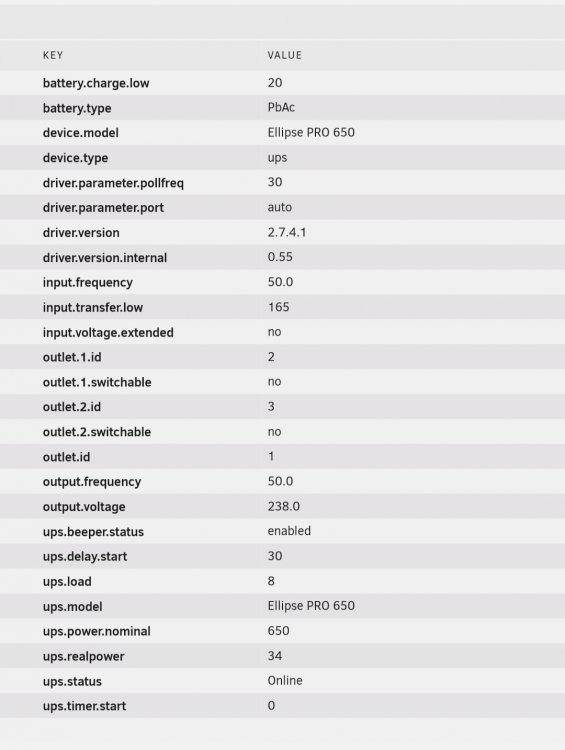

I did see that NUT could actually see the nominal power but I guess not the wattage



This has already been discussed in the support thread for the NUT plugin.



47 minutes ago, Kuwabara89 said:

Ok thanks, it's 400 Watt - 650 VA. I will take a better look once I'm back home but it didn't appear that I could enter any settings.



I did see that NUT could actually see the nominal power but I guess not the wattage





Set it to manual will fix the issue.



1 hour ago, jonathanm said:

This has already been discussed in the support thread for the NUT plugin.



Thank you, believe that is the thread I looked at to get it up and running, must have missed the discussion on it, will check back there if any issues pop up.



1 hour ago, Vr2Io said:



Set it to manual will fix the issue.



Thank you, that seems to have fixed it
