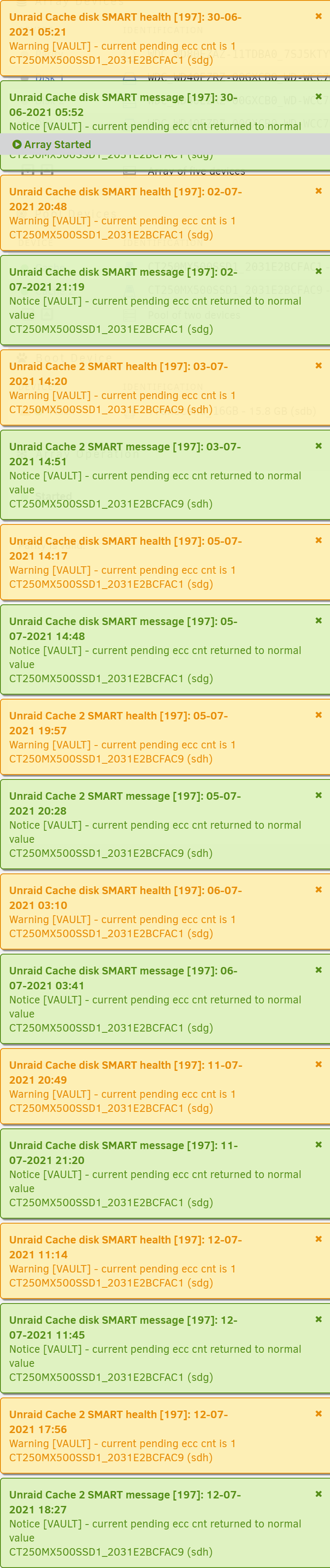

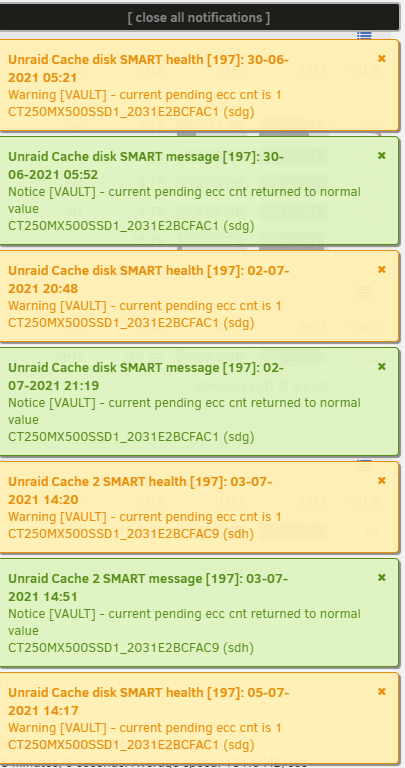

I needed to update my plex docker instance on my NAS Unraid system. So i loggedin into the system via the web gui and i was presented with a lot of thoose messages about this error, going into yellow and green again, see screenshot please.



After some searching via google with quotes and without i didnt really found an exact post about what this could mean, the closest i got to find something was this medium.com post ( https://satyeshukumar.medium.com/how-to-fix-current-pending-sector-count-warning-d9232220366e ) which bascially states

Quote

Briefly, the ‘Current Pending Sector Count’ warning indicates imminent drive failure and requires urgent backup & recovery followed by hard drive or SSD replacement.



Is this for my message also true?
Did anyone already have this message/error and help me to understand whats needed for my system?



About the SSDs:

Thoose "Crucial MX500 250GB CT250MX500SSD1(Z)" are bought from 12/2020 so they are fresh ones, and i did invest a bit more money for them as a Raid1 Cache then go with the lower BX series.



Please help :X

Edited July 13, 20214 yr by jammsen

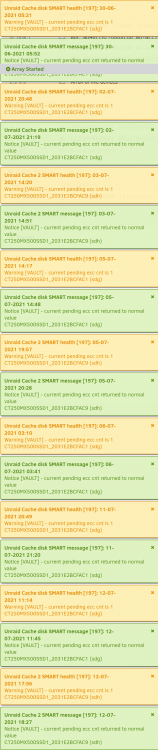

Fiddled around with the layout of the gui and added a longer screenshot

It's a known issue with the MX500, disable monitoring that attribute, you should also enable email or other push notifications, you don't want to see any issues only after checking the GUI.





Hey @JorgeB,

oh ..... i even know the old thread, so the message isnt whats important, the SMART number 197 is the key here?

Good to know, but afaik they should have fixed it in smartmontools according to this: https://www.smartmontools.org/changeset/5061



Just looked into my hostname/Main/Device?name=cache link for the cache drives and disabled 197 which is onr row below 188 which is also disbaled, maybe i missclicked or so and disabled 188 by accidient? Or is 188 disabled by default?

Edited July 13, 20214 yr by jammsen

22 minutes ago, jammsen said:

Or is 188 disabled by default?

Yes.

thats the reason i gave my mx500 back and bought an Samsung 870 evo plus.

i dont like to deactivate SMART checks.. yes it is a false alarm on this SSD normaly, but what is if there is a real error of this kind on an MX500, you wouldnt notice it.



just my 2 cents.

Yeah @Meannekes i totally agree and get your point, i should have gone with my 2 other highspeed "SPCC_M.2_PCIe_SSD" Silicon Power SSDs.

I have 2 Unraid systems and the one with 2 of thoose disks in it, isnt mission critical, its more like hold some Docker Settings for plex or so and while its set to cache only, the settings are not that important. It runs raid1 anyway and its been barley used as a file cache. So failure rate should be low to extremly low.



Next time the better ones

Edited July 14, 20214 yr by jammsen

On 7/14/2021 at 8:06 AM, Meannekes said:

thats the reason i gave my mx500 back and bought an Samsung 870 evo plus.

i dont like to deactivate SMART checks.. yes it is a false alarm on this SSD normaly, but what is if there is a real error of this kind on an MX500, you wouldnt notice it.



just my 2 cents.

I hope you had better luck with the 870s than I did, I had both of mine fail within a year of purchase, hoping the Mx500s will be less failure prone

1 hour ago, AeroSteveO said:

I hope you had better luck with the 870s than I did, I had both of mine fail within a year of purchase, hoping the Mx500s will be less failure prone

It seems i had a lot of luck then - Just looked up SMART data:

• #1 (2y, 5m, 25d, 4h)

• #2 (2y, 3m, 25d, 3h)

They are both in a btrfs raid1, i only have 2 flash pools, no array. And the 870 are kinda "cold-storage" so basically not often used. Docker+VMs use the 2x1TB Silicon-Power disks for very hich I/OPS.

Edited August 5, 2025Aug 5 by jammsen
