Hi All,

I shut down my server to add a Network Card, when I booted the server back up one of the disks was missing, I suspect I dislodged the SATA cable by mistake.

The disk then became disabled in the array, I shut down, reset all the cables and the disk came back up in disabled mode.

I restart in maintenance mode to run smart tests - everything seemed fine - I removed it from the array and added it back in. Then rebuilt the array, no errors were reported.

However, now i seems to have some XFS errors across all disks:

Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md1): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x11a0df168 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md2): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x697e9f18 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md2): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x697e9f18 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md2): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x697e9f18 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md2): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x653bd0d8 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md2): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x653bd0d8 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md2): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x653bd0d8 len 32 error 5
Jul 15 10:06:12 Tower kernel: XFS (md2): metadata I/O error in "xfs_imap_to_bp+0x5c/0xa2 [xfs]" at daddr 0x653bd0d8 len 32 error 5
Jul 15 10:06:13 Tower dhcpcd[3442]: br1: using IPv4LL address 169.254.222.50

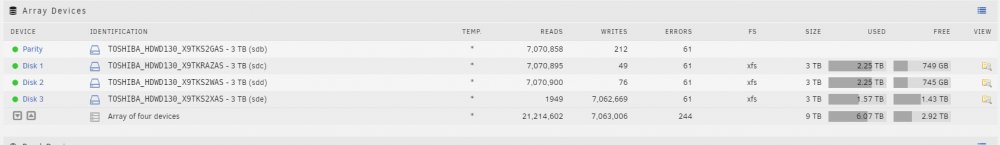

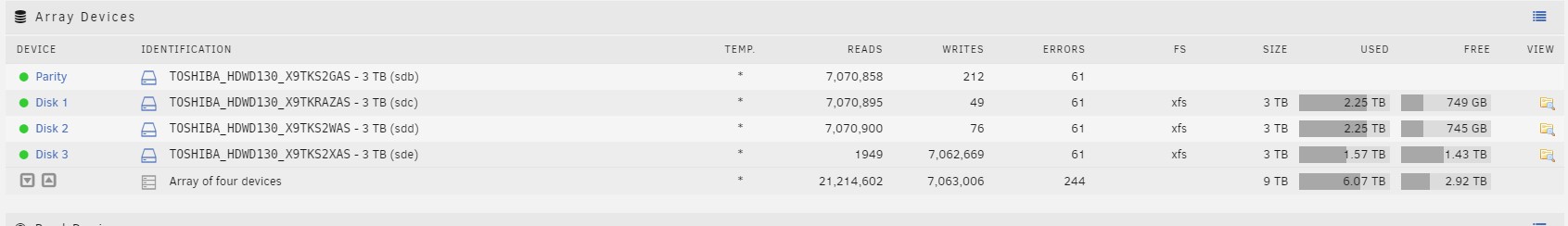

All drives appear to have errors now, i've attached the diagnostic files from before and after

• Jul 14 - While disk was disabled.
• Jul 15 - After array was rebuilt



Any advice on what I should do here?



Thanks!

tower-diagnostics-20210715-1011.zip tower-diagnostics-20210714-1730.zip

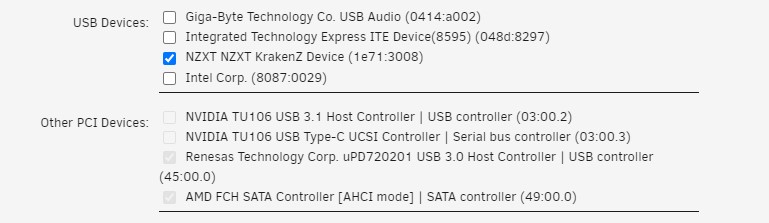

This SATA controller is being passed through to the Win10 VM:



49:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
    DeviceName: X570/590 SATA1
    Subsystem: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901]
    Kernel driver in use: vfio-pci
    Kernel modules: ahci



So when the VM starts Unraid loses access to it and all the connected disks.

OMG! Have i seriously just been this stupid!🙄

This is next level dumb !  I moved my USB PCI card updated VM must have check the SATA controller too somehow.



I shall remove that and hopefully my problems will go away

46 minutes ago, JorgeB said:

This SATA controller is being passed through to the Win10 VM:



49:00.0 SATA controller [0106]: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901] (rev 51)
    DeviceName: X570/590 SATA1
    Subsystem: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] [1022:7901]
    Kernel driver in use: vfio-pci
    Kernel modules: ahci



So when the VM starts Unraid loses access to it and all the connected disks.



Hi JorgeB,



thank you so much for taking the time to review my logs i really appreicate it.



This is 100% a classic case of dumb user error!



I can confirm its all working well now, once i gave the sata contoller and the disks back to unraid.....



thank you again!
