All,



I just installed Unraid on a fresh server with 2 NVMe drives:

1. SAMSUNG_MZ1LB1T9HALS-000077 - 1.9 TB (nvme1n1)
2. INTEL_SSDPE2KX020T8 - 2 TB (nvme0n1)

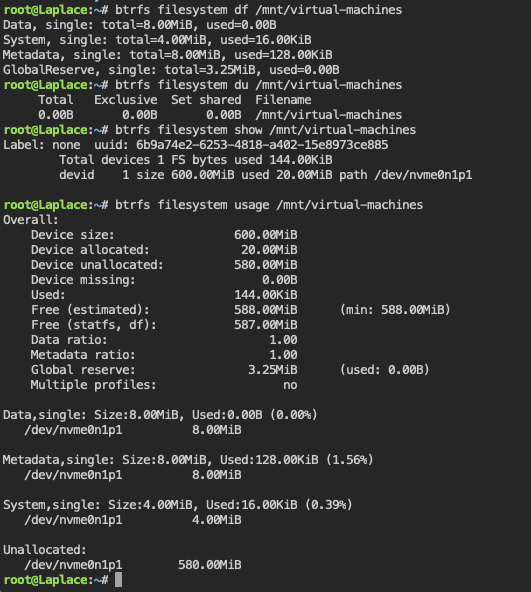

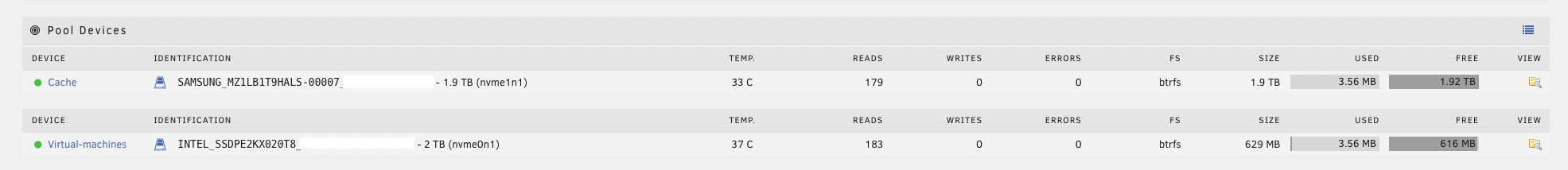

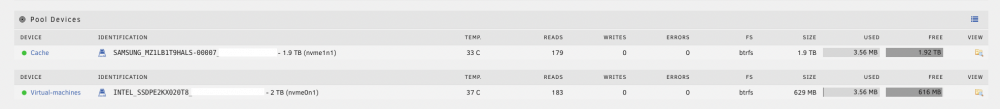

I have no applications/docker containers or VMs yet on this installation.  I've created 2 pools, "Cache" and "Virtual-Machines",  corresponding to the 2 drives.  Unraid is reporting an incorrect free space and device size for the Intel NVMe drive (nvme0n1 and the "Virtual-machines" pool). The device size is being reported as 600 MB instead of 2 TB. Diagnostics are attached.











laplace-diagnostics-20210802-1042.zip

Edited August 2, 20213 yr by laplace

Have you checked to see if there are any other partitions on the drive?

You might need to wipe the device using the wipefs command if there is a weird partition structure.



All the best,



Jon

Thanks @jonp and @itimpi. The wipefs command did the trick. I'd note that strangely enough, no strange partitions were reported via lsblk (and fdisk).

3 minutes ago, laplace said:

Thanks @jonp and @itimpi. The wipefs command did the trick. I'd note that strangely enough, no strange partitions were reported via lsblk (and fdisk).

Was there already a partition present which did not fill the drive?    I think that can also cause this sort of symptom.

Yes, there was 1 partition, but it was being reported as 2 TB. Should wipefs be part of the formatting procedure from the GUI?
