ssd visible in bios and windows, but not on unraid unraid-6.10.0-rc2/unraid-6.9.2

[danunbox]

Hi guys,



I'm trying to set up my unraid with an ssd, the ssd is visible in BIOS(and windows 10), but not on UNRAID unraid-6.10.0-rc2, also in unraid-6.9.2.



My config:

mobo - ASROCK ROMED8-2T

cpu - AMD EPYC 7702

gpu - NVIDIA GTX 1070

nvme - 1x250gb samsung, 1x1tb samsung

ssd - 1x1tb samsung



I tried:

1. Runned this script, nothing happened.



2. Tried adding amd_iommu=on, also amd_iommu=pt in the syslinux/syslinux.cfg
...

label Unraid OS

  menu default

  kernel /bzimage

  append initrd=/bzroot amd_iommu=on

...

...

label Unraid OS

  menu default

  kernel /bzimage

  append initrd=/bzroot amd_iommu=pt

...



3. Formating the ssd in windows.

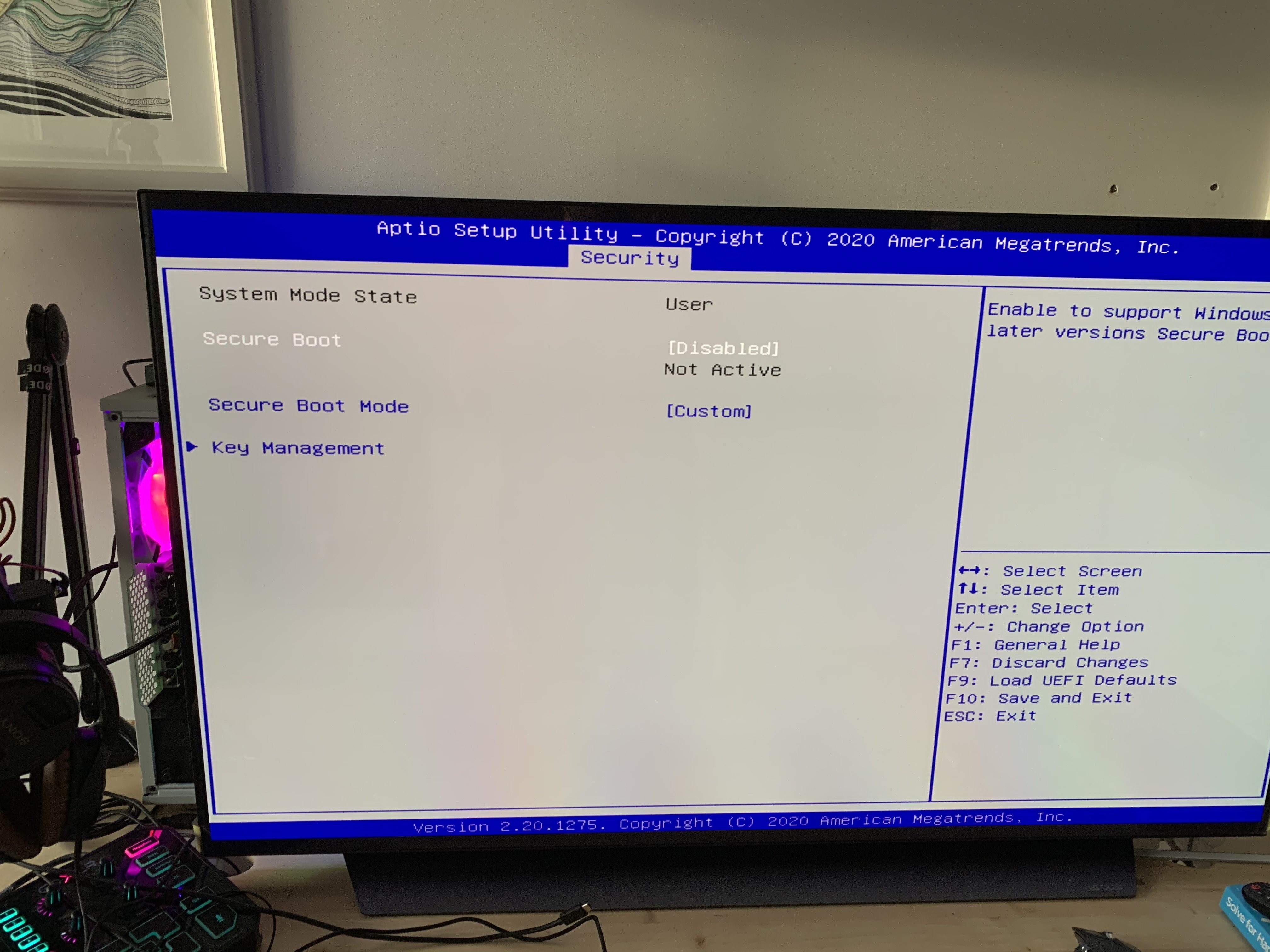

Also if I set Secure Boo to Enabled, the usb with UNRAID does not boot anymore.

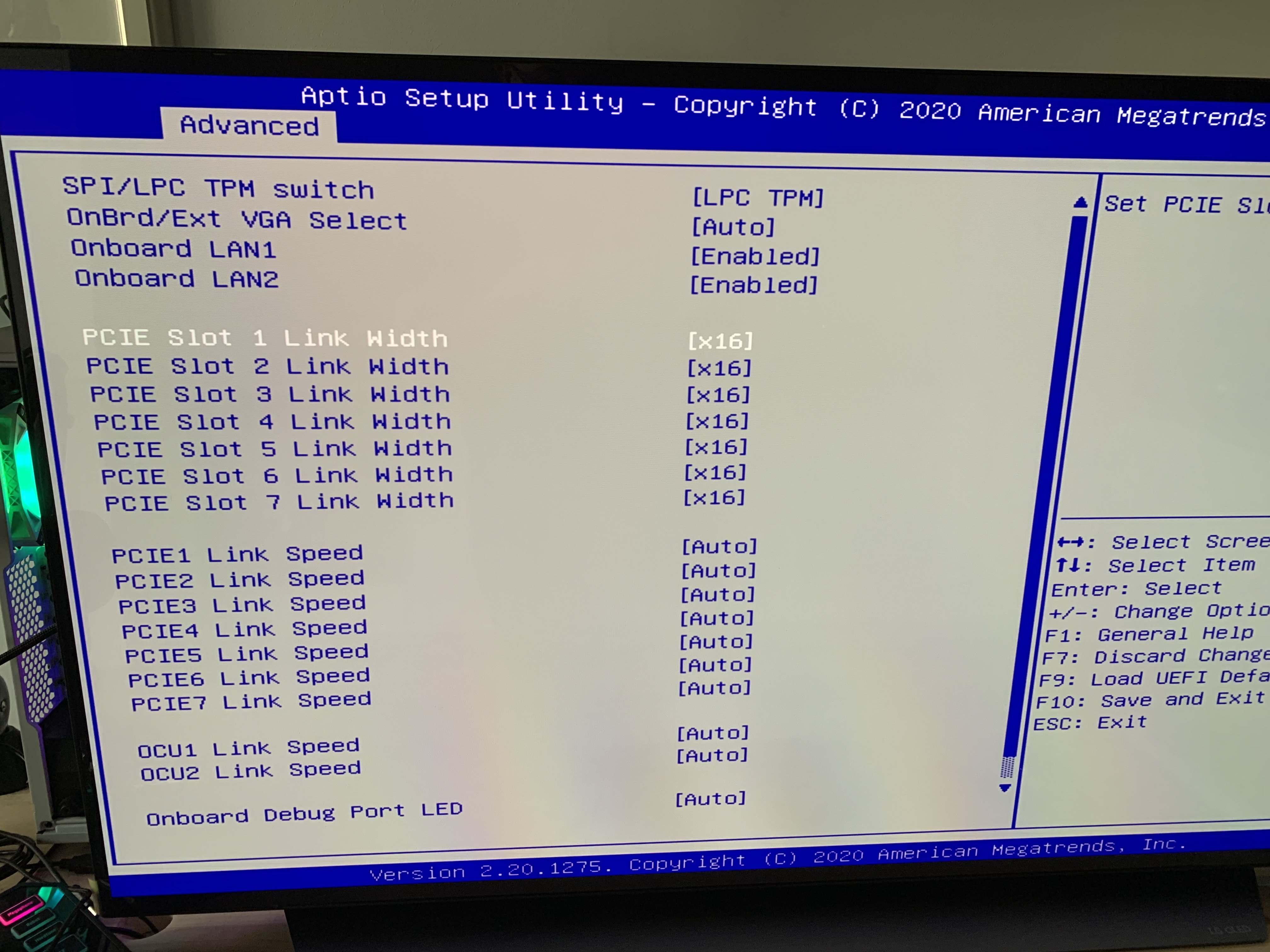

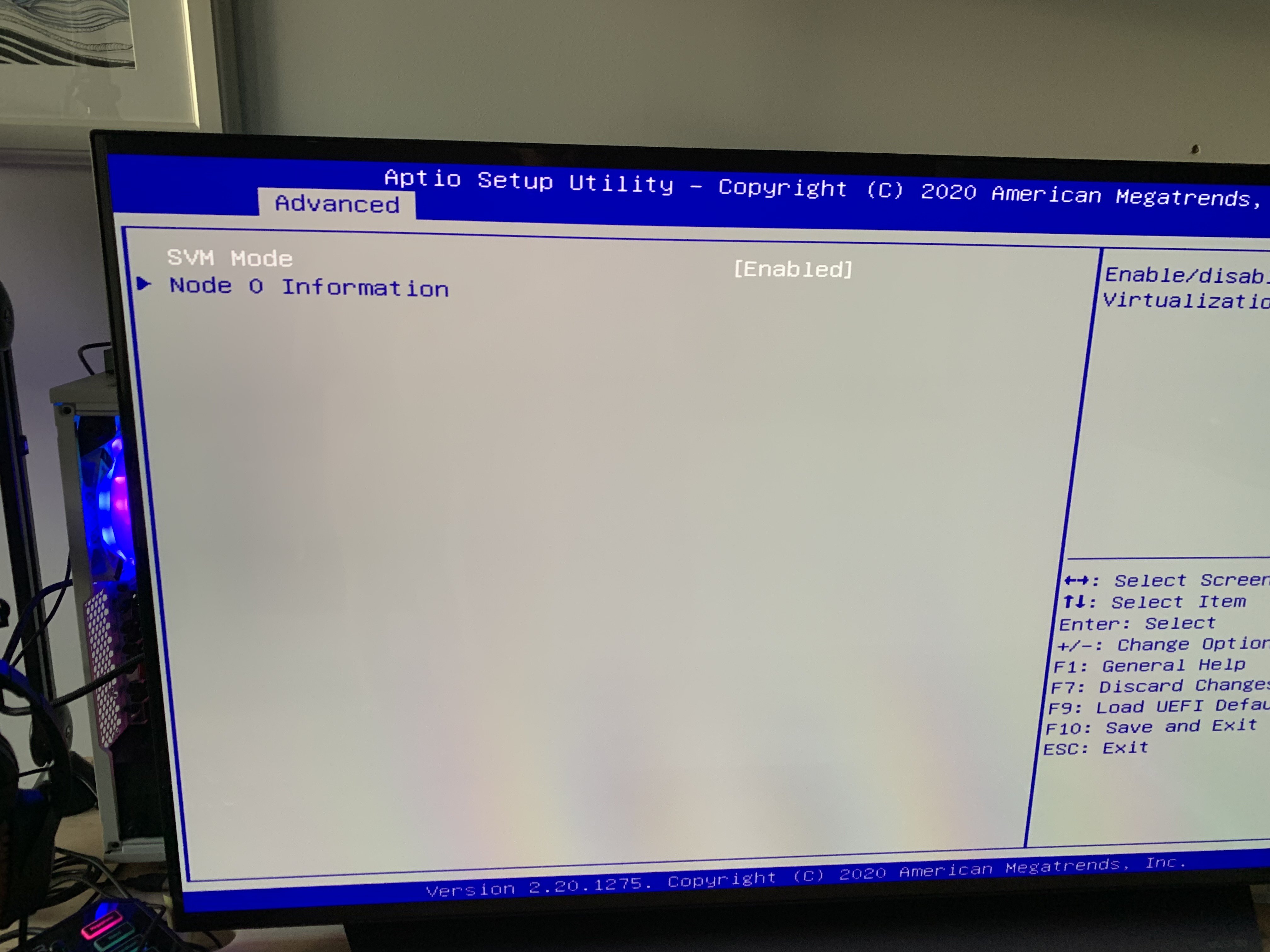

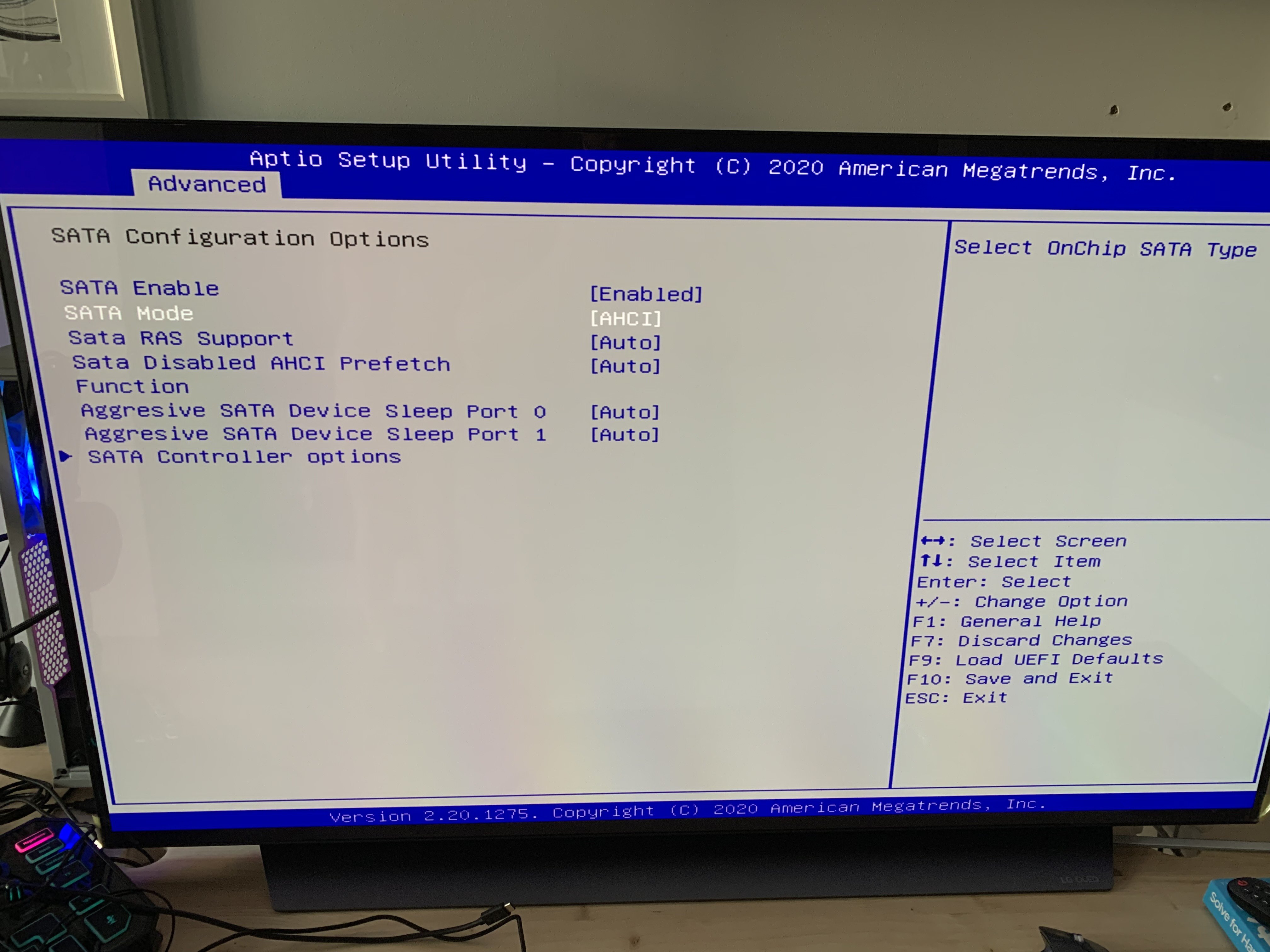

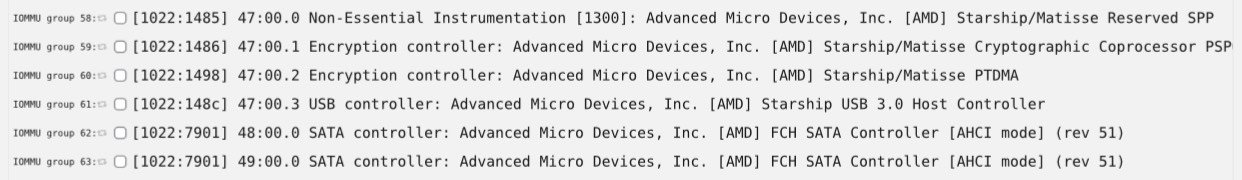

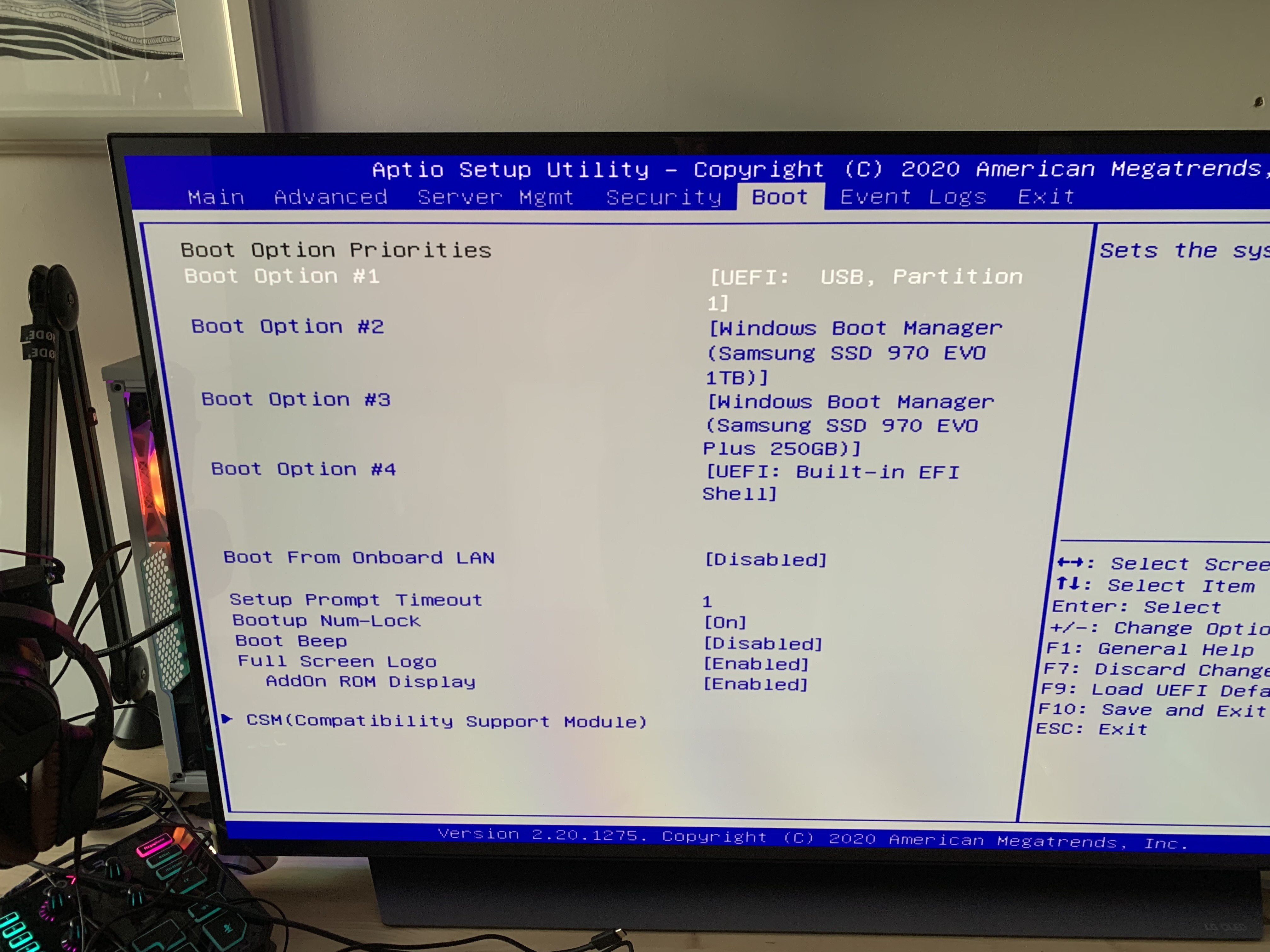

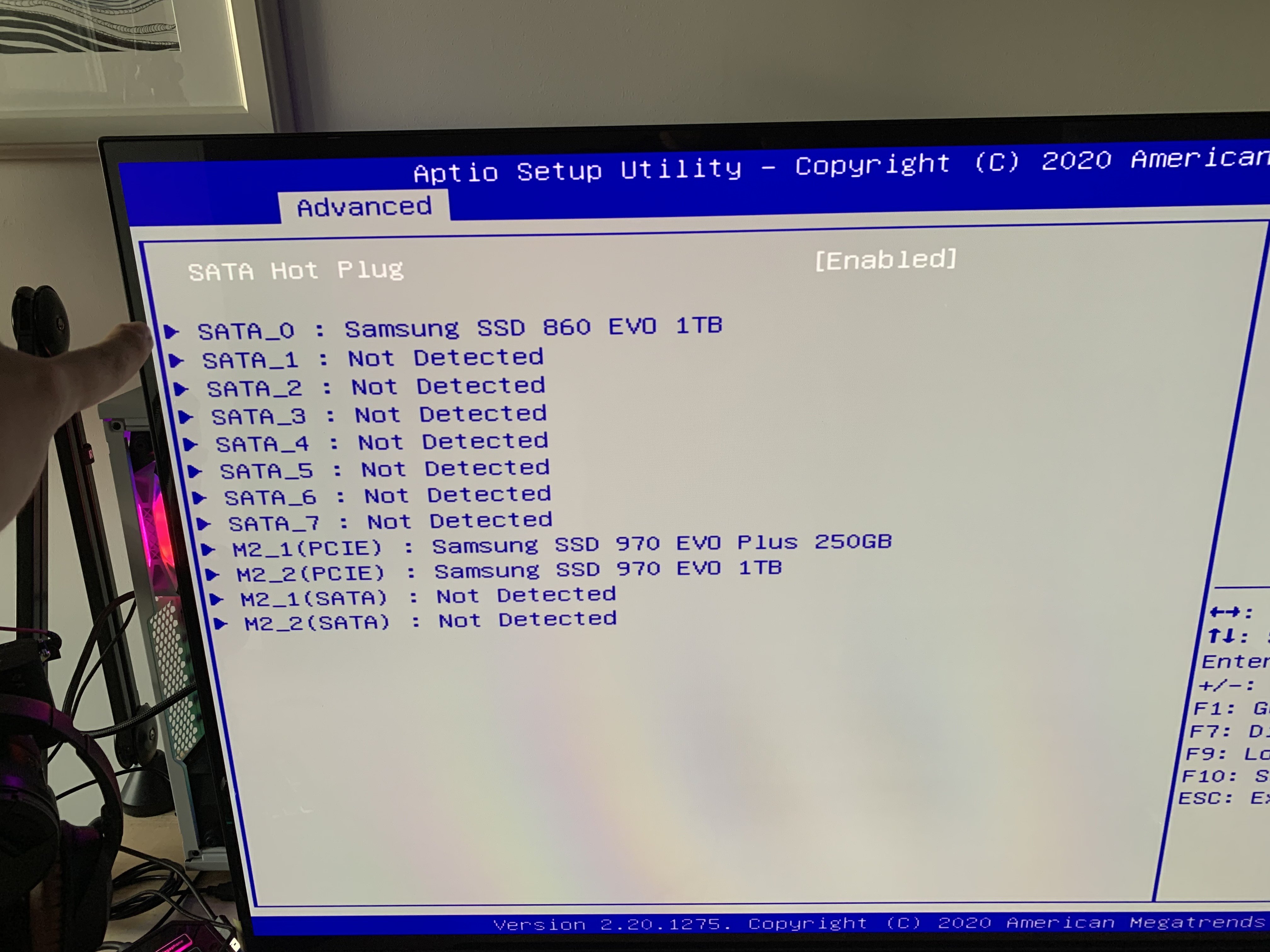

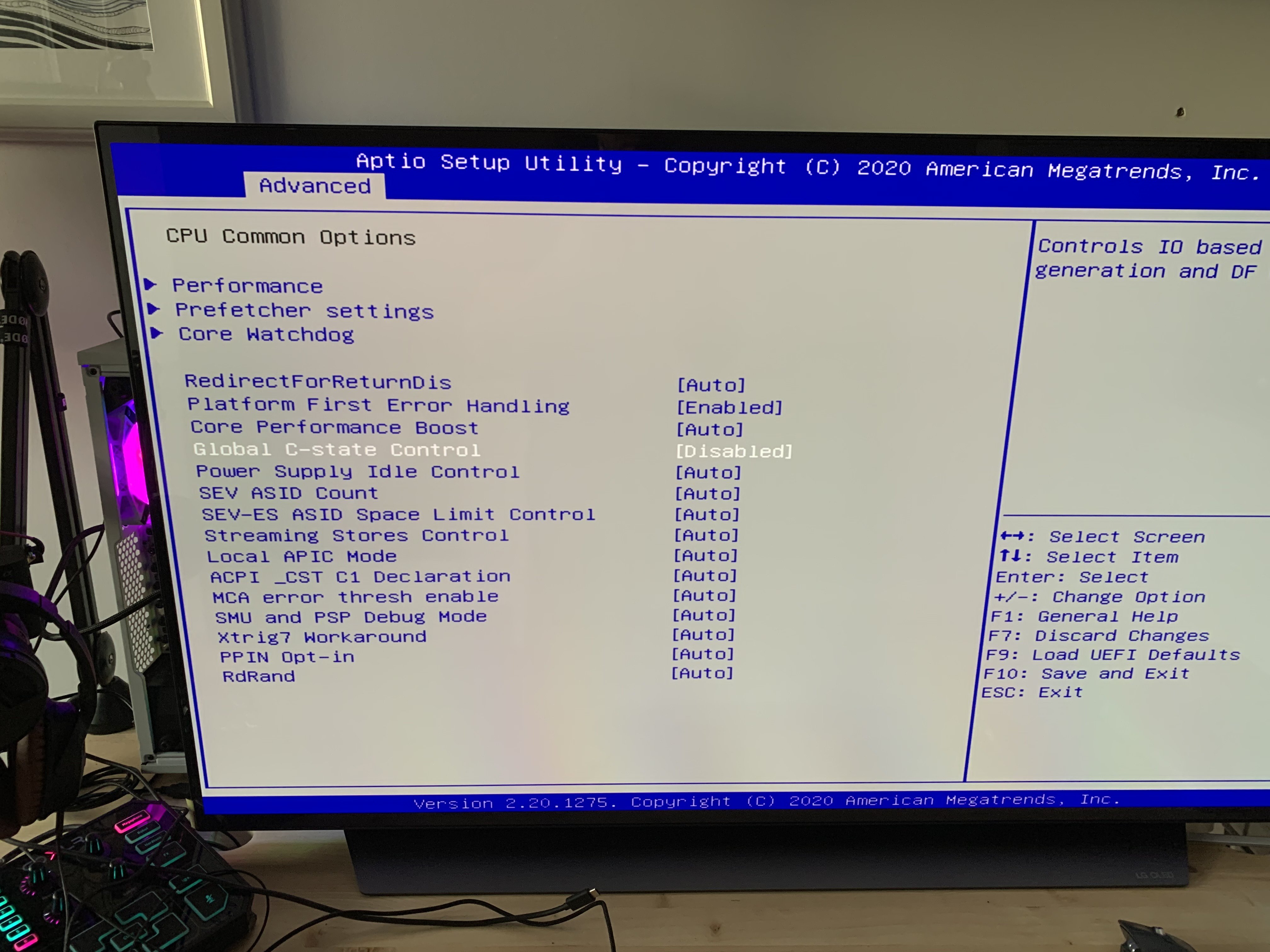

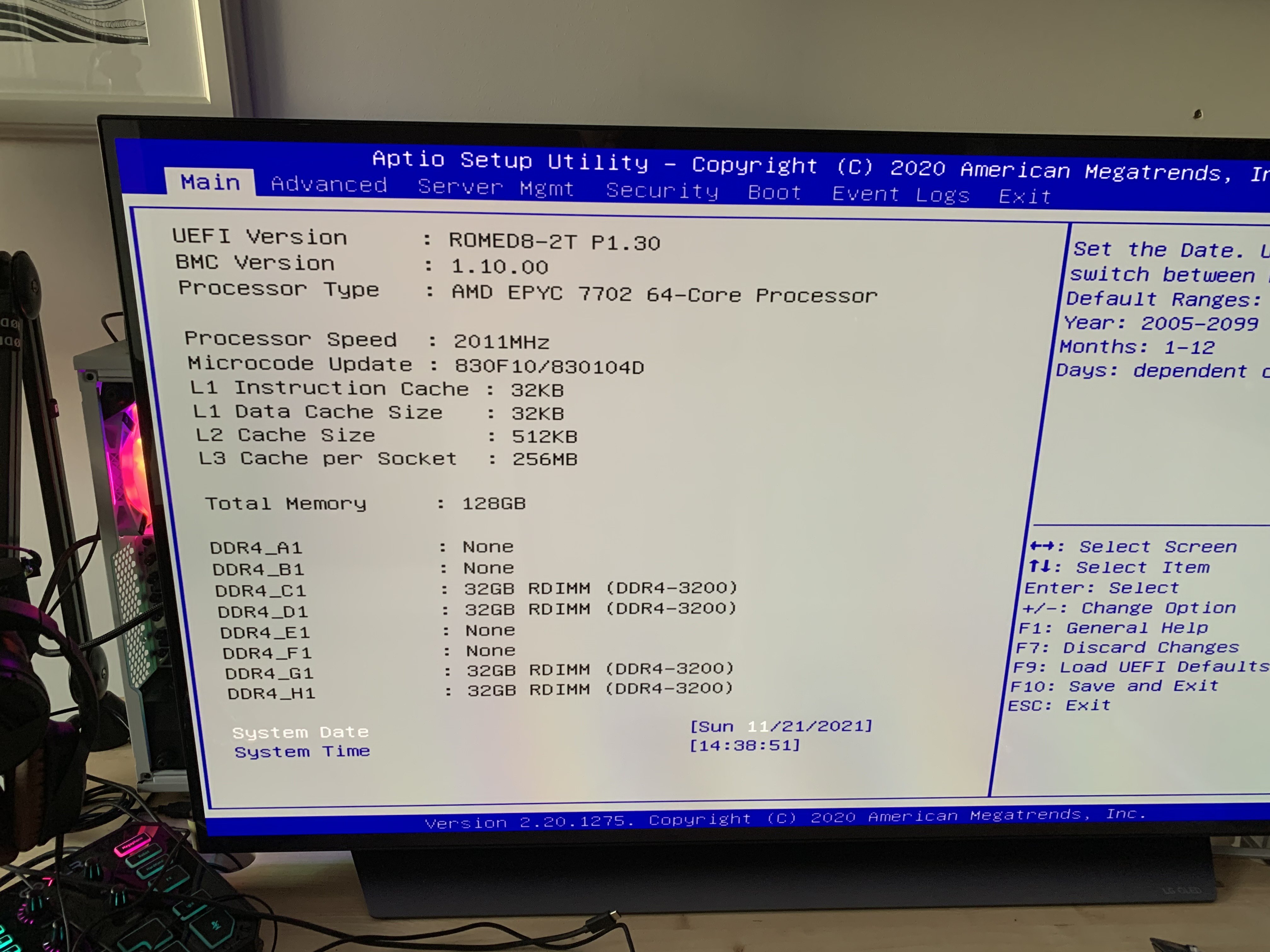

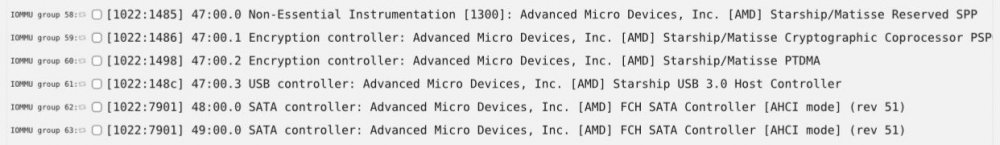

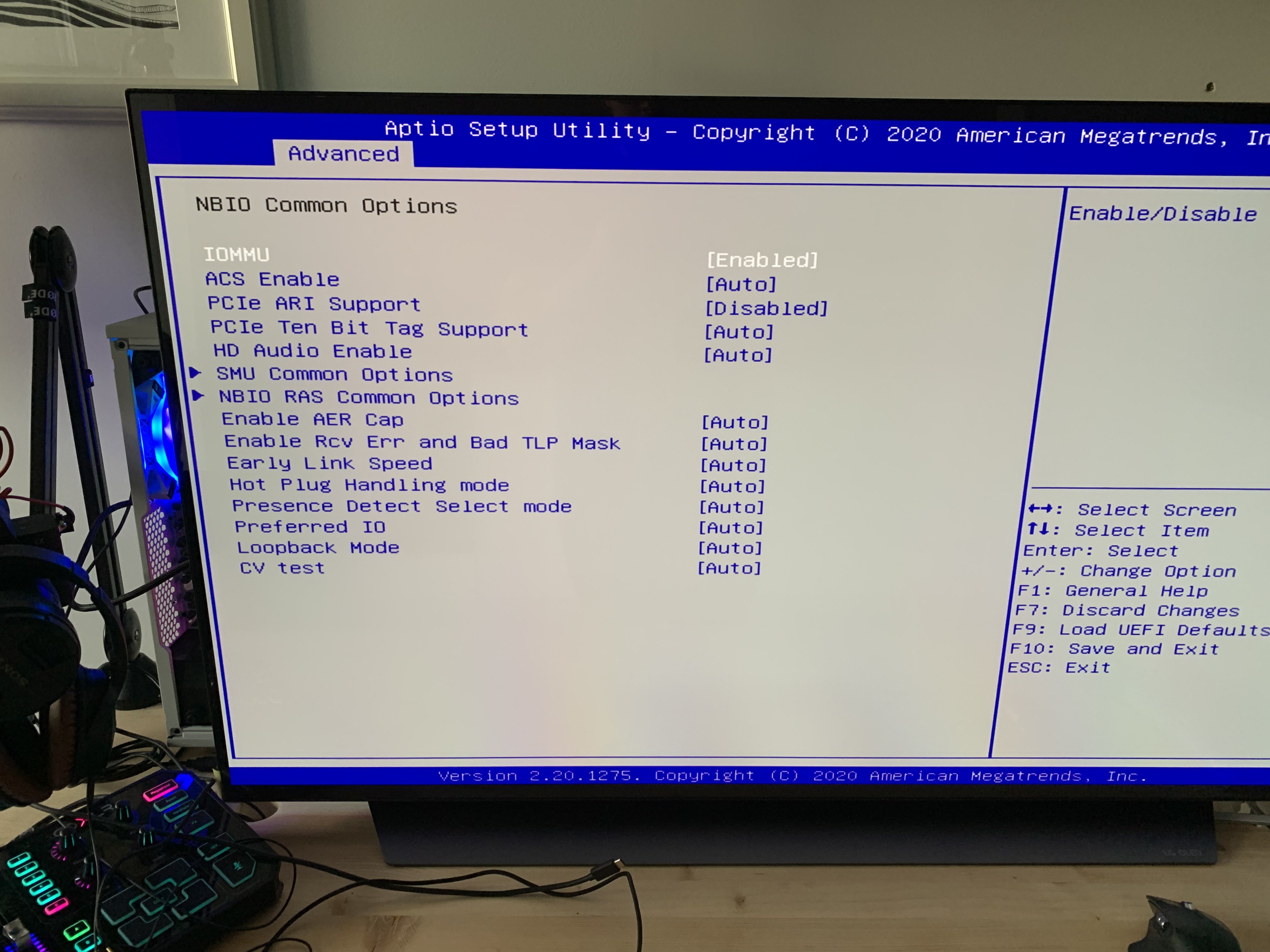

I attached some images of my bios config, and UNRAID iommu groups for sata controllers, also diagnostics.zip.

tower-diagnostics-20211121-1441.zip

Edited November 21, 2021 by danunbox
typo

[JorgeB]

There's something weird going on with the SATA controllers, syslog shows 4 different controllers, with 8 ports each, and then one of them fails to initialize:



Nov 21 06:40:49 Tower kernel: ahci: probe of 0000:49:00.0 failed with error -22



Look for a BIOS update or try with a different Unraid/kernel version.

[danunbox]

Thank you
