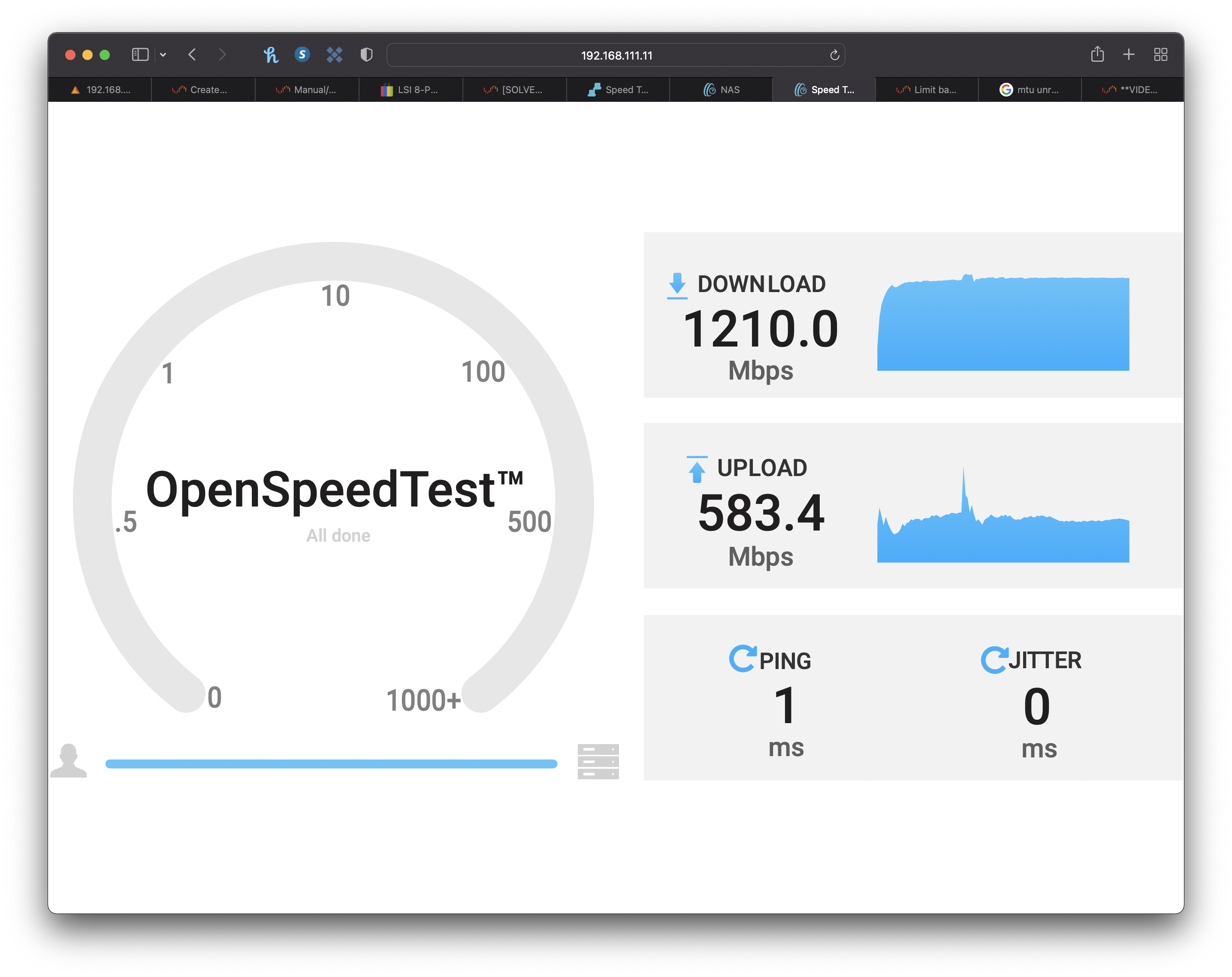

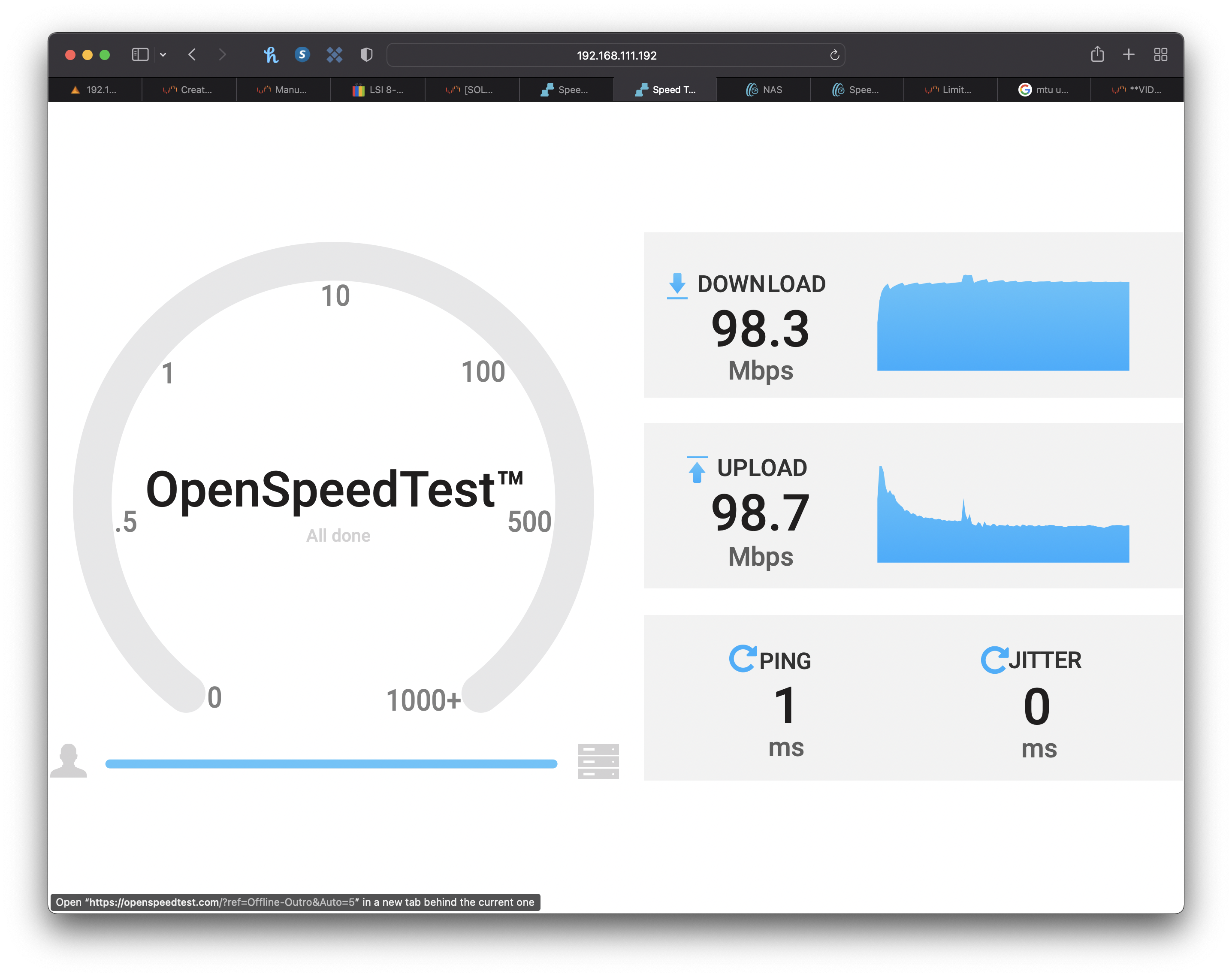

Pstark Posted January 12, 2022 Share Posted January 12, 2022 I normally use WiFi (6) to connect to UNRAID and I started to try and figure out if I could get a faster transfer speed. I set up an NVME cache and it made no difference. I tried different file systems and then I just connected a ethernet adapter to my computer and I am STILL limited to 10MB/s. WiFi 6 or hardline is still the same speed. If I connect to my QNAP NAS and run the same OpenSpeedTest docker, I get 30-40MB/s. UNRAID and QNAP are both connected to the same 2.5gbe switch. It seems that UNRAID is limiting my connection but I can't find any setting that could be causing it. OpenSpeedTest shows a consistent speed right at 10MB/s Quote Link to comment
itimpi Posted January 12, 2022 Share Posted January 12, 2022 You should post your system’s diagnostics to get better informed feedback. it sounds as if you may have an issue with the Ethernet link between Unraid and the router? This could be the port or the Ethernet cabling. Quote Link to comment
Pstark Posted January 12, 2022 Author Share Posted January 12, 2022 Attached the diagnostics. Also updated the bios and swapped to a different cable. Still no change. I make my own cat6 cables so later today I can swap again to a store bought cat 5e. diagnostics-20220112-0809.zip Quote Link to comment
Pstark Posted January 14, 2022 Author Share Posted January 14, 2022 I did a clean install by using the Unraid usb tool and did another speed test and it’s the same thing. I’m thinking the Ethernet is possibly the cause of this. It’s a Realtek 8111. After some research, I found that Realtek Ethernet doesn’t have the best reputation for use with Unraid. Does anyone have recommendations to make it work better? Quote Link to comment
Vr2Io Posted January 15, 2022 Share Posted January 15, 2022 I try setup openspeedtest docker in an J1900 Unraid, test result great, only speed drop if I disable NIC offload, but still got 200Mbps+ Does your 2.5G switch have 1G port ? if yes, pls try connect Unraid to it and provide "ethtool -k eth0" output. Quote Link to comment
Pstark Posted February 1, 2022 Author Share Posted February 1, 2022 On 1/14/2022 at 6:54 PM, Vr2Io said: I try setup openspeedtest docker in an J1900 Unraid, test result great, only speed drop if I disable NIC offload, but still got 200Mbps+ Does your 2.5G switch have 1G port ? if yes, pls try connect Unraid to it and provide "ethtool -k eth0" output. I have tried connecting it to the router directly, a 1GBE switch, 2.5GBE switch and now a 10GBE NIC. All result in the same speed of ~100mbps. I will post the results of what you asked shortly. Quote Link to comment
Pstark Posted February 1, 2022 Author Share Posted February 1, 2022 32 minutes ago, Pstark said: I have tried connecting it to the router directly, a 1GBE switch, 2.5GBE switch and now a 10GBE NIC. All result in the same speed of ~100mbps. I will post the results of what you asked shortly. I was going to post what @vr2gbasked for but I found Unraid unresponsive and looked at it again and found it just power cycling repeatedly. I'm pretty sure the board is faulty. It keeps happening again and again. I'm going to get new board and go from there. Quote Link to comment
Pstark Posted February 6, 2022 Author Share Posted February 6, 2022 On 1/14/2022 at 6:54 PM, Vr2Io said: I try setup openspeedtest docker in an J1900 Unraid, test result great, only speed drop if I disable NIC offload, but still got 200Mbps+ Does your 2.5G switch have 1G port ? if yes, pls try connect Unraid to it and provide "ethtool -k eth0" output. Yesterday, I found a new motherboard Asus Z370-a and got the NIC working correctly. 2.5g switch doesn't have a 1g port but I do have a separate switch on the network that is 1g. It didn't make any difference on speeds when connected to either switch. But below is the result of "ethtool -k eth0". root@Tower:~# ethtool -k eth0 Features for eth0: rx-checksumming: on tx-checksumming: on tx-checksum-ipv4: off [fixed] tx-checksum-ip-generic: on tx-checksum-ipv6: off [fixed] tx-checksum-fcoe-crc: off [fixed] tx-checksum-sctp: on scatter-gather: on tx-scatter-gather: on tx-scatter-gather-fraglist: off [fixed] tcp-segmentation-offload: on tx-tcp-segmentation: on tx-tcp-ecn-segmentation: off [fixed] tx-tcp-mangleid-segmentation: off tx-tcp6-segmentation: on generic-segmentation-offload: on generic-receive-offload: on large-receive-offload: off rx-vlan-offload: on tx-vlan-offload: on ntuple-filters: off receive-hashing: on highdma: on [fixed] rx-vlan-filter: on vlan-challenged: off [fixed] tx-lockless: off [fixed] netns-local: off [fixed] tx-gso-robust: off [fixed] tx-fcoe-segmentation: off [fixed] tx-gre-segmentation: on tx-gre-csum-segmentation: on tx-ipxip4-segmentation: on tx-ipxip6-segmentation: on tx-udp_tnl-segmentation: on tx-udp_tnl-csum-segmentation: on tx-gso-partial: on tx-tunnel-remcsum-segmentation: off [fixed] tx-sctp-segmentation: off [fixed] tx-esp-segmentation: off [fixed] tx-udp-segmentation: on tx-gso-list: off [fixed] fcoe-mtu: off [fixed] tx-nocache-copy: off loopback: off [fixed] rx-fcs: off [fixed] rx-all: off tx-vlan-stag-hw-insert: off [fixed] rx-vlan-stag-hw-parse: off [fixed] rx-vlan-stag-filter: off [fixed] l2-fwd-offload: off hw-tc-offload: off esp-hw-offload: off [fixed] esp-tx-csum-hw-offload: off [fixed] rx-udp_tunnel-port-offload: on tls-hw-tx-offload: off [fixed] tls-hw-rx-offload: off [fixed] rx-gro-hw: off [fixed] tls-hw-record: off [fixed] rx-gro-list: off macsec-hw-offload: off [fixed] root@Tower:~# Quote Link to comment
Pstark Posted February 7, 2022 Author Share Posted February 7, 2022 @vr2gb This is what you requested. It’s connected to the 2.5g switch and plugged into the 10g NIC. Quote Link to comment
Vr2Io Posted February 8, 2022 Share Posted February 8, 2022 (edited) No abnormal found. Both mobo Z370 and B360 have same issue so it still look like network issue. Could you temporary static Unraid and test PC IP setting , then direct connect them and test again, pls ensure both end have same MTU in 1500. Edited February 8, 2022 by Vr2Io Quote Link to comment
Pstark Posted February 8, 2022 Author Share Posted February 8, 2022 16 hours ago, Vr2Io said: No abnormal found. Both mobo Z370 and B360 have same issue so it still look like network issue. Could you temporary static Unraid and test PC IP setting , then direct connect them and test again, pls ensure both end have same MTU in 1500. I’ll try what you said. Are you saying my router and computer should have the same MTU set to 1500? Not sure if my router can can be set (AmpliFi Alien). Quote Link to comment
Vr2Io Posted February 8, 2022 Share Posted February 8, 2022 The test were in local subnet, not relate to router, so confirm Unraid and PC/Mac in 1500 would be fine. Quote Link to comment
Pstark Posted February 9, 2022 Author Share Posted February 9, 2022 21 hours ago, Vr2Io said: The test were in local subnet, not relate to router, so confirm Unraid and PC/Mac in 1500 would be fine. I also have a PC on the same network that is getting the same speeds with Unraid. Quote Link to comment
Pstark Posted February 10, 2022 Author Share Posted February 10, 2022 On 2/8/2022 at 8:32 AM, Vr2Io said: The test were in local subnet, not relate to router, so confirm Unraid and PC/Mac in 1500 would be fine. I verified my Mac MTU and Unraid are both set to 1500. Both were already set so no change. Quote Link to comment
Solution Pstark Posted February 14, 2022 Author Solution Share Posted February 14, 2022 SOLVED Ultimately the issue was resolved. Problem was the fact that I had a CAT6 cable connecting two switches on my network. With several cables in the area where I keep these switches, I didn't realize that the cable was connecting the two switches. Quote Link to comment
