untan Posted March 30, 2022 Share Posted March 30, 2022 (edited) I am using Unraid 6.9.2 with changes in /lib/modules, /lib/firmware because I want to use less common devices with Docker containers. For customization, I used unraid-kernel-helper from ich999. I tried the other day to use hyper-v on a windows 10 vm, but it doesn't seem to work. I tried 6.10.0rc4. It worked like magic. I would like to incorporate the driver for the device into 6.10.0rc4. It seems that unraid-kernel-helper has been closed to the public. Why has it been closed to the public? I have no choice, so I am trying to build it by myself by trial and error. I understood the procedure regarding bzimage, bzmodules from the following page. https://forums.unraid.net/topic/82625-kernelcustom-kernel-build-with-treaks-20200307-v683558419108naviveganfsv4r8125zen2/ I would like some tips regarding bzfirmware. I would also like to understand the following pages https://wiki.unraid.net/Manual/Release_Notes/Unraid_OS_6.9.0#Better_Module.2FThird_Party_Driver_Support According to this description, the objective can be achieved without creating our own bz*. I checked with the mount command and found that the overlay is set as follows. ### /boot/bzfirmware on /lib/firmware type squashfs (ro,relatime,errors=continue) overlay on /lib/firmware type overlay (rw,relatime,lowerdir=/lib/firmware,upperdir=/var/local/overlay/lib/firmware,workdir=/var/local/overlay-work/lib/firmware) /boot/bzmodules on /lib/modules type squashfs (ro,relatime,errors=continue) overlay on /lib/modules type overlay (rw,relatime,lowerdir=/lib/modules,upperdir=/var/local/overlay/lib/modules,workdir=/var/local/overlay-work/lib/modules) ### is the upperdir, /var/local/overlay/* exists in ram and seems to disappear after reboot. How are nvidia drivers etc. working? Thank you in advance. Translated with www.DeepL.com/Translator (free version) Edited March 30, 2022 by untan Quote Link to comment
ich777 Posted March 30, 2022 Share Posted March 30, 2022 2 hours ago, untan said: Why has it been closed to the public? Because nowadays you can integrate almost everything with plugins and precompiled Kernel modules. Another reason is because the backup functionality from Unraid itself won't work with custom Kernels/modules. To close it down this was purely my decision because maintaining giving support for it was also sometimes a little hard for less experienced people. 2 hours ago, untan said: I would like to incorporate the driver for the device into 6.10.0rc4. Which or what driver(s) do you need? Maybe I can help with a custom package and if someone else can use it I can create a plugin. 2 hours ago, untan said: exists in ram and seems to disappear after reboot. Exactly, this is how Unraid works, everything from the bz* files on your USB Boot device is loaded on boot into RAM and executed from there and will be wiped after a reboot and will be again loaded into RAM on a new boot. 2 hours ago, untan said: How are nvidia drivers etc. working? As mentioned above they use precompiled packages with everything (and Kernel modules) included and they are installed on boot with a routine that loads the modules and so on. Keep in mind that is necessary to create new packages for every Unraid version (with the modules included) otherwise the driver plugins won't work. I've automated this process on my server for every driver plugin that is available that when a new Unraid version is found the build starts and the packages are built and uploaded to their corresponding repositories. Quote Link to comment
untan Posted March 30, 2022 Author Share Posted March 30, 2022 ich777, I am honored to hear back from you. I am helped by the packages you publish. I have a lot of respect for you. I am Japanese. I have a commercial TV tuner board built in to watch Japanese TV broadcasts. In order to get it to work, I need to build and incorporate the driver published in the following Git repository, which is maintained by others. https://github.com/nns779/px4_drv Unfortunately, there are few Japanese users of unraid and demand for it is low. But, If this problem cannot be solved, it is a very big problem for us to pass it on, because we cannot upgrade Unraid. Please help me. Thank you in advance. Quote Link to comment
ich777 Posted March 30, 2022 Share Posted March 30, 2022 44 minutes ago, untan said: I have a commercial TV tuner board built in to watch Japanese TV broadcasts. Can you give me a bit more information on this? Is or are these common tuners that are used over there? Maybe I could integrate this in my DVB Driver plugin. I also have to look into this if I can compile this since everything is in Japanese (at least I think)... Do you know other people that maybe can test this or can you create a post on the Japanese language sub Forums here on the Forums (at the bottom at the main Unraid Forums page). I don't know if there that many Japanese users from Unraid here: Click I would really like to make sure that this is working properly. 51 minutes ago, untan said: But, If this problem cannot be solved, it is a very big problem for us to pass it on, because we cannot upgrade Unraid. On what Unraid version are you currently? 51 minutes ago, untan said: ich777 Oh and if you want to mention me here so that I get a notification, make a @ and then write my forum name and click on the pop up: (I've stumbled over this by accident) Quote Link to comment
untan Posted March 30, 2022 Author Share Posted March 30, 2022 @ich777 The most major TV tuners in Japan are PT1, PT2, and PT3 boards from a manufacturer called EarthSoft. These drivers seem to be built in as standard if you have LinuxKernel3.18 or later. Unfortunately, these are no longer available and the market price is at a premium. Therefore, I am using a board called "PX-MLT8PE" from a manufacturer called "PLEX", which is still available at mass retailers. "PLEX", the manufacturer of this board, does not release the source code of drivers for Linux. Therefore, if you want to use this board with Linux, you have to use unofficial drivers made by volunteers. If you want to buy a new TV tuner board that works with Linux in Japan, you have to buy one from "PLEX". Using ich777's unraid-kernel-helper, I built the px4_drv mentioned earlier, based on 6.9.2, with "CUSTOM_MODE" enabled. I have been running unraid stably with bz* for more than a year. It was over a year ago, so I may have left some things out, but the general procedure should have been as follows. # clone git repository $ git clone https://github.com/nns779/px4_drv.git $ cd px4_drv # firmware extraction & install $ cd fwtool $ make $ wget http://plex-net.co.jp/plex/pxw3u4/pxw3u4_BDA_ver1x64.zip -O pxw3u4_BDA_ver1x64.zip $ unzip -oj pxw3u4_BDA_ver1x64.zip pxw3u4_BDA_ver1x64/PXW3U4.sys $ . /fwtool PXW3U4.sys it930x-firmware.bin $ sudo mkdir -p /lib/firmware $ sudo cp it930x-firmware.bin /lib/firmware/ # kernel module build & install $ cd ... /driver $ make $ make -C /lib/modules/5.8.13-Unraid/build M=/usr/src/px4_drv/driver modules $ make -C /lib/modules/5.8.13-Unraid/build M=/usr/src/px4_drv/driver INSTALL_MOD_DIR=kernel/drivers/misc/ modules_install I have friends who use this px4_drv on ubuntu_server and CentOS, but unfortunately no Unraid users. It is possible to create a post on the Japanese forum, but it does not look very promising due to the small number of users:( Quote Link to comment
ich777 Posted March 30, 2022 Share Posted March 30, 2022 21 minutes ago, untan said: $ make -C /lib/modules/5.8.13-Unraid/build M=/usr/src/px4_drv/driver INSTALL_MOD_DIR=kernel/drivers/misc/ modules_install You only install the Kernel module and the firmware file or am I wrong? In the installer is also a UDEV file included, do you installed that too on your system? Currently in the process of compiling the module and creating a basic package before I can integrate it somewhere. Quote Link to comment
ich777 Posted March 30, 2022 Share Posted March 30, 2022 @untan wouldn't it be better to build it from the latest develop branch instead of master, it has various fixes for newer tuners from what I see in their Github? Quote Link to comment
untan Posted March 30, 2022 Author Share Posted March 30, 2022 @ich777 I apologize. I don't have a good understanding about linux and what UDEV refers to. In unraid_kernel_helper, the only additional processing I have done is what I wrote above. I may have done an "apt install *" to add build dependencies. I'm not sure if this will help, but I'm attaching my custom 6.9.2 bzmodules and bzfirmware that I have running on my computer right now. Sorry for the trouble you are going through. Thank you for your kind response. Thank you in advance for your help. bzfirmware bzmodules Quote Link to comment
untan Posted March 30, 2022 Author Share Posted March 30, 2022 @ich777 You are right. My apologies. I omitted to mention it. It should be from the develop branch. Quote Link to comment
ich777 Posted March 30, 2022 Share Posted March 30, 2022 3 minutes ago, untan said: I'm not sure if this will help, but I'm attaching my custom 6.9.2 bzmodules and bzfirmware that I have running on my computer right now. You've only replaced bzmodules and bzfirmware and not bzroot on your currently running machine am I right? Do you have to do any modprobe or anything or is the tuner recognized on boot without any intervention by you? For what Unraid version did you prefer a prebuild package for testing? I have currently compiled it for 6.9.2 but can also compile it for 6.10.0-rc4 if that's what you are after. After everything is working fine I can implement this in the DVB Driver plugin, but some manual testing is needed first to make sure everything is working fine. Quote Link to comment
untan Posted March 30, 2022 Author Share Posted March 30, 2022 @ich777 Sorry. I was replacing the bzroot with the file output by unraid_kernel_helper. Due to the large file size, I can't seem to attach it. Please use 6.10.0rc4 by all means. Quote Link to comment
ich777 Posted March 30, 2022 Share Posted March 30, 2022 2 minutes ago, untan said: Please use 6.10.0rc4 by all means. I will send you a Private Message here on the forums when I have a package available for testing with instructions on how to install and test it. Give me a bit please. Quote Link to comment
untan Posted March 30, 2022 Author Share Posted March 30, 2022 Thank you very much. We look forward to seeing you. Quote Link to comment
ich777 Posted March 30, 2022 Share Posted March 30, 2022 12 minutes ago, untan said: We look forward to seeing you. Message sent. Quote Link to comment

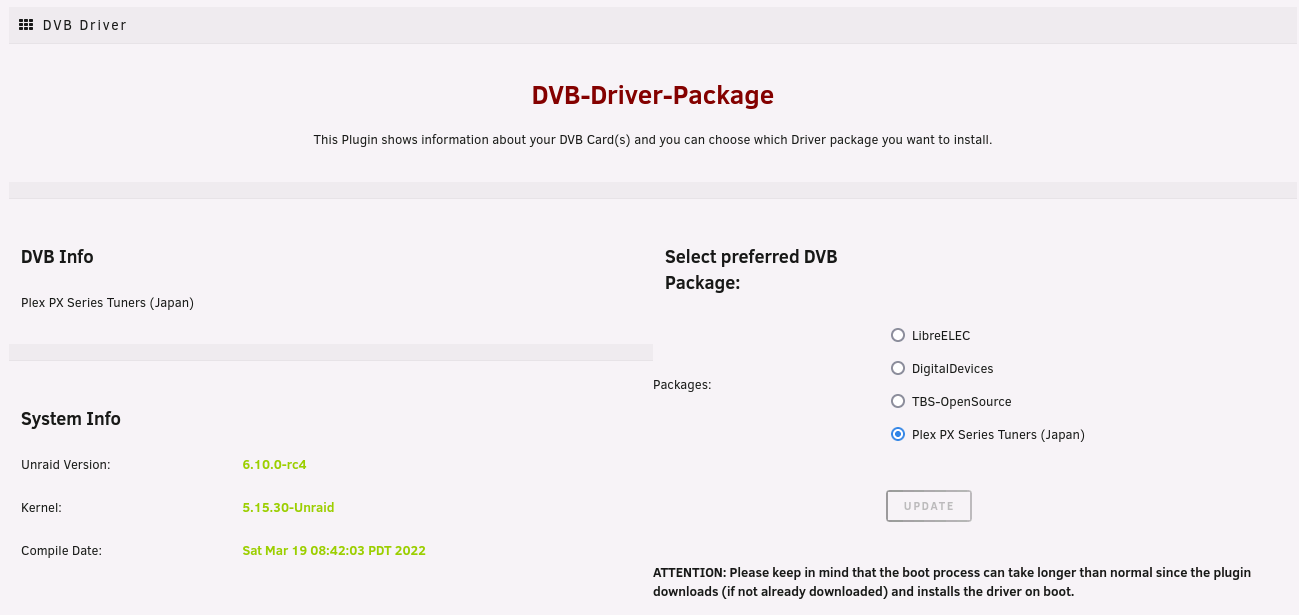

ich777 Posted March 30, 2022 Share Posted March 30, 2022 @untan Plex PX Series Tuners (Japan) are now available in the DVB Driver plugin (currently for Unraid 6.9.2 & 6.10.0-rc4 and will also be compiled for the coming Unraid versions): Please update or install the plugin and make sure that the plugin version is 2022.03.30, select the Plex PX Series Tuners (Japan), click Update and restart your server. 1 Quote Link to comment

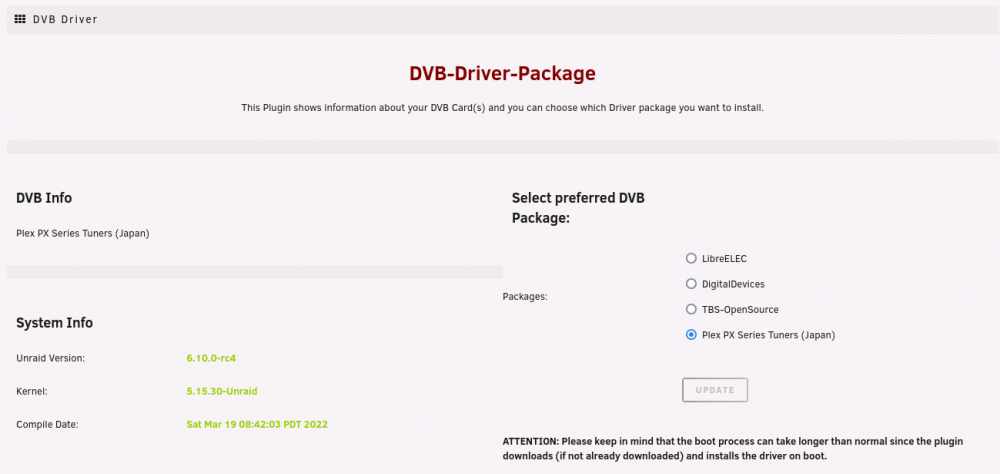

untan Posted March 31, 2022 Author Share Posted March 31, 2022 (edited) @ich777 The plugin is working fine with 6.10.0rc4. Thank you very much. Edited March 31, 2022 by untan 1 Quote Link to comment
