SAS Drives -- Unmountable

[Jacob W]

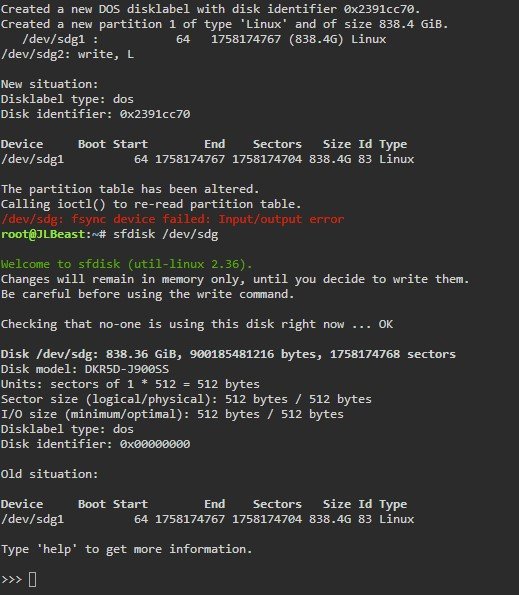

Hi, I am somewhat a novice to UnRaid. I have been running a server for a few years but for basic stuff. i bought a new server (Dell R810) and picked up HGST 900gb SAS drives for it. I am having the hardest time getting them into the array. No matter what i do i get an error "Unmountable: Unsupported Partition layout". I have googled and searched here and nothing seems to work. So far i have changed them from 520 to 512 block size. I have attempted to allow unraid to format them. I have formatted them with UD on destructive mode. attempts to pre-clear fail. i have used the sfdisk command to see if that works. I am basically trying everything. I have attached my diagnostics info. the only thing i can see is that the disks still list a format of DOS with sfdisk instead of GPT or MBR. Any help would be amazing.

jlbeast-diagnostics-20220420-1106.zip

[JorgeB]

Often SAS drives come with some kind of format or encryption protection, see below if any of these help:



https://forums.unraid.net/topic/93432-parity-disk-read-errors/?do=findComment&comment=864078

https://forums.unraid.net/topic/110835-help-with-a-sas-drive/

[Jacob W]

Sorry i forgot all the steps i completed. I did remove the protection with that post already.



I am also running an H200 controller in IT mode to pass all 6 drives through.

[JorgeB]

There appears to still be something preventing any writes to the devices.

[Jacob W]

Ok. Grrr. Looking at the posts that you linked and running through them again. I will update when i complete them



[Jacob W]

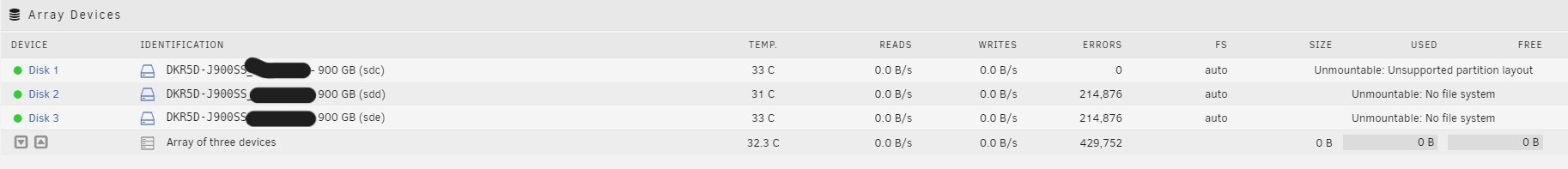

After most of the day trying different commands, i am seeing that there is no protection on the drives. However they still won't format. Diagnostics and screenshot attached.  Any ideas?

jlbeast-diagnostics-20220420-2143.zip

Edited April 21, 2022 by Jacob W
